Продукт бүттүview
The Hosa CPR-201 cable is designed to connect devices with dual 1/4 inch TS outputs to devices with dual RCA inputs. This cable is ideal for integrating professional audio equipment, such as mixers, into consumer stereo systems or home studios. Its construction ensures reliable signal transfer and durability.

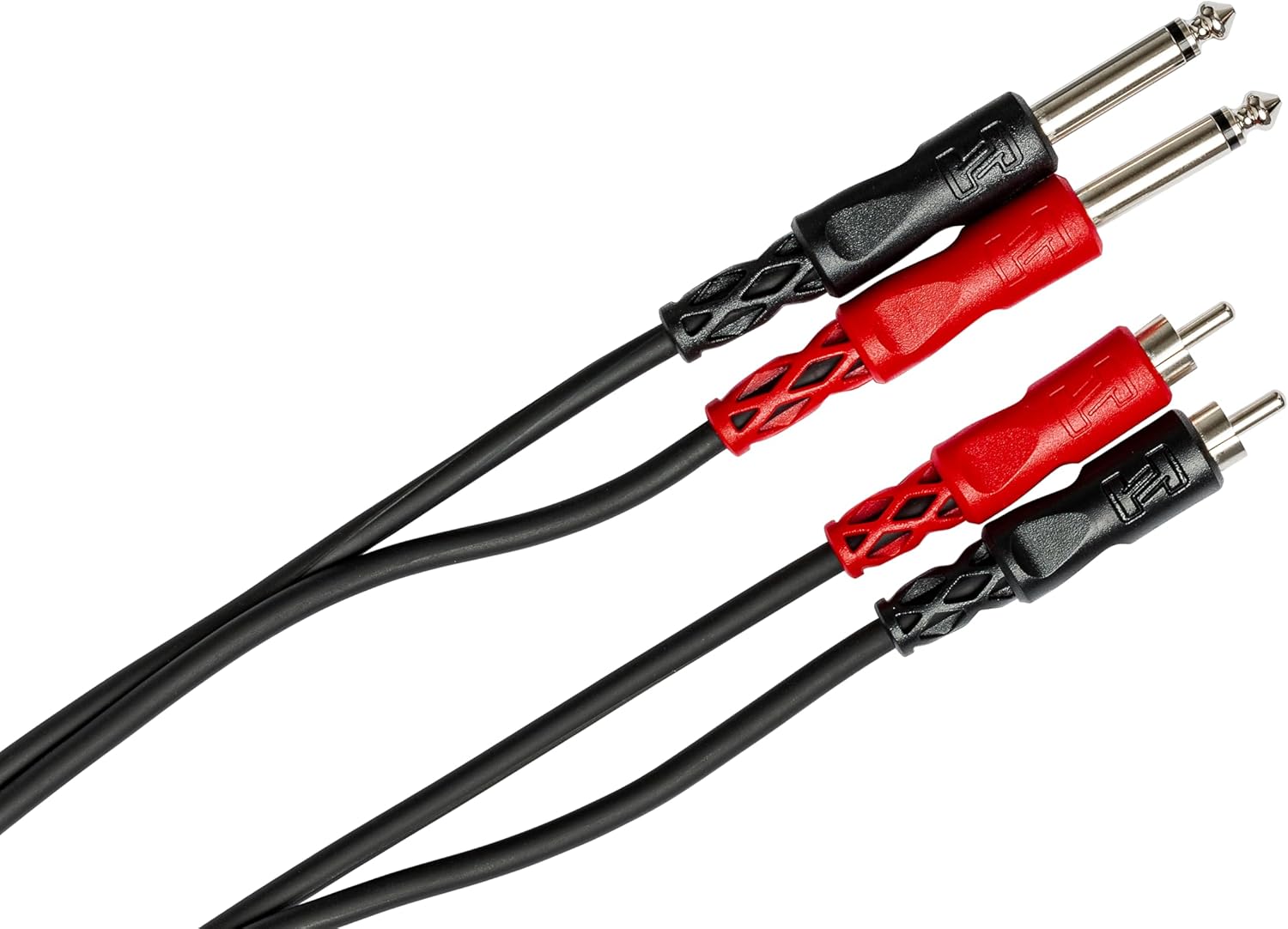

Image: The Hosa CPR-201 cable featuring dual 1/4 inch TS connectors and dual RCA connectors.
Негизги өзгөчөлүктөрү
- Stereo Breakout Essential: Converts dual 1/4" TS outputs to dual RCA inputs, perfect for connecting mixers to stereo systems.
- High-Quality Audio Transfer: Oxygen-free copper (OFC) conductors ensure exceptional sound clarity and detail.
- Күчтүү жана ишенимдүү: Features molded connectors for superior strain relief and long-lasting durability.
- Effective Noise Rejection: Spiral shielding helps eliminate electromagnetic and radio frequency interference.
- Ийкемдүү орнотуу параметрлери: Available in a range of configurations to suit various audio connections.
Орнотуу нускамалары
Follow these steps to properly connect your Hosa CPR-201 cable:
- Туташтыргычтарды аныктоо: The cable has two 1/4 inch TS (Tip-Sleeve) connectors, typically used for unbalanced mono signals, and two RCA connectors, commonly used for consumer audio. The connectors are color-coded (red for right, black for left) for easy identification.
- Connect 1/4 Inch TS Ends: Plug the two 1/4 inch TS connectors into the corresponding output jacks of your source device (e.g., a mixer's main outputs). Ensure a firm connection.
- Connect RCA Ends: Plug the two RCA connectors into the corresponding input jacks of your destination device (e.g., a stereo receiver, powered speakers). Match the red connector to the right input and the black connector to the left input.
- Коопсуз байланыштар: Verify that all connections are secure to prevent signal loss or interference.
Сүрөт: жакын план view of the red and black 1/4 inch TS and RCA connectors on the Hosa CPR-201 cable.
Визуалдык орнотуу боюнча колдонмо
Video: This video demonstrates the physical characteristics of the Hosa CPR-201 cable and provides a visual guide on how to connect it to audio equipment, specifically showing connection from a digital-to-analog converter to powered speakers. It highlights the cable's construction and ease of use.
Иштөө көрсөтмөлөрү
Once connected, ensure your audio devices are powered on and set to the correct input/output channels. The Hosa CPR-201 cable is designed for straightforward signal transmission without requiring additional configuration. Always start with low volume levels on your destination device and gradually increase to a comfortable listening level.
Image: The Hosa CPR-201 cable showing the distinct red and black molded connectors for stereo audio.
Кароо жана тейлөө
To ensure the longevity and optimal performance of your Hosa CPR-201 cable, follow these care instructions:
- Сактагыч: When not in use, coil the cable loosely. Avoid tight coiling or sharp bends, which can damage the internal conductors and shielding.
- Тазалоо: Keep the connectors clean and free of dust or debris. Use a soft, dry cloth to wipe them if necessary. Avoid using harsh chemicals.
- Колдонуу: Always grasp the connector housing when plugging or unplugging the cable, rather than pulling on the cable itself. This prevents strain on the cable-to-connector joint.
- Курчап турган чөйрө: Кабелди өтө жогорку температурага, түз күн нуруна же ашыкча нымдуулукка дуушар кылбаңыз.
Image: The Hosa CPR-201 cable coiled for storage, demonstrating proper handling to prevent damage.
Проблемаларды чечүү
If you encounter issues with your Hosa CPR-201 cable, consider the following:
- Аудио сигнал жок:
- Бардык туташуулардын коопсуз жана толук киргизилгендигин текшериңиз.
- Verify that both source and destination devices are powered on and set to the correct input/output channels.
- Check the volume levels on all connected devices.
- Test with another known working cable to rule out device issues.
- Ызы-чуу же ызы-чуу:
- Кабель кубат кабелдерине же башка электромагниттик тоскоолдуктарга параллелдүү эмес экенин текшериңиз.
- The cable features spiral shielding to reduce noise; however, in environments with significant RF interference, some noise may still occur.
- Try connecting devices to the same power outlet or using a power conditioner to minimize ground loops.
- Үзүлгүс сигнал:
- Кабель же туташтыргычтарда көрүнгөн зыяндын бар-жоктугун текшериңиз.
- Ensure connectors are clean and free of corrosion.
Image: A wiring diagram illustrating the internal construction of the Hosa CPR-201 cable, highlighting the shielded design for noise prevention.
Техникалык мүнөздөмөлөр
| Өзгөчөлүк | Description |
|---|---|
| Модель номери | CPR-201 |
| Туташтыргыч түрү | Dual 1/4" TS Male to Dual RCA Male |
| Кабель түрү | Stereo Interconnect (AUX) |
| Кабелдин узундугу | 3.3 фут (болжол менен 1 метр) |
| Кондукторлор | Oxygen-Free Copper (OFC) |
| Калкалоо | Spiral Shielding |
| Туташтыргычтар | Калыпталган |
| Сырткы материал | PVC or rubber |
| Түс | Кара |
| Элемент Салмагы | 2.1 унция |
| Шайкеш түзмөктөр | Musical Instruments, Mixers, Stereo Systems, Powered Speakers |
Кепилдик маалымат
Hosa Technology, Inc. warrants all Hosa cables and adapters purchased in the USA to be free of defects in material and workmanship for the lifetime of the original purchaser. This warranty does not cover misuse of the product.
Image: The Hosa USA Warranty shield logo, indicating the product's warranty coverage.
Кардарларды колдоо
For further assistance, technical support, or warranty claims, please visit the official Hosa webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактаңыз.
Official Hosa Webсайт: www.hosatech.com
