1. Продукт бүтүп калдыview
The KOHLER K-8013-CP WaterTile Round 27-Nozzle Body Spray is designed to provide an invigorating hydrotherapy experience. This body spray features a low-profile design that integrates seamlessly with various bathroom decors, lying virtually flush to the wall. It is equipped with 27 nozzles to deliver a high-volume, stimulating spray.
- Single-function 27-nozzle body spray: Delivers a stimulating spray pattern.
- Fully adjustable spray face: Pivots for targeted hydro massage, allowing for versatile installation options.
- Төмөн профессионалfile дизайн: Complements various bathroom aesthetics.
- MasterClean™ spray nozzles: Оңой тазалоо жана тейлөө үчүн иштелип чыккан.
- 1/2-Inch NPT connections: Standard plumbing connections for installation.

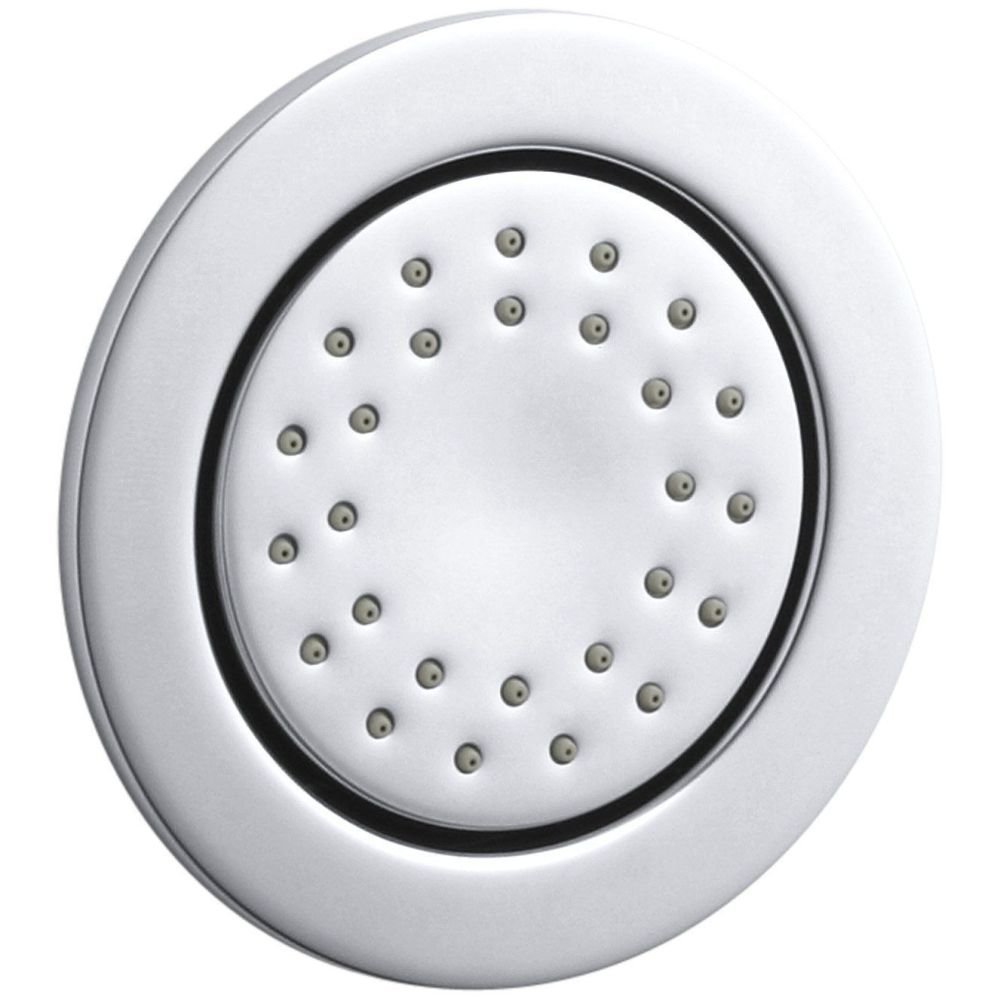

Figure 1: KOHLER K-8013-CP WaterTile Round 27-Nozzle Body Spray. This image shows the complete body spray unit in its polished chrome finish.
2. Орнотуу жана орнотуу
Proper installation is crucial for the optimal performance of your WaterTile body spray. It is recommended that installation be performed by a qualified plumber in accordance with local plumbing codes.
2.1 Орнотууга чейинки кароолор
- Ensure all necessary plumbing lines are in place and accessible.
- Verify that the water supply is turned off before beginning installation.
- Confirm that the wall surface is prepared for flush-mount installation.
2.2 Орнотуу кадамдары (Жалпы)
- Сантехниканы даярдоо: Connect the 1/2-inch NPT supply line to the body spray's inlet. Ensure all connections are watertight using appropriate sealants.
- Mount Body Spray: Secure the body spray housing into the wall opening. The design allows for a virtually flush installation.
- Кесүүнү бекитүү: Install the decorative trim plate and spray face, ensuring it is properly aligned and secured.
- Сыноо байланыштары: Суу менен камсыз кылууну күйгүзүңүз жана агып кетпегендигин текшериңиз.
Figure 2: Component view of the WaterTile Body Spray. This image highlights the internal structure or a specific part of the body spray, demonstrating its compact design for flush installation.
3. Операция
The WaterTile body spray is designed for simple operation, providing a consistent and targeted massage spray.
3.1 Activating the Body Spray
The body spray is activated via your shower's diverter or control valve. Consult your shower system's manual for specific instructions on how to divert water flow to the body spray.
3.2 Adjusting the Spray Face
The spray face of the WaterTile body spray is fully adjustable. You can pivot the spray face to direct the water flow to your desired area, allowing for a customized hydro massage experience.
Figure 3: Water spray pattern from the WaterTile Body Spray. This image illustrates the invigorating, high-volume spray delivered by the 27 nozzles.
Video 1: Demonstration of WaterTile Round Targeted Massage Spray. This video visually demonstrates the powerful and targeted water flow from the KOHLER WaterTile Round body spray, highlighting its massage spray function.
4. Кароо жана тейлөө
Regular cleaning will help maintain the appearance and performance of your KOHLER WaterTile body spray.
4.1 Бетти тазалоо
- Жылтыратылган хром жабууну жумшак менен тазалаңыз, гamp кездеме.
- Абразивдүү тазалагычтардан, сүртүүчү жайлардан же катуу химиялык заттардан алыс болуңуз, анткени алар финишке зыян келтириши мүмкүн.
- Кесилген тактар үчүн жумшак самын эритмесин колдонуп, жакшылап чайкаңыз.
4.2 Cleaning MasterClean™ Nozzles
The MasterClean™ spray nozzles are designed for easy lime scale removal. Simply wipe the rubber nozzles with your finger or a soft cloth to dislodge mineral buildup.
5. Кыйынчылыктарды
If you experience issues with your WaterTile body spray, refer to the common problems and solutions below.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Low water pressure from body spray | Partially closed supply valve; Clogged nozzles; Low household water pressure. | Ensure supply valve is fully open; Clean MasterClean™ nozzles; Consult a plumber to check household water pressure. |
| Water leaks around the body spray trim | Improperly sealed connections; Damaged O-rings or gaskets. | Turn off water supply and re-check all plumbing connections for proper sealing; Inspect and replace any damaged O-rings or gaskets. |
| Суу агымы жок | Water supply turned off; Diverter not fully engaged. | Ensure main water supply is on; Verify shower diverter is correctly set to direct water to the body spray. |
If the problem persists after attempting these solutions, please contact KOHLER customer service or a qualified plumber.
6. Продукттун спецификациялары
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Колер |
| Модель номери | K-8013-CP |
| Стиль | Classic |
| Форма | Тегерек |
| Аяктоо түрү | Жылмаланган |
| Түс | Жылтыратылган Chrome |
| Орнотуулардын саны | 1 (Massage) |
| Jets саны | 27 |
| Туташуу өлчөмү | 1/2-Inch NPT |
| Элемент Салмагы | 1.85 фунт |
| Өндүрүүчү | KOHLER |
| ASIN | B001F7IG8K |
| GTIN/UPC | 650531594709 |
7. Кепилдик жана Кардарларды колдоо
7.1 Өндүрүүчүнүн кепилдиги
Бул KOHLER продуктусу төмөнкүлөр менен камтылган Өмүр бою чектелген кепилдик. Please refer to the official KOHLER warranty documentation for full terms and conditions, including coverage details and limitations.
7.2 Кардарларды колдоо
For technical assistance, replacement parts, or warranty claims, please contact KOHLER customer service directly. You can find contact information on the official KOHLER webсайт же продукт сатылып алынган сатуучу аркылуу.
KOHLER Webсайт: www.kohler.com
