HJC i100 модулдук мотоцикл туулгасын колдонуучунун колдонмосу

1. Киришүү

Thank you for choosing the HJC i100 Modular Motorcycle Helmet. This manual provides essential information for the safe and proper use, maintenance, and care of your helmet. Please read it thoroughly before using your helmet and retain it for future reference. The HJC i100 is designed to offer versatility and protection for various riding conditions.

2. Коопсуздук маалыматы

Your safety is paramount. The HJC i100 helmet is engineered to meet rigorous safety standards.

• DOT FMVSS 218 Certified: This helmet complies with US Federal Motor Vehicle Safety Standard 218 (FMVSS 218). It has undergone extensive testing for energy absorption, penetration resistance, and chin strap structural integrity to ensure maximum protection.
• Сунуш 65 Эскертүү: Бул өнүмдүн курамында Калифорния штаты ракка жана тубаса кемтиктерге же башка репродуктивдик зыяндарга алып келүүчү химиялык заттар болушу мүмкүн.

Always ensure the helmet fits correctly and the chin strap is securely fastened before riding. Never modify your helmet, as this can compromise its protective capabilities.

Image: Illustration of DOT FMVSS 218 approval for the HJC i100 helmet, highlighting testing standards.

3. Продукт бүтүп калдыview жана өзгөчөлүктөрү

The HJC i100 is a modular motorcycle helmet designed for comfort, safety, and adaptability.

3.1 Негизги компоненттер

• Өркүндөтүлгөн поликарбонат композиттик кабыгы: Crafted using CAD technology for a lightweight, comfortable, and superior fit.
• HJ-36 Pinlock Ready Shield: Provides 99% UV protection and features an anti-scratch coating.
• Integrated HJ-V11 Sun Visor: An anti-fog coated clear vision internal dark smoke sun visor for varying light conditions.
• Full-Rotation Chin Bar: Allows for effortless transitions between open-face and full-face configurations.
• Moisture-Wicking Interior: Features a quick-drying liner with removable and washable cheek and crown pads.
• Өркүндөтүлгөн каналдык желдетүү системасы (ACS): Top vents and 2-step toggle lower vents ensure efficient airflow.
• SMART HJC Bluetooth System Ready: Compatible with SMART HJC 20B and 10B Bluetooth communication systems (sold separately).

Сүрөт: каптал view of the HJC i100 helmet, showcasinанын модулдук дизайны.

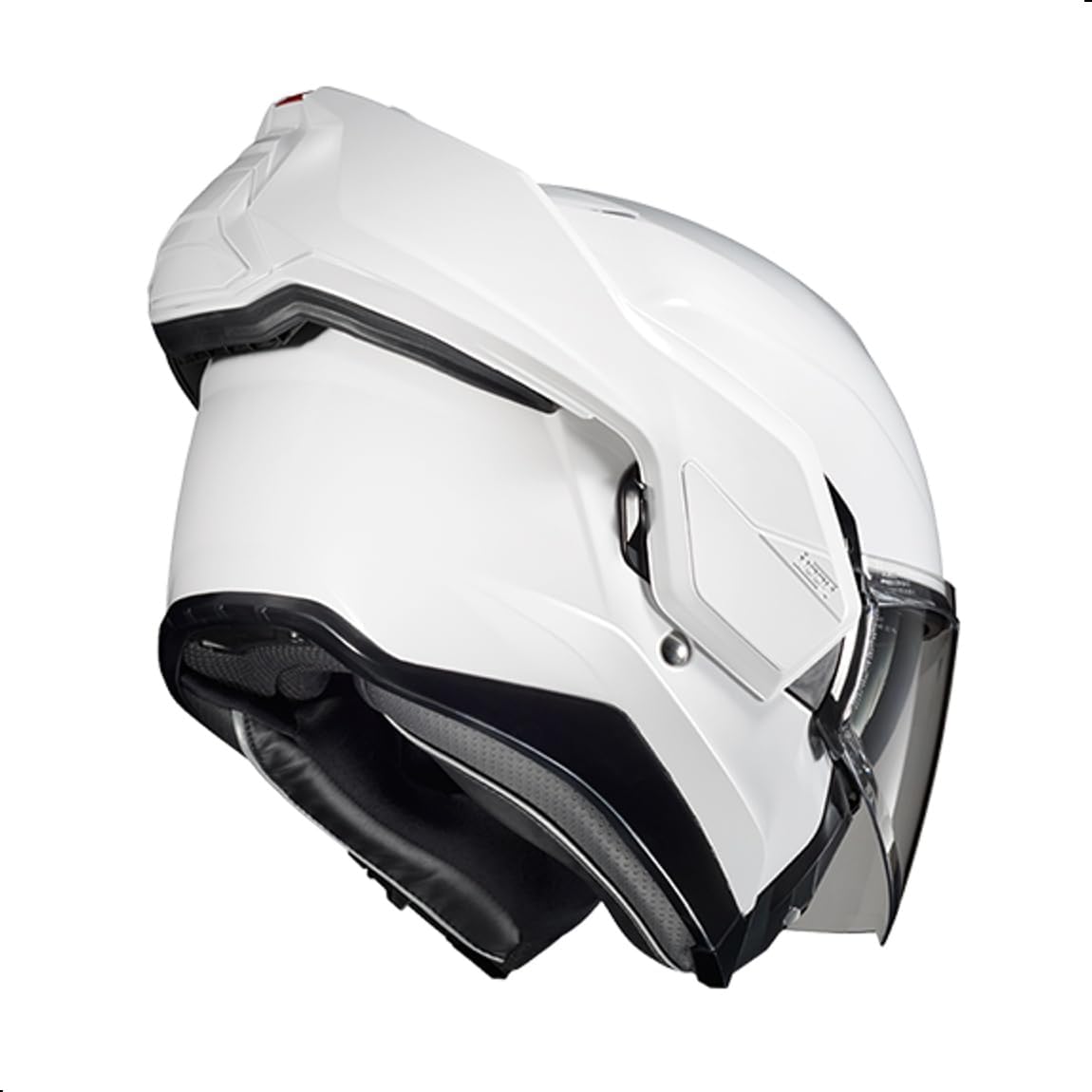

Image: HJC i100 helmet with the chin bar in the fully rotated open-face position.

4. Орнотуу

4.1 Туулга орнотуу

A properly fitting helmet is crucial for safety. To determine your size, measure the circumference of your head at its largest point, approximately one inch above your eyebrows. Refer to the HJC size guide for specific measurements. The helmet should fit snugly around your head without causing pressure points. It should not move freely when you shake your head.

4.2 Shield Installation and Adjustment

The HJ-36 shield features a quick, secure Shield Ratchet System for easy installation and removal. Ensure the shield is properly seated in the mechanism on both sides. The integrated HJ-V11 sun visor operates independently. For Pinlock installation, follow the instructions provided with the Pinlock insert to ensure a proper seal against fogging.

4.3 SMART HJC Bluetooth System (Optional)

The HJC i100 is designed to integrate with SMART HJC Bluetooth communication systems (sold separately). Follow the specific installation instructions provided with your SMART HJC unit for proper setup and pairing.

Image: The SMART HJC Bluetooth system integrated into the helmet shell.

5. Операция

5.1 Chin Bar Operation

The i100 features a full-rotation chin bar. To raise the chin bar, locate the release mechanism, typically at the front center of the chin bar, and activate it. Rotate the chin bar upwards and backwards until it locks securely into the open-face position. To return to full-face mode, release the chin bar from its locked position and rotate it forward until it clicks firmly into place.

5.2 Visor and Sun Visor Use

The clear HJ-36 shield can be raised or lowered using the tab located at the bottom center. The integrated HJ-V11 dark smoke sun visor is operated by a slider mechanism, usually on the left side of the helmet. Extend the sun visor for glare protection and retract it when not needed or in low light conditions.

Image: The HJ-36 shield, offering UV protection and Pinlock readiness.

5.3 Вентиляция системасы

The Advanced Channeling Ventilation System (ACS) includes adjustable top vents and 2-step toggle lower vents. Open these vents to allow cool air intake and exhaust hot, humid air, enhancing rider comfort. Adjust the vents according to weather conditions and riding speed.

Image: Diagram of the Advanced Channeling Ventilation System (ACS).

6. Техникалык тейлөө

6.1 Ички тазалоо

The moisture-wicking interior features removable and washable cheek and crown pads. Carefully remove these pads according to the helmet's design. Hand wash them with mild soap and lukewarm water, then air dry completely before reinstallation. Do not machine wash or tumble dry.

Image: Close-up of the Supercool interior fabric, designed for comfort and hygiene.

6.2 Exterior and Shield Cleaning

Clean the helmet's exterior shell with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents, which can damage the finish. For the HJ-36 shield, use a soft, damp cloth and mild soap. Do not use harsh chemicals, as they can compromise the anti-scratch coating and UV protection. For the Pinlock insert, clean gently with water and a soft cloth; avoid rubbing the inner surface.

6.3 Сактоо

Шлемиңизди күн нурунан жана экстремалдык температурадан алыс, салкын, кургак жерде сактаңыз. Аны чийиктен жана чаңдан коргоо үчүн каска баштыгын колдонуңуз.

7. Кыйынчылыктарды

• Visor Detachment: If the visor detaches during use, ensure it is correctly aligned and securely clicked into the Shield Ratchet System on both sides. Inspect the ratchet mechanism for any damage.
• Improper Fit/Discomfort: If the helmet feels too tight or causes pressure points, re-verify your head measurement against the HJC size chart. Consider trying a different size or utilizing interchangeable cheek pads for a customized fit.
• Excessive Noise/Draft: While the i100 is designed for good ventilation, ensure all vents are closed if you experience excessive draft in cold weather. Check that the visor and chin bar are fully closed and sealed.
• Тумандоо: Ensure the Pinlock insert is correctly installed and sealed against the main shield. If fogging persists, check for damage to the Pinlock seal or consider replacing the insert.

8. Техникалык шарттар

9. Кепилдик жана колдоо

For information regarding warranty coverage, claims, or technical support, please refer to the official HJC Helmets website or contact HJC customer service directly. Keep your purchase receipt as proof of purchase.

HJC Helmets Official Webсайт: www.hjchelmets.com
