1. Киришүү
This manual provides essential information for the safe and efficient operation, maintenance, and care of your Miele S7210 Twist Upright Vacuum Cleaner. Please read these instructions thoroughly before using the appliance for the first time to prevent damage and ensure optimal performance. The Miele S7210 Twist features patented SwivelNeck technology for enhanced maneuverability, automatic height adjustment, and Miele's AirClean Sealed System for superior filtration.
2. Коопсуздук нускамалары
Чаң соргучту колдонууда ар дайым төмөнкү коопсуздук чараларын сактаңыз:
- Колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
- Unplug the vacuum cleaner from the electrical outlet before performing any maintenance, cleaning, or changing accessories.
- Чаң соргучту суюктуктарды, тез күйүүчү же күйүүчү материалдарды же ысык күлдү чогултуу үчүн колдонбоңуз.
- Чачты, кенен кийимдерди, манжаларды жана дененин бардык бөлүктөрүн тешиктерден жана кыймылдуу бөлүктөрдөн алыс кармаңыз.
- Балдарга чаң соргучту иштетүүгө уруксат бербеңиз. Балдардын жанында колдонулганда тыкыр көзөмөл керек.
- Use only as described in this manual and with manufacturer's recommended attachments.
- Бузулган шнур же сайгыч менен колдонбоңуз. Эгерде шайман талаптагыдай иштебесе, кулап, бузулуп, көчөдө калып же сууга түшүп калса, аны тейлөө борборуна кайтарыңыз.
3. Пакеттин мазмуну
Таңгакта бардык компоненттер бар экенин текшериңиз:
- Miele S7210 Twist Upright Vacuum Cleaner Unit
- Ассамблея туткасы
- Интегралдык чаң щеткасы
- Integrated Upholstery Tool
- Integrated Crevice Nozzle
- Электр кабели
- Instruction Manual
4. Орнотуу
4.1 Иштетүү тутуму
To assemble your Miele S7210 Twist, simply insert the handle into the designated slot on the main vacuum unit until it clicks securely into place. Ensure the handle is firmly seated before operation.

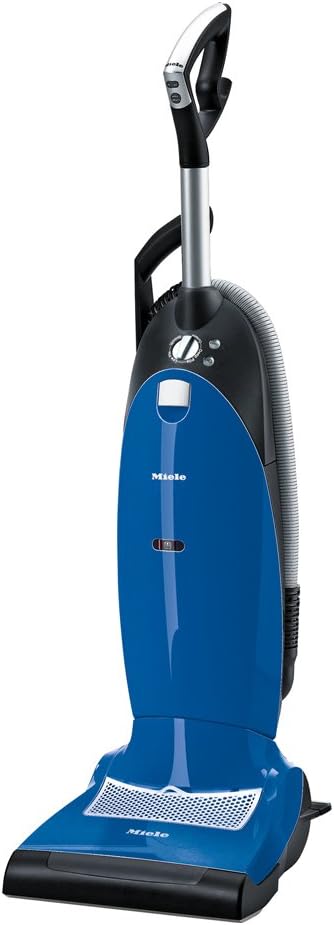

Image: The Miele S7210 Twist Upright Vacuum Cleaner shown fully assembled, ready for use.
4.2 Dustbag Installation
Your vacuum cleaner comes with a dustbag pre-installed. When replacing, ensure the new Miele AirClean dustbag is correctly inserted into the dustbag compartment. Close the compartment cover firmly until it latches.
Image: A hand demonstrates the proper way to insert a new Miele AirClean dustbag into the vacuum cleaner's compartment.
5. Иштөө нускамалары
5.1 Күйгүзүү/өчүрүү
Plug the power cord into a suitable electrical outlet. Press the 'On/Off' button located on the handle to start or stop the vacuum cleaner. The brush roll can be activated or deactivated using the 'Carpet/Floor' button, also on the handle, to suit different floor types.
Сүрөт: деталдуу view of the vacuum cleaner's handle, showing the 'On/Off' and 'Carpet/Floor' control buttons for easy access during operation.
5.2 Maneuvering the Vacuum
The Miele S7210 Twist features patented SwivelNeck technology, allowing for exceptional maneuverability around furniture and obstacles. Simply twist the handle to steer the vacuum in the desired direction. The vacuum also features automatic height adjustment, adapting to various carpet pile depths and hard floors.
Image: A woman demonstrates the ease of use and maneuverability of the Miele S7210 Twist Upright Vacuum Cleaner on a hard floor surface.
5.3 Suction Control
Adjust the suction power using the rotary dial located on the main unit. Select the appropriate setting for your cleaning task:
- Deep Pile: For thick carpets and rugs.
- Low Pile: For low-pile carpets and general cleaning.
- Пардалар: Reduced suction for delicate fabrics and drapes.
- түздө: Full suction for hard floors and heavily soiled areas.
Сүрөт: жакын план view of the rotary dial on the vacuum cleaner, illustrating the various suction settings for different cleaning applications.
5.4 Интеграцияланган куралдарды колдонуу
The Miele S7210 Twist includes integrated dusting brush, upholstery tool, and crevice nozzle for versatile cleaning. To use an attachment, detach the hose from its storage position and connect the desired tool to the end of the hose or extension wand.

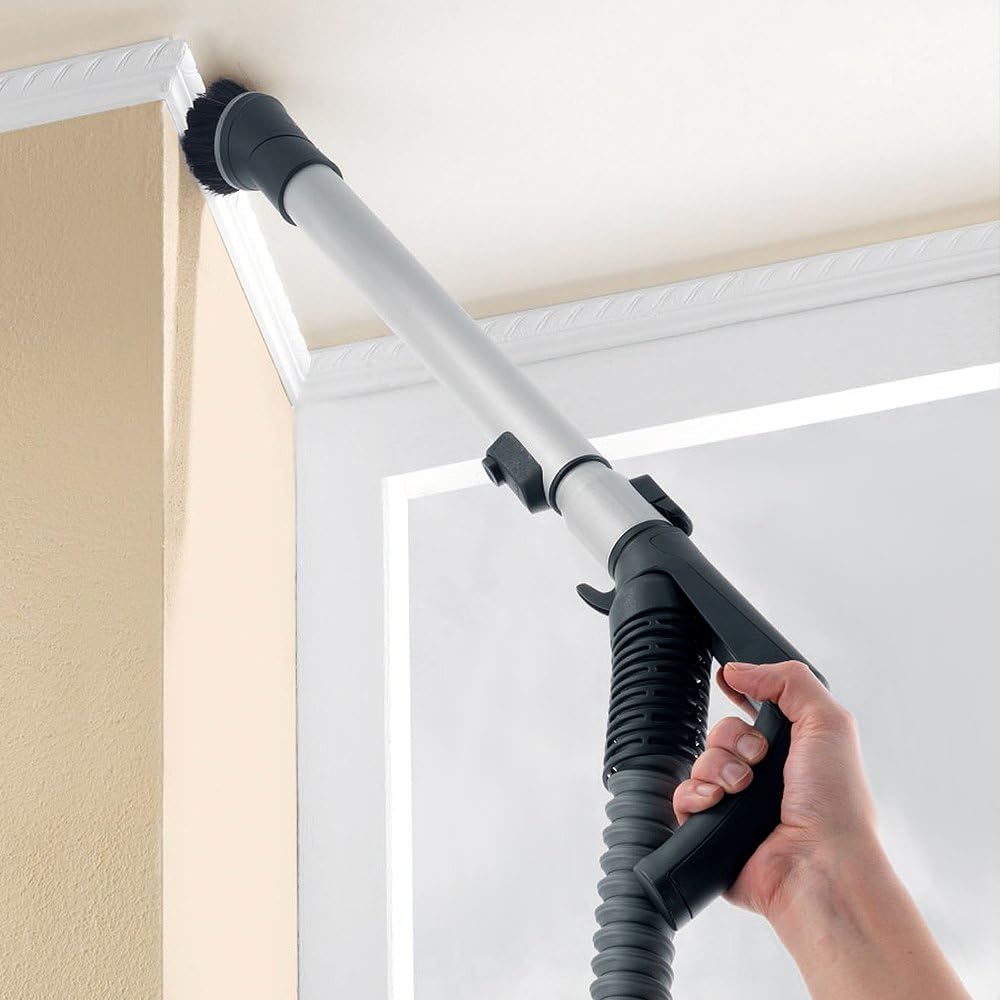

Image: An individual uses the extension wand with a brush attachment to clean dust from a high ceiling corner, demonstrating the reach of the tools.

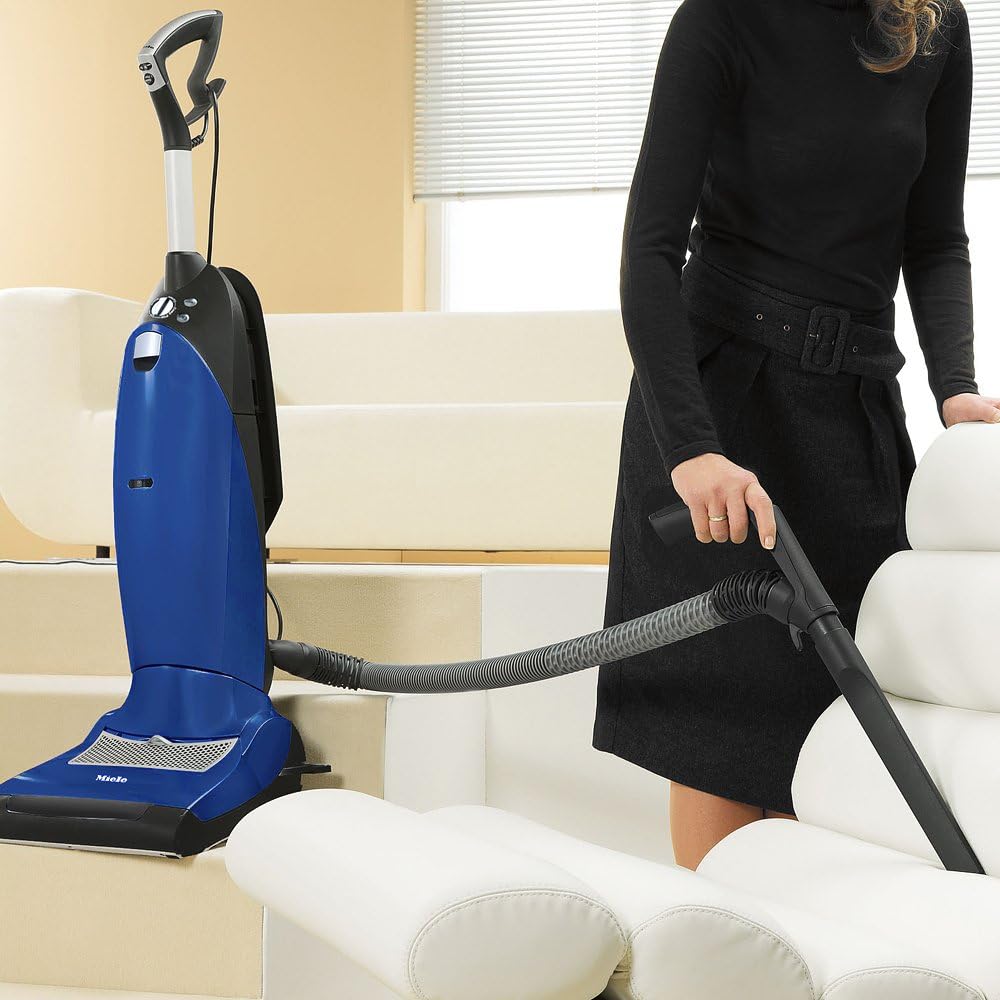

Image: A person is shown using the vacuum's flexible hose and crevice tool to clean between sofa cushions, highlighting its utility for upholstery.
6. Техникалык тейлөө
6.1 Чаң баштыгын алмаштыруу
Replace the dustbag when the dustbag change indicator signals it is full, or when suction power noticeably decreases. Always use genuine Miele AirClean dustbags for optimal performance and filtration.
- Чаң соргуч розеткадан ажыратылганын текшериңиз.
- Open the dustbag compartment.
- Carefully remove the full dustbag, ensuring the hygiene cap closes automatically.
- Insert a new Miele AirClean dustbag, ensuring it is correctly seated.
- Close the dustbag compartment cover firmly.
6.2 Фильтрди алмаштыруу
The Miele S7210 Twist utilizes an Air Clean Filter system. The standard filter is typically replaced with each box of dustbags. For enhanced filtration, an optional HEPA filter can be purchased and installed. Refer to the filter packaging for specific replacement intervals.
6.3 Тиркемелерди тазалоо
Regularly inspect and clean the integrated dusting brush, upholstery tool, and crevice nozzle. Remove any accumulated debris, hair, or lint to maintain effective cleaning performance.
7. Кыйынчылыктарды
If you encounter issues with your Miele S7210 Twist, consult the following common troubleshooting steps:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Вакуум күйбөйт. | Электр энергиясы жок. | Сайгычтын розеткага бекем сайылганын текшериңиз. Розетканы башка шайман менен текшериңиз. |
| Соруу күчүн жоготуу. | Full dustbag, clogged hose/filter, or brush roll obstruction. | Replace the dustbag. Check the hose and filters for blockages. Clear any obstructions from the brush roll. |
| Щетка түрмөгү айланбайт. | Brush roll switch off, obstruction, or belt issue. | Ensure the 'Carpet/Floor' button is engaged for carpet mode. Check for hair or debris wrapped around the brush roll. If the issue persists, contact Miele service. |
| Иш учурунда адаттан тыш ызы-чуу. | Foreign object in brush roll or hose, or motor issue. | Immediately turn off and unplug the vacuum. Inspect the brush roll and hose for any foreign objects. If no obstruction is found and noise continues, contact Miele service. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Miele |
| Модель аты | S7210 Twist (Model Number: 41721031USA) |
| Форма фактору | Тик |
| Power Source | Электр зымдары |
| Ватtage | 1800 ватт |
| Чыпка түрү | Air Clean Filter (HEPA filter optional) |
| Өзгөчөлүктөр | HEPA filtration (optional), Bagged, Corded, Patented SwivelNeck technology, Automatic height adjustment, Rotary dial speed control |
| Камтылган компоненттер | Integrated Dusting Brush, Upholstery Tool, Crevice Nozzle |
| Элемент Салмагы | 19 фунт |
| Түс | Sprint Blue |
| Ички/тышкы колдонуу | Indoor |
| Өндүрүүчү | Miele, Inc. |
9. Кепилдик маалыматы
The Miele S7210 Twist Upright Vacuum Cleaner comes with a manufacturer's warranty. This includes 1 year for parts and labor, an unspecified number of years on the motor, and 7 years on the casing. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the warranty card included with your product or visit the official Miele webсайт.
10. Колдоо
For further assistance, technical support, or to order replacement parts and accessories, please contact Miele Customer Service or visit the official Miele website. Contact information can typically be found in the packaging or on the Miele corporate webсайт.
