Weslock Wiltshire Exterior Entry Handle

1. Киришүү

Thank you for choosing the Weslock Wiltshire Exterior Entry Handle. This manual provides essential information for the proper installation, operation, and maintenance of your new door hardware. The Weslock Wiltshire handleset is designed for durability and security, meeting ANSI Grade 2 lock standards. It features a unique push-button safety mechanism, all-metal components, and a panic-proof privacy/keyed entry locking system. The solid Molten Bronze construction with an Oil Rubbed Bronze finish offers both aesthetic appeal and robust functionality.

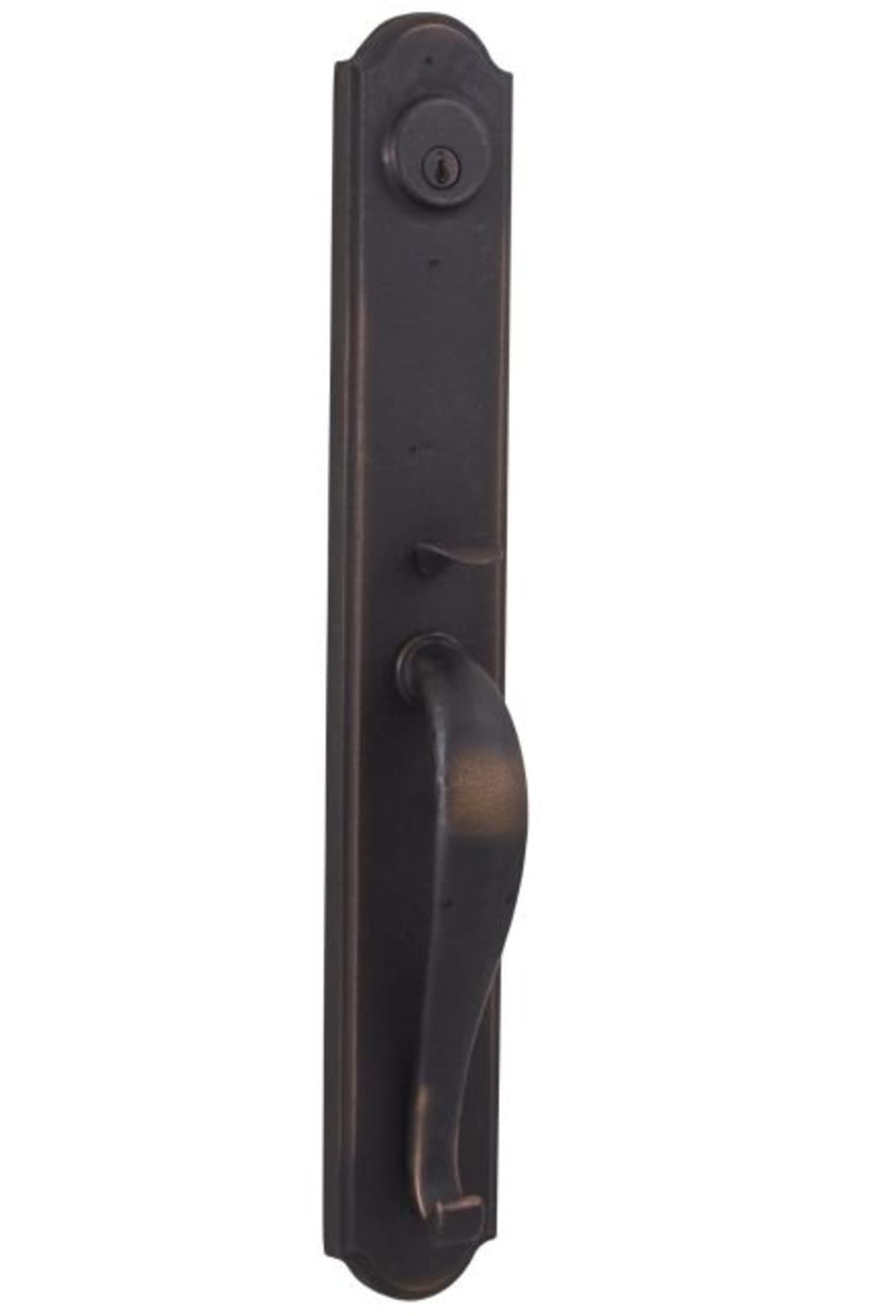

Image 1: Weslock Wiltshire Exterior Entry Handle. This image displays the complete handleset in its Oil-Rubbed Bronze finish, highlighting the design and components.

2. Коопсуздук маалыматы

• Орнотуу учурунда ар дайым тиешелүү коопсуздук каражаттарын, мисалы, кол кап жана көз айнекти кийиңиз.
• Ensure all screws are tightened securely to prevent loosening and potential hazards.
• Тумчугуп калуу коркунучун болтурбоо үчүн кичинекей бөлүктөрүн балдардан алыс кармаңыз.
• Эгерде сиз орнотуу процессинин кайсы бир кадамы боюнча күмөн санасаңыз, квалификациялуу адиске кайрылыңыз.

3. Пакеттин мазмуну

Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:

• Exterior Entry Handleset Assembly
• Ички тутканы/рычагды чогултуу
• Кулпу цилиндри
• Ачкычтар (адатта 2)
• Монтаждоо бурамалар
• Strike Plate
• Лач механизми

4. Орнотуу жана орнотуу

The Weslock Wiltshire handleset is designed for easy installation. Follow these general steps:

1. эшикти даярдоо: Ensure your door is properly bored for a cylindrical lock. The handleset requires a 9 1/4" center of thumbpress cross bore to the center of the foot cap screw hole.
2. Latch орнотуу: Insert the latch mechanism into the edge bore of the door and secure it with screws. Ensure the latch bolt faces the correct direction for your door swing.
3. Сырткы тутканы орнотуу: Position the exterior handleset assembly, ensuring the spindle passes through the latch mechanism.
4. Install the Interior Knob/Lever: Attach the interior knob or lever assembly, aligning it with the exterior handleset and latch.
5. Secure the Handleset: Fasten the handleset using the provided mounting screws. Ensure the handleset is level and operates smoothly.
6. Strike Plate орнотуу: Mount the strike plate on the door frame, aligning it with the latch bolt.
7. Сыноо операциясы: Close the door and test the locking and unlocking functions from both the interior and exterior using the key.

5. Иштөө нускамалары

• Сырттан бекитүү: Insert the key into the cylinder and turn to engage the lock. Remove the key.
• Сырттан ачуу: Insert the key into the cylinder and turn to disengage the lock.
• Ички жактан бекитүү: Utilize the push-button safety feature or turn the interior knob/lever to engage the lock.
• Panic-Proof Exit: The interior knob/lever allows for immediate exit even when locked, ensuring safety in emergencies.

6. Техникалык тейлөө

• Тазалоо: Тутканы жумшак менен тазалаңыз, гamp кездеме. Абразивдүү тазалоочу каражаттардан же катуу химиялык заттардан алыс болуңуз, анткени алар капталга зыян келтириши мүмкүн.
• Май менен сүртүлгөн коло: The Molten Bronze rosettes, knobs, and levers feature a living oil rubbed finish. This finish is designed to age naturally, revealing a deep red hue over time. This is a characteristic of the finish and not a defect.
• Майлоо: Periodically apply a small amount of graphite lubricant to the keyway to ensure smooth operation of the lock cylinder.
• Текшерүү: Regularly check all screws and components for tightness. Tighten any loose screws to maintain optimal performance and security.

7. Кыйынчылыктарды

• Ачкыч катуу же бура албай жатат: Apply graphite lubricant to the keyway. Ensure the key is fully inserted. Check for any obstructions in the cylinder.
• Latch Does Not Retract Fully: Check if the handleset is properly aligned and secured. Ensure no screws are overtightened, causing binding.
• Door Does Not Latch: Verify the strike plate is correctly aligned with the latch bolt. Adjust the strike plate if necessary.
• Тутумдун рычагы бошоп калгандай сезилет: Tighten all mounting screws. If the issue persists, re-check the installation steps.

8. Техникалык шарттар

9. Кепилдик маалыматы

The Weslock Wiltshire Exterior Entry Handle is backed by the following warranties:

• Limited Lifetime Mechanical Warranty: Covers the mechanical function of the handleset for the lifetime of the original purchaser.
• Limited 10 Year Finish Warranty: Covers the finish of the handleset for a period of 10 years from the date of purchase, subject to normal use and maintenance.

For detailed warranty terms and conditions, please refer to the official Weslock warranty documentation or contact customer support.

10. Колдоо

If you require further assistance, have questions about installation, or need to address a warranty claim, please contact Weslock customer support. Refer to the official Weslock webучурдагы байланыш маалыматы үчүн сайт.
