SunSun CUV-172 UV Sterilizer Clarifier Instruction Manual

1. Киришүү

Thank you for choosing the SunSun CUV-172 UV Sterilizer Clarifier. This device is designed to maintain clear and healthy water in your pond by effectively eliminating algae, bacteria, and mold using UV-C radiation. It supports the health of your fish and aquatic plants while respecting the natural ecosystem of the pond, offering an ecological and chemical-free solution for water purification.

Коопсуздук эскертүүлөрү

• UV-C Radiation Hazard: Эч качан UV-C l түз карабаңызamp when it is operating. UV-C radiation is harmful to eyes and skin.
• Электр коопсуздугу: Ensure the device is properly grounded. Do not operate with damaged cables or if the housing is compromised. Disconnect from power before any maintenance or installation.
• Сууга чөмүлүү: This device is designed for outdoor use and is protected against splashing (IP44). However, it should not be submerged in water.
• Балдар жана үй жаныбарлары: Аппаратты балдар жана үй жаныбарлары жетпеген жерде сактаңыз.

2. Продукт бүтүп калдыview

The SunSun CUV-172 UV Sterilizer Clarifier is an essential component for maintaining optimal water quality in your pond. It features a robust design and efficient UV-C technology to combat common pond issues.

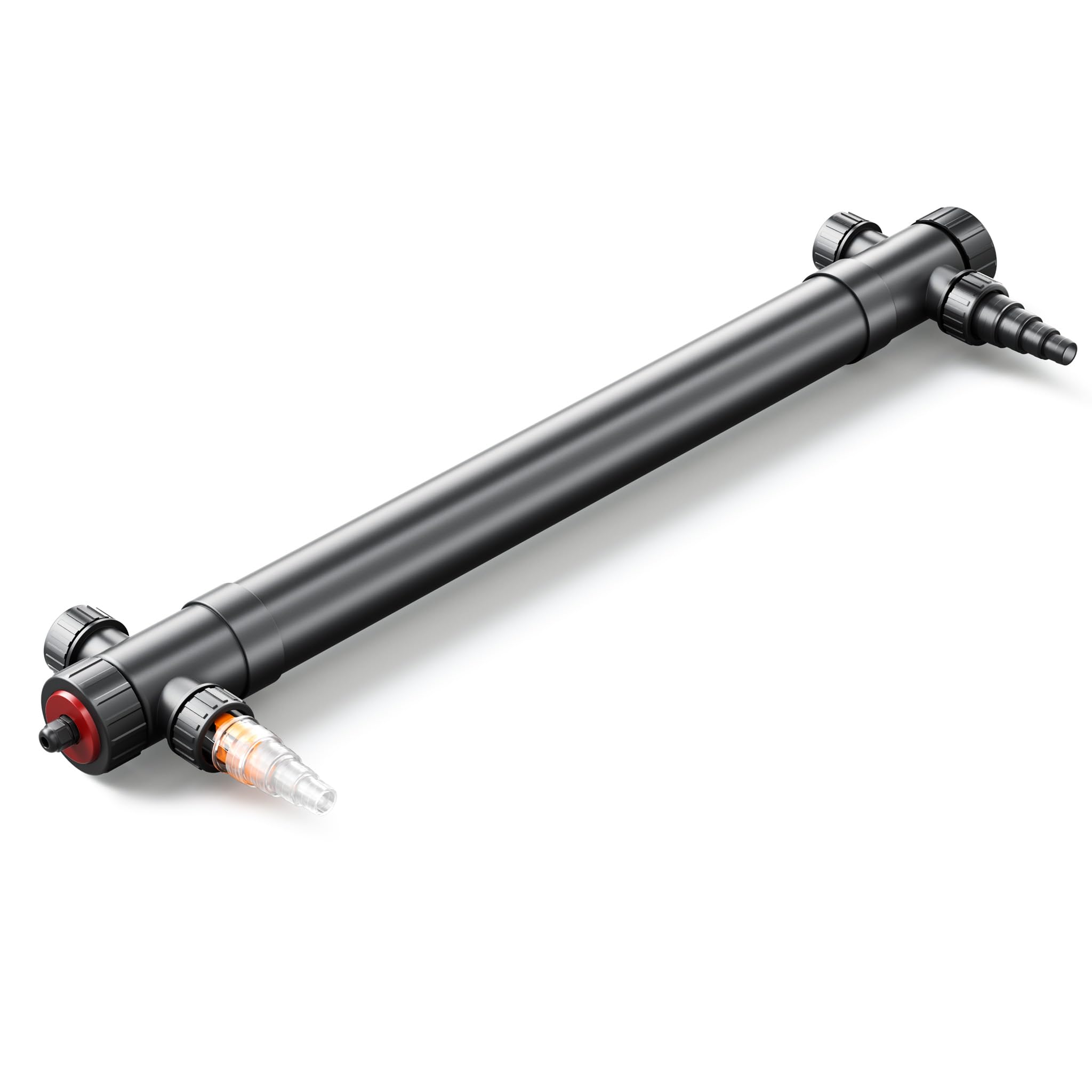

Figure 1: SunSun CUV-172 UV Sterilizer Clarifier. This image shows the main unit of the UV sterilizer, a black cylindrical device with connection points at both ends.

Негизги өзгөчөлүктөрү:

• UV-C стерилдөө: Utilizes a 72W UV-C lamp to effectively eliminate suspended algae, harmful bacteria, and pathogens.
• Жакшыртылган эффективдүүлүк: The water is purified through a UV lamp and a helical design, extending the exposure time to UV light. This unique technique optimizes the destruction of microorganisms.
• Fish and Plant Protection: Controls pathogenic germs while preserving the health of fish and plants. It eliminates green algae responsible for cloudy water and helps maintain biological balance without harming beneficial bacteria.
• Оңой орнотуу: Adapts to all types of ponds thanks to its universal hose connectors (19-38 mm).
• Тез жыйынтыктар: Achieves clear water in approximately 15 days.

Figure 2: UV-C Sterilization Effectiveness. This graphic illustrates the types of microorganisms targeted by the UV-C sterilizer, including bacteria, mold spores, unicellular and multicellular organisms, viruses, and fish diseases.

3. Техникалык шарттар

Figure 3: Product Dimensions. This diagram provides detailed measurements of the UV sterilizer unit, including length, height, and hose connector diameters.

4. Орнотуу

The SunSun CUV-172 is designed for easy integration into your existing pond filtration system. Follow these steps for proper installation:

1. Жайгашкан жери: Position the UV sterilizer horizontally or vertically in a dry, protected area near your pond. Ensure it is easily accessible for maintenance. It should be installed after the pond pump and before the main filter, or as a standalone unit in a bypass setup.
2. Шланг туташтыруу: Connect the inlet of the UV sterilizer to your pond pump's outlet using appropriate hoses (19-38 mm). Secure the connections with hose clampагып кетпеши үчүн.
3. Розетка туташуу: Connect the outlet of the UV sterilizer to your pond filter system or directly back into the pond. Again, use appropriate hoses and secure with clamps.
4. Электр байланышы: Once all water connections are secure and checked for leaks, plug the device into a properly grounded electrical outlet. Ensure the power cable is not damaged and is routed safely to avoid tripping hazards or water exposure.
5. Алгачкы текшерүү: After installation, observe the water flow and check for any leaks. The indicator light on the unit should illuminate, confirming the UV lamp иштеп жатат.

Figure 4: Installation Diagram. This image illustrates how the UV sterilizer connects to a pond system, showing the inlet and outlet connections for water flow.

5. Операция

The SunSun CUV-172 operates continuously to purify your pond water. Once installed and powered on, the UV-C lamp inside the unit emits ultraviolet light that targets and neutralizes harmful microorganisms.

• Үзгүлтүксүз иштөө: For best results, the UV sterilizer should operate continuously during the pond season.
• Суунун тунуктугу: Expect noticeable improvements in water clarity within approximately 15 days of continuous operation. The UV-C light breaks down single-celled algae, causing them to clump together and be easily removed by your mechanical filter.
• Индикатор жарыгы: A small window or indicator light on the unit confirms that the UV-C lamp is functioning. If this light is off, the lamp may need replacement or there might be a power issue.

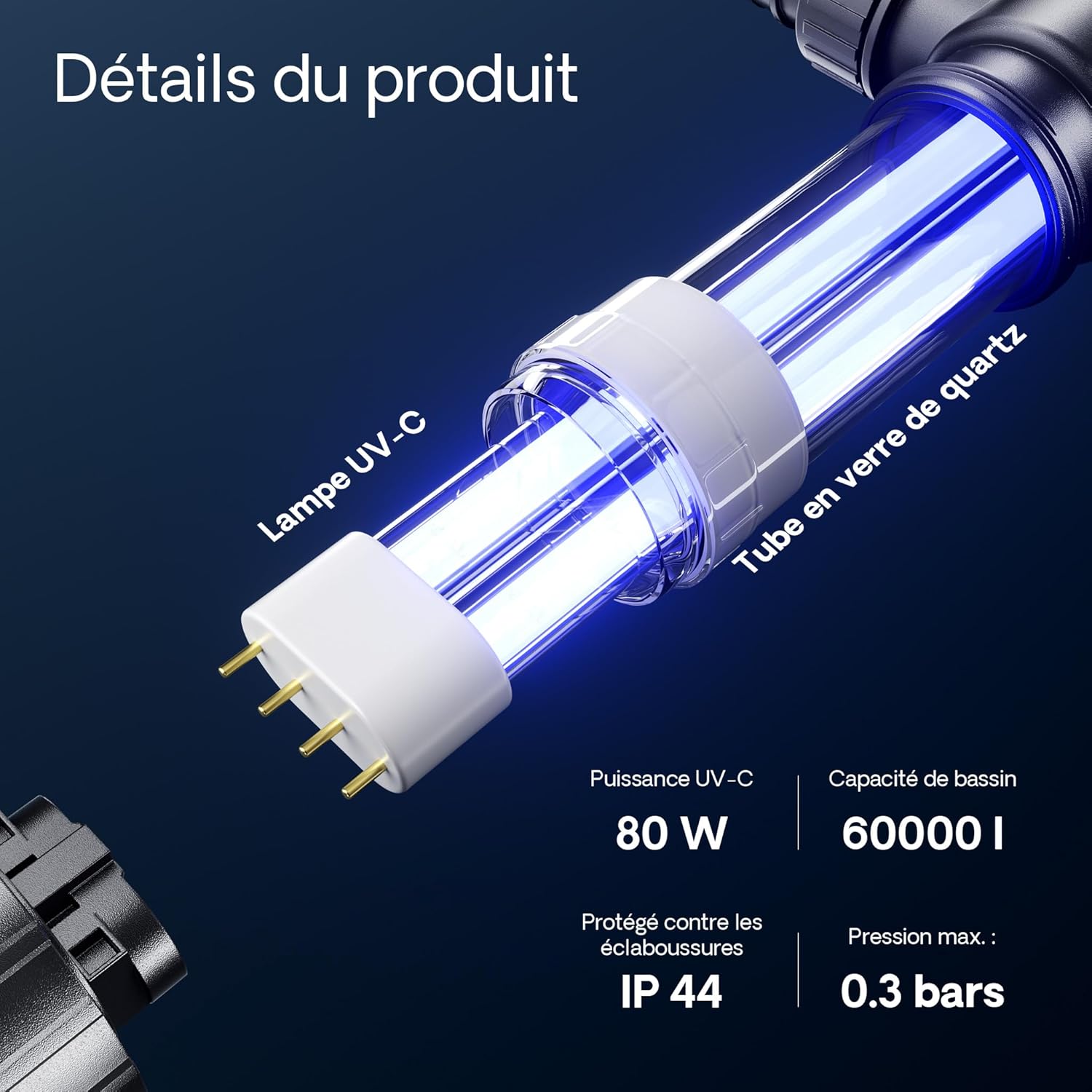

Figure 5: UV-C Lamp and Quartz Glass Tube Detail. This image provides a close-up view of the internal UV-C lamp and the protective quartz glass tube, highlighting the core components responsible for water purification.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and efficiency of your UV sterilizer. The primary maintenance task is replacing the UV-C lamp and cleaning the quartz glass tube.

UV-C Lamp Алмаштыруу:

UV-C lamp has an effective lifespan of approximately 7,000 to 10,000 hours. It is recommended to replace the lamp annually, ideally at the start of the pond season, to maintain optimal performance, even if it still appears to be glowing.

1. Кубатты өчүрүү: ДАЙЫМА disconnect the UV sterilizer from the power supply before attempting any maintenance.
2. L. алып салууamp Розетка: l буруңузamp socket counter-clockwise to unlock it.
3. Carefully Extract Lamp: Gently pull out the lamp socket and the UV-C lamp from the unit. Be careful not to touch the glass part of the lamp with bare hands, as oils can reduce its effectiveness.
4. Clean Quartz Tube: Ал эми лamp is removed, carefully clean the quartz glass tube with a soft cloth and a mild cleaning solution to remove any mineral deposits or algae buildup. A clean quartz tube ensures maximum UV-C penetration.
5. Жаңы L. киргизүүamp: Carefully insert the new UV-C lamp розеткага.
6. Кайра чогултуу: Reinsert the lamp and socket assembly into the unit and turn clockwise to secure. Ensure all seals are properly seated to prevent water leaks.
7. Кубатты кайра туташтыруу: Once fully reassembled and secure, reconnect the device to the power supply.

Figure 6: UV-C Lamp Replacement Steps. This visual guide demonstrates the four-step process for safely replacing the UV-C lamp in the sterilizer unit.

7. Кыйынчылыктарды

If you encounter issues with your SunSun CUV-172, refer to the following common problems and solutions:

• Problem: UV-C lamp жарык эмес.
  Чечим: Check the power connection. Ensure the lamp is correctly seated in its socket. The lamp may have reached the end of its lifespan and needs replacement. Inspect the ballast for any signs of failure.
• Problem: Water remains cloudy after several days of operation.
  Чечим: UV-C lamp might be old and losing effectiveness; replace it. Ensure the water flow rate through the unit is within the recommended range (max. 6000 l/h). The pond may be too large for the unit's capacity (max. 60 m³). Check if the quartz glass tube is dirty and obstructing UV light; clean it. Ensure your mechanical filter is adequately removing clumped algae.
• Problem: Water leaks from connections.
  Чечим: Бардык шланг clamps. Check that the hose connectors are correctly installed and that the hoses are not damaged. Inspect O-rings and seals for proper seating and damage; replace if necessary.
• Problem: Reduced water flow.
  Чечим: Check for blockages in the hoses or within the UV sterilizer unit. The quartz glass tube might be heavily fouled and needs cleaning. Ensure your pond pump is operating correctly.

Бул кадамдар маселени чечпесе, кардарларды колдоо кызматына кайрылыңыз.

8. Кепилдик

Warranty terms and conditions for the SunSun CUV-172 UV Sterilizer Clarifier are provided by your retailer at the time of purchase. Please retain your proof of purchase for any warranty claims. The warranty typically covers manufacturing defects but may not cover consumable parts like the UV-C lamp, which has a limited lifespan, or damage due to improper installation, misuse, or lack of maintenance.

9. Кардарларды колдоо кызматы

For technical assistance, spare parts, or further inquiries regarding your SunSun CUV-172 UV Sterilizer Clarifier, please contact the retailer from whom you purchased the product. They will be able to provide specific support and guidance based on your region and purchase details.
