Honeywell CO60PM буулануучу аба муздаткыч инструкциясы

1. Продукт бүтүп калдыview

The Honeywell CO60PM Evaporative Air Cooler, also known as a swamp cooler, is designed for both indoor and outdoor use. It provides a powerful 1540 CFM airflow, making it ideal for cooling large open rooms, patios, BBQ areas, garages, decks, backyards, or warehouses. This unit combines three appliances in one: an evaporative air cooler, a fan, and a humidifier, offering an energy-saving cooling solution.

Evaporative air coolers reduce temperature through water evaporation, providing a moist, cool breeze without spraying water on surfaces. They are most effective in hot, dry climates where humidity levels are typically below 60%.

Сүрөт 1: Алдыңкы view of the Honeywell CO60PM Evaporative Air Cooler.

2. Негизги өзгөчөлүктөрү

• Күчтүү аба агымы: 1540 CFM, suitable for large areas.
• Ар тараптуу колдонуу: Designed for both indoor and outdoor environments.
• Энергияны үнөмдүү: Reduces temperature through water evaporation, consuming less energy than traditional air conditioners.
• 3-ин-1 Функциясы: Operates as an air cooler, fan, and humidifier.
• Көчүрүү мүмкүнчүлүгү: Equipped with durable wheels for easy mobility and storage.
• Төмөн ызы-чуу: Approximately 65 dBA sound level at high speed.
• Чоң суу багы: Features a 15.9-gallon capacity for extended operation.
• Continuous Water Supply Option: Can be connected to a garden hose for uninterrupted use.
• Triple-Sided Honeycomb Cooling Pads: Enhances cooling efficiency.

3. Орнотуу жана орнотуу

3.1 Пакеттен чыгаруу

Carefully remove the evaporative air cooler from its packaging. Inspect the unit for any signs of damage. Retain all packaging materials for future storage or transport.

3.2 Орнотуу

Place the unit on a flat, stable surface. Ensure there is adequate space around the unit for proper airflow. For outdoor use, position the cooler in a well-ventilated area, ideally where it can draw in fresh, dry air.

Figure 2: Dimensions of the Honeywell CO60PM Evaporative Air Cooler.

3.3 Суу резервуарын толтуруу

The CO60PM features a 15.9-gallon water tank. You can fill it manually or connect it to a continuous water supply.

• Кол менен толтуруу: Open the water inlet cover on top of the unit and pour clean water into the tank until the water level indicator reaches the 'MAX' line. Do not overfill.
• Үзгүлтүксүз суу менен камсыздоо: Connect a standard garden hose to the water hose connector located on the side of the unit. Ensure the connection is secure to prevent leaks. The unit will automatically maintain the water level.

Figure 3: Connecting to a continuous water supply.

Figure 4: Adding ice to the top compartment for extra cooling.

3.4 Кубат туташтыруу

Plug the unit into a standard 120V AC electrical outlet. The CO60PM is equipped with a GFCI cord for safety, especially during outdoor use.

4. Иштөө нускамалары

4.1 Башкаруу панели

The unit features a simple control panel with rotary knobs for fan speed and cooling function.

4.2 Желдетүүчү ылдамдык

Turn the 'Speed' knob to select your desired fan speed: Low, Medium, or High. The fan circulates air, providing a breeze even without the cooling function activated.

4.3 Evaporative Cooling

To activate evaporative cooling, ensure the water tank is filled. Turn the 'Cool' knob to the 'ON' position. The water pump will begin to wet the honeycomb cooling pads, and the fan will blow air through the moistened pads, creating a cooler, humidified airflow.

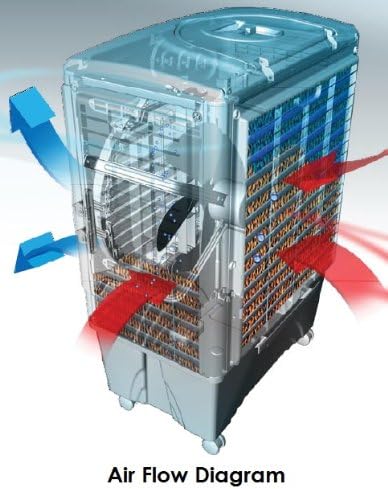

Figure 5: Diagram illustrating the air flow through the evaporative cooler.

4.4 Термелүү

Some models may include an oscillation feature to distribute cool air more widely. Refer to your unit's specific controls for this function.

4.5 Маанилүү ойлор

• This is an evaporative cooler, not an air conditioner. It will not cool as efficiently as a refrigerated AC unit.
• Optimal performance is achieved in hot, dry climates (humidity below 60%).
• Ensure adequate ventilation when operating indoors to prevent excessive humidity buildup.

5. Техникалык тейлөө

5.1 Суу резервуарын тазалоо

Regularly clean the water tank to prevent mold and mildew growth. Drain any remaining water and wipe the tank clean with a soft cloth. For thorough cleaning, a mild detergent can be used, followed by rinsing.

5.2 Cleaning/Replacing Cooling Pads

The triple-sided honeycomb cooling pads should be inspected periodically for mineral buildup or debris. If heavily soiled, they can be gently rinsed with water. Replace pads if they are damaged or show significant wear, typically every 1-2 years depending on usage and water quality.

Figure 6: Close-up of the triple-sided honeycomb cooling pads.

5.3 Тышкы тазалоо

Агрегаттын сыртын жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.

6. Кыйынчылыктарды

7. Техникалык шарттар

• Бренд: Honeywell
• Модель номери: CO60PM
• Аба агымынын кубаттуулугу: 1540 CFM
• Суу сактагычтын сыйымдуулугу: 15.9 галлон
• Камтуу аймагы: 850 чарчы футка чейин
• Ылдамдыктардын саны: 3
• Ызы-чуу деңгээли: 65 Decibels (at high speed)
• Тtage: 120 вольт
• Ватtage: 220 Ватт
• Элемент Салмагы: 41.5 фунт
• Өлчөмдөрү (D x W x Y): 18.3"D x 27.6"W x 40"H
• Материал: Пластик
• Өзгөчөлүктөр: Adjustable Speed, Built-In Wheels, Low Water Indicator, Oscillating Fan, Portable

8. Кепилдик жана колдоо

The Honeywell CO60PM Evaporative Air Cooler comes with a 1 жылдык чектелген кепилдик. For customer support, please refer to the contact information provided with your product documentation or visit the official Honeywell webсайт.
