1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your Frigidaire IMK0028A Icemaker Kit. This kit is a genuine OEM replacement part designed to provide a reliable ice production solution for compatible Frigidaire and Electrolux refrigerators. Please read all instructions carefully before beginning installation or operation to ensure proper function and safety.
Эскертүү: Frigidaire and Electrolux are interchangeable names for the same brand. The item received may bear either name.
2. Коопсуздук маалыматы
- Орнотуудан, техникалык тейлөөдөн же оңдоодон мурун муздаткычты ар дайым электр кубатынан ажыратыңыз.
- Орнотуу учурунда жаракат алуунун алдын алуу үчүн кол кап сыяктуу тиешелүү жеке коргонуу каражаттарын кийиңиз.
- Суу агып кетпеши үчүн бардык туташуулардын коопсуз жана туура жабылгандыгын текшериңиз.
- Орнотуу процессинин кандайдыр бир бөлүгүнө ишенбесеңиз, квалификациялуу техникке кайрылыңыз.
- Орнотуу учурунда балдарды жана үй жаныбарларын жумуш аймагынан алыс кармаңыз.
3. Пакеттин мазмуну
Орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:
- Муздаткычтын чогулушу
- Муз сактагыч
- Mounting Brackets (various sizes to fit different models)
- Hardware (screws, clips)
- Water Line Connection Kit (if applicable)
- Көрсөтмө (бул документ)

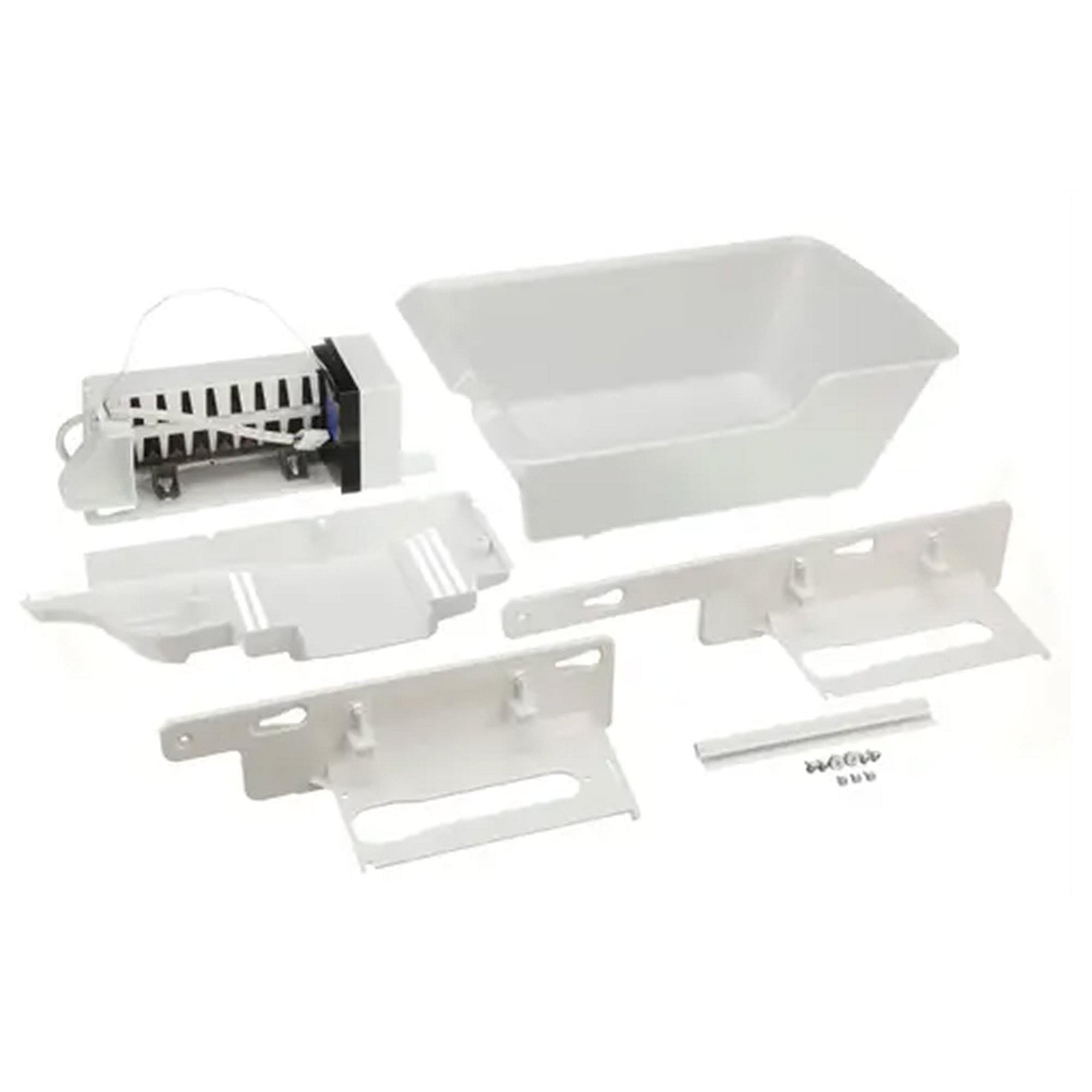

Image 1: Frigidaire IMK0028A Icemaker Kit showing main components.
4. Орнотуу жана орнотуу
Installation of the IMK0028A Icemaker Kit can be involved and requires careful attention to detail. It is recommended to have basic tool knowledge and mechanical aptitude. The process typically involves removing the freezer door and internal racks.
4.1 Керектүү куралдар
- Бурагыч (Phillips жана/же жалпак баш)
- Wrench (for water line connections, if applicable)
- Pliers (for clips)
- Колкаптар
4.2 Орнотууга чейинки кадамдар
- Кубатты өчүрүү: Unplug the refrigerator from the electrical outlet or turn off the circuit breaker.
- Суу менен камсыздоону өчүрүү: If your refrigerator has an existing water line, turn off the water supply to the refrigerator.
- Empty Freezer: Remove all food items and shelves from the freezer compartment.
- Remove Freezer Door: Carefully remove the freezer door according to your refrigerator's specific instructions. This often involves disconnecting wiring harnesses and hinge pins.
- Remove Internal Racks/Baskets: Remove any internal racks or baskets to provide clear access to the back panel and mounting locations. This may involve releasing клиптер.
4.3 Icemaker Installation
- Монтаждоо ордун аныктоо: Locate the designated area for the icemaker assembly, typically on the upper left side of the freezer compartment. Pre-drilled holes and wiring harnesses should be present.
- Select Correct Bracket: The kit includes multiple mounting brackets. Identify the correct bracket for your specific refrigerator model. The icemaker assembly may come with a shorter bracket pre-installed; you may need to swap it for a longer one if required by your model. Secure the chosen bracket to the icemaker assembly with the provided hardware.
- Mount Icemaker Assembly: Align the icemaker assembly with the pre-drilled holes in the freezer wall. Secure it using the provided screws. Ensure it is firmly attached.
- Зымдарды туташтыруу: Plug the icemaker's electrical harness into the corresponding receptacle in the freezer wall. Ensure a secure connection.
- Суу түтүгүн туташтыруу: Connect the water supply line to the icemaker's inlet valve. Ensure the connection is tight to prevent leaks. Some models may require replacing a back panel with a new one provided in the kit, though this is not always necessary.
- Install Ice Bin: Place the ice storage bin beneath the icemaker assembly. Ensure it is properly seated and positioned to catch ice.
Сүрөт 2: Мисample of Frigidaire IMK0028A Icemaker Kit installed within a freezer compartment.
4.4 Орнотуудан кийинки кадамдар
- Reinstall Racks and Door: Reinstall the internal freezer racks/baskets and the freezer door. Ensure all clips and connections are secure.
- Суу менен камсыздоону калыбына келтирүү: Turn on the water supply to the refrigerator. Check for any leaks around the water line connection to the icemaker.
- Күчтү калыбына келтирүү: Муздаткычты кайра электр розеткасына сайыңыз же өчүргүчтү күйгүзүңүз.
- Алгачкы муз өндүрүү: The icemaker will typically begin producing ice within 12-24 hours. Discard the first few batches of ice to flush the water lines.
5. Иштөө нускамалары
Once installed and powered, the Frigidaire IMK0028A Icemaker Kit operates automatically to produce ice.
- Автоматтык иштетүү: The icemaker will fill with water, freeze it, and then eject the ice cubes into the ice storage bin. This cycle repeats automatically as long as the freezer temperature is adequate and the water supply is on.
- Муз деңгээлинин сенсору: The icemaker is equipped with a sensor (often a wire arm) that detects when the ice bin is full. When the ice reaches a certain level, the icemaker will temporarily stop production until more ice is used.
- Initial Production Time: Allow 12-24 hours for the icemaker to produce its first full batch of ice. Full ice production capacity may take a few days to achieve.
- Ice Bin Management: When pulling out the freezer drawer, ensure the ice bin is not overfilled, as ice may fall out of the back of the bin and obstruct the freezer door's full closure.
6. Техникалык тейлөө
Regular maintenance helps ensure optimal performance and longevity of your icemaker.
- Таза муз челек: Муз сактоочу кутучаны мезгил-мезгили менен алып чыгып, жумшак самын жана жылуу суу менен жууңуз. Тоңдургучка кайра коюудан мурун жакшылап чайкап, толугу менен кургатыңыз.
- Суу чыпкасын текшерүү: If your refrigerator has a water filter, ensure it is replaced regularly according to the refrigerator manufacturer's recommendations. A clogged filter can reduce water flow to the icemaker.
- Суу түтүгүн текшерүү: Occasionally inspect the water supply line for kinks, leaks, or damage.
- Clean Icemaker: If mineral deposits build up on the icemaker components, gently wipe them with a damp кездеме. Абразивдүү тазалагычтарды колдонбоңуз.
7. Кыйынчылыктарды
If your icemaker is not functioning as expected, refer to the following common issues and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Icemaker not producing ice. |
|
|
| Аз муз өндүрүү. |
|
|
| Water leaking in freezer. |
|
|
| Ice falling out of bin when drawer is opened. |
|
|
If these solutions do not resolve the issue, contact Frigidaire customer support or a qualified service technician.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Frigidaire |
| Модель номери | IMK0028A |
| Бөлүмдүн номери | IMK0028A |
| UPC | 012505454028 |
| Продукциянын өлчөмдөрү (D x W x Y) | 1"D x 1"W x 1"H (Note: These dimensions are often placeholder values for small parts and may not reflect the actual installed size.) |
| Элемент Салмагы | 5.2 фунт |
| Материалдын түрү | Пластик |
| Ватtage | 6.41 ватт |
| Камтылган компоненттер | Icemaker Kit, User Manual |
9. Кепилдик жана колдоо
9.1 Кепилдик маалыматы
The Frigidaire IMK0028A Icemaker Kit comes with a 1 жылдык Өндүрүүчүнүн Кепилдиги. Бул кепилдик нормалдуу колдонуудагы материалдардагы жана жасалгадагы кемчиликтерди камтыйт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
For specific warranty terms and conditions, please refer to the documentation included with your original refrigerator or contact Frigidaire customer service.
9.2 Кардарларды колдоо
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Frigidaire customer support. You can typically find contact information on the Frigidaire official website or in your refrigerator's main user manual.
Онлайн ресурстар: Расмий Frigidaire сайтына барыңыз website for additional support, FAQs, and service locator tools. www.frigidaire.com
