1. Продукт бүтүп калдыview
The BAHCO BP815K1 Impact Wrench Set is designed for efficient fastening and loosening of nuts and bolts. This kit includes a 1/2 inch impact wrench and a comprehensive set of impact sockets, all housed in a durable plastic case with a foam insert for organization and protection.
Камтылган компоненттер:
- 1 x BAHCO BP815 1/2 inch Impact Wrench
- Impact Sockets: 10 mm, 11 mm, 12 mm, 13 mm, 14 mm, 15 mm, 17 mm, 19 mm, 21 mm, 22 mm, and 24 mm
- 1/4 inch Connector
- Durable Plastic Case with Foam Insert

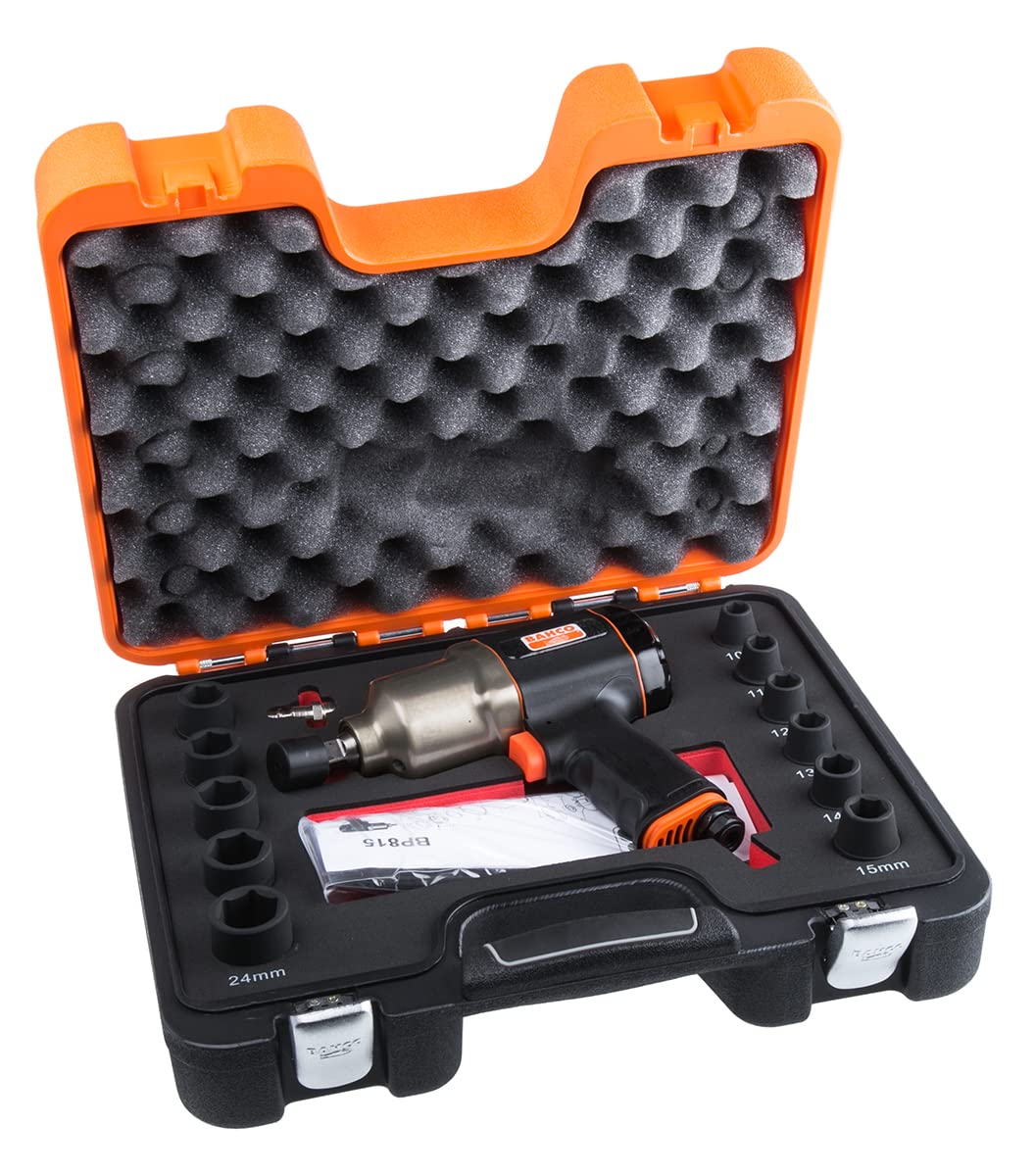

Image 1: The BAHCO BP815K1 Impact Wrench Set, showcasing the impact wrench, various impact sockets, and the protective carrying case.
2. Орнотуу жана даярдоо
2.1 Коопсуздук чаралары
- Always wear appropriate personal protective equipment (PPE), including safety glasses and hearing protection, when operating the impact wrench.
- Даярдоочу бөлүктүн бекем clamped or supported to prevent movement during operation.
- Verify that the air supply (if pneumatic) is disconnected before attaching or removing accessories.
- Inspect the impact wrench and sockets for any damage or wear before each use. Do not use damaged equipment.
2.2 Розеткаларды бекитүү
- Select the correct size impact socket for the fastener. Only use impact-rated sockets with an impact wrench.
- Align the square drive of the impact wrench with the square opening of the socket.
- Push the socket firmly onto the drive until it locks into place. Some impact wrenches may have a detent pin or ring for secure attachment.
- Ensure the socket is fully seated and secure before operating the tool.
3. Иштөө нускамалары
3.1 Connecting to Power Source
If using a pneumatic impact wrench, connect it to a suitable air compressor using the 1/4 inch connector. Ensure the air hose is securely attached and the air pressure is within the recommended operating range for the tool.
3.2 Fastening (Tightening)
- Set the impact wrench to the tightening (forward) direction. This is typically indicated by a switch or lever on the tool.
- Розетканы бекиткичке (гайкага же болттун башына) орнотуңуз.
- Press the trigger to activate the impact wrench. Apply steady pressure to keep the socket engaged with the fastener.
- Release the trigger once the fastener is tightened. Avoid over-tightening, which can damage the fastener or workpiece. For critical applications, use a torque wrench for final tightening to specified torque values.
3.3 Loosening (Removing)
- Set the impact wrench to the loosening (reverse) direction.
- Розетканы бекиткичке салыңыз.
- Press the trigger to activate the impact wrench. Maintain firm grip and control.
- Continue operation until the fastener is loose enough to be removed by hand or until it is fully removed.
4. Техникалык тейлөө
4.1 Тазалоо
- Regularly clean the exterior of the impact wrench with a soft, dry cloth.
- Remove any debris or dust from the air inlet and exhaust ports (for pneumatic models).
- Keep sockets clean and free of grease or dirt to ensure proper fit and prevent corrosion.
4.2 Lubrication (Pneumatic Models)
- For pneumatic impact wrenches, apply a few drops of pneumatic tool oil into the air inlet before each use or at regular intervals, as specified by the manufacturer.
- This lubricates internal components and extends tool life.
4.3 Сактоо
- Store the impact wrench and sockets in the provided durable plastic case.
- Keep the set in a dry, clean environment, away from direct sunlight and extreme temperatures.
- Ensure the tool is disconnected from its power source before storage.
5. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Курал иштебейт же кубаттуулугу аз. | Insufficient air pressure (pneumatic). Air hose kinked or damaged. Tool requires lubrication. | Check air compressor settings and supply. Inspect air hose for obstructions or damage. Apply pneumatic tool oil to the air inlet. |
| Розетка бекем бекитилбейт. | Incorrect socket size. Debris in socket or on drive. Worn detent pin/ring. | Ensure correct impact socket is used. Clean socket and drive thoroughly. Contact Bahco support for inspection/repair. |
| Ашыкча титирөө же ызы-чуу. | Бош компоненттер. Ички эскирүү же зыян. | Discontinue use immediately. Contact Bahco support for inspection. |
6. Техникалык шарттар
- Бренд: Bahco
- Модель номери: BHBP815K1
- Буюмдун түрүнүн аталышы: Impact wrench set 1/2 inch Bp815/power inserts 10-24 mm with 1/4 inch connector
- Баштын стили: Туруктуу аянт
- Иштөө режими: Механикалык (пневматикалык)
- Материал: Plastic (case), Metal (tool/sockets)
- Элемент Салмагы: 4.94 килограмм
- Камтылган компоненттер: Impact wrench, 11 impact sockets (10-24mm), 1/4 inch connector, plastic case
- Глобалдык соода идентификациялык номери (GTIN): 07314150181957
7. Кепилдик жана колдоо
For specific warranty information regarding your BAHCO BP815K1 Impact Wrench Set, please refer to the documentation included with your purchase or visit the official Bahco webсайт. Кепилдиктин шарттары жана шарттары аймакка жараша өзгөрүшү мүмкүн.
If you require technical assistance, spare parts, or have questions about the operation or maintenance of your tool, please contact Bahco customer support. You can find contact information and additional resources on the Bahco Store on Amazon же алардын расмий корпорациясы webсайт.
