Holzmann HOB410N-400V Planer-Thicknesser Instruction Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation, maintenance, and setup of your Holzmann HOB410N-400V Planer-Thicknesser. Please read this manual thoroughly before operating the machine to ensure your safety and to achieve optimal performance. Keep this manual in a safe place for future reference.

Safety is paramount. Always follow all safety instructions and warnings provided in this manual and on the machine itself.

2. Продукт бүтүп калдыview

The Holzmann HOB410N-400V is a robust combination planer and thicknesser designed for woodworking tasks. It features a sturdy construction with rectified cast iron tables for precision and durability. Key components include an inclined planing guide, infeed and outfeed rollers for smooth material handling, and an independent emergency stop button for enhanced safety during thicknessing operations.

1-сүрөт: Негизги view of the Holzmann HOB410N-400V Planer-Thicknesser, showcasing its robust design and primary components.

3. Орнотуу

3.1 Пакеттен чыгаруу жана жайгаштыруу

1. Carefully unpack the machine and all its components. Retain packaging for potential future transport.
2. Place the planer-thicknesser on a stable, level surface capable of supporting its weight (approximately 399 kg). Ensure adequate working space around the machine.
3. Verify all included accessories are present: 4 blades, dressing guide, and shaft protector.

3.2 Электрдик туташуу

• The machine requires a 400 V, 50 Hz power supply.
• Ensure the electrical circuit is properly grounded and protected by a suitable circuit breaker (rated for 7.5 A or higher).
• Connect the machine to the power supply using an appropriate industrial plug.

3.3 Чаңды чыгаруу

Connect a dust extraction system to the 100 mm diameter dust port to maintain a clean working environment and ensure efficient chip removal.

4. Иштөө нускамалары

4.1 Planing (Jointing) Operation

• Adjust the planing tables for the desired depth of cut, up to a maximum of 3 mm. The graduated system allows for precise adjustments.
• Position the inclined planing guide to the required angle.
• Feed the workpiece smoothly across the tables, maintaining firm contact with the guide and tables.
• Maximum planing width is 410 mm.

4.2 Thicknessing Operation

• Engage the thicknessing function. The thicknesser table is supported by two cylinders for stability.
• Adjust the thicknesser table to the desired height. The maximum thicknessing height is 220 mm.
• The machine features an automatic feed speed of 8 meters per minute.
• Maximum thicknessing width is 405 mm.
• Utilize the independent emergency stop button for the thicknessing function if immediate shutdown is required.

Сүрөт 2: Жакын пландан view of the infeed and outfeed rollers and the blade area, crucial for smooth material processing.

5. Техникалык тейлөө

5.1 Жалпы тазалоо

After each use, clean the machine thoroughly, especially the tables and chip collection areas, to prevent buildup and ensure smooth operation. Disconnect power before cleaning.

5.2 Blade алмаштыруу

• Always disconnect the machine from the power supply before attempting blade replacement.
• The machine uses 4 blades, each measuring 410 x 30 x 3 mm.
• Follow the specific instructions in the detailed manual for safe blade removal and installation. A magnetic blade setter (e.g., MEL2, available separately) can assist with precise alignment.
• Ensure blades are sharp and free from damage for optimal cutting performance and safety.

5.3 Майлоо

Regularly lubricate moving parts, especially the sliding mechanisms of the tables. Use appropriate grease (e.g., SGM1-SGM2-SGM3, available separately) to ensure smooth adjustments and prevent wear.

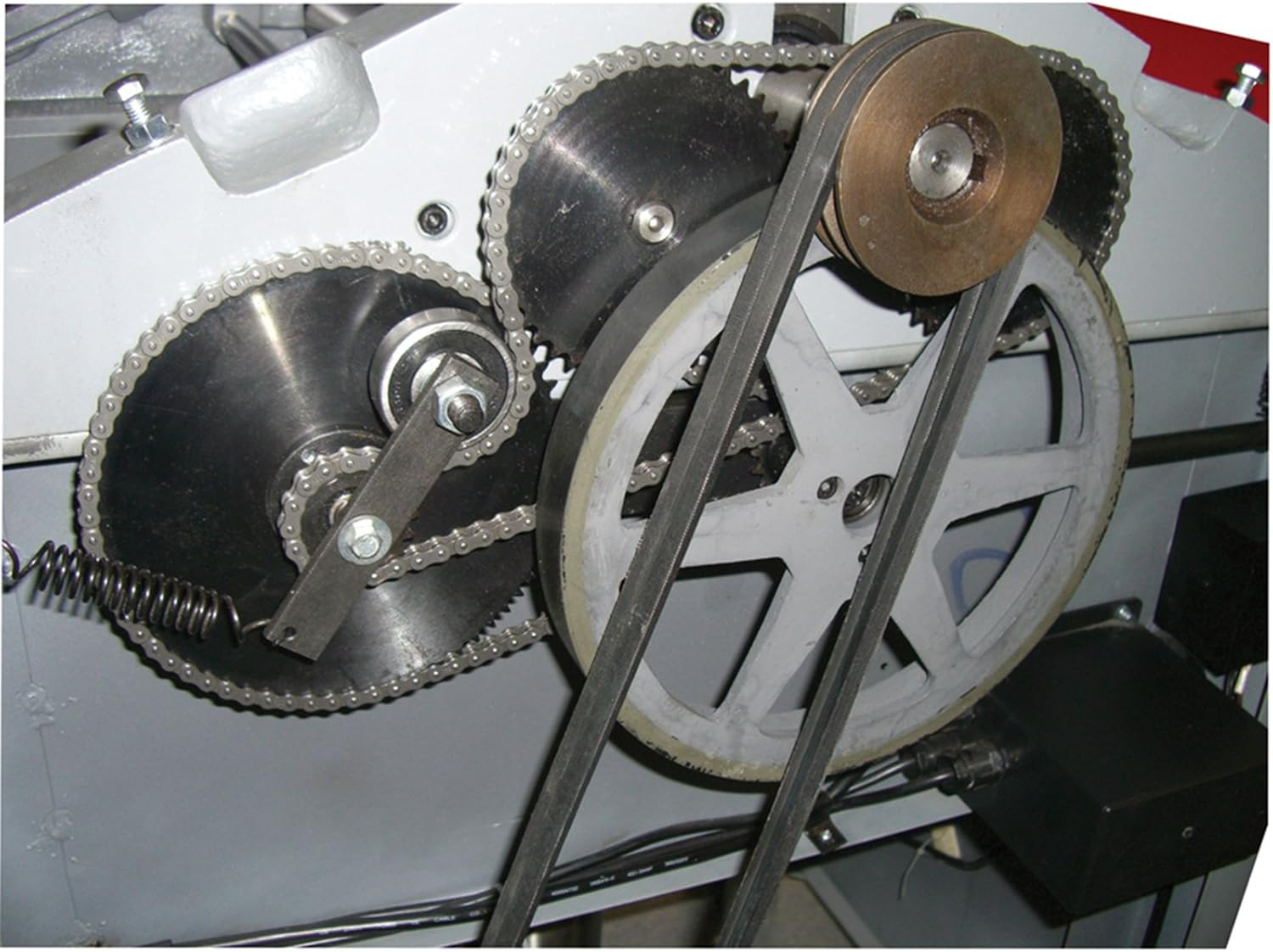

3-сүрөт: View of the internal drive mechanism, including chains and belts, which require periodic inspection and maintenance.

6. Кыйынчылыктарды

• Машина иштебейт: Check power connection, circuit breaker, and emergency stop button status.
• Poor planing/thicknessing quality: Inspect blades for sharpness and damage. Ensure tables are clean and properly adjusted.
• Ашыкча титирөө же ызы-чуу: Check for loose components, worn bearings, or unbalanced cutter block.
• Material not feeding smoothly: Clean infeed/outfeed rollers. Check for obstructions or excessive resin buildup.

For persistent issues, consult a qualified technician or contact Holzmann customer support.

7. Техникалык шарттар

Эскертүү: Техникалык мүнөздөмөлөр продуктуну жакшыртуу үчүн эскертүүсүз өзгөртүлүшү мүмкүн.

8. Кошумча аксессуарлар

The following accessories are available separately to enhance the functionality of your machine:

• Spare Blades (Fers)
• Magnetic Blade Setter (MEL2)
• Grease for Table Sliding (SGM1-SGM2-SGM3)
• Dust Extractors (Aspirateurs)
• Roller Stands (Servantes)
• Mortising Attachment (HOBLL34)

Figure 4: The machine shown with an optional mortising attachment, which can be purchased separately to expand its capabilities.

9. Кепилдик жана колдоо

The Holzmann HOB410N-400V Planer-Thicknesser comes with a 2 жылдык кепилдик. This warranty covers manufacturing defects but excludes wear parts. For warranty claims, technical support, or spare parts inquiries, please contact your authorized Holzmann dealer or customer service with your model number and purchase details.

For more information, visit the official Holzmann webсайтка кайрылыңыз же жергиликтүү дистрибьютериңиз менен байланышыңыз.
