1. Киришүү
The SunSun NEO-10000 SuperECO Pond Pump is designed for efficient water circulation and filtration in garden ponds, water features, and aquariums. This pump delivers a constant flow rate of 10,000 liters per hour with a minimal power consumption of 80W, ensuring optimal energy performance. Its continuous operation capability makes it an ideal choice for maintaining clean and well-oxygenated water environments.
This manual provides essential information for the safe and effective installation, operation, and maintenance of your SunSun NEO-10000 pond pump. Please read all instructions carefully before use.
2. Коопсуздук нускамалары
- Always disconnect the pump from the power supply before performing any maintenance, cleaning, or installation work.
- Ensure the power cable and plug are in good condition and free from damage. Do not operate the pump with a damaged cable or plug.
- The pump is designed for use with water temperatures between 4°C and 35°C. Do not operate outside this range.
- Ашыкча ысып кетүүнүн алдын алуу үчүн, иштеп жатканда насостун сууга толугу менен чөмүлгөнүн текшериңиз.
- Do not lift or carry the pump by its power cable. Use the designated transport handle.
- Бул шайман физикалык, сезүү же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) үчүн, эгерде алардын коопсуздугуна жооптуу адам тарабынан көзөмөлсүз же шайманды колдонуу боюнча көрсөтмө болбосо, колдонууга арналбайт.
- Балдар шайман менен ойнобошу үчүн аларды көзөмөлгө алуу керек.
3. Продукт бүтүп калдыview
The SunSun NEO-10000 pump features a robust design with a powerful motor and ceramic shaft, ensuring durability and efficient performance. It is suitable for both fresh and saltwater environments due to its rust-free and copper-free construction.
1-сүрөт: Продукциянын чоо-жайы
This image highlights the pump's transport handle for easy carrying, a swivel outlet for flexible hose connection, and a large filtration surface designed to prevent clogging.
Figure 2: Powerful Motor with Ceramic Shaft

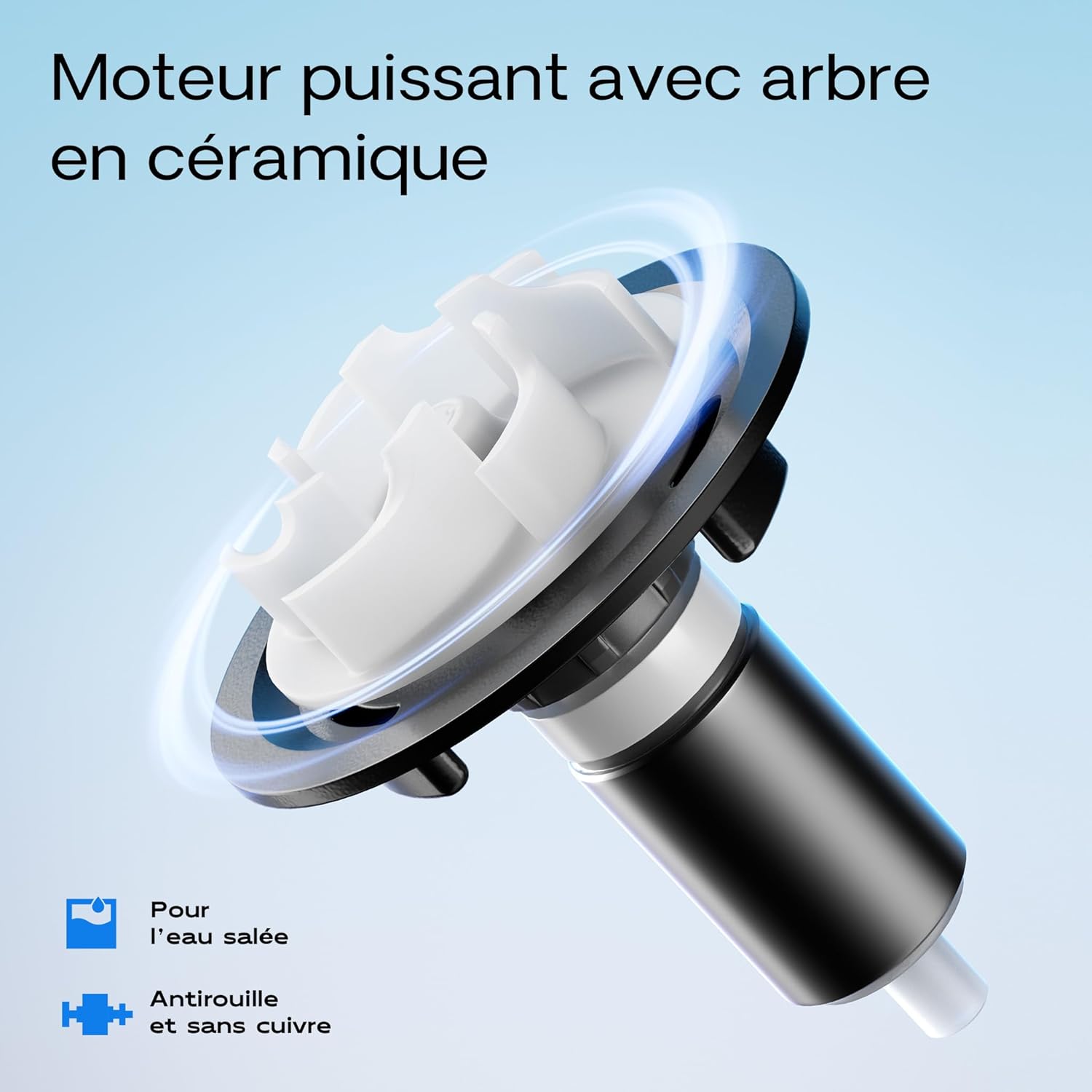

The pump is equipped with a powerful motor featuring a ceramic shaft, making it suitable for both fresh and saltwater applications due to its rust-free and copper-free properties.
Компоненттин бузулушу
3-сүрөт: жарылган View of Pump Components

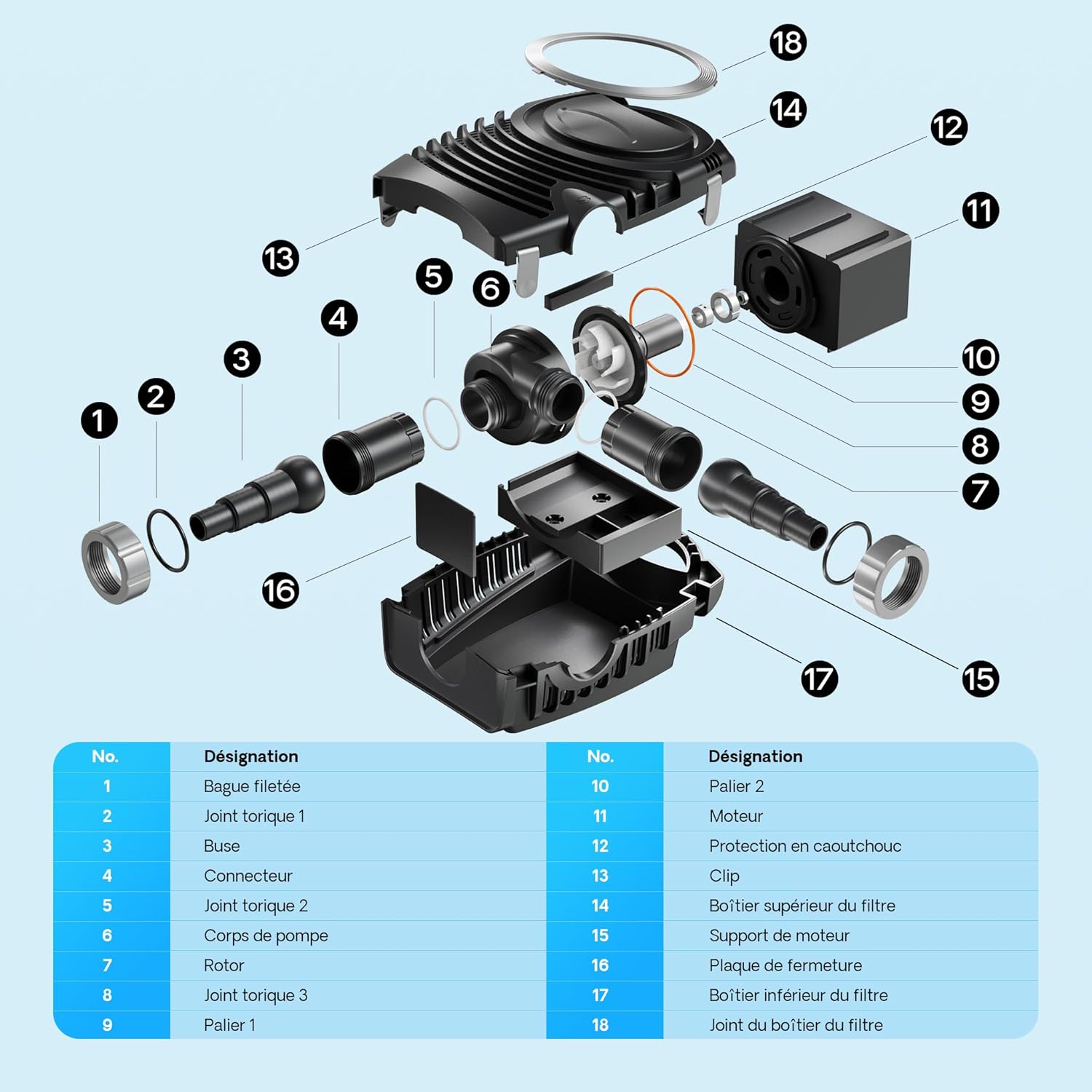

This diagram illustrates the internal and external components of the NEO-10000 pump, aiding in assembly and maintenance.
| Жок. | Description | Жок. | Description |
|---|---|---|---|
| 1 | Threaded Ring | 10 | Подшипник 2 |
| 2 | O-шакек 1 | 11 | Мотор |
| 3 | Сопло | 12 | Резина коргоо |
| 4 | Туташтыргыч | 13 | Клип |
| 5 | O-шакек 2 | 14 | Upper Filter Housing |
| 6 | Насос корпусу | 15 | Моторду колдоо |
| 7 | Ротор | 16 | Жабуу пластина |
| 8 | O-шакек 3 | 17 | Lower Filter Housing |
| 9 | Подшипник 1 | 18 | Filter Housing Seal |
4. Орнотуу жана орнотуу
The NEO-10000 pump is versatile and can be used for various applications including skimmers, fountains, filters, or streams. It integrates easily into different types of ponds, aquatic gardens, or natural pools.
Жайгаштыруу
- Place the pump in the deepest part of the pond or water feature, ensuring it is fully submerged.
- Position the pump on a stable, level surface to prevent it from tipping over.
- Ensure the pump is not obstructed by debris or plants, which could impede water intake.
Figure 4: Pump Installation in a Pond

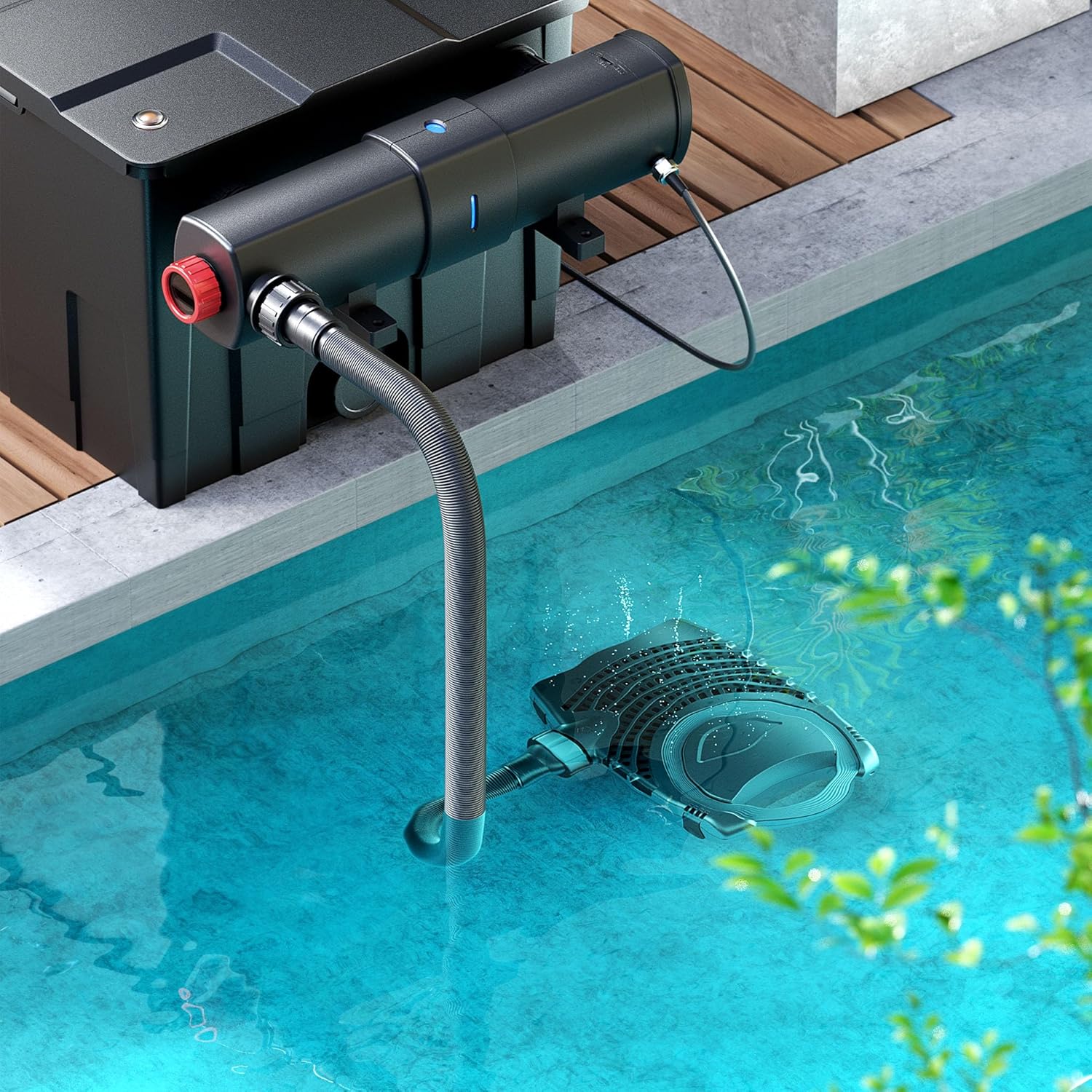

The image shows the pump submerged in a pond, connected to an external filtration system, demonstrating a typical setup.
Шланг туташтыруу
The pump is compatible with hose diameters of 25 mm (1"), 33 mm (1¼"), and 38 mm (1½").
- Select the appropriate hose connector size for your tubing.
- Attach the hose securely to the pump's outlet. Use a hose clamp if necessary to ensure a watertight seal.
- Direct the hose to your desired water feature, filter, or return point in the pond.
Figure 5: Using the Pump with a Skimmer
This illustration demonstrates how the pump can be integrated with a pond skimmer to remove surface debris, indicating its adaptability for various pond accessories.
Power Connection
Connect the pump's power cable to a grounded electrical outlet. Ensure the outlet is protected by a Residual Current Device (RCD) for safety.
5. Иштөө нускамалары
Once installed and connected, the SunSun NEO-10000 pump is designed for continuous operation. Simply plug it into the power outlet to start. The pump will begin circulating water, contributing to the filtration and oxygenation of your pond.
- Үзгүлтүксүз иштөө: The pump is built for 24/7 use, providing consistent water movement.
- Суунун температурасы: Operate the pump within the recommended water temperature range of 4°C to 35°C.
- Мониторинг: Periodically check the water flow to ensure the pump is operating effectively and there are no blockages.
6-сүрөт: Ар тараптуу колдонмолор
The pump is suitable for a wide range of water features, including garden ponds, decorative fountains, large aquariums, and artificial streams, demonstrating its broad utility.
6. Техникалык тейлөө
Regular maintenance is crucial for the longevity and efficient operation of your pump. The NEO-10000 is designed for simplified maintenance with a tool-free removable casing.
Насосту тазалоо
- Кубатты өчүрүү: Тазалоодон мурун насосту ар дайым кубат булагынан сууруп коюңуз.
- Бөлүп салуу: Насос casing can be easily opened without tools. Open the clips and remove the upper filter housing.
- Таштандыларды алып салуу: Remove any accumulated debris, leaves, or sludge from the filter housing and around the impeller. The pump can handle particles up to 6 mm, but regular cleaning prevents buildup.
- Таза дөңгөлөк: Carefully remove the rotor (impeller) and clean it thoroughly with a soft brush and clean water. Ensure no foreign objects are lodged in the impeller chamber.
- Кайра чогултуу: Reassemble the pump by following the disassembly steps in reverse. Ensure all seals are correctly seated and clips are securely fastened.
Figure 7: Quick Maintenance Steps
This visual guide demonstrates the simple, tool-free process for disassembling and reassembling the pump for cleaning and maintenance.
7. Кыйынчылыктарды
If you encounter issues with your pump, refer to the following troubleshooting guide:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Насос иштебейт | Электр энергиясы жок | Check power connection, wall outlet, and RCD. |
| Impeller jammed by debris | Disconnect power, disassemble pump, and clean impeller/impeller chamber. | |
| Суу агымынын азайышы | Clogged intake or hose | Disconnect power, clean the pump's intake screen and check the hose for blockages. |
| Кир импеллер | Disconnect power, disassemble, and clean the impeller. | |
| Насос ызы -чуу | Debris in impeller chamber | Disconnect power, disassemble, and clean the impeller and chamber. |
| Насос толугу менен сууга түшө элек | Ensure the pump is completely underwater. |
8. Техникалык шарттар
Technical details for the SunSun NEO-10000 SuperECO Pond Pump:
- Модель номери: 51008
- Max Flow Rate: саатына 10,000 литр
- Макс башчысы: 6 метр
- Энергияны керектөө: 80 Ватт
- Тtage: 230 вольт
- Кубат булагы: Электр кабели
- Материал: ABS, PC
- Өлчөмдөрү (L x W x Y): 25.8 x 18.3 x 12.1 см
- Салмагы: 4.48 килограмм
- Hose Connection Diameter: 25 mm (1"), 33 mm (1¼"), 38 mm (1½")
- Бөлүкчөлөрдүн максималдуу өлчөмү: 6 мм чейин
- Суунун температурасы диапазону: 4°C - 35°C
8-сүрөт: Продукттун өлчөмдөрү жана өзгөчөлүктөрү
This diagram provides precise measurements of the pump and highlights key features like hose connection sizes and built-in protection against overheating and blockages.
Figure 9: Flow Rate and Head Performance
A graphical representation of the pump's performance, showing the relationship between flow rate and maximum head, along with key specifications for the NEO-10000 model.
9. Кепилдик жана колдоо
For warranty information, product support, or to purchase replacement parts, please contact your retailer or visit the official SunSun webсайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
