Продукт бүттүview
The 3M TR-644 Battery Charger Kit is designed as a comprehensive 4-station battery charging solution specifically for 3M TR-600 Series Powered Air Purifying Respirators (PAPRs). This kit includes a TR-944 Power Supply and four TR-640 Cradles, enabling efficient charging of multiple batteries simultaneously.
It is capable of charging both TR-630 standard capacity batteries and TR-632 high capacity batteries in less than 4 hours. The TR-644 charger supports charging up to four batteries concurrently, making it an ideal solution for maintaining multiple PAPR units.
Figure 1: The complete 3M TR-644 Battery Charger Kit, showing the main charging base, four individual charging cradles, and the power supply unit.
Орнотуу нускамалары
Follow these steps to set up your 3M TR-644 Battery Charger Kit:
- Компоненттерди таңгактан чыгаруу: Carefully remove all components from the packaging. Verify that you have the TR-644 charging base, four TR-640 cradles, and the TR-944 power supply.
- Connect Cradles: Insert each of the four TR-640 cradles into the designated slots on the TR-644 charging base. Ensure they click securely into place.
- Кубат булагына туташтыруу: Plug the TR-944 power supply into the power input port on the TR-644 charging base.
- Розеткага туташуу: Plug the power supply's AC cord into a standard electrical outlet. The charger is now ready for use.

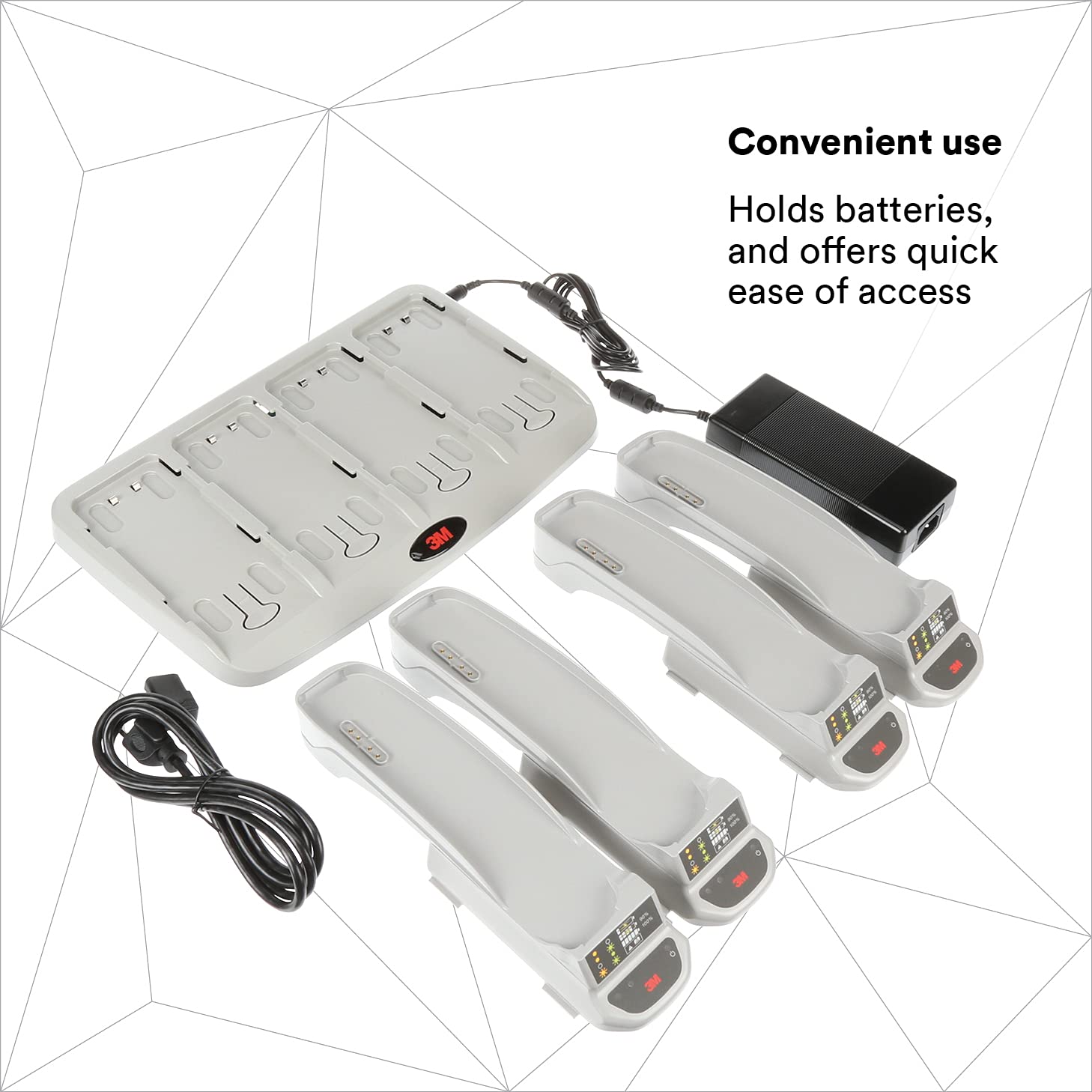

Figure 2: The charger's design allows for convenient insertion and removal of batteries, ensuring quick and easy access during operation.
Иштөө нускамалары
This section details how to use the TR-644 Battery Charger Kit to charge your TR-600 Series PAPR batteries.
Батареяны кубаттоо
- Батарея салыңыз: Gently slide a TR-630 standard capacity battery or TR-632 high capacity battery into an available TR-640 charging cradle. Ensure the battery is fully seated.
- Монитор заряддоо: The charger will automatically begin charging. Refer to the battery's indicator lights or the charger's status indicators (if present) to monitor the charging progress.
- Заряддоо убактысы: A fully depleted battery will typically charge in less than 4 hours. Charging time may vary based on the battery's initial charge level and capacity.
- Батареяны алып салуу: Once charging is complete (indicated by the battery's full charge indicator), carefully remove the battery from the cradle.
Figure 3: The TR-644 charger is designed for rapid charging of TR-630, TR-632, and TR-830 batteries, ensuring minimal downtime for your PAPR units.
Figure 4: This multi-charger can simultaneously charge up to four batteries, significantly improving efficiency for operations requiring multiple charged batteries.
Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your TR-644 Battery Charger Kit.
- Тазалоо: Disconnect the charger from the power outlet before cleaning. Use a soft, dry cloth to wipe down the exterior surfaces of the charging base and cradles. Do not use abrasive cleaners or solvents.
- Сактагыч: When not in use, store the charger in a clean, dry environment away from direct sunlight and extreme temperatures.
- Текшерүү: Periodically inspect the power cord and charging cradles for any signs of damage, such as fraying, cuts, or bent pins. If damage is observed, discontinue use and contact 3M customer support.
Проблемаларды чечүү
This section provides solutions to common issues you might encounter with your TR-644 Battery Charger Kit.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Заряддагыч күйбөй жатат. | Power cord not securely connected; power outlet not active; faulty power supply. | Ensure power cord is fully plugged into both the charger and the wall outlet. Test the outlet with another device. If issue persists, contact 3M support. |
| Батарея заряддалбай жатат. | Battery not properly seated; battery is faulty; charging cradle is faulty. | Re-insert the battery, ensuring it is fully seated in the cradle. Try charging a different battery in the same cradle, or the same battery in a different cradle, to isolate the issue. |
| Кубаттоо 4 сааттан ашык убакытты талап кылат. | Battery deeply discharged; battery nearing end of life. | Allow additional time for deeply discharged batteries. If consistently slow, the battery may need replacement. |
Техникалык шарттар
Key specifications for the 3M TR-644 Battery Charger Kit:
- Модель номери: 051131373518
- ASIN: B00TYOZXRI
- Өндүрүүчү: 3M
- Продукциянын өлчөмдөрү: 2.54 x 2.54 x 2.54 см (1 x 1 x 1 дюйм)
- Элемент Салмагы: 3.06 кг (6.75 фунт)
- Бири -бирине шайкеш батареялар: 3M TR-630 Standard Capacity Battery, 3M TR-632 High Capacity Battery (for TR-600 Series PAPRs)
- Заряддоо кубаттуулугу: Up to 4 batteries simultaneously
- Заряддоо убактысы: Less than 4 hours for a fully depleted battery
Кепилдик жана колдоо
For detailed warranty information and technical support regarding your 3M TR-644 Battery Charger Kit, please refer to the documentation included with your purchase or visit the official 3M website. Contact information for customer service is typically available on the product packaging or the manufacturer's support pages.
