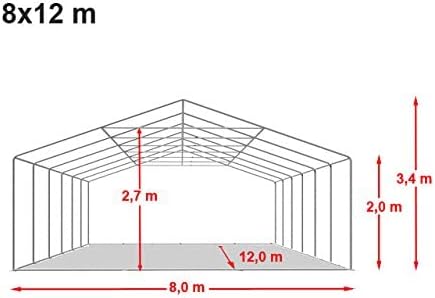

TOOLPORT Storage Marquee 8x12m PVC 750 N White

Introduction

This instruction manual provides essential information for the safe and efficient assembly, operation, and maintenance of your TOOLPORT Storage Marquee 8x12m PVC 750 N White. Please read this manual thoroughly before initial use and retain it for future reference. Proper adherence to these instructions will ensure the longevity and optimal performance of your marquee.

The TOOLPORT Storage Marquee is designed to offer robust protection in all seasons, serving various storage needs or as a versatile event space. Its construction features high-quality, waterproof PVC tarpaulins and a stable steel frame with perimeter and roof reinforcements.

Коопсуздук маалыматы

ЭСКЕРТҮҮ: Бул коопсуздук нускамаларын аткарбоо жаракатка же буюмдун бузулушуна алып келиши мүмкүн.

• Ensure the marquee is properly anchored using all provided ground pegs and tensioning ropes, especially in windy conditions.
• Avoid using the marquee during severe weather conditions such as strong storms, heavy winds, or significant snowfall. Temporary disassembly is recommended in such cases.
• The tent has not been tested against extreme wind and snow loads. In case of light snowfall, immediately remove snow from the roof to prevent accumulation and potential structural damage.
• While the tarpaulins offer UV protection, prolonged exposure to direct sunlight can affect material longevity.
• Keep all open flames, heating devices, and sources of ignition away from the marquee. The PVC material is not fireproof.
• Always ensure adequate ventilation, especially if storing items sensitive to humidity or if people are inside the marquee for extended periods.
• Assembly should be performed by at least two adults. Follow the assembly instructions carefully.

Компоненттердин тизмеси

The TOOLPORT Storage Marquee package includes the following main components:

• Steel Frame: Galvanized steel tubes (approx. Ø 38mm) and connectors (approx. Ø 42mm) for the main structure.
• Roof Tarpaulin: One-piece, high-quality PVC tarpaulin (750 N tensile strength), waterproof and UV-resistant.
• Side Tarpaulins: Individual PVC side panels, designed to be positioned at 2-meter intervals, allowing for flexible entry points.
• Front Tarpaulins: Two PVC front panels, typically featuring an opening for access.
• Ground Frame: Additional steel frame components for enhanced stability at the base.
• Roof Reinforcements: Steel components to strengthen the roof structure.
• Tensioning Ropes & Ground Pegs: For securing the marquee to the ground.
• Монтаж куралдары: Basic tools required for bolting the frame components.
• Монтаждоо көрсөтмөлөрү: Detailed guide for step-by-step setup.

Орнотуу нускамалары

The assembly of the TOOLPORT Storage Marquee requires careful attention to detail. It is recommended that at least two adults perform the assembly. The estimated assembly time varies by size:

• 3m width: Approximately 1.5 hours with 2 helpers.
• 4m width: Approximately 2 hours with 3-4 helpers.
• 5m width and above: Approximately 2.5-3 hours with 4-5 helpers.

Чогултуу кадамдары:

1. Пакеттен чыгаруу жана текшерүү: Carefully unpack all components and lay them out. Compare them against the parts list provided in the separate assembly instructions to ensure all pieces are present.
2. Рамканы чогултуу: Begin by assembling the main steel frame structure. Connect the tubes and connectors, ensuring all bolts are securely fastened. The robust screw system ensures a stable construction.
3. Install Ground Frame and Roof Reinforcements: Attach the ground frame components to the base of the structure and integrate the roof reinforcements. These elements are crucial for the overall stability of the marquee.
4. Drape the Roof Tarpaulin: Carefully drape the one-piece PVC roof tarpaulin over the assembled frame. Ensure it is centered and evenly distributed.
5. Attach Side and Front Tarpaulins: Secure the individual side tarpaulins to the frame. They are designed to be placed at 2-meter intervals, allowing for flexible entry points. Attach the front tarpaulins, ensuring any zipper openings are functional.
6. Secure the Marquee: Use the provided tensioning ropes and ground pegs to firmly anchor the marquee to the ground. Ensure all ropes are taut and pegs are driven deep into stable soil.

No additional specialized tools beyond those provided are typically required for assembly.

Иштөө нускамалары

The TOOLPORT Storage Marquee is designed for versatile use, whether for seasonal events or continuous storage. To ensure optimal performance and longevity, consider the following:

• Access and Configuration: Utilize the removable front and side tarpaulins to create customized entry points and ventilation as needed. The individual side panels allow for flexible arrangement.
• Вентиляция: Ensure proper air circulation, especially when storing items sensitive to humidity or when the marquee is occupied. Opening side panels or entrances can help manage internal temperature and moisture.
• Аба ырайынын мониторинги: Regularly monitor weather forecasts. While the marquee is robust, extreme weather conditions require proactive measures as outlined in the Safety Information section.
• Жүктөрдү башкаруу: Avoid placing excessive weight or pressure on the marquee structure, particularly on the roof.

Техникалык тейлөө

Regular maintenance will extend the life of your TOOLPORT Storage Marquee:

• Cleaning Tarpaulins: Clean the PVC tarpaulins periodically with mild soap and water. Use a soft brush or cloth. Rinse thoroughly with clean water. Avoid using harsh chemicals, abrasive cleaners, or high-pressure washers, as these can damage the material and its protective coatings.
• Frame Inspection: Periodically inspect all steel frame components for signs of rust, damage, or loose connections. Tighten any loose bolts and replace damaged parts promptly.
• Tarpaulin Inspection: Check the tarpaulins for any tears, punctures, or signs of wear. Small damages can often be repaired using a suitable PVC repair kit. Address these issues quickly to maintain waterproofing.
• Anchoring System: Regularly check the tensioning ropes and ground pegs. Ensure they are securely fastened and taut, especially after strong winds or heavy rain. Re-tension if necessary.
• Кар тазалоо: In regions with snowfall, immediately remove any accumulated snow from the roof to prevent excessive weight and potential collapse. Do not allow snow to build up.
• Storage (if disassembled): If disassembling the marquee for storage, ensure all components are clean and dry before packing. Store tarpaulins in a cool, dry place away from direct sunlight and pests.

Проблемаларды чечүү

Бул жерде сиз кабылышы мүмкүн болгон жалпы маселелерди чечүү жолдору бар:

• Суу агып кетиши:
  Мүмкүн болгон себеп: Small tears or punctures in the tarpaulin, improperly sealed seams, or incorrect roof tarpaulin installation.
  Чечим: Inspect the entire roof and side tarpaulins for damage. Repair small tears with a PVC repair kit. Ensure the one-piece roof tarpaulin is correctly positioned and tensioned to shed water effectively.
• Marquee Instability in Wind:
  Мүмкүн болгон себеп: Insufficient anchoring or loose tensioning.
  Чечим: Verify that all ground pegs are fully driven into stable ground and all tensioning ropes are taut. For areas prone to strong winds, consider purchasing additional heavy-duty anchoring kits or a specialized wind protection set from TOOLPORT. In very strong winds, temporary disassembly is the safest option.
• Жыйын учурундагы кыйынчылыктар:
  Мүмкүн болгон себеп: Misidentification of parts or incorrect sequence.
  Чечим: Refer to the detailed assembly instructions and diagrams. Ensure each component is correctly identified before attempting to connect it. Double-check that all bolts are aligned and tightened properly.
• Damaged Frame Component:
  Мүмкүн болгон себеп: Impact, excessive stress, or manufacturing defect.
  Чечим: Do not attempt to use a marquee with a damaged frame. Contact TOOLPORT customer service for replacement parts.

Техникалык шарттар

Кепилдик маалымат

For specific warranty terms and conditions applicable to your TOOLPORT Storage Marquee, please refer to the documentation included with your purchase or visit the official TOOLPORT website. Warranty coverage typically includes manufacturing defects and material faults under normal use. Keep your proof of purchase for any warranty claims.

Кардарларды колдоо

Should you require further assistance, have questions regarding assembly, need replacement parts, or wish to provide feedback, please contact TOOLPORT customer service. You can find contact information and additional resources on the official TOOLPORT brand store:

Visit the TOOLPORT Brand Store

Our team is dedicated to providing innovative and reliable solutions, and we are here to support you.
