Yakima SpareRide Rear Spare Tire Mounted 2-Bike Rack Instruction Manual

1. Продукт бүтүп калдыview

The Yakima SpareRide is a durable steel bike rack designed to mount directly onto your vehicle's rear spare tire. It provides secure transport for up to two bicycles, featuring integrated SKS locks for security and an anti-sway design to protect your bikes during travel. This manual provides detailed instructions for installation, operation, and maintenance.

Негизги өзгөчөлүктөрү:

• Rear Mount Design: Easily attaches to most stock-size spare tires and lug patterns.
• 2-Bike Capacity: Safely transports two bicycles.
• SuperCush ZipStrip Cradles: Ensures secure bike loading and prevents bike-to-bike contact.
• Integrated SKS Locks: Provides security for both the rack and your bikes.
• Туруктуу болот конструкциясы: Built for long-lasting use.
• Орнотулган бөтөлкө ачкыч: A convenient feature for post-ride refreshments.

Image: The Yakima SpareRide bike rack showcasing its innovative design, secure transport, and all-weather construction.

2. Орнотуу жана орнотуу

Follow these steps to correctly install your Yakima SpareRide bike rack onto your vehicle's rear spare tire.

2.1 Пакеттен чыгаруу жана компоненттерди текшерүү

• Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
• Продукциянын таңгактоо тизмесинде көрсөтүлгөн бардык тетиктердин бар экенин текшериңиз.
• Familiarize yourself with the main rack assembly, mounting plate, ZipStrips, and locking knob.

2.2 Attaching the Mounting Plate to the Spare Tire

The SpareRide is designed to fit most 5 and 6-bolt lug patterns and various spare tire sizes. The universal mounting plate includes an extension for broader compatibility.

1. Position the universal mounting plate against the spare tire, aligning the central shaft with the spare tire's hub.
2. Insert the appropriate lug bolts through the mounting plate and into the vehicle's spare tire mount.
3. Tighten the lug bolts securely. Ensure the plate is stable and does not wobble.

Image: The Yakima SpareRide bike rack securely attached to a vehicle's rear spare tire, ready for use.

2.3 Mounting the Bike Rack to the Plate

1. Slide the main rack assembly onto the central shaft of the mounting plate.
2. Align the rack so that the bike arms are positioned correctly for loading.
3. Secure the rack to the mounting plate using the red locking knob. Turn the knob clockwise until it is hand-tight and the rack is firmly in place.
4. Use the integrated SKS lock to secure the knob, preventing unauthorized removal of the rack.

Сүрөт: жакын план view of the red locking knob and the base of the Yakima SpareRide bike rack, showing its attachment to the spare tire.

2.4 Орнотуу боюнча видео колдонмо

Video: Official Yakima guide demonstrating the installation and usage of the SpareRide bike rack, including how to attach it to a spare tire and secure bikes.

3. Иштөө нускамалары

Once installed, the Yakima SpareRide is simple to use for transporting your bicycles.

3.1 Велосипеддерди жүктөө

1. Ensure the rack arms are in the horizontal position.
2. Lift your bicycle and place its top tube onto the SuperCush ZipStrip cradles.
3. Secure the bike using the ZipStrips. Wrap the strap around the bike frame and feed it through the buckle until tight. The anti-sway cradles will help prevent movement.
4. Repeat for the second bicycle, ensuring proper spacing to avoid contact.

Image: Two bicycles securely loaded onto the Yakima SpareRide rack, attached to the rear of a vehicle.

3.2 Securing Bicycles

The integrated SKS locking package provides additional security for your bikes.

1. Utilize the cable lock provided with the SKS system.
2. Thread the cable through the frames of both bicycles and around the main mast of the bike rack.
3. Lock the cable securely with the SKS key.

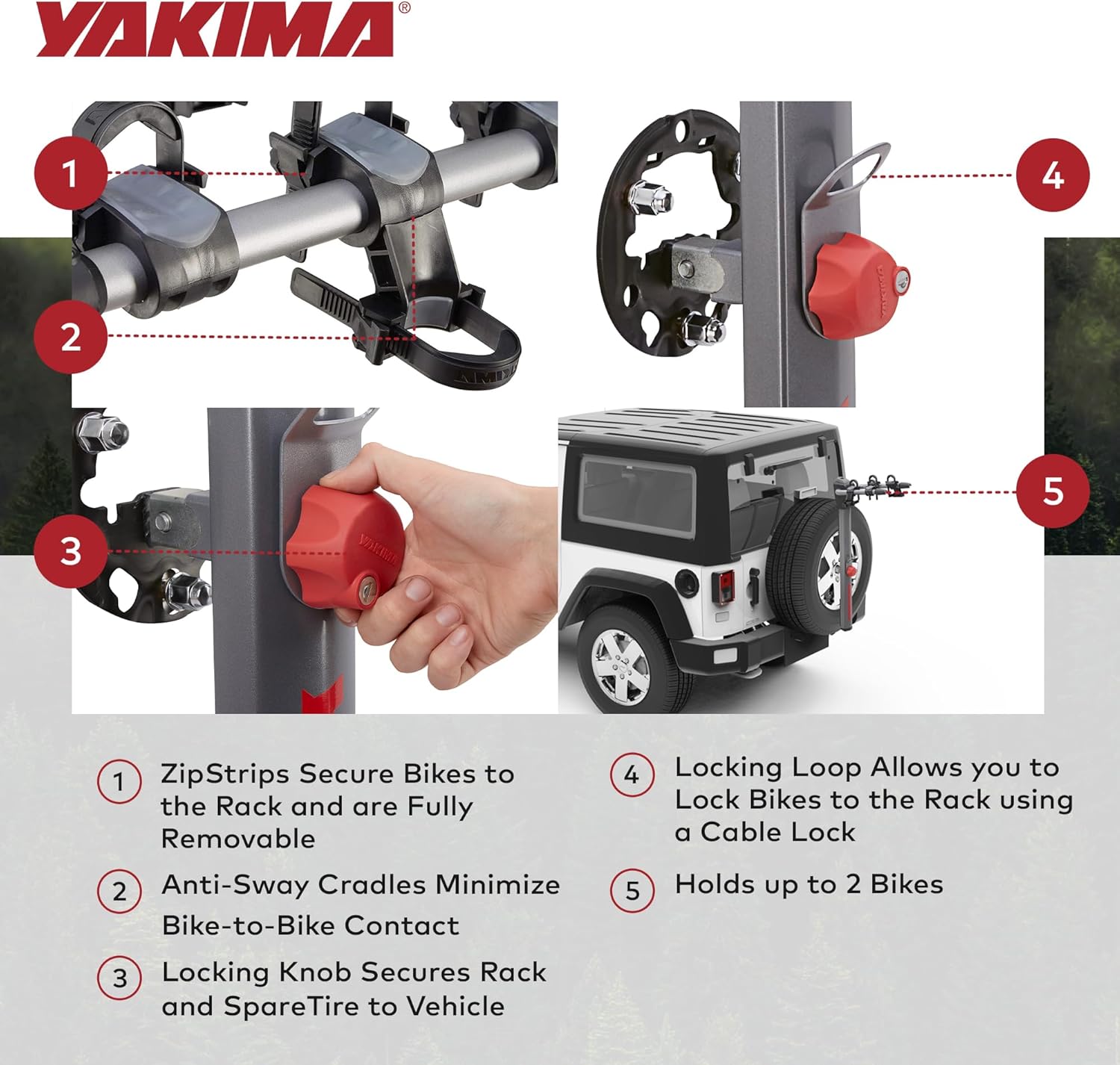

Image: A close-up illustrating the SuperCush ZipStrips securing a bike frame and the anti-sway cradles, along with the locking knob for the rack.

3.3 Unloading Bicycles

1. Unlock and remove the SKS cable lock.
2. Release the ZipStrips from each bicycle.
3. Ар бир велосипедди этияттык менен рейкадан көтөрүңүз.

3.4 Бөтөлкө ачкычты колдонуу

A convenient bottle opener is integrated into the rack for use after your ride.

Image: The Yakima SpareRide bike rack, with an emphasis on its integrated bottle opener, a convenient feature for users.

4. Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your Yakima SpareRide bike rack.

• Тазалоо: Periodically clean the rack with mild soap and water. Rinse thoroughly and dry. Avoid harsh chemicals that may damage finishes or plastic components.
• Текшерүү: Before each use, inspect all straps, buckles, and the locking mechanism for signs of wear, damage, or corrosion. Ensure all bolts and the main locking knob are tight.
• Майлоо: Apply a small amount of silicone spray or light lubricant to moving parts and the lock cylinder annually to ensure smooth operation.
• Сактагыч: When not in use for extended periods, store the bike rack in a dry, protected area to prevent exposure to extreme weather conditions.

5. Кыйынчылыктарды

Here are solutions to common issues you might encounter with your SpareRide bike rack.

5.1 Rack Wobbles After Installation

• Ensure the lug bolts securing the mounting plate to the spare tire are fully tightened.
• Verify the red locking knob is securely tightened and locked.
• Check that the mounting plate is correctly seated against the spare tire's hub.

5.2 Bikes Sway or Contact Each Other

• Confirm that the SuperCush ZipStrips are pulled tight around the bike frames.
• Ensure the anti-sway cradles are properly positioned and engaged with the bike frames.
• Adjust bike positions on the arms to maximize spacing and minimize contact points.

5.3 SKS Lock Mechanism is Stiff

• Apply a small amount of graphite lubricant or silicone spray into the lock cylinder.
• Insert and remove the key several times to distribute the lubricant.

6. Техникалык шарттар

Image: A visual representation of the Yakima SpareRide bike rack's dimensions and weight.

7. Кепилдик жана колдоо

The Yakima SpareRide bike rack comes with a manufacturer's limited-lifetime warranty, ensuring peace of mind regarding its quality and durability.

• For detailed warranty information, claims, or technical support, please visit the official Yakima webсайтка же кардарларды тейлөөгө кайрылыңыз.
• Кепилдик үчүн сатып алуу дүмүрчөгүн сатып алуунун далили катары сактаңыз.
