ALEKO Circuit Control Board for Gate Openers AC/AR 1400/2000 Instruction Manual

1. Киришүү

This manual provides essential information for the installation, operation, and maintenance of the ALEKO Circuit Control Board for AC/AR 1400/2000 series gate openers. Please read these instructions carefully before proceeding with installation or use to ensure proper function and safety.

2. Продукт бүтүп калдыview

The ALEKO Circuit Control Board is a replacement component designed for specific ALEKO sliding gate openers. It serves as the central control unit, managing the gate's movement and various functions.

Figure 2.1: ALEKO Circuit Control Board (Model AC/AR 1400/2000)

This image displays the ALEKO Circuit Control Board, showing its various electronic components, connectors, and relays. It is a green printed circuit board with a prominent yellow transformer and blue relays.

3. Шайкештик

This control circuit board is compatible with the following ALEKO sliding gate opener models:

• AC1400, AR1400, AR1450
• AC2000, AR2000, AR2050
• DKL400UY, KC400UY
• L110C, L110H
• L200Y
• Other similar gate openers (consult your gate opener's manual for specific compatibility)

3.1-сүрөт: Мисamples of Compatible ALEKO Gate Openers

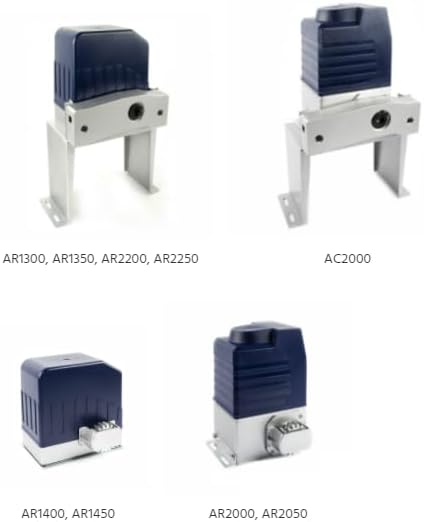

This image illustrates various ALEKO gate opener models, including AR1300, AR1350, AR2200, AR2250, AC2000, AR1400, AR1450, AR2000, and AR2050, demonstrating the range of compatible units for this control board.

4. Өзгөчөлүктөрү

• Direct replacement for original circuit boards in compatible ALEKO gate openers.
• Designed for easy installation and setup.
• Constructed with quality components for reliable performance.
• Manages gate opening and closing cycles.

5. Орнотуу боюнча нускамалар

Биринчи коопсуздук: Before beginning any installation or replacement procedure, ensure that the gate opener system is completely disconnected from its power source. Failure to do so may result in electric shock or damage to the unit.

1. Электр энергиясын өчүрүү: Locate the main power switch or circuit breaker for your gate opener and turn it OFF. Verify that no power is reaching the unit.
2. Access the Control Box: Open the housing of your gate opener to access the existing circuit board. This usually involves unscrewing a few fasteners.
3. Документ байланыштары: Before disconnecting any wires, take clear photographs or make detailed diagrams of all existing wire connections to the old circuit board. Pay close attention to the color and position of each wire.
4. Эски тактаны алып салуу: Carefully disconnect all wires from the old circuit board. Then, unmount the old board from its standoffs or clips.
5. Жаңы тактаны орнотуу: Mount the new ALEKO Circuit Control Board in the same position as the old one. Ensure it is securely fastened.
6. Зымдарды кайра туташтыруу: Using your photographs or diagrams as a guide, reconnect all wires to the corresponding terminals on the new circuit board. Double-check each connection for accuracy and tightness.
7. Башкаруу кутучасын жабуу: Once all connections are verified, close and secure the gate opener housing.
8. Күчтү калыбына келтирүү: Reconnect the gate opener to its power source by turning the main power switch or circuit breaker ON.
9. Сыноо функциясы: Perform initial tests of the gate opener's functions, including opening, closing, and safety features, according to your gate opener's specific manual.

Note: If you are unsure about any step, it is recommended to consult a qualified technician.

6. Операция

The ALEKO Circuit Control Board operates as the brain of your gate opener system. Once installed and configured, it will manage the gate's movement based on inputs from remote controls, safety sensors, and other connected accessories. Refer to your specific ALEKO gate opener model's user manual for detailed instructions on programming remote controls, adjusting limits, and utilizing advanced features.

7. Техникалык тейлөө

The circuit board itself requires minimal maintenance. However, regular inspection of the gate opener system is recommended:

• Визуалдык текшерүү: Periodically check the circuit board for any signs of damage, corrosion, or loose connections.
• Тазалык: Ensure the control box remains free of dust, debris, and moisture, which can affect electronic components.
• Зымдар: Verify that all wires connected to the board are secure and free from fraying or damage.
• Курчап турган чөйрөнү коргоо: Ensure the gate opener's housing is properly sealed to protect the circuit board from environmental elements.

8. Кыйынчылыктарды

If your gate opener is not functioning correctly after installing the new circuit board, consider the following:

• Кубат жок: Check if the gate opener is receiving power. Verify the circuit breaker and all power connections.
• Туура эмес зымдар: Double-check all wire connections against your diagrams or the gate opener's manual. Ensure no wires are swapped or loose.
• Алыстан башкаруу маселелери: If remote controls are not working, they may need to be reprogrammed with the new board. Refer to your gate opener's manual for programming instructions.
• Safety Sensor Malfunction: Ensure safety sensors (e.g., photocells) are correctly aligned and free from obstructions. A fault in these sensors can prevent the gate from operating.
• Чектөө которуштурууну тууралоо: If the gate is not opening or closing fully, the limit switches may need adjustment. Consult your gate opener's manual.

For persistent issues, contact ALEKO customer support or a qualified technician.

9. Техникалык шарттар

10. Кардарларды колдоо кызматы

For technical assistance, warranty information, or to purchase replacement parts, please contact ALEKO customer support. You can find contact details on the official ALEKO webсайтка же продуктунун баштапкы таңгагы аркылуу.

Webсайт: Visit the ALEKO Store on Amazon
