RL LIVE YOUR LIGHT LED Ceiling Light

1. Киришүү

Сатып алганыңыз үчүн рахматasing the RL LIVE YOUR LIGHT R62601201 LED Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

This round LED ceiling light is designed for indoor use, offering energy-efficient and warm white illumination. Its slim design and white plastic finish make it suitable for various indoor spaces such as hallways and staircases.

2. Коопсуздук нускамалары

• Электр коопсуздугу: Installation must be performed by a qualified electrician or a person with appropriate electrical knowledge to prevent electric shock. Always disconnect power at the main circuit breaker before installation, maintenance, or cleaning.
• Үй ичинде гана колдонуу: This product is designed exclusively for indoor environments. Do not install in wet locations or outdoors.
• Тtage: камсыз кылуу voltage matches the requirements specified on the product label. This product operates on AC power.
• Колдонуу: Жарык шайманды этияттык менен кармаңыз. Аны түшүрүүдөн же катуу таасирлерге дуушар кылуудан алыс болуңуз.
• Жарык булагы: The LED light source in this fixture is permanently installed and not user-replaceable. Do not attempt to disassemble the LED module.
• Тазалоо: Тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
• Жылуулук: Although LED lights produce less heat than traditional bulbs, ensure adequate ventilation around the fixture.

3. Пакеттин мазмуну

Before proceeding with installation, please verify that all components are present and undamaged:

• 1 x RL LIVE YOUR LIGHT R62601201 LED Ceiling Light fixture (with integrated LED module)
• Монтаждоочу жабдыктар (бурамалар, дубал сайгычтар)
• Instruction Manual

4. Орнотуу жана орнотуу

This product does not require assembly. The LED module is integrated into the fixture. Follow these steps for safe installation:

1. Кубатты өчүрүү: Before starting any electrical work, ensure the power supply to the installation area is turned off at the main circuit breaker.
2. Бургулоо пункттарын белгилөө: Hold the light fixture against the ceiling at the desired installation location. Use a pencil to mark the positions for the mounting screws.
3. Бургулоо тешиктери: Drill holes at the marked positions using an appropriate drill bit for your ceiling material. Insert the wall plugs into the drilled holes.
4. Зымдарды туташтыруу: Carefully connect the household electrical wires to the terminals on the light fixture. Ensure correct polarity (Live, Neutral, Earth) according to local electrical codes. If unsure, consult a qualified electrician.
5. Монтаждык арматура: Secure the light fixture to the ceiling using the provided screws. Ensure it is firmly attached and stable.
6. Күчтү калыбына келтирүү: Once the fixture is securely mounted and all connections are checked, restore power at the main circuit breaker.

Figure 1: Technical drawing showing the dimensions of the ceiling light (diameter 270mm, height 85mm).

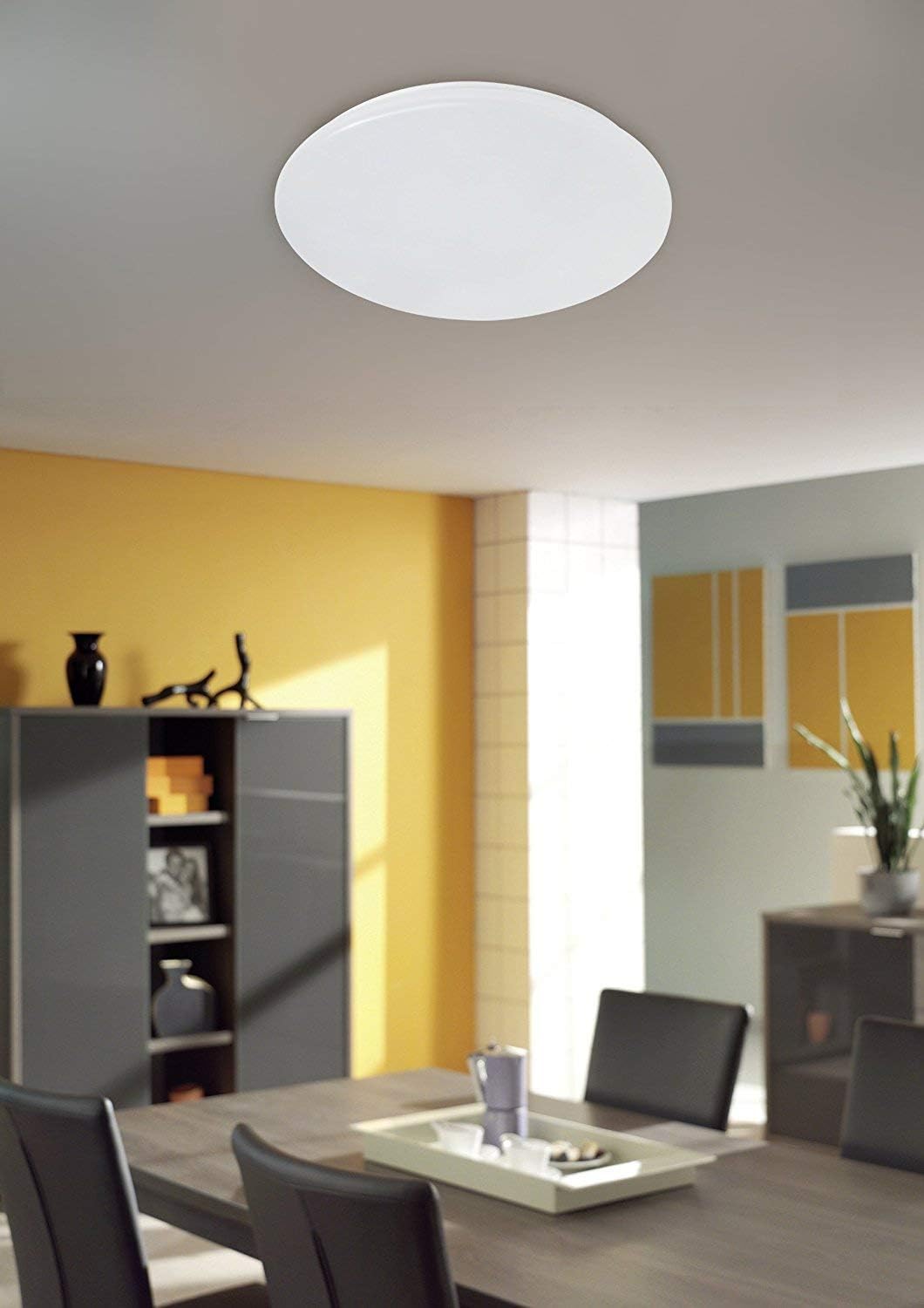

Figure 2: The LED ceiling light installed in a room, demonstrating its appearance when mounted.

5. Иштөө нускамалары

The RL LIVE YOUR LIGHT R62601201 LED Ceiling Light operates via a standard wall switch connected to its electrical circuit. Simply toggle the wall switch to turn the light on or off.

• Күйгүзүүдө: Flip the connected wall switch to the 'ON' position. The light will illuminate instantly.
• Өчүрүү: Flip the connected wall switch to the 'OFF' position. The light will turn off.

3-сүрөт: Жогорку view of the LED ceiling light.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and optimal performance of your LED ceiling light.

• Тазалоо: Тазалоодон мурун электр энергиясын өчүрүңүз. жумшак, кургак же бир аз колдонуу damp cloth to wipe the surface of the fixture. Do not use harsh chemicals, abrasive cleaners, or sprays directly on the light.
• LED өмүрү: The integrated LED module has an average service life of up to 30,000 hours. This means the light source is designed to last for many years under normal use and does not require regular replacement.
• Демонтаж: This product is designed to be disassembled for separate inspection of the light source(s) at the end of its life, as per environmental regulations. Do not attempt to disassemble for maintenance or repair.

7. Кыйынчылыктарды

If you encounter issues with your LED ceiling light, refer to the following common problems and solutions:

Бул чечимдерди колдонуу аракетинен кийин көйгөй чечилбесе, кардарларды колдоо кызматына кайрылыңыз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Кепилдик маалыматы же техникалык колдоо алуу үчүн, сатып алууда берилген документацияны караңыз же сатуучу/өндүрүүчү менен түздөн-түз байланышыңыз. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.
