1. Киришүү
This manual provides essential instructions for the installation, operation, maintenance, and troubleshooting of your Frigidaire Smart Window Air Conditioner, model FGRC0844S1. This 8,000 BTU, 115V unit is designed to cool rooms up to 350 square feet and features Wi-Fi connectivity for smart control via the Frigidaire app and compatibility with Alexa.
Please read this manual thoroughly before operating your air conditioner to ensure safe and efficient use.
2. Орнотуу
2.1. Физикалык орнотуу
The Frigidaire Smart Window Air Conditioner is designed for window installation and includes a window mounting kit. Ensure your window opening meets the required dimensions for proper fit and sealing. The unit weighs approximately 54 pounds. Follow the detailed instructions provided in the separate installation guide for secure placement.
Image: Frigidaire Smart Window Air Conditioner model FGRC0844S1 securely installed in a window, demonstrating its sleek profile.
2.2. Wi-Fi Connection and App Setup
To utilize the smart features of your air conditioner, connect it to your home Wi-Fi network using the Frigidaire app. The app is available on Apple's iTunes Store for iPhone, iPad, and iPad mini, and on Google Play for Android smart devices.
- Колдонмону жүктөп алыңыз: Download and open the Frigidaire app on your smart device.
- Эсеп түзүү: If you are a first-time user, create an account with a valid email address and password. You will need to validate your email to activate your account.
- Кирүү: Return to the app's home screen and sign in with your newly created account.
- Аппаратты кошуу: Tap the "Add Appliance" button and accept the terms and conditions.
- Activate Wi-Fi on AC: Press and hold the Connect button (often indicated by a Wi-Fi symbol) on the air conditioner unit until it beeps and the Wi-Fi LED light starts flashing.
- Connect Device to AC's Wi-Fi: On your smart device, go to your Wi-Fi settings. Select the network that includes "Air_Conditioner" in its name.
- Колдонмого кайтуу: Once connected to the AC's Wi-Fi, return to the Frigidaire app and tap "Next".
- Connect AC to Home Wi-Fi: Select your home Wi-Fi network from the list. If not listed, refresh or select "Other" to manually enter the network name and password.
- Join Network: Tap "Join" to connect your air conditioner to your home Wi-Fi.
- Каттоо: Register your appliance within the app.
Upon successful connection, the air conditioner will beep, and its Wi-Fi LED light will change from flashing to solid. You will then see the status of your smart appliance on the app, indicating it is ready for use.
Video: This video demonstrates the step-by-step process of connecting your Frigidaire Smart Window Air Conditioner to your smart device via the Frigidaire app, including account creation, appliance pairing, and Wi-Fi network selection.
Image: A hand holding a smartphone showing the Frigidaire app, which allows remote control and monitoring of the air conditioner.
3. Иштөө нускамалары
Your Frigidaire Smart Window Air Conditioner offers multiple ways to control its functions: the integrated control panel, the remote control, and the Frigidaire smart app.
3.1. Башкаруу панели жана алыстан
The unit features a sleek control panel with touch-sensitive buttons and an illuminated temperature display. A remote control is also included for convenient operation.

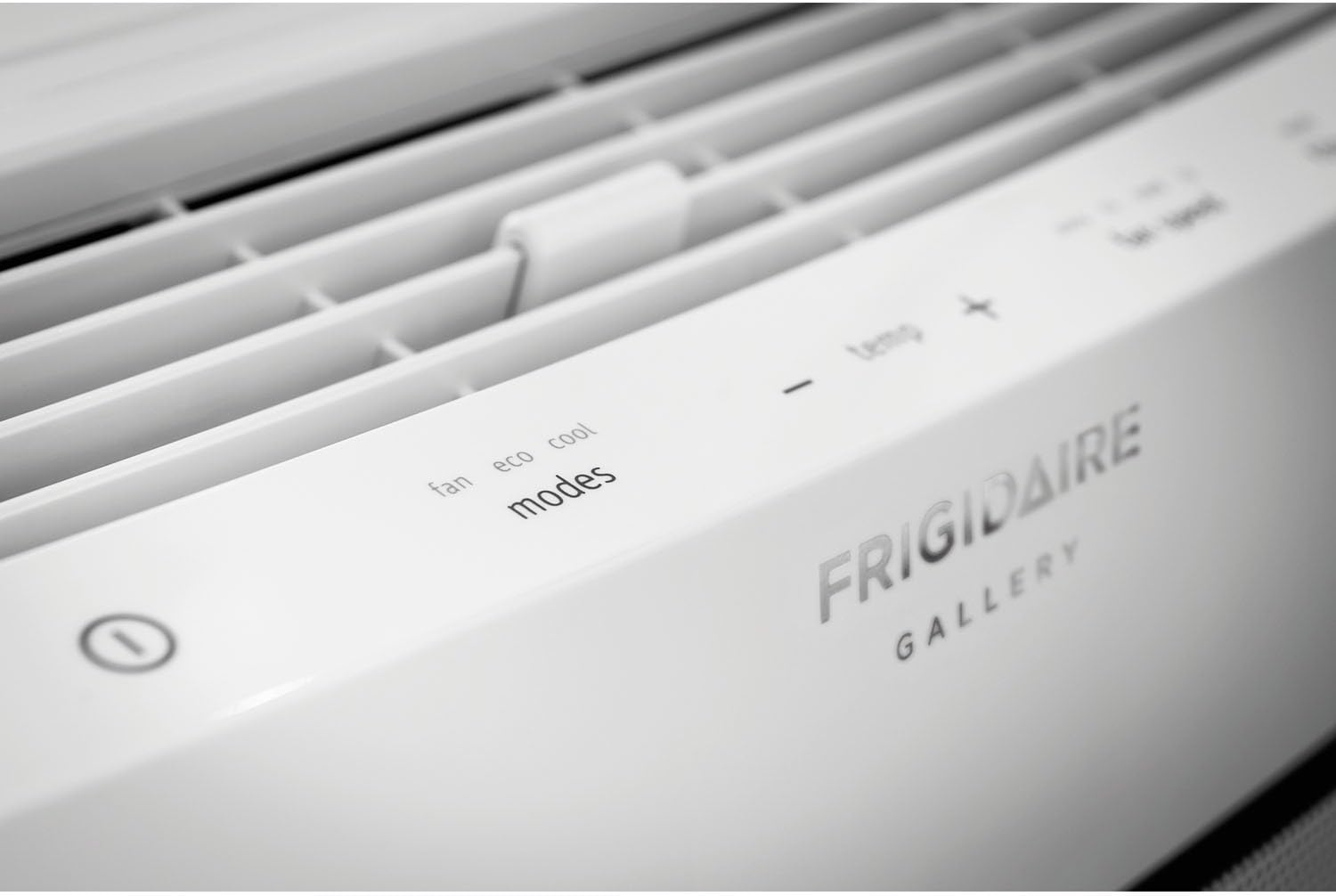

Сүрөт: жакын план view of the Frigidaire Smart Window Air Conditioner's top control panel, showing touch-sensitive buttons for fan, eco, cool modes, temperature adjustment, fan speed, filter reset, and scheduler.
3.2. Режимдер жана Орнотуулар
- Муздак режим: Provides cooling to the room. Adjust the desired temperature using the +/- buttons.
- Эко режими: Optimizes energy consumption by cycling the compressor and fan to maintain the set temperature.
- Күйөрман режими: Operates the fan without engaging the compressor, providing air circulation.
- Нымсыздандыруу: Бөлмөдөгү нымдуулукту азайтат.
- Күйөрмандардын ылдамдыгы: Select from Auto, Low, Medium, or High fan speeds.
3.3. Акылдуу тиркемелерди башкаруу
The Frigidaire app allows you to remotely control your air conditioner from anywhere with an internet connection. You can:
- Аппаратты күйгүзүңүз же өчүрүңүз.
- Температура жөндөөсүн өзгөртүңүз.
- Control operating modes and fan speeds.
- Set custom schedules for 24/7 operation.
- Receive alerts, such as clean filter indicators.
3.4. Аба агымынын багыты
The unit features innovative top, 2-way slanted louvers that direct airflow in an upward, circular motion. This design promotes even cooling throughout the room without directly blowing cold air onto occupants.
4. Техникалык тейлөө
Үзгүлтүксүз техникалык тейлөө кондиционериңиздин оптималдуу иштешин жана узак иштөөсүн камсыздайт.
4.1. Фильтрди тазалоо
Your air conditioner is equipped with a higher quality micro mesh fabric filter. A red light will illuminate approximately once a month to remind you to clean the filter. To clean:
- Carefully remove the front grill and then the filter.
- Чыпканы жылуу, самындуу суу менен жууңуз.
- Кылдаттык менен жууп, кайра салаардан мурун аны толугу менен кургатуу керек.
- Press the "Filter Reset" button on the control panel or in the app after cleaning.
Image: The Frigidaire Smart Window Air Conditioner with its front panel detached, revealing the internal filter and cooling coils for maintenance access.
4.2. Жалпы тазалоо
- Агрегаттын сыртын жумшак менен сүртүңүз, гamp кездеме.
- Дренаждык аймактын таштандылардан тазаланганын текшериңиз.
- Periodically check the window seals for any gaps that could reduce efficiency.
5. Кыйынчылыктарды
If you encounter issues with your Frigidaire Smart Window Air Conditioner, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Агрегат эффективдүү муздабай жатат | Incorrect mode/temperature setting, dirty air filter, room size exceeds capacity, poor window seal. | Ensure unit is in Cool mode with a low set temperature. Clean the air filter. Verify room size is within 350 sq ft. Check and improve window insulation. |
| Wi-Fi туташуу көйгөйлөрү | Incorrect Wi-Fi password, weak signal, app malfunction, router issues. | Re-enter Wi-Fi password carefully. Ensure unit is within range of your router. Restart the Frigidaire app. Power cycle your home router. Repeat Wi-Fi setup process. |
| Аппарат адаттан тыш үндөрдү чыгарат | Normal operating sounds (fan, compressor), loose parts, debris. | Some fan and compressor sounds are normal. Check for any loose components or foreign objects. If noise is excessive or unusual, contact customer support. |
| Бирдик күтүлбөгөн жерден өчүп калат | Eco mode activation, power interruption, internal sensor issue. | In Eco mode, the unit cycles on/off to maintain temperature. Check power supply. If not in Eco mode and power is stable, contact customer support. |
6. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Frigidaire |
| Модель номери | FGRC0844S1 |
| Муздатуу кубаттуулугу | 8,000 BTUs |
| Тtage | 115 вольт |
| Power Source | Электр зымдары |
| Ватtage | 673.5 ватт |
| Энергия натыйжалуулугунун коэффициенти (EER) | 12.0 |
| нымдуулуктун күч жөндөмдүүлүгү | Саатына 1.7 пинт |
| Полдун аянты | 350 чарчы футка чейин |
| Элемент Салмагы | 54 фунт |
| Window Opening Max Height | 24 дюйм |
| Өзгөчөлүктөр | Wi-Fi, Amazon Alexa Compatible |
| Муздаткыч | R 410A |
| Камтылган компоненттер | Air conditioner, window mounting kit, manual, warranty |
Image: U.S. Government Energy Guide label for the Frigidaire Room Air Conditioner, Model FGRC0844S1, highlighting its 8,000 BTUs capacity, estimated yearly energy cost, and 12.0 Energy Efficiency Ratio.
7. Кепилдик жана колдоо
7.1. Кепилдик маалыматы
Your Frigidaire Smart Window Air Conditioner comes with a Full 1-year parts & labor warranty. Additionally, there is an additional 4 years limited warranty on the sealed system. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
7.2. Кардарларды колдоо кызматы
For further assistance, technical support, or warranty service, please visit the official Frigidaire website or contact their customer service department. You can also find more information and resources on the Amazon'догу Frigidaire дүкөнү.
