1. Киришүү
The Ronco Veg-O-Matic Deluxe is designed to simplify your food preparation tasks by providing a quick and efficient way to chop, slice, wedge, and dice various fruits and vegetables. Its integrated catch container helps maintain a clean workspace.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Faster and safer food preparation compared to traditional knives.
- Integrated catch container for mess-free operation.
- Includes Grip Plates, Cleaning Tool, and 5 specialized cutting blades: two slicing blades, one wedging blade, one cubing blade, and one dicing blade.
- Simple one-push operation for consistent cuts.
- Capable of julienning potatoes for french fries.
2. Продукциянын компоненттери
Familiarize yourself with the various parts of your Veg-O-Matic Deluxe before use.

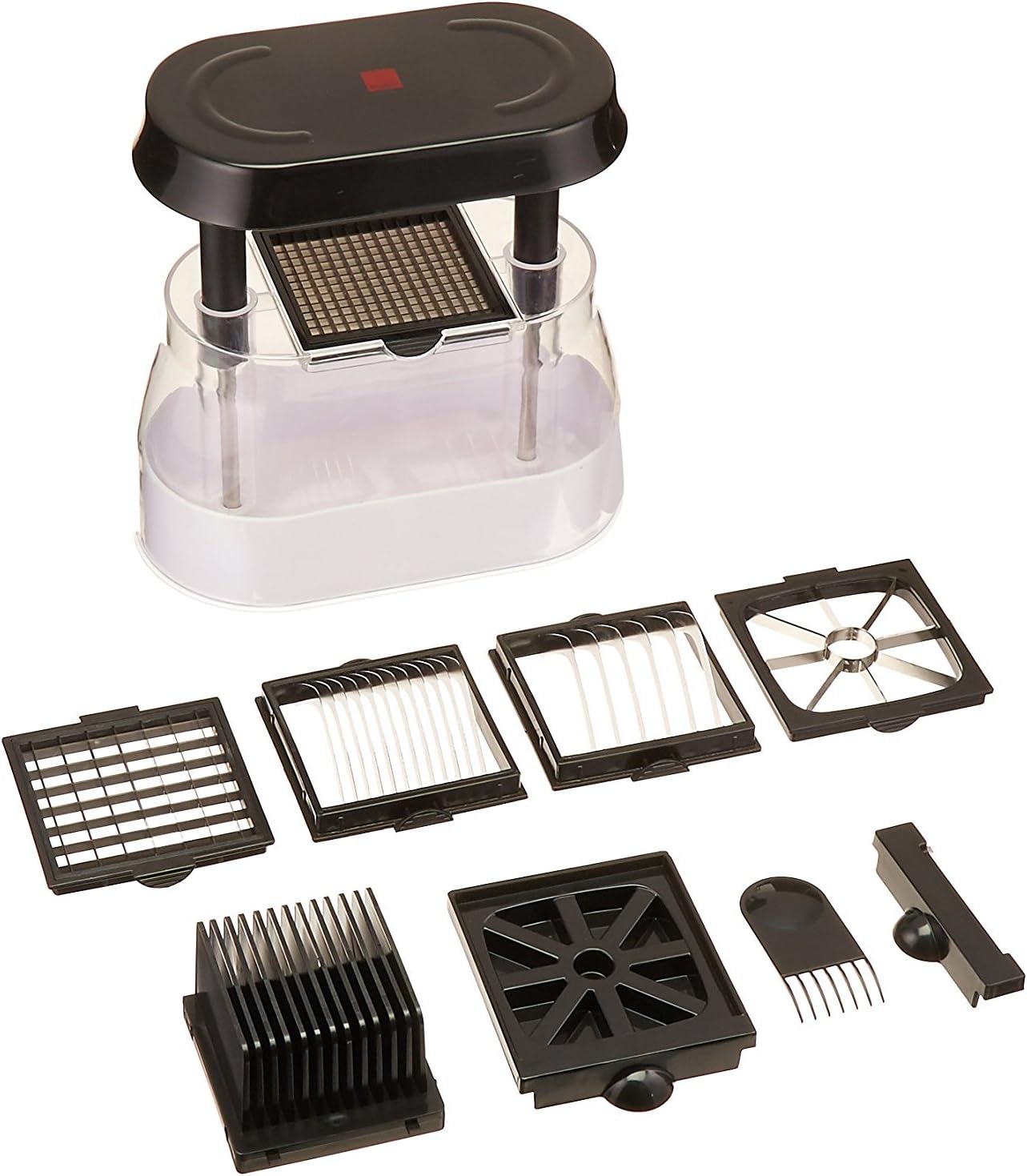

Figure 2.1: All components of the Ronco Veg-O-Matic Deluxe, including the main unit, five interchangeable blades, and a cleaning tool.
Figure 2.2: Labeled diagram highlighting the Spring-Loaded Pusher, Built-in Catch Container, Slice Blades, Julienne Blade, Wedge Blade, Dice Blade, and Cleaning Tool.
Камтылган бөлүктөр:
- Негизги блок: Consists of the top pusher assembly and the clear catch container with a base.
- Grip Plates: Integrated into the pusher assembly for secure handling.
- Cutting Blades (5 types):
- 2 x Slicing Blades
- 1 x Wedging Blade
- 1 x Cubing Blade
- 1 x Dicing Blade
- Тазалоо куралы: For safe and effective cleaning of the blades.
3. Орнотуу
- Таңылганын ачуу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Жуу: Биринчи жолу колдонуудан мурун, бардык бөлүктөрүн жылуу, самындуу суу менен жууңуз. Жакшылап чайкап, кургатыңыз.
- Базаны чогултуу: Ensure the clear catch container is securely seated on the white base.
- Blade тандоо: Choose the desired cutting blade (slicing, wedging, cubing, or dicing) for your task.
- Insert Blade: Place the selected blade securely into the designated slot on top of the catch container. Ensure it lies flat and is stable.
- Тамак даярдоо: Cut larger fruits or vegetables into pieces that fit comfortably onto the blade surface.
4. Иштөө нускамалары
Follow these steps for safe and effective operation of your Veg-O-Matic Deluxe:
- Тамак-аштын абалы: Place the prepared fruit or vegetable piece onto the center of the selected blade.
- Align Pusher: Position the top pusher assembly over the food, ensuring the grid aligns with the blade.
- Төмөн басыңыз: With both hands, firmly and quickly press down on the pusher assembly. The spring-loaded mechanism will push the food through the blade.
- Collect Food: The cut food will fall directly into the clear catch container below.
- Кайталоо: Lift the pusher, remove any remaining food from the blade if necessary, and repeat the process for additional pieces.
Figure 4.1: Demonstrating the slicing of an onion, with the cut pieces falling into the collection container.

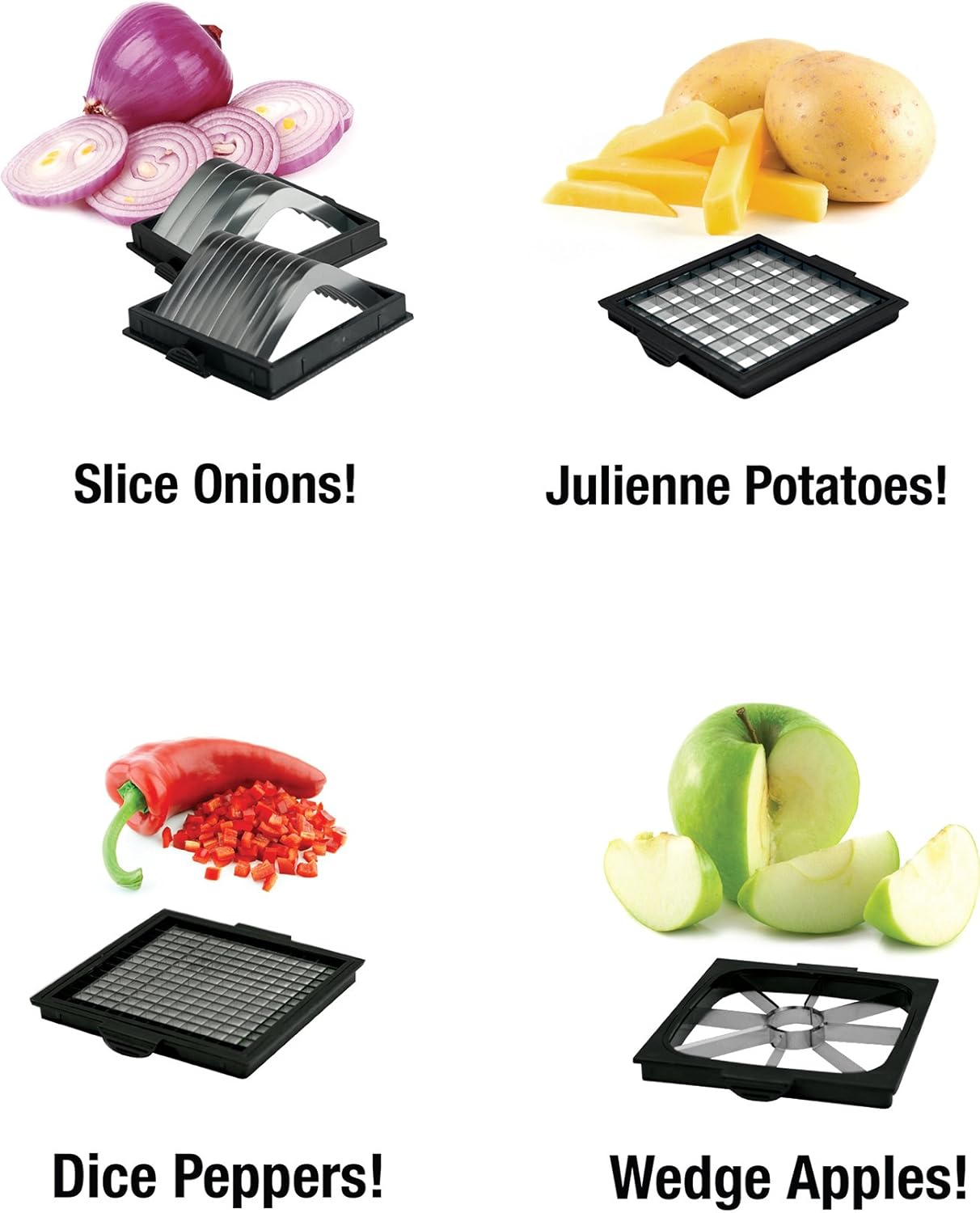

Сүрөт 4.2: Visual examples of various cuts achievable with the Veg-O-Matic Deluxe, including slicing, julienning, dicing, and wedging.
Видео демонстрация:
Video 4.1: Official product video demonstrating the Ronco Veg-O-Matic Deluxe in action, showcasing its various cutting functions for different vegetables and fruits.
5. Техникалык тейлөө жана тазалоо
Regular cleaning ensures the longevity and hygienic operation of your Veg-O-Matic Deluxe.
- Бөлүп салуу: Separate the pusher assembly, the chosen blade, and the catch container from the base.
- Remove Food Residue: Use the included cleaning tool to carefully remove any food particles stuck in the blades or pusher grid. Exercise caution as blades are sharp.
- Жуу: Wash all components with warm, soapy water. A soft brush can be used for thorough cleaning.
- Чайкоо: Rinse all parts under running water until all soap residue is gone.
- Кургак: Кайра чогултуудан же сактоодон мурда бардык компоненттерди толугу менен абада кургатууга уруксат бериңиз.
- Сактагыч: Store the Veg-O-Matic Deluxe in a clean, dry place.
6. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Difficulty cutting hard vegetables (e.g., raw sweet potatoes). | Vegetable is too dense or large for a single push. | Pre-cut harder vegetables into smaller, thinner pieces. Apply firm, even pressure. Some very hard vegetables may not be suitable for this device. |
| Blade gets stuck or does not cut cleanly. | Food residue in blades, improper blade placement, or insufficient force. | Clean blades thoroughly with the cleaning tool. Ensure the blade is seated correctly and flat. Apply a quick, firm push. |
| Food pieces are unevenly cut. | Food not centered on the blade or uneven pressure applied. | Ensure food is centered on the blade. Apply even pressure across the pusher assembly. |
7. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Продукциянын өлчөмдөрү | 9.25 x 5.13 x 9.13 дюйм |
| Элемент Салмагы | 2.4 фунт |
| Модель номери | FS200300BLGEN |
| ASIN | B01EOTBRGI |
| Өндүрүүчү | Кысык |
| Дата биринчи жеткиликтүү | 23-апрель, 2016-жыл |
Figure 7.1: Visual representation of the product dimensions, showing a height of 9.5 inches (24 cm).
8. Кепилдик жана колдоо
For warranty information or product support, please refer to the official Ronco webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз. Кепилдик дооматтар үчүн сатып алуу дүмүрчөгүңүздү сактаңыз.
Онлайн колдоо: Amazon'догу Ronco дүкөнүнө барыңыз
