Бёрер 748.16
Beurer BF195 Body Analysis Bathroom Scale User Manual
Model: 748.16 | Brand: Beurer
1. Introduction and Overview
The Beurer BF195 Body Analysis Bathroom Scale is designed for comprehensive full-body monitoring, providing more than just weight measurement. It utilizes Bioelectric Impedance Analysis (BIA) to determine key body metrics, assisting users in managing their health and fitness goals.
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your BF195 scale, ensuring accurate and consistent performance.
Image 1: Beurer BF195 Body Analysis Bathroom Scale - Top View
2. Пакеттин мазмуну
Бардык компоненттердин бар экенин текшерүү үчүн кутудан чыгарганда таңгактын мазмунун текшериңиз:
- 1x Beurer BF195 Body Analysis Bathroom Scale
- 2x 3V CR2032 batteries
- 1x Instructions for use (this manual)
Image 2: Beurer BF195 Scale - Angled View
3. Негизги өзгөчөлүктөрү
The Beurer BF195 scale offers a range of features for comprehensive body analysis:
- Толук дене анализи: Measures body weight, body fat, body water, muscle mass, bone mass, calorie requirement (AMR/BMR), and Body Mass Index (BMI).
- Жарыктанган санарип дисплей: Features a unique circular digital display with blue illumination and easy-to-read 28mm digits.
- Touch-Key Operation: Modern and intuitive touch-key controls for ease of use.
- Multiple User Memories: Stores data for up to 10 different users, making it suitable for the whole family.
- Жогорку тактык: 180kg weight capacity with a 100g graduation and overload indicator.
- Quick-Start Technology: Activates automatically when you step on the scale.
- Автоматтык түрдө өчүрүү: Conserves battery life by turning off when not in use.
- Активдүүлүк деңгээлдери: Supports 5 activity levels for more accurate calorie requirement calculation.
- Бирдикти айландыруу: Easily switch between kilograms (kg), pounds (lb), and stones (st).

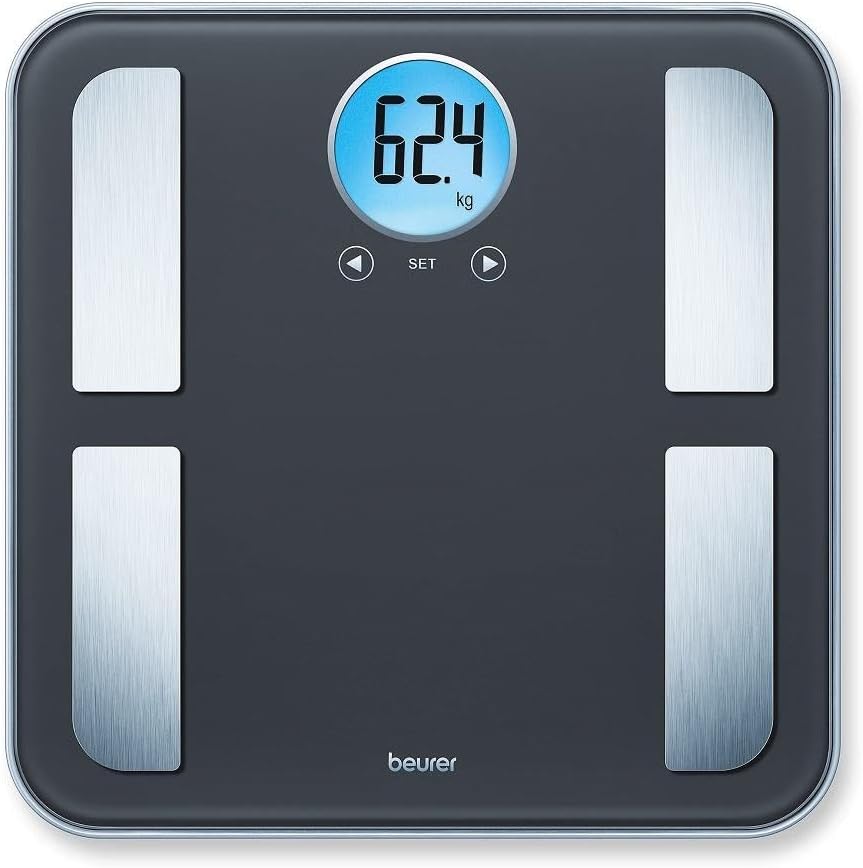

Image 3: Illuminated Digital Display
4. Орнотуу
4.1 Батареяны орнотуу
- Таразанын астыңкы жагындагы батарейка отсегин табыңыз.
- Батарея уясынын капкагын ачыңыз.
- Insert the two 3V CR2032 batteries, ensuring correct polarity (+/-).
- Батарея уясынын капкагын бекем жабыңыз.
4.2 Алгачкы жайгаштыруу
For accurate measurements, place the scale on a firm, flat, and level surface. Avoid carpets or uneven flooring, as this can affect readings.
4.3 User Profile Setup (First Use)
To utilize the body analysis functions, you will need to set up a user profile. The scale can store up to 10 user profiles.
- Step onto the scale briefly to turn it on.
- Press the "SET" button.
- жебе баскычтарын колдонуңуз (◀ / ▶) to select a user memory slot (P1-P10). Press "SET" to confirm.
- Enter your personal data: height, age, gender, and activity level (1-5) using the arrow buttons and confirming each with "SET".
- Once all data is entered, the scale will save your profile.
5. Иштөө нускамалары
5.1 Ченөө
- Таразанын тегиз, туруктуу бетинде экенин текшериңиз.
- Step onto the scale barefoot, placing your feet on the stainless steel electrodes. Stand still.
- Тараза автоматтык түрдө күйүп, салмагыңызды көрсөтөт.
- Эгерде колдонуучу проfile is selected, the scale will then proceed to measure and display your body fat, body water, muscle percentage, bone mass, AMR/BMR, and BMI in sequence.
- Step off the scale once all measurements are displayed. The scale will automatically switch off after a few seconds.
Note: For accurate body analysis readings, ensure your feet are clean and dry. Slightly moistening your feet can improve contact with the electrodes if you experience inconsistent readings.
5.2 Selecting User Profile
Before stepping on the scale, briefly tap the scale to turn it on. Use the arrow buttons (◀ / ▶) to cycle through the user profiles (P1-P10). Once your profile number is displayed, step onto the scale to begin measurement.
5.3 Өлчөө бирдиктерин өзгөртүү
The scale can display weight in kilograms (kg), pounds (lb), or stones (st). To change the unit, locate the unit switch on the underside of the scale (usually near the battery compartment) and slide it to your desired unit.
6. Техникалык тейлөө жана кам көрүү
6.1 Таразаны тазалоо
- Таразанын бетин бир аз d менен сүртүңүзamp кездеме.
- Абразивдүү тазалоочу каражаттарды же катуу химиялык заттарды колдонбоңуз.
- Таразанын ичине суу кирбесин текшериңиз.
- Тазалагандан кийин таразаны жакшылап кургатыңыз.
6.2 Батареяны алмаштыруу
When the display shows a low battery indicator, replace both 3V CR2032 batteries as described in Section 4.1. Always replace both batteries at the same time with new ones of the same type.
6.3 Сактоо
Store the scale in a dry place, away from extreme temperatures and direct sunlight. Do not place heavy objects on the scale when not in use.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Inconsistent weight readings | Scale not on a firm, flat surface; movement during measurement. | Place scale on a hard, level floor. Stand still during measurement. |
| Body analysis readings not appearing or inconsistent | Feet not making good contact with electrodes; incorrect user profile маалыматтар. | Ensure bare feet are clean and slightly moist. Re-check user profile орнотуулар. |
| Display shows "Err" or "OL" (Overload) | Weight exceeds maximum capacity (180kg). | максималдуу салмак жөндөмдүүлүгүн ашпагыла. |
| Масштаб күйбөйт | Батареялар өлүп калган же туура эмес орнотулган. | Replace batteries (2x 3V CR2032) or re-install them correctly. |
| Difficulty setting up user profiles | Incorrect button sequence or timing. | Refer to Section 4.3 and follow steps carefully. Try removing and re-inserting batteries to reset. |
8. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Модель номери | 748.16 |
| Функциялар | Body weight, body fat, body water, muscle mass, bone mass, AMR/BMR, BMI |
| Салмак сыйымдуулугу | 180 кг (396 фунт / 28 ст) |
| Бүтүрүү | 100 g for body weight and bone mass; 0.1% for body fat, body water, muscle percentage |
| Дисплей | Illuminated LCD, 28 mm digit height |
| Таразалоочу бети | Safety glass with brushed stainless steel electrodes |
| Продукциянын өлчөмдөрү | 31 x 31 x 2.3 см |
| Продукт Салмагы | Approx. 1.68 kg (1670 g) |
| Батареялар | 2 x 3V CR2032 (кошулган) |
| Колдонуучунун эскерүүлөрү | 10 |
| Активдүүлүк деңгээли | 5 |
| Автоматтык өзгөчөлүктөрү | Quick-Start, Automatic Switch-Off |
Image 4: Beurer BF195 Scale - Full View
9. Кепилдик жана колдоо
The Beurer BF195 Body Analysis Bathroom Scale comes with a 5 жылдык кепилдик, сапатын жана ишенимдүүлүгүн камсыз кылуу.
For any issues not covered in the troubleshooting section or for warranty claims, please contact Beurer customer support. Refer to the contact information provided in the original packaging or visit the official Beurer webжардам үчүн сайт.
Кепилдик максаттары үчүн ар дайым сатып алганыңыздын далилин сактаңыз.
