1. Продукт бүтүп калдыview
The SANIFLO Sanineutral Model 043 is a passive system designed to neutralize acidic condensate. This condensate is typically produced by high-efficiency condensing boilers, HVAC systems, and water heater systems. By raising the pH level of this acidic discharge, the Sanineutral protects your plumbing infrastructure from corrosion and damage. It operates without the need for an external pump and can be integrated into existing systems either as a standalone unit or positioned before a Sanicondens or Sanicondens Best unit.

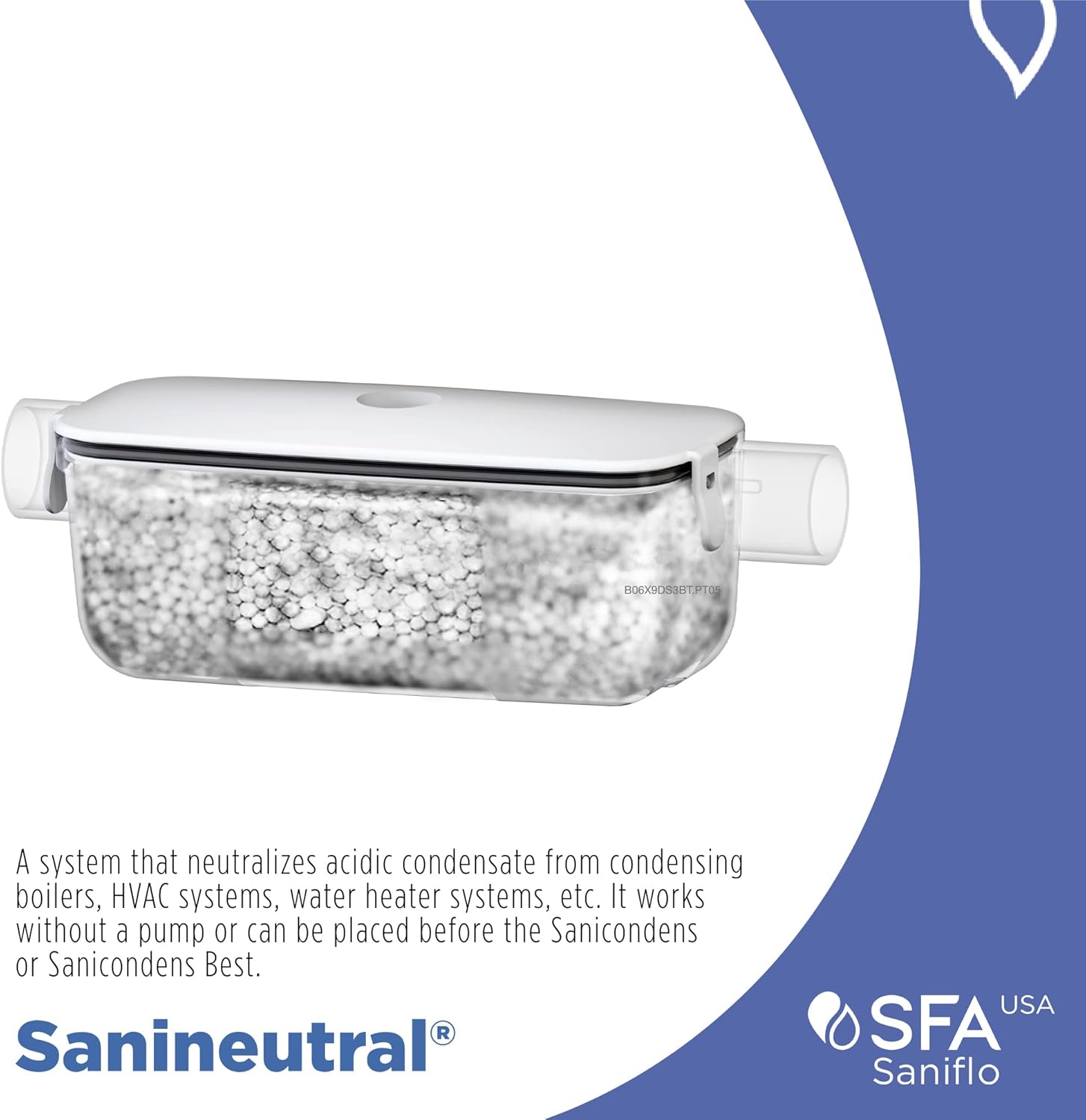

Image 1.1: The SANIFLO Sanineutral Model 043 unit, designed to neutralize acidic condensate.
2. Маанилүү коопсуздук нускамалары
Please read and understand all safety information before installing, operating, or maintaining the Sanineutral unit. Failure to follow these instructions could result in property damage, injury, or death.
- Always disconnect power to any connected appliances (boilers, HVAC units) before installation or maintenance.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation and handling of the neutralizing media.
- Ensure all plumbing connections are secure and leak-free to prevent water damage.
- Do not block or restrict the inlet or outlet connections of the Sanineutral unit.
- Keep the unit and its components out of reach of children and pets.
- If you are unsure about any part of the installation or maintenance process, consult a qualified professional.
3. Негизги өзгөчөлүктөрү
The Sanineutral Model 043 offers several benefits for managing acidic condensate:
- Condensate Neutralization: Effectively raises the pH of acidic condensate (typically pH 3.2 to 4.5) to a neutral level, preventing damage to drainage systems.
- Кеңири колдонуу: Suitable for use with condensing boilers, HVAC systems, and water heater systems in both residential and commercial settings.
- Жогорку кубаттуулугу: Designed to handle condensate from boilers with capacities up to 240,000 BTU/hr (59 kW).
- Ийкемдүү байланыштар: Features adaptable side inlets for 1/2-inch or 3/4-inch PVC slip or barbed connections.
- Пассивдүү операция: Operates without an external pump, simplifying installation and reducing energy consumption.
Image 3.1: Visual representation of compatible connections and applications for the Sanineutral unit.
4. Орнотуу боюнча колдонмо
Proper installation is crucial for the effective operation of your Sanineutral unit. Follow these steps carefully.
4.1 Орнотууга чейинки кароолор
- Жайгашкан жери: Install the Sanineutral in an easily accessible location for future maintenance.
- Багыты: The unit should be installed horizontally, ensuring proper flow through the neutralizing media.
- Placement Relative to Pump: If your system includes a condensate pump, install the Sanineutral unit агымдын үстүндө of the pump. Installing it downstream may cause the neutralizer to overflow.
4.2 Туташуу кадамдары
- Identify the condensate drain line from your boiler, HVAC system, or water heater.
- Cut the drain line at the desired installation point.
- Connect the incoming condensate line to one of the side inlets on the Sanineutral unit. The inlets are designed for 1/2-inch or 3/4-inch PVC slip or barbed connections. Secure the connection using appropriate fittings and clamps.
- Connect the outlet of the Sanineutral unit to your existing drainage system. The outlet is also adaptable for 1/2-inch or 3/4-inch PVC slip or barbed connections.
- Бардык байланыштар суу өткөрбөй турганын текшериңиз.
- Mount the unit securely to a wall or stable surface using the provided brackets.
Сүрөт 4.1: Мисample of the Sanineutral unit installed within a condensate drainage system.
Сүрөт 4.2: Детальдуу view of the Sanineutral unit highlighting connection points (1 and 3) and the neutralizing agent (2).
5. Операция
The SANIFLO Sanineutral operates automatically once installed correctly. Acidic condensate flows into the unit, passes through the neutralizing media, and exits with a balanced pH level. No manual intervention is required for daily operation.
6. Maintenance and Media Replacement
Regular maintenance ensures the continued effectiveness of your Sanineutral unit. The neutralizing media will deplete over time and requires periodic replacement.
6.1 Сунушталган тейлөө графиги
- Inspect the neutralizing media every 6-12 months, depending on the volume and acidity of the condensate.
- Replace the media when it appears significantly depleted or when pH testing indicates insufficient neutralization.
6.2 Media Replacement Steps
- Turn off and disconnect power to all appliances connected to the condensate line.
- Close any shut-off valves on the condensate line to prevent flow into the Sanineutral.
- Carefully open the lid of the Sanineutral unit. Be aware that some residual condensate may be present.
- Remove the old, depleted neutralizing media. Dispose of it according to local regulations.
- Rinse the interior of the unit with clean water if necessary.
- Fill the unit with new SANIFLO-approved neutralizing media. Do not overfill.
- Securely close the lid. Ensure the lid forms a tight seal to prevent leaks. If the seal is compromised, consider applying a suitable sealant around the lid's perimeter to ensure watertight integrity.
- Reopen any shut-off valves and restore power to connected appliances.
- Check for any leaks immediately after reassembly.
7. Көйгөйлөрдү чечүү боюнча колдонмо
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Unit is overflowing. | Unit installed downstream of a condensate pump. | Relocate the Sanineutral unit to be upstream of the condensate pump. Ensure proper gravity flow into the unit. |
| Leaks from the lid. | Lid not securely fastened or gasket compromised. | Ensure the lid is properly seated and clips are engaged. Inspect the gasket for damage. If necessary, apply a suitable sealant to create a watertight seal. |
| Condensate remains acidic. | Neutralizing media is depleted or insufficient. | Check the level and condition of the neutralizing media. Replace media if depleted. Ensure the unit is sized correctly for the boiler capacity. |
| Slow drainage. | Obstruction in the unit or drain line. | Inspect the unit and drain lines for any blockages. Clean as necessary. |
8. Техникалык шарттар
| Спецификация | Деталь |
|---|---|
| Модель номери | 043 |
| Иштөө температурасы (макс.) | 160°F (71°C) |
| Boiler Capacity (Max) | 240,000 BTU/саат (59 кВт) |
| Туташуу диаметри | 1/2" or 3/4" PVC slip or barbed |
| Таза Салмак | 3.7 фунт (1.68 кг) |
| Материал | Пластик |
| Өлчөмдөрү (болжолдуу) | 11.25" L x 4" W x 3.75" H (285mm L x 103mm W x 95mm H) |
| UPC | 859925002435 |
Image 8.1: Dimensional drawing of the Sanineutral unit with measurements in inches and millimeters.
9. Кепилдик маалыматы
SANIFLO offers a 3 жылдык чектелген кепилдик on the Sanineutral Model 043. This includes a standard 2-year warranty upon purchase, which can be extended by an additional year upon product registration. Please retain your proof of purchase for warranty claims. For full terms and conditions, refer to the official SANIFLO warranty documentation or contact customer support.
10. Кардарларды колдоо кызматы
For technical assistance, replacement parts, or warranty inquiries, please contact SANIFLO customer service.
- Webсайт: Visit the official SANIFLO webколдоо булактары жана байланыш маалыматы үчүн сайт.
- Телефон: Refer to your product packaging or the SANIFLO webсиздин аймагыңыздагы тиешелүү кардарларды тейлөө телефон номерин алуу үчүн сайтты ачыңыз.
