Maxima Meat Slicer - 30cm Blade (Model 09300500)

1. Киришүү

Thank you for choosing the Maxima Meat Slicer with a 30cm blade, Model 09300500. This professional-grade appliance is designed for efficient and precise slicing of various food items, including meat, bread, and cheese. Its robust aluminum construction and hardened stainless steel blade ensure durability and consistent performance. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to help you get the most out of your new appliance.

Please read this manual thoroughly before operating the slicer and keep it for future reference.

2. Маанилүү коопсуздук нускамалары

ЭСКЕРТҮҮ: Improper use of this appliance can result in serious injury. Always follow these safety precautions.

• Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
• Keep hands and fingers away from the blade at all times, especially during operation and cleaning. The blade is extremely sharp.
• Always use the food carriage and food pusher to hold food securely. Never slice food by hand.
• Ensure the appliance is placed on a stable, level, and non-slip surface before operation.
• Unplug the slicer from the power outlet before assembling, disassembling, cleaning, or when not in use.
• Шнуру же сайгычы бузулган болсо, же шайман бузулуп калса же кандайдыр бир жол менен бузулган болсо, кескичти иштетпеңиз.
• Бул шайман физикалык, сенсордук же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) тарабынан колдонууга арналбайт, эгерде алардын коопсуздугуна жооптуу адам тарабынан шайманды колдонуу боюнча көрсөтмө болбосо .
• Мотор блогун эч качан сууга же башка суюктуктарга салбаңыз.
• Өндүрүүчү тарабынан сунушталган аксессуарларды жана тиркемелерди гана колдонуңуз.
• Шайманды өз алдынча оңдоого же өзгөртүүгө аракет кылбаңыз. Оңдоо үчүн квалификациялуу тейлөө кызматкерлерине кайрылыңыз.

3. Пакеттин мазмуну

Upon unpacking, please ensure all items are present and in good condition.

• Maxima Meat Slicer (Model 09300500) with 30cm stainless steel blade
• Food carriage and food pusher
• Blade sharpening accessory
• Instruction Manual

4. Орнотуу

4.1 Пакеттен чыгаруу жана жайгаштыруу

1. Carefully remove the slicer from its packaging. Retain packaging for future transport or storage.
2. Place the slicer on a clean, dry, stable, and level surface. Ensure there is adequate space around the unit for ventilation and safe operation. The four rubber feet provide stability.
3. Inspect the slicer for any signs of damage. If damaged, do not operate and contact your supplier.

Сүрөт: алдыңкы view of the Maxima Meat Slicer, showing the main body, blade, food carriage, and thickness adjustment knob. The slicer is silver-grey with black accents.

Сүрөт: каптал view of the Maxima Meat Slicer, highlighting the power switch and the thickness adjustment dial on the left side of the unit.

4.2 Кубат туташтыруу

• Кубат которгучу "OFF" (0) абалында экенин текшериңиз.
• Кубат шнурун көлөмүнө дал келген жерге туташтырылган электр розеткасына туташтырыңыз.tage and frequency specified on the appliance's rating label.

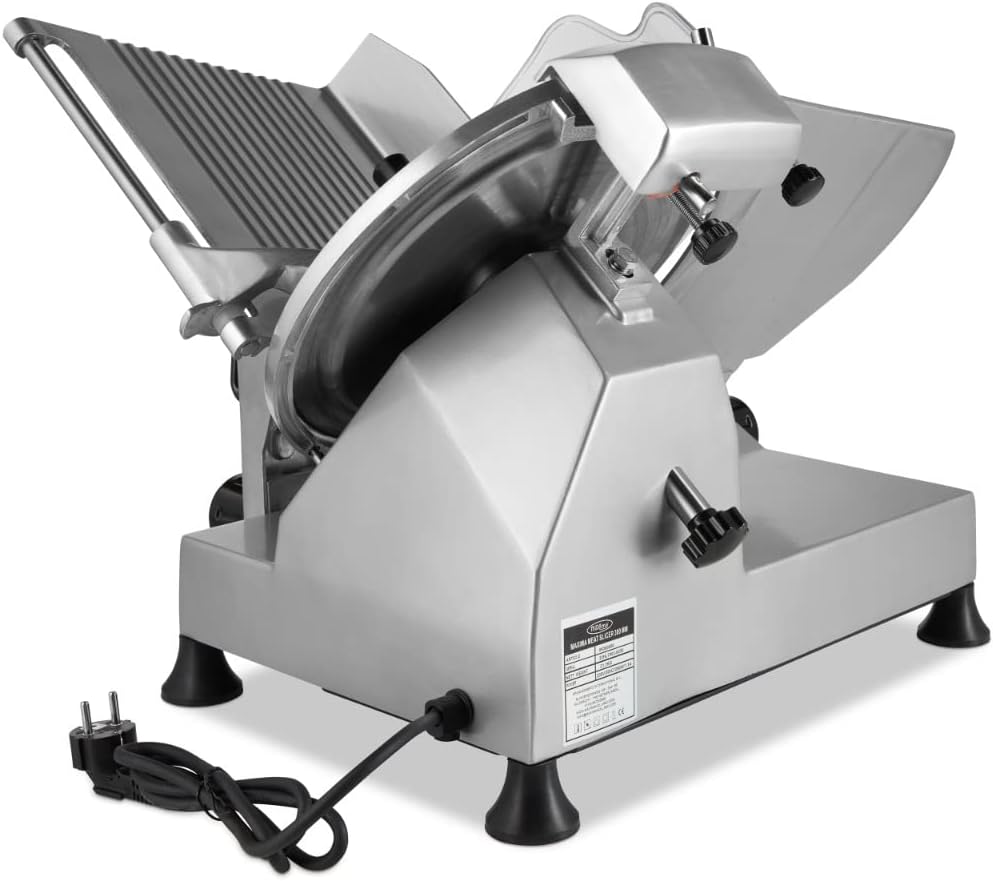

Сүрөт: Арткы view of the Maxima Meat Slicer, showing the power cord extending from the back of the unit and the overall robust construction.

5. Иштөө нускамалары

5.1 Preparing for Slicing

1. Ensure the slicer is clean and properly assembled.
2. Adjust the slice thickness knob to your desired setting. The knob is typically located on the side of the machine and allows for precise thickness control.
3. Place the food item (meat, bread, or cheese) onto the food carriage. Use the food pusher to secure the item against the back plate and the blade guard.

Сүрөт: Жакын план view of the black rotary knob used to adjust the slice thickness, with numerical markings indicating different settings.

Image: The Maxima Meat Slicer showing the clear plastic food pusher and the food carriage, ready to hold food for slicing.

5.2 Кесүү тартиби

1. Turn the power switch to the "ON" (I) position. The blade will begin to rotate.
2. Using the handle on the food carriage, gently push the food item towards the rotating blade.
3. Move the food carriage back and forth in a smooth, controlled motion to slice the food.
4. Кабыл алуучу табакчадан кесилген тамак-ашты чогултуңуз.
5. When finished slicing, turn the power switch to the "OFF" (0) position and unplug the appliance.

Эскертүү: For optimal results, ensure the food item is firm. Chilled meats slice more easily and uniformly.

6. Техникалык тейлөө жана тазалоо

Regular cleaning and maintenance are crucial for the longevity and safe operation of your Maxima Meat Slicer. Always unplug the appliance before cleaning.

6.1 Күнүмдүк тазалоо

1. Unplug the slicer from the power outlet.
2. Remove the food carriage and food pusher. These parts are typically removable for easier cleaning. Wash them with warm, soapy water, rinse thoroughly, and dry.
3. Carefully wipe down the blade with a damp cloth and mild detergent. Always wipe from the center of the blade outwards to avoid cutting yourself.
4. Clean the slicer body and all accessible surfaces with a damp кездеме. Абразивдүү тазалагычтарды колдонбоңуз же негизги блокту сууга салбаңыз.
5. Кайра монтаждоо же сактоо алдында бардык бөлүктөрүн жакшылап кургатып алыңыз.

Маанилүү: The blade is extremely sharp. Exercise extreme caution during cleaning.

6.2 Бычакты курчутуу

The Maxima Meat Slicer includes a built-in blade sharpening accessory to maintain the blade's edge. Sharpen the blade regularly to ensure optimal slicing performance.

1. Ensure the slicer is unplugged.
2. Clean the blade thoroughly before sharpening.
3. Locate the sharpening accessory, usually positioned above the blade.
4. Follow the specific instructions provided with your sharpening accessory to engage the sharpening stones with the blade. This typically involves lifting or rotating the sharpener into position.
5. Plug in the slicer and turn it on for a very short period (e.g., 10-20 seconds) while the sharpening stones are engaged. Do not over-sharpen.
6. Turn off and unplug the slicer. Carefully disengage the sharpening accessory.
7. Clean the blade again to remove any metal residue from sharpening.

Image: Close-up of the blade sharpening mechanism, showing the two sharpening stones positioned above the blade, ready for use.

Image: A more detailed view of the blade sharpener, showing the texture of the sharpening stones and the mechanism for engaging them with the blade.

7. Кыйынчылыктарды

If you encounter issues with your Maxima Meat Slicer, refer to the following table for common problems and solutions.

If the problem persists after attempting these solutions, please contact Maxima customer support.

8. Техникалык шарттар

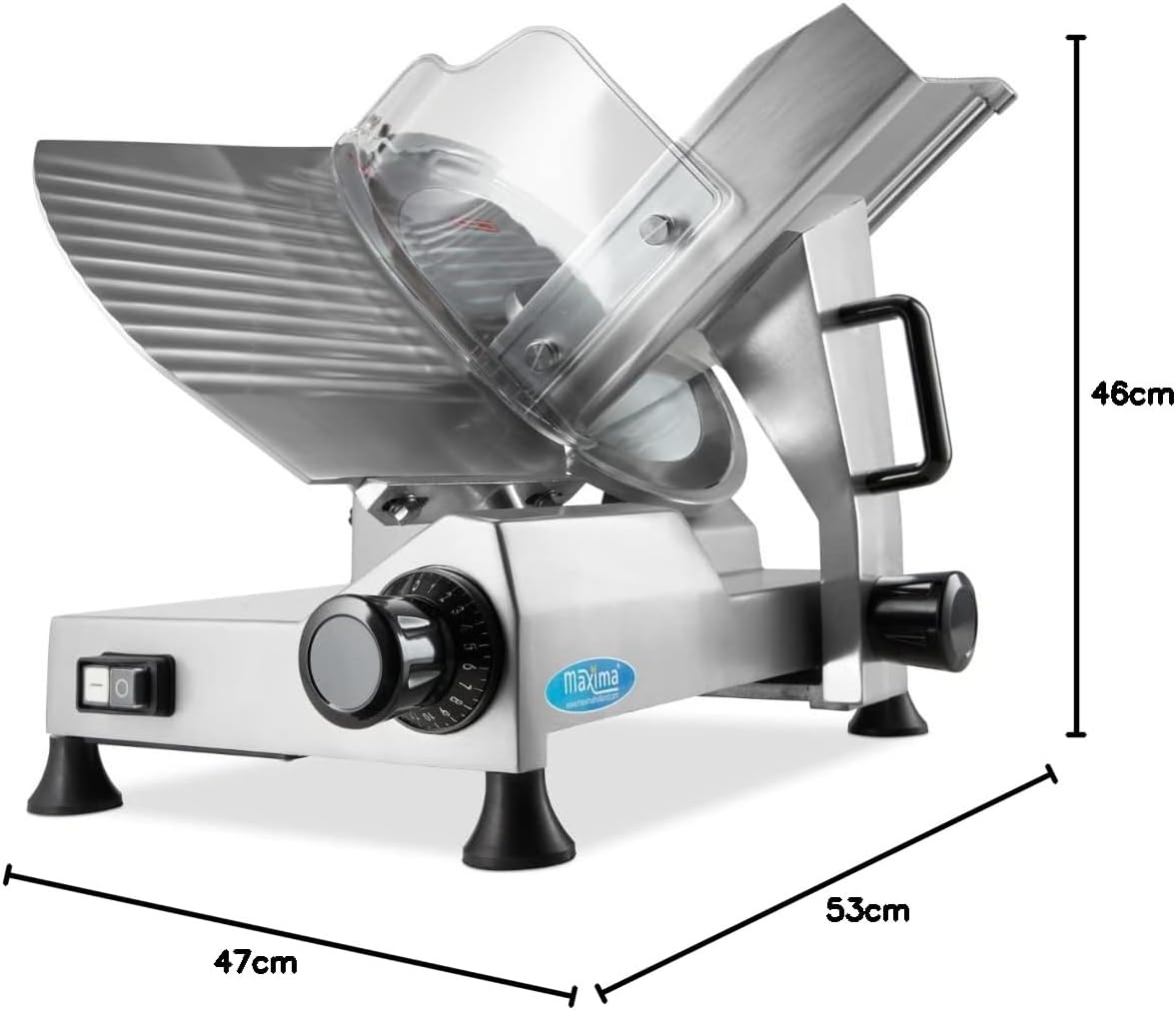

Image: Diagram showing the key dimensions of the Maxima Meat Slicer: 47cm (width), 53cm (depth), and 46cm (height).

9. Кепилдик жана колдоо

9.1 Кепилдик маалыматы

This Maxima Meat Slicer is covered by a standard manufacturer's warranty. Please refer to your purchase documentation or the Maxima website for specific warranty terms and conditions. The warranty typically covers defects in materials and workmanship under normal use.

9.2 Кардарларды колдоо

For technical assistance, spare parts, or any questions regarding your Maxima Meat Slicer, please contact Maxima customer support.

• Өндүрүүчү: Максима ашкана жабдыктары
• Webсайт: www.maximaholland.com (or refer to your regional Maxima webсайт)
• Колдоо кызматына кайрылууда моделиңиздин номерин (09300500) жана сатып алуу күнүн даярдап алыңыз.
