1. Коопсуздук нускамалары
Always observe the following safety precautions when operating the Scheppach DBS800 Drill Bit Sharpener to prevent injury and damage to the tool.
- Колдонуудан мурун бардык нускамаларды окуп, түшүнүңүз.
- Тиешелүү жеке коргоочу шаймандарды, анын ичинде коопсуздук көз айнектерин жана кол каптарды кийиңиз.
- Иш аянты таза, жакшы жарык жана тоскоолдуктар жок болушун камсыз кылыңыз.
- Балдарды жана жанындагы адамдарды операция аймагынан алыс кармаңыз.
- Курчлагычты d абалында иштетпеңизamp же нымдуу шарттар.
- Always unplug the tool from the power source before making adjustments, changing accessories, or performing maintenance.
- Use only drill bits within the specified range (3-13 mm).
- Do not force the tool; allow the sharpener to work at its intended speed.
- Ар бир колдонуудан мурун аспапты зыянга учуратпагандыгын текшериңиз. Бузулган болсо колдонбоңуз.
2. Продукт бүтүп калдыview
The Scheppach DBS800 is an electric drill bit sharpener designed for sharpening HSS drill bits with diameters ranging from 3 mm to 13 mm. It features an 80W motor and a durable diamond grinding stone to ensure precise and efficient sharpening.

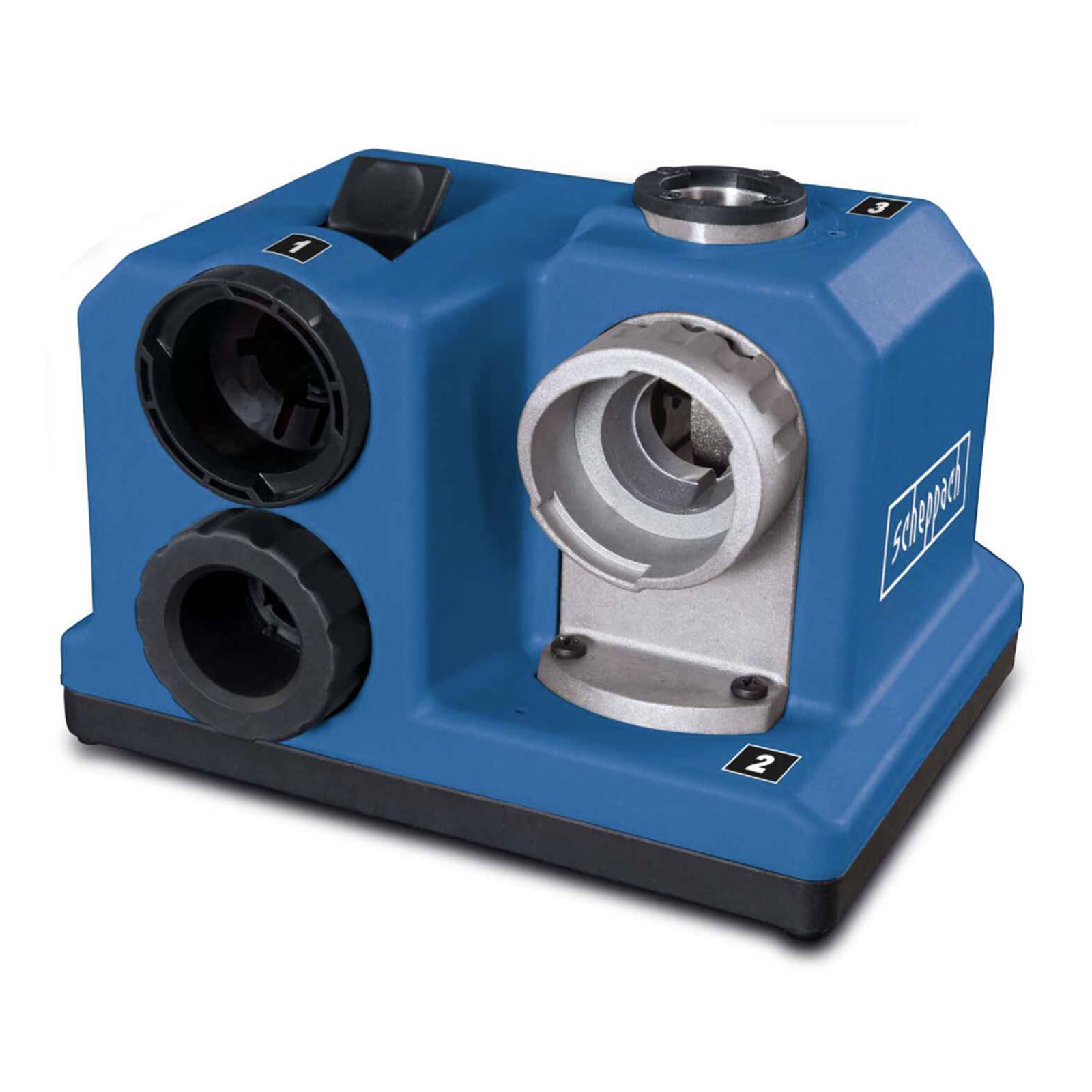

Image: The Scheppach DBS800 Drill Bit Sharpener, a compact blue device with various ports for sharpening.
Сүрөт: жакыныраак view of the Scheppach DBS800, highlighting its compact design and sharpening ports.
Негизги өзгөчөлүктөрү:
- Powerful 80 Watt motor for efficient sharpening.
- Long-lasting diamond grinding stone for precise results.
- Accommodates HSS drill bits from 3 mm to 13 mm.
- Компакт жана мейкиндикти үнөмдөөчү дизайн.
- Standard point angle of 118° for common drill bits.
3. Техникалык шарттар
| Спецификация | Нарк |
|---|---|
| Модель номери | DBS800 (5903404901) |
| Power Source | AC (230 Volts, 50Hz) |
| Мотор күчү | 80 Ватт |
| Макс айлануу ылдамдыгы | 4200 об/мин |
| Ampөчүрүү | 16 А |
| Drill Bit Diameter Range | 3 - 13 мм |
| Майдалоочу дөңгөлөктүн диаметри | 79 мм |
| Point Angle | 118° |
| Продукциянын өлчөмдөрү (L x W x Y) | 23 x 19 x 17 см |
| Элемент Салмагы | 2.96 килограмм |
| Материал | Металл |
Image: Visual representation of key features including 80 Watt motor performance, space-saving design (220x180x160 mm), high-quality diamond grinding stone for a perfect sharpening, and a standard point angle of 118°.
Image: Diagram illustrating the grinding wheel speed of 4200 revolutions per minute and a grinding wheel diameter of 79 mm.
4. Орнотуу
Before operating the drill bit sharpener, ensure it is placed on a stable, flat surface. Connect the power cord to a suitable 230V AC outlet.
Preparing the Drill Bit:
- Select the appropriate drill bit holder for your drill bit size.
- Insert the drill bit into the holder, ensuring it is securely seated.
- Adjust the drill bit projection according to the markings on the holder or as specified in the detailed instructions for optimal sharpening.
Image: A hand inserting a drill bit into the drill bit holder, preparing it for sharpening.
Image: A hand adjusting the drill bit within the holder to ensure correct positioning for sharpening.
5. Операция
The Scheppach DBS800 simplifies drill bit sharpening into three main steps: pre-setting, sharpening, and point grinding.
Image: A visual guide showing the three simple steps for sharpening a drill bit: 1. Pre-setting the drill bit in the holder, 2. Sharpening the main cutting edges, and 3. Point grinding for the final tip.
Курчтоо процедурасы:
- Алдын ала орнотуу: Insert the drill bit holder with the drill bit into the pre-setting port (usually marked '1'). Rotate the holder until the drill bit's cutting edge aligns correctly with the guide. Lock the drill bit in this position.
- Курчтоо: Turn on the sharpener. Insert the drill bit holder into the main sharpening port (usually marked '2'). Gently rotate the holder back and forth while applying light pressure. Continue until a consistent grinding sound is heard and the cutting edge is sharp. Repeat for the other cutting edge by rotating the drill bit holder 180 degrees.
- Point Grinding (Ausspitzen): For optimal performance and reduced friction, perform point grinding. Insert the drill bit holder into the point grinding port (usually marked '3'). Rotate and apply light pressure as instructed in the detailed manual to create a precise tip.
Image: An animated demonstration of a user inserting a drill bit holder into the sharpening port and rotating it to sharpen the drill bit.
After sharpening, the main cutting edges of the drill bit are evenly ground and pointed. This process reduces friction during drilling and improves the centering of the drill bit in the workpiece, leading to cleaner and more efficient drilling.
Сүрөт: жакын план view of a sharpened drill bit, illustrating the evenly ground main cutting edges and the precise tip.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your Scheppach DBS800 Drill Bit Sharpener.
Тазалоо:
- Тазалоодон мурун курчуткучту ар дайым розеткадан сууруп алыңыз.
- Аппараттын сыртын сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз.
- Remove any metal dust or debris from the sharpening ports and around the grinding stone using a brush or compressed air.
- Do not use solvents or abrasive cleaners, as these can damage the plastic housing.
Grinding Stone Replacement:
The diamond grinding stone is designed for long life, but it will eventually wear out. Refer to the full product manual for detailed instructions on how to inspect and replace the grinding stone. Only use genuine Scheppach replacement parts.
7. Кыйынчылыктарды
If you encounter issues with your Scheppach DBS800, consult the following common troubleshooting tips:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Курчтаткыч күйбөйт | No power supply; damaged power cord | Check power connection; inspect power cord for damage. |
| Drill bit not sharpening effectively | Incorrect drill bit positioning; worn grinding stone; incorrect pressure | Ensure drill bit is correctly seated and aligned; replace grinding stone if worn; apply consistent, light pressure. |
| Ашыкча титирөө же ызы-чуу | Loose components; damaged grinding stone | Check for loose parts and tighten; inspect grinding stone for damage and replace if necessary. |
| Drill bit overheats during sharpening | Excessive pressure; prolonged sharpening time | Reduce pressure; sharpen in short intervals to allow cooling. |
Бул чечимдерди колдонууга аракет кылгандан кийин көйгөй чечилбесе, Scheppach кардарларды колдоо бөлүмүнө кайрылыңыз.
8. Кепилдик жана колдоо
Scheppach products are manufactured to high-quality standards and undergo strict quality controls. This product is covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
Кардарларды колдоо:
For technical assistance, spare parts, or warranty claims, please contact Scheppach customer service. Contact information can typically be found on the Scheppach official webсайтында же продуктуңуз менен бирге берилген документтерде.
When contacting support, please have your product model (DBS800) and serial number (if applicable) ready to facilitate faster service.
