Introduction
The uxcell BT168 is a compact and lightweight universal battery tester designed to quickly assess the charge status of various household batteries. This device operates without requiring its own internal batteries, drawing power directly from the battery being tested.
It features an easy-to-read analog display that indicates the battery's condition as "Good," "Low," or "Replace/Recharge" using a color-coded scale. The BT168 is suitable for testing standard and rechargeable batteries, including AA, AAA, C, D, 1.5V button cells, and 9V batteries.
Коопсуздук маалыматы
- Do not attempt to test batteries that are visibly damaged or leaking.
- Ensure correct polarity when inserting batteries into the tester. Incorrect polarity may not damage the tester but will prevent an accurate reading.
- Аппаратты суудан жана ашыкча нымдан алыс кармаңыз.
- This device is for testing purposes only. Do not use it as a charger or for any other unintended purpose.
- Балдар жетпеген жерде сактаңыз.
Жайгашуу
The uxcell BT168 battery tester requires no assembly or internal batteries. It is ready for immediate use upon removal from its packaging.
Иштөө нускамалары
Follow these steps to test your batteries:
- Батареянын түрүн аныктоо: Determine the type of battery you wish to test (e.g., AA, AAA, C, D, 9V, 1.5V button cell).
-
Батарея салыңыз:
- For 1.5V Batteries (AA, AAA, C, D, Button Cell): Place the battery between the two testing arms. The positive (+) terminal should contact the fixed positive contact, and the negative (-) terminal should contact the movable arm. Gently slide the movable arm to secure the battery.
- 9В батарейкалар үчүн: Connect the terminals of the 9V battery to the two contacts located at the top of the tester, ensuring correct polarity.

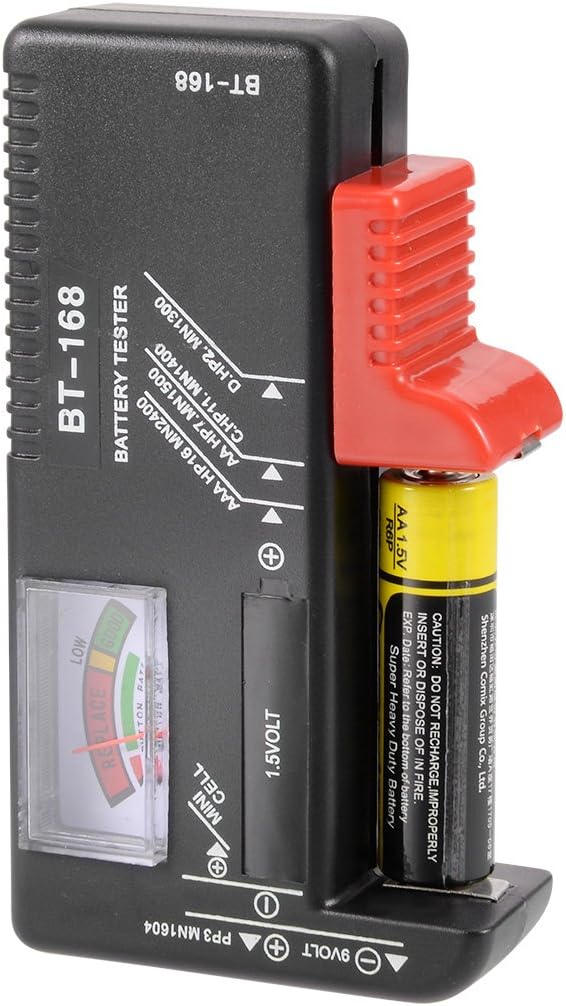

Figure 1: Correct insertion of a 1.5V AA battery into the tester.
2-сүрөт: Жогорку view of the tester showing the 9V battery contacts and the analog display.
-
Дисплейди окуу: Once the battery is correctly inserted, the analog needle on the display will move to indicate the battery's charge level.
- Green Zone ("GOOD"): Батареянын заряды жетиштүү.
- Yellow Zone ("LOW"): The battery charge is low and may need replacement or recharging soon.
- Red Zone ("REPLACE" / "RECHARGE"): The battery is depleted and needs to be replaced or recharged immediately.
- Батареяны алып салуу: After reading the result, carefully remove the battery from the tester.
Техникалык тейлөө
- Тазалоо: Сыноочу түзүлүштү жумшак, кургак чүпүрөк менен сүртүңүз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.
- Сактагыч: Аппаратты салкын, кургак жерде, тике күн нурунан жана экстремалдык температурадан алыс сактаңыз.
- Текшерүү: Periodically check the testing contacts for any dirt or corrosion and clean if necessary to ensure accurate readings.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Needle does not move. |
|
|
| Туура эмес окуулар. |
|
|
Техникалык шарттар

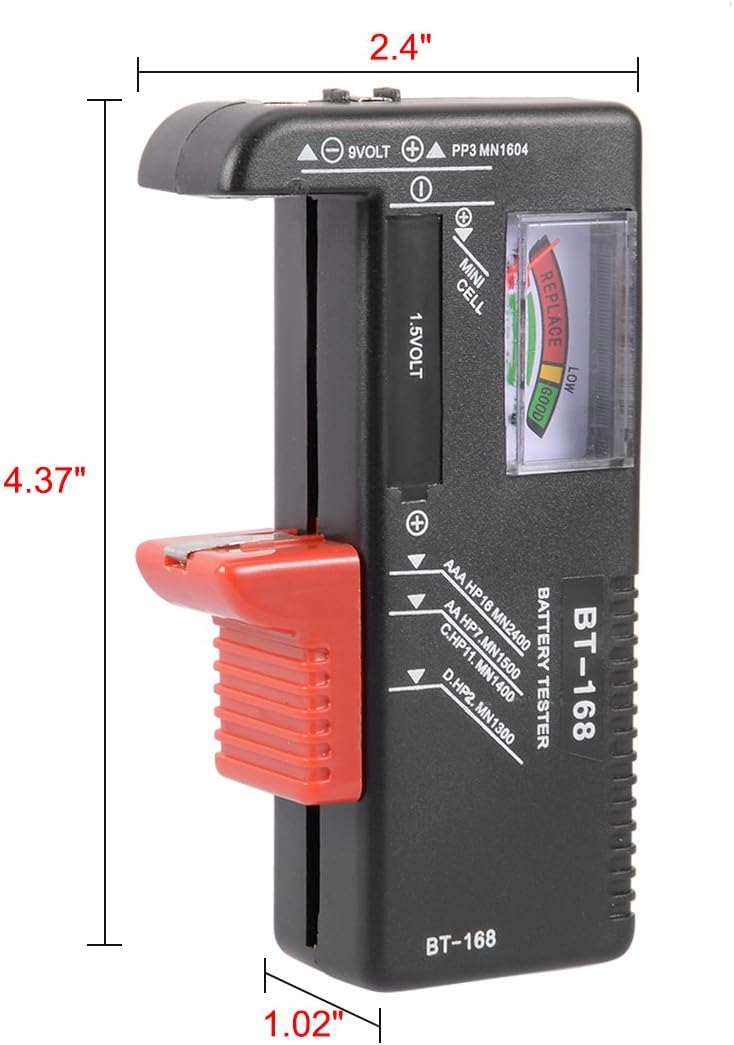

Figure 3: Dimensions of the uxcell BT168 battery tester.
- Модел: BT168
- Бөлүмдүн номери: a17090100ux0119
- Шайкеш батареянын түрлөрү: AA, AAA, C, D, 9V (PP3, MN1604, 6F22, 006P), 1.5V Button Cell (all kinds)
- Кубат булагы: Battery Powered (uses power from the battery being tested)
- Материал: Пластик, металл
- Элемент Салмагы: Болжол менен 2.39 унция (67.7 грамм)
- Пакеттин өлчөмдөрү: Болжол менен 6.8 x 4 x 1 дюйм
Кепилдик жана колдоо
For warranty information and customer support, please refer to the documentation provided with your purchase or contact the seller directly. You may also visit the official uxcell store on Amazon көбүрөөк маалымат алуу үчүн.
