Subcold Super85 LED муздаткычынын колдонуучу нускамасы

Introduction

Thank you for choosing the Subcold Super85 LED Under-Counter Fridge. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use and retain it for future reference.

Маанилүү коопсуздук маалыматы

Өрт, электр шок жана жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.

• Шайман туура жерге туташтырылганын текшериңиз.
• Муздаткычтын схемасын бузбаңыз.
• Эритүү процессин тездетүү үчүн өндүрүүчү сунуштагандан башка механикалык түзүлүштөрдү же башка каражаттарды колдонбоңуз.
• Электр шаймандарын, эгерде алар өндүрүүчү сунуштаган түргө кирбесе, шаймандын тамак-аш сактоочу бөлүмдөрүнүн ичинде колдонбоңуз.
• Тазалоодон же техникалык тейлөөдөн мурун шайманды розеткадан ажыратыңыз.
• Вентиляция тешиктерин тоскоолдуктардан алыс кармаңыз.
• Бул шайман тиричиликте гана колдонууга арналган.

Орнотуу жана орнотуу

Пакеттен чыгаруу

Carefully remove all packaging materials. Inspect the fridge for any damage incurred during transit. Keep packaging for future transport if needed. Allow the fridge to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.

Жайгаштыруу

Place the fridge on a firm, level surface away from direct sunlight, heat sources (e.g., ovens, radiators), and moisture. Ensure adequate ventilation around the unit. Maintain a minimum clearance of 10 cm (4 inches) from walls and other objects to allow for proper air circulation and heat dissipation. This appliance is designed for freestanding installation.

Figure 1: External Dimensions of the Subcold Super85 LED Fridge. Dimensions are 474mm (W) x 440mm (D) x 840mm (H).

Power Connection

Connect the fridge to a dedicated, properly grounded 230V AC power outlet. Do not use extension cords or adapter plugs. Ensure the power cord is not pinched or damaged.

Муздаткычыңызды иштетүү

Температураны көзөмөлдөө

The Subcold Super85 features an adjustable thermostat with a temperature range of 3°C to 18°C. The temperature control dial is located inside the fridge, typically at the bottom. Rotate the dial to select your desired cooling level. A lower number indicates a colder temperature. It is recommended to start with a medium setting and adjust as needed.

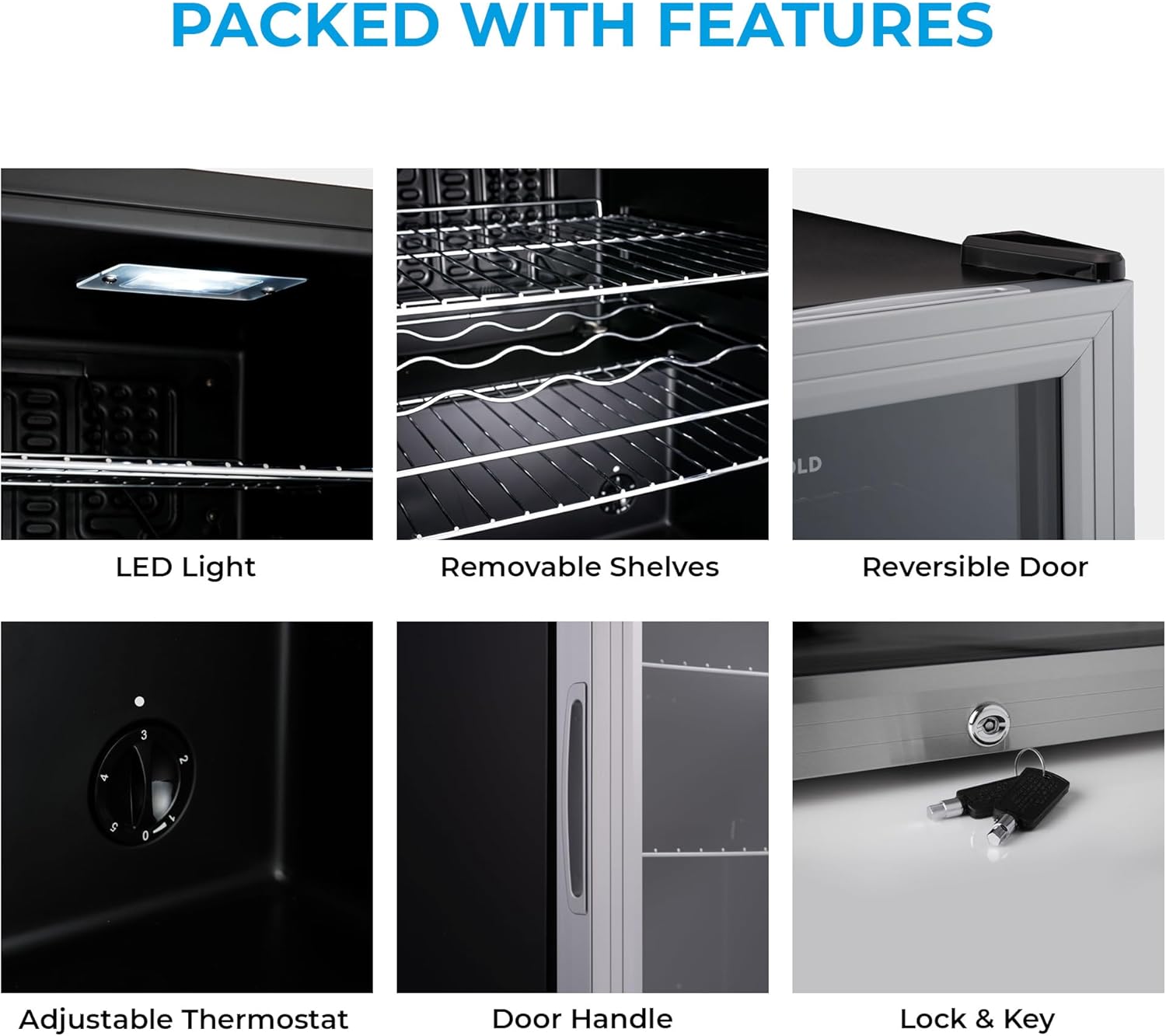

Figure 2: Key features of the Subcold Super85 LED Fridge, including the adjustable thermostat.

Текче тууралоо

Your fridge comes with 4 strong, removable, and adjustable chrome wire shelves. To adjust or remove a shelf, lift it slightly and pull it out. Reinsert by sliding it onto the desired support rails. This allows for flexible storage configurations to accommodate various bottle and can sizes.

Эшиктин айлануусу

The door of your Subcold Super85 fridge is reversible, allowing it to open from either the left or right side. Refer to the detailed instructions in the full product manual (not included here) for the procedure to reverse the door swing. This typically involves relocating hinges and the door handle.

Ички LED жарык

The fridge is equipped with an internal LED light to illuminate the contents. This light typically activates when the door is opened and turns off when closed.

Кулпу жана ачкыч

For added security, your fridge includes a lock and key mechanism. Two keys are supplied. Use the key to lock the door and keep the contents secure when not in use.

Техникалык тейлөө жана кам көрүү

Тазалоо

Always unplug the fridge before cleaning. Clean the interior and exterior surfaces with a soft cloth and a mild detergent solution. Avoid abrasive cleaners or solvents. Regularly clean the door gasket to ensure a proper seal. The condenser coils at the back of the unit should be cleaned periodically with a soft brush or vacuum cleaner to maintain efficiency.

Эритүү

This appliance features a manual defrost system. Frost buildup on the interior cooling surfaces can reduce efficiency. When the frost layer becomes approximately 5mm thick, unplug the unit and allow the frost to melt naturally. Place towels at the bottom to absorb water. Do not use sharp objects to remove ice.

Узак мөөнөттүү сактоо

If the fridge will not be used for an extended period, unplug it, empty all contents, defrost and clean the interior thoroughly. Leave the door slightly ajar to prevent odors and mold growth. Store the unit in a dry, well-ventilated area.

Проблемаларды чечүү

Кардарларды колдоо кызматына кайрылуудан мурун, төмөнкү жалпы көйгөйлөрдү жана аларды чечүү жолдорун караңыз:

Продукт спецификациялары

Figure 3: Energy Efficiency Label for Subcold Super85 LED.

Figure 4: Product Information Sheet with detailed technical data. For more information, visit subcold.com.

Кепилдик маалымат

The Subcold Super85 LED Under-Counter Fridge comes with a 1 жылдык толук кепилдик from the date of purchase. This warranty covers manufacturing defects and ensures peace of mind. Please retain your proof of purchase for any warranty claims. For full terms and conditions, please refer to the official Subcold webсайтка же кардарларды колдоо менен байланышыңыз.

Кардарларды колдоо

For any questions, technical assistance, or warranty claims, please contact Subcold customer support. Our UK-based team is dedicated to providing exceptional support.

• Webсайт: Visit the official Subcold website for FAQs and contact options: subcold.com
• Amazon дүкөнү: You can also visit the Subcold store on Amazon for more information and product range: Subcold Amazon Store
