Kalamera 24-inch Beverage Refrigerator Instruction Manual

1. Киришүү

Thank you for choosing the Kalamera 24-inch Beverage Refrigerator, Model KRC-150BV. This appliance is designed to store and cool your beverages efficiently, offering both built-in and freestanding installation options. Please read this manual thoroughly before installation and operation to ensure proper use and maintenance.

Image 1.1: The Kalamera 24-inch Beverage Refrigerator with its door open, showcasing multiple shelves filled with beverage cans.

Негизги өзгөчөлүктөрү:

• Elegant дизайн: Features sleek stainless steel and transparent glass with blue LED lighting.
• Компакт өлчөмү: Designed for under-counter or freestanding placement, measuring approximately 22.4"D x 23.4"W x 33"H.
• Removable Wire Racks: Six sturdy wire racks are included, designed for easy removal to accommodate various beverage sizes and for convenient loading.
• Өркүндөтүлгөн компрессор: Equipped with a quiet compressor that maintains temperatures between 38-50°F with minimal cycling.
• Сенсордук башкаруу панели: Easy-to-use touch controls for temperature adjustment and light operation.
• Температуралык эс тутум функциясы: Restores the set temperature after a power interruption.
• Cylindrical Lock: Provides security for stored beverages.
• Front Vent: Allows for versatile built-in or freestanding installation.

2. Коопсуздук маалыматы

Шайманыңызды колдонууда өрт, электр шок же жаракат алуу коркунучун азайтуу үчүн төмөнкү негизги сактык чараларын аткарыңыз:

• Шайманды колдонуудан мурун бардык нускамаларды окуп чыгыңыз.
• Do not allow children to play in, on, or around the appliance.
• Эч качан шаймандын тетиктерин күйүүчү суюктуктар менен тазалабаңыз. Түтүн өрт коркунучун же жарылууну жаратышы мүмкүн.
• Ушул же башка шайманга жакын жерде бензинди же башка күйүүчү бууларды жана суюктуктарды сактабаңыз же колдонбоңуз. Түтүн өрт коркунучун же жарылууну жаратышы мүмкүн.
• Ensure proper grounding. This appliance must be properly grounded for your safety.
• Тазалоодон же оңдоодон мурун шайманды электр розеткасынан ажыратыңыз.
• Муздаткычтын схемасын бузбаңыз.
• Желдетүүчү тешиктерди шаймандын корпусундагы же орнотулган түзүлүштөгү тоскоолдуктардан алыс кармаңыз.

3. Орнотуу жана орнотуу

3.1 Пакеттен чыгаруу

Carefully remove all packaging materials. Keep the packaging materials until you are satisfied with the product's condition. Remove any protective film from the stainless steel surfaces.

3.2 Орнотуу

This appliance is designed for either built-in or freestanding installation. Ensure adequate ventilation around the unit, especially if built-in. The front vent design allows for proper airflow.

Image 3.1: Dimensional drawing of the refrigerator and recommended space for built-in installation, showing 22.4"D x 23.4"W x 33"H.

• Муздаткычты толук жүктөлгөндө аны кармап тура тургандай бекем, тегиз, катуу бетке коюңуз.
• Avoid placing the appliance in direct sunlight or near heat sources (e.g., stoves, heaters, radiators).
• Maintain a minimum of 2 inches of space at the back and sides for proper air circulation if freestanding. For built-in installation, refer to the dimension diagram for precise cutout requirements.

3.3 Тегиздөө

Adjust the leveling legs at the bottom of the unit to ensure the refrigerator is perfectly level. This is crucial for proper door operation and cooling efficiency.

3.4 Кубат туташтыруу

Connect the appliance to a dedicated, grounded 110 Volt AC outlet. Do not use extension cords or adapter plugs.

3.5 Алгачкы операция

After installation, allow the refrigerator to stand upright for at least 2-4 hours before plugging it in. Once plugged in, let it run empty for several hours to reach its set temperature before loading beverages.

4. Иштөө нускамалары

The Kalamera beverage refrigerator features a user-friendly touch control panel located at the top of the interior.

Image 4.1: The control panel with buttons for temperature adjustment, unit selection, and light control, featuring a digital temperature display.

4.1 Температураны көзөмөлдөө

• басыңыз ЖОГОРУ (▲) or ТӨМӨН (▼) buttons to adjust the desired temperature. The temperature range is 38-50°F (3-10°C).
• басыңыз ° C / ° F button to switch between Celsius and Fahrenheit display.
• The display will show the set temperature for a few seconds, then revert to showing the actual internal temperature.

4.2 Жарыкты башкаруу

• басыңыз Light (☀) button to turn the interior blue LED light on or off.

4.3 Temperature Memory Function

The appliance is equipped with a temperature memory function. In the event of a power outage, the refrigerator will automatically restore to the last set temperature once power is re-established.

4.4 Cylindrical Lock

The refrigerator features a cylindrical lock at the bottom of the door to secure your beverages. Use the provided key to lock and unlock the door.

5. Техникалык тейлөө

5.1 Интерьерди тазалоо

• Тазалоодон мурун шайманды розеткадан ажыратыңыз.
• Wash the interior with a mild detergent and warm water solution.
• Жумшак кездеме менен кургатып аарчыңыз.
• The integrated carbon filter helps protect against odors and should be checked periodically.

5.2 Сырты тазалоо

• Сырты жумшак жуучу каражат жана жылуу суу менен тазалаңыз.
• For stainless steel surfaces, use a stainless steel cleaner and polish in the direction of the grain.
• Абразивдүү тазалагычтарды же курч нерселерди колдонбоңуз.

5.3 Shelf Removal

The six wire shelves are removable for cleaning or to adjust storage space. Gently slide them out when empty. The shelves include stoppers to prevent cans from falling off.

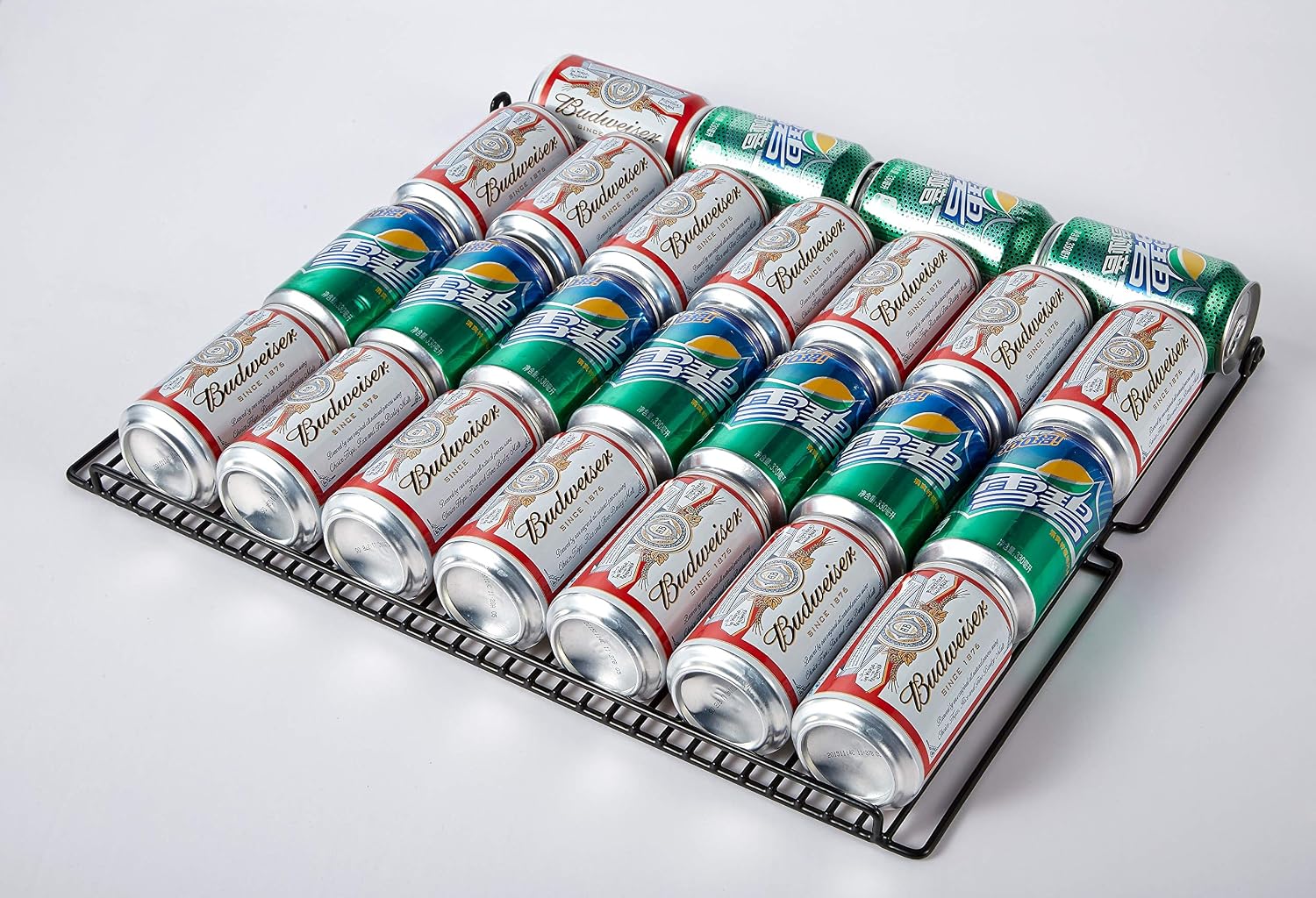

Сүрөт 5.1: Жакын план view of beverage cans neatly arranged on a removable wire rack, demonstrating the shelf design.

5.4 Автоматтык эритүү

This appliance features an automatic defrost system, minimizing the need for manual defrosting. Any accumulated frost will melt and evaporate automatically.

6. Кыйынчылыктарды

Кардарларды тейлөө кызматына кайрылуудан мурун, төмөнкү жалпы маселелерди текшериңиз:

7. Техникалык шарттар

Image 7.1: The U.S. Government Energy Guide label for the Kalamera KRC-150BV, detailing its estimated yearly operating cost and electricity usage.

8. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Kalamera customer service directly. Keep your purchase receipt as proof of purchase for warranty claims.
