1. Киришүү
This manual provides essential information for the proper handling, installation, and maintenance of the RYOBI LH148F-013100 Genuine Cylinder Head Set. This component is a genuine OEM replacement part designed for various outdoor power equipment, including models from Homelite, Ryobi, Ridgid, Troy-Bilt, Echo, Powerstroke, Workforce, and Blackmax. Adhering to these instructions will help ensure the longevity and correct function of your equipment.
2. Коопсуздук маалыматы
Always prioritize safety when working with engine components and power tools. Failure to follow safety precautions can result in serious injury or damage to equipment.
- Бардык нускамаларды окуңуз: Before beginning any work, thoroughly read and understand this manual and your equipment's service manual.
- Тийиштүү жеке коргонуу каражаттарын (ЖКК) кийиңиз: This includes safety glasses, gloves, and appropriate clothing.
- Электр кубатын өчүрүү: Ensure the equipment is turned off, cooled down, and spark plug wire is disconnected before performing any service or installation.
- Жакшы желдетилген жерде иштеңиз: Engine fumes can be hazardous.
- Туура куралдарды колдонуңуз: Ensure you have the proper tools for the job and that they are in good condition.
- Professional assistance: Эгерде сиз кандайдыр бир кадам боюнча күмөн санасаңыз, квалификациялуу тейлөө адисине кайрылыңыз.
3. Продукт бүтүп калдыview
The RYOBI LH148F-013100 is a genuine OEM cylinder head set, crucial for the combustion process in small engines. It includes the cylinder head and may come with associated components such as valves, springs, and gaskets, depending on the specific kit. This part ensures proper engine compression and valve operation.

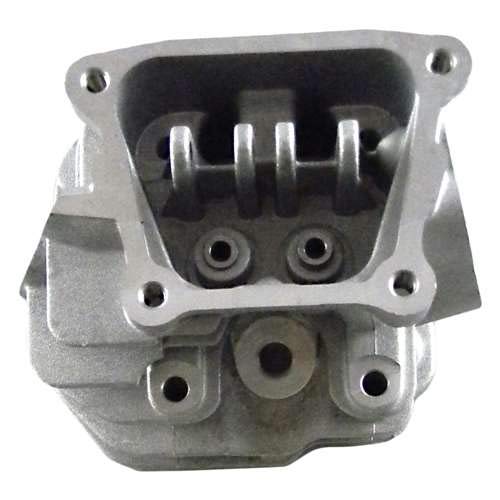

Image of the HOMELITE RYOBI LH148F-013100 Genuine Cylinder Head Set, showing its primary components.
4. Орнотуу жана орнотуу
Installation of a cylinder head requires mechanical aptitude and specific tools. Refer to your equipment's official service manual for detailed, model-specific instructions and torque specifications. The following is a general guide:
Керектүү куралдар (жалпы):
- Розеткалар жана ачкычтар топтому
- Момент ачкычы
- Прокладка кыргыч
- Cleaning supplies (e.g., degreaser, rags)
- Feeler gauges (for valve clearance, if applicable)
Жалпы орнотуу кадамдары:
- Даярдоо: Ensure the engine is cool and clean. Disconnect the spark plug wire. Drain any fluids if necessary.
- Демонтаж: Carefully remove all components obstructing access to the cylinder head, such as the air filter, carburetor, exhaust, and valve cover.
- Remove Old Cylinder Head: Loosen and remove the cylinder head bolts in the reverse order specified by your equipment's service manual (usually from outside in). Carefully lift off the old cylinder head.
- Таза беттер: Thoroughly clean the mating surfaces on the engine block and the new cylinder head. Remove all traces of old gasket material, carbon deposits, and debris. Ensure surfaces are smooth and free of nicks or scratches.
- Жаңы прокладканы орнотуу: Place the new cylinder head gasket onto the engine block, ensuring it is correctly oriented and aligned with all bolt holes and passages. Do not use sealants unless specifically instructed by the service manual.
- Position New Cylinder Head: Carefully lower the new RYOBI LH148F-013100 cylinder head onto the gasket and engine block, aligning it with the dowel pins (if present) and bolt holes.
- Install Cylinder Head Bolts: Insert the cylinder head bolts. Hand-tighten them first.
- Момент болттору: Following your equipment's service manual, tighten the cylinder head bolts to the specified torque in the correct sequence (usually from inside out, in multiple stages). This is critical for proper sealing and preventing warpage.
- Компоненттерди кайра чогултуу: Reinstall all removed components (valve cover, exhaust, carburetor, etc.) in reverse order of disassembly. Adjust valve clearances if necessary, according to your service manual.
5. Иштетүү (орнотуудан кийин)
After installing the cylinder head, perform the following checks before operating the equipment:
- Суюктуктун деңгээли: Check and refill engine oil and any other necessary fluids to their correct levels.
- Байланыштары: Verify all hoses, wires, and fuel lines are securely connected and free from leaks.
- Свеча: Шамдын зымын кайра туташтырыңыз.
- Алгачкы ишке киргизүү: Start the engine and allow it to run at a low idle for a few minutes. Listen for unusual noises and check for any leaks (oil, fuel, exhaust).
- Тыныгуу мезгили: Some manufacturers recommend a specific break-in procedure after major engine work. Consult your equipment's service manual.
6. Техникалык тейлөө
Proper maintenance of your engine, including the cylinder head, ensures optimal performance and extends its lifespan.
- Үзгүлтүксүз текшерүүлөр: Periodically inspect the cylinder head area for signs of oil leaks, exhaust leaks, or loose bolts.
- Мотор тазалыгы: Keep the engine clean to prevent dirt and debris from accumulating around the cylinder head, which can affect cooling.
- Valve Adjustment: If your engine requires periodic valve clearance adjustments, follow the schedule in your equipment's service manual.
- Тийиштүү күйүүчү май жана май: Always use the recommended fuel and oil types for your equipment.
7. Кыйынчылыктарды
If you encounter issues after installing the cylinder head, consider the following common problems:
- Мотор иштебей жатат: Check spark plug connection, fuel supply, and ensure all electrical connections are secure. Verify correct valve timing if applicable.
- Loss of Compression: This can indicate an improperly seated gasket, incorrect torque on cylinder head bolts, or issues with valve seating.
- Мунай агып кетиши: Inspect the cylinder head gasket for proper installation and ensure all bolts are torqued correctly. Check for cracks in the cylinder head (unlikely for a new part, but possible if mishandled).
- Чыгарылган агып чыгуулар: Ensure the exhaust manifold is properly sealed to the cylinder head.
- адаттан тыш үндөр: Could indicate incorrect valve adjustment, loose components, or internal engine issues.
For persistent problems, consult your equipment's service manual or a qualified technician.
8. Техникалык шарттар
- Бөлүмдүн номери: LH148F-013100
- Өндүрүүчү: Homelite Ryobi TTI
- Модель номери: HM-LH148F-013100-VB
- Шайкештик: Replaces parts for Homelite, Ryobi, Ridgid, Troy-Bilt, Echo, Powerstroke, Workforce, Blackmax equipment.
- Түрү: Genuine OEM Cylinder Head Set
9. Кепилдик жана колдоо
As a genuine OEM part, the RYOBI LH148F-013100 Cylinder Head Set is typically covered by the manufacturer's standard warranty for replacement parts. Please retain your proof of purchase. For specific warranty details or technical support, refer to the warranty information provided with your original equipment or contact the manufacturer directly. For purchasing inquiries, contact your authorized RYOBI dealer or the seller from whom the part was acquired.
