1. Киришүү
This manual provides comprehensive instructions for the safe and efficient use of the Generic DDS6111 Single Phase Two Wire Electric Energy Meter. This device is designed to accurately measure active energy consumption in single-phase, two-wire AC electricity networks. Please read this manual thoroughly before installation and operation to ensure correct usage and to prevent potential hazards.
2. Коопсуздук маалыматы
ЭСКЕРТҮҮ: Электр тогуна урунуу коркунучу. Орнотуу жана тейлөө иштери квалификациялуу адистер тарабынан гана аткарылышы керек.
- Always disconnect power before installing or servicing the meter.
- Бардык зымдарды туташтыруу коопсуз жана жергиликтүү электр коддоруна ылайык экенин текшериңиз.
- Do not operate the meter if it appears damaged.
- Keep the meter away from moisture and extreme temperatures.
- This meter is designed for indoor use or in a protective enclosure.
3. Продукт бүтүп калдыview
The Generic DDS6111 Electric Energy Meter utilizes Large-scale Integration (LSI) and Surface Mount Technology (SMT) for reliable and accurate measurement. Its compact design, light weight, and robust construction make it suitable for various applications.
Негизги өзгөчөлүктөрү:
- Measures 50Hz active energy consumption.
- Single phase, two wire AC electricity network compatibility.
- High reliability and long lifespan components.
- Compact volume and light weight.
- ABS flame-retardant material construction.
Компоненттери:
The meter typically consists of a main housing, a digital display for energy readings, and connection terminals for input and output wiring.

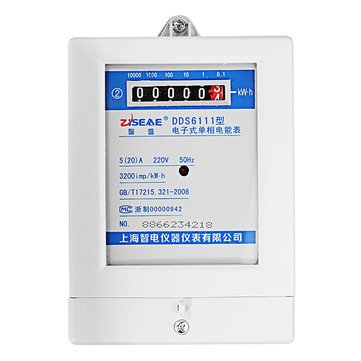

Сүрөт 1: Алдыңкы view of the DDS6111 Electric Energy Meter, showing the digital display and specifications label.

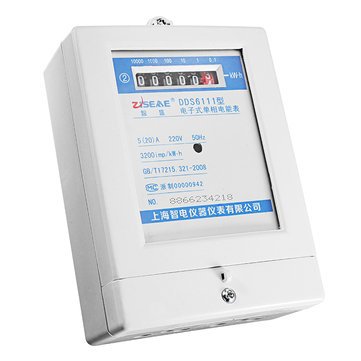

2-сүрөт: Бурчтуу view of the DDS6111 Electric Energy Meter, highlighting its compact form factor.
4. Техникалык шарттар
| Параметр | Нарк |
|---|---|
| Модел | DDS6111 |
| Материал | ABS Flame Retardant |
| Тактык классы | 10-класс |
| Rated Voltage | 220V |
| Номиналдуу ток | 5 (20) A |
| Туруктуу | 3200 имп / кВт |
| Баштоо агымы | 0.5%Ib |
| Макс. Иштөө температурасы | -20°C ~ 55°C |
| Салыштырмалуу нымдуулук | ≤ 85% |
| Номиналдуу жыштык | 50Hz |
| Connectivity Protocol | Wi-Fi (Note: This feature may vary by specific model variant or require additional modules not included.) |
| UPC | 695652691715 |
| Элемент бөлүгүнүн номери | switchesmisck406 |
5. Орнотуу жана орнотуу
Professional installation by a certified electrician is highly recommended to ensure safety and compliance with electrical standards.
Орнотуу кадамдары:
- Даярдоо: Ensure the main power supply to the installation area is completely disconnected. Verify with a voltage сыноочу.
- Монтаждоо: Securely mount the DDS6111 meter in a dry, protected location, away from direct sunlight or excessive vibration. Use appropriate screws and anchors for the mounting surface.
- Зымдарды туташтыруу:
- Identify the Live (L) and Neutral (N) input wires from the power source.
- Identify the Live (L) and Neutral (N) output wires to the load.
- Connect the input Live wire to the designated Live input terminal on the meter.
- Connect the input Neutral wire to the designated Neutral input terminal on the meter.
- Connect the output Live wire from the meter to the load's Live input.
- Connect the output Neutral wire from the meter to the load's Neutral input.
- Ensure all terminal screws are tightened firmly to prevent loose connections and arcing.
- Текшерүү: Бардык зымдардын туташууларынын тууралыгын жана коопсуздугун эки жолу текшериңиз.
- Электр энергиясын калыбына келтирүү: Carefully restore power to the circuit. The meter's display should illuminate, indicating it is operational.

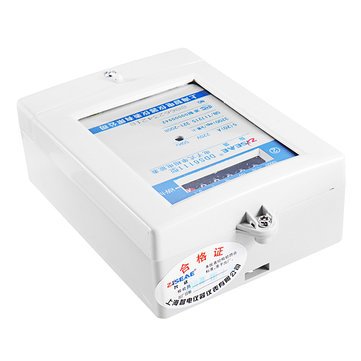

3-сүрөт: Арткы view of the DDS6111 Electric Energy Meter, illustrating the terminal block for wiring connections.
6. Иштөө нускамалары
Once properly installed and powered, the DDS6111 meter operates automatically to measure energy consumption.
Дисплейди окуу:
- The meter features a digital display that shows the total accumulated active energy consumption in kilowatt-hours (kWh).
- The display typically shows a series of digits followed by 'kWh'.
- An indicator light (often an LED) may flash to signify active energy measurement, with the flash rate proportional to the power consumption.
No user interaction is typically required for basic energy measurement. The meter continuously records consumption as long as power is supplied.
7. Техникалык тейлөө
The DDS6111 electric energy meter is designed for minimal maintenance.
- Тазалоо: Periodically wipe the exterior of the meter with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure no moisture enters the meter.
- Текшерүү: Regularly inspect the meter for any signs of physical damage, loose connections, or discoloration. If any issues are observed, disconnect power and consult a qualified electrician.
- Экологиялык шарттар: Ensure the operating environment remains within the specified temperature and humidity ranges to prolong the meter's lifespan.
8. Кыйынчылыктарды
If you encounter issues with your DDS6111 energy meter, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Meter display is blank | No power supply to the meter; internal fault. | Check circuit breaker/fuse. Verify input wiring connections. If power is present and display remains blank, contact support. |
| Meter not accumulating energy | Incorrect wiring; no load connected; internal fault. | Verify wiring according to Section 5. Ensure a load is connected and drawing power. If issue persists, contact support. |
| Indicator light not flashing | No power consumption; indicator fault. | Ensure a load is active. If power is being consumed but the light does not flash, the meter may still be measuring, but the indicator could be faulty. |
| адаттан тыш үндөр же жыттар | Ички электр маселеси. | Immediately disconnect power to the meter and contact a qualified electrician or support. Do not attempt to repair. |
For problems not listed here or if troubleshooting steps do not resolve the issue, please contact customer support.
9. Кепилдик жана колдоо
For warranty information and technical support, please refer to the documentation provided with your purchase or contact the seller/manufacturer directly. Keep your purchase receipt as proof of purchase.
Өндүрүүчү: Generic
Model: DDS6111
