Easytry123 Replacement Remote Control User Manual

1. Киришүү

This manual provides essential information for the setup, operation, and maintenance of your Easytry123 replacement infrared remote control, model Easytry0599. This remote is designed as a direct replacement for specific Toshiba Air Conditioner remote models, including WH-D2B, WH-D6B, R51/E, WH-UB01UJ, WH-UB01NJ, WH-D1P, WH-D28, and WC-K10JE. Please ensure your original remote control matches the appearance of this replacement for full compatibility.

Сүрөт 1: Алдыңкы view of the Easytry123 Replacement Remote Control. This image shows the full remote with its display screen and various buttons for controlling an air conditioner.

2. Орнотуу

2.1 Батареяны орнотуу

The Easytry123 remote control requires two (2) AAA batteries for operation. Follow these steps to install the batteries:

Пульттун артындагы батарея бөлүкчөсүнүн капкагын табыңыз.
Бөлүмдү ачуу үчүн капкакты ылдый жылдырыңыз же кулпуну (эгер бар болсо) басыңыз.
Insert two AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment. Incorrect insertion can prevent the remote from functioning.
Батарея бөлүкчөсүнүн капкагын бекем чыккыча ордуна жылдырыңыз.

Эскертүү: Replace batteries when the remote's display dims or its response becomes sluggish. Do not mix old and new batteries, or different types of batteries.

3. Операция

To operate your air conditioner, point the remote control directly at the infrared receiver on the air conditioner unit. Ensure there are no obstructions between the remote and the unit.

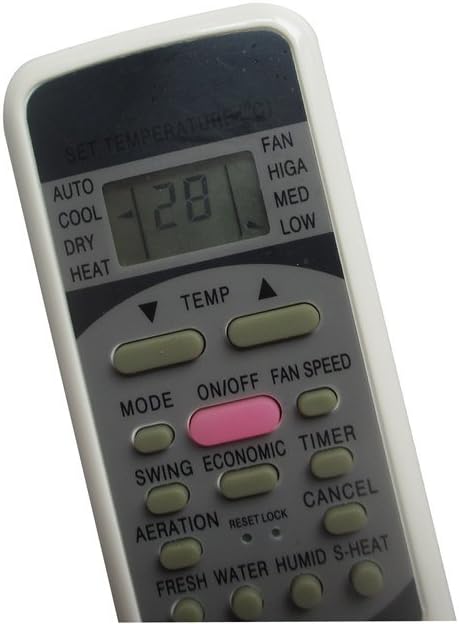

Close-up of Remote Control Buttons and Display

Сүрөт 2: Жакын пландан view of the remote control's display and primary function buttons. This image highlights the temperature display, mode indicators, and various control buttons.

3.1 Баскыч функциялары

The remote control features various buttons for controlling your air conditioner. While the exact functionality may vary slightly depending on your specific air conditioner model, the primary functions are as follows:

КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Кондиционерди күйгүзөт же өчүрөт.
РЕЖИМ: Cycles through operating modes such as AUTO, COOL, DRY, HEAT.
ТЕМПЕРАТУРА ▲/▼: Керектүү температураны өйдө же ылдый тууралайт.
Күйөрмандардын ылдамдыгы: Adjusts the fan speed (e.g., HIGH, MED, LOW).
САЛКУУ: Жалюзи селкинчек функциясын башкарат.
ТАЙМЕР: Sets the on/off timer for the air conditioner.
ECONOMIC: Энергияны үнөмдөө режимин иштетет же өчүрөт.
АЭРАЦИЯ: Controls air circulation or fresh air intake.
RESET/LOCK: Кокусунан өзгөрүүлөрдүн алдын алуу үчүн жөндөөлөрдү баштапкы абалга келтирет же пультту кулпулайт.
ЖОК КЫЛУУ: Cancels current settings or timer.
FRESH WATER/HUMID/S-HEAT: Additional functions that may be present on some air conditioner models.

Refer to your air conditioner's original manual for detailed explanations of specific functions if needed.

4. Шайкештик

This Easytry123 replacement remote control is specifically designed to be compatible with the following Toshiba Air Conditioner remote models:

WH-D2B
WH-D6B
R51/E
WH-UB01UJ
WH-UB01NJ
WH-D1P
WH-D28
WC-K10JE

Маанилүү: For optimal performance and full functionality, it is crucial that your original remote control looks identical to this replacement remote. While it replaces the listed models, some advanced or less common functions present on your original remote may not be fully replicated by this replacement. If your air conditioner model or original remote is not listed or does not visually match, please contact the seller before purchase to confirm compatibility.

5. Кыйынчылыктарды

Көйгөй	Мүмкүн себеп	Чечим
Remote not responding or inconsistent.	Төмөн же өлүп калган батарейкалар. Батарея туура эмес салынды. Алыстан жана AC бирдигинин ортосундагы тоскоолдук. Пульт дистанциядан тышкары.	Батареяларды жаңы AAA батарейкалары менен алмаштырыңыз. Батареянын полярдуулугун текшериңиз (+/-). Кондиционер блогунун кабыл алгычы ачык көрүнүп турганын текшериңиз. AC бирдигине жакыныраак жылыңыз.
Кээ бир функциялар иштебейт.	Бул алмаштыруучу пульт функцияны колдобойт. Function not available on your specific AC model.	This replacement remote may not replicate all original functions. Consult your AC unit's original manual to confirm function availability.
Remote display is blank or dim.	Төмөн же өлүп калган батарейкалар.	Батареяларды жаңы AAA батарейкалары менен алмаштырыңыз.

6. Техникалык шарттар

Модель номери: Easytry0599
Бренд: Easytry123
ASIN: B07DXNSRTP
Кубат булагы: 2 x AAA Батареялар (киргизилген эмес)
Контроллердин түрү: Control Button
Өзгөчө өзгөчөлүгү: Эргономикалык дизайн, инфракызыл алмаштыруу
Өндүрүүчү: Easytry123
Биринчи жеткиликтүү: 22-июнь, 2018-жыл

7. Important Notes and Disclaimer

This is an infrared replacement remote control. It is designed to function similarly to your original remote.
Compatibility is primarily based on visual matching with your original remote and the listed compatible models. If your model number is not explicitly listed in the product title, please verify compatibility before use.
While this remote aims to replicate core functionalities, it cannot be guaranteed to possess all the exact same functions as your original remote, especially for highly specific or advanced features.
No detailed programming or pairing is typically required for this infrared replacement remote; it should work out of the box with compatible units once batteries are installed.

8. Колдоо жана байланыш

For any questions, concerns, or assistance regarding your Easytry123 replacement remote control, please contact the manufacturer or seller directly through the platform where you purchased the product. Provide your model number (Easytry0599) and a clear description of your issue for prompt support.

Өндүрүүчү: Easytry123

Easytry123 Easytry0599

User Manual: Easytry123 Replacement Remote Control
