LST 12V 5A Automatic Battery Charger Maintainer User Manual

1. Продукт бүтүп калдыview

The LST 12V 5A Automatic Battery Charger Maintainer is designed for charging and maintaining various 12V lead-acid batteries, including Pb/SLA/GEL/AGM/VRLA/sealed, WET, and FLOODED types. It is suitable for a wide range of applications such as automotive, marine, motorcycle, lawn mower, and RV batteries. This smart charger features a microprocessor-controlled 7-stage charging process to optimize battery performance and lifespan.

Figure 1: LST 12V 5A Automatic Battery Charger Maintainer and included accessories.

Figure 2: The charger performs 3 key functions: desulphation, charging, and maintaining batteries.

Figure 3: Compatibility with various 12V lead-acid batteries found in automotive, motorcycle, snowmobile, truck, lawn mower, and boat applications.

2. Коопсуздук маалыматы

Read all safety warnings and instructions before using the charger. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Үй ичинде гана колдонуу: This charger is designed for indoor use. Do not expose it to rain or wet conditions.
• Вентиляция: Заряддоо учурунда жетиштүү желдетүүнү камсыз кылыңыз. Заряддоочу түзүлүштү жаппаңыз.
• Батарея түрү: Only charge 12V lead-acid batteries (Pb/SLA/GEL/AGM/VRLA/sealed, WET, FLOODED). Do not attempt to charge non-rechargeable batteries or other battery types.
• Полярдуулук: Ар дайым кызыл (+) шнурду туташтырыңызamp оң батарея терминалына жана кара (-) clamp to the negative battery terminal. Reverse polarity protection is built-in, but correct connection is crucial.
• Учкундун алдын алуу: Connect and disconnect the output clamps only after unplugging the charger from the AC power outlet to prevent sparks.
• Балдар жана үй жаныбарлары: Заряддоочу түзүлүштү жана батарейканы балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
• Бузулган кабелдер: Заряддагычты зымдары же розеткалары бузулган абалда иштетпеңиз.amps. Алмаштыруу үчүн кардарларды колдоо кызматына кайрылыңыз.

Figure 4: The charger incorporates multiple safety protections including over-temperature, short-circuits, over-charge, over-discharges, over-volt, over-power, over-current, and reverse polarity.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• 1 x LST Smart Battery Charger
• 1 x DC Output Cable with Alligator Clips
• 1 x DC Output Cable with Fused Ring Terminal Harness
• 1 x Dual SAE Extension Cable
• 1 х Сактоочу Кап
• 1 x Instruction Manual

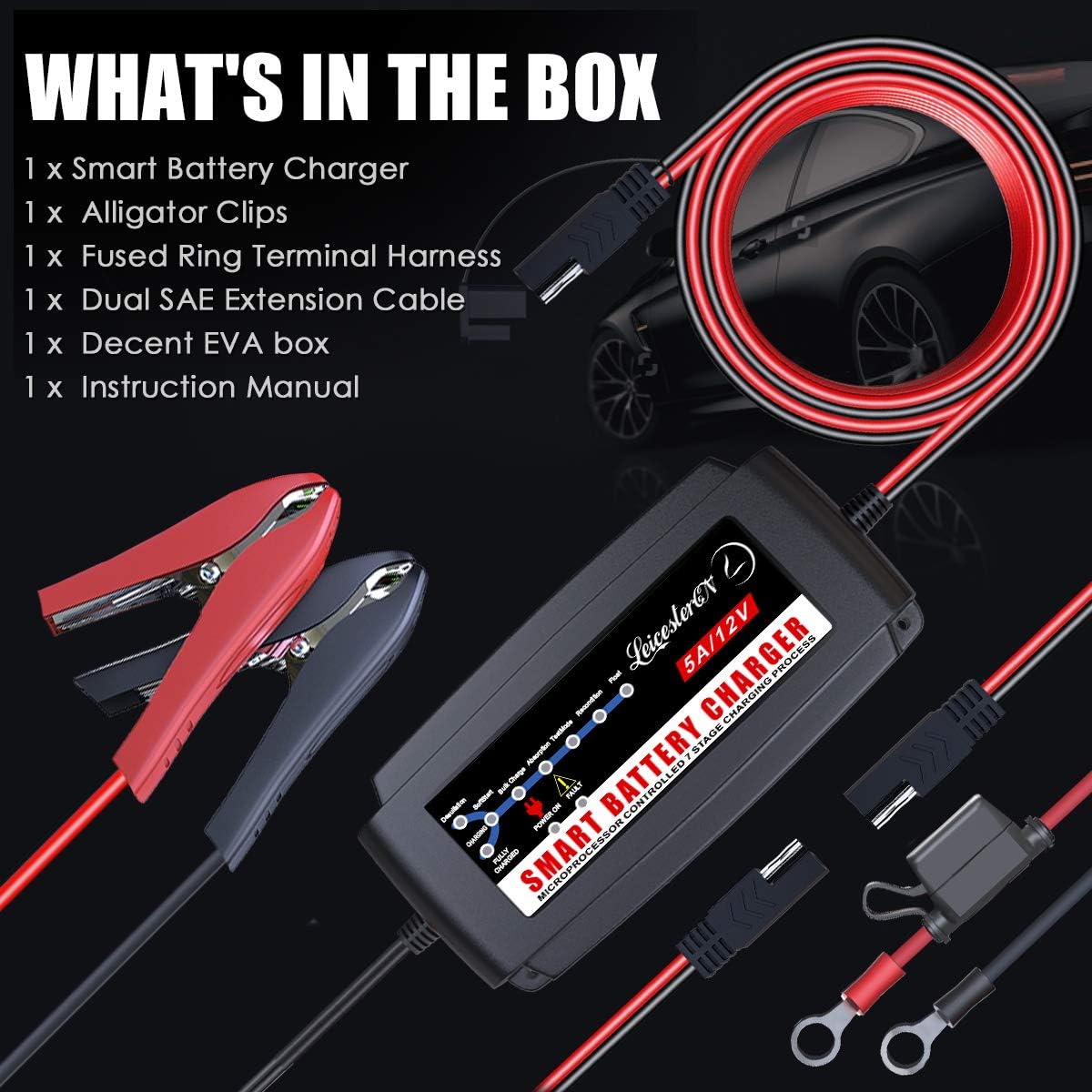

Figure 5: Contents of the product package, including the charger, various connection cables, and a storage case.

4. Орнотуу

Follow these steps to set up your LST Battery Charger:

1. Батареяны даярдоо: Батарея терминалдары таза жана коррозияга учурабагандыгын текшериңиз. Зарыл болсо, аларды зым щетка менен тазалаңыз.
2. Туташуу ыкмасын тандаңыз: Choose between the alligator clips or the ring terminal harness based on your battery's terminals. For permanent installation or hard-to-reach batteries, the ring terminals are often preferred.
3. Батареяга туташуу:
   • Кызыл (+) cl туташтырыңызamp/шакекче терминалын оң (+) батарея терминалына туташтырыңыз.
   • Кара (-) cl туташтырыңызamp/шакекче терминалын батареянын терс (-) терминалына туташтырыңыз.
4. Кубатка туташуу: Plug the charger's AC power cord into a standard 100-240V AC electrical outlet.
5. Байланышты текшерүү: The charger's 'POWER ON' indicator light will illuminate, and the charging process will begin automatically.

Figure 6: Demonstrates the ease of connecting the charger to a vehicle battery.

5. Иштөө нускамалары

The LST Battery Charger features a fully automatic 7-stage charging process controlled by a microprocessor. Once connected, it intelligently assesses the battery condition and proceeds through the stages without manual intervention.

7-Сtage Automatic Charging Process:

1. Десульфация: Recovers sulfated batteries by applying high-frequency pulse charges.
2. Жумшак баштоо: Gradually introduces power to the battery to prevent damage, especially for deeply discharged batteries.
3. Жапырт акы: Батареяны максималдуу ток менен, болжол менен 80% сыйымдуулукка жеткенге чейин кубаттайт.
4. Соруу: Charges the battery at a decreasing current to bring it to 100% capacity.
5. Сыноо режими: Батареянын көлөмүн көзөмөлдөйтtage to determine if it can hold a charge.
6. Калыбына келтирүү: Applies a controlled overcharge to recondition and maximize battery capacity.
7. Float: Батареяны толук зарядда кармап турат, кичинекей, туруктуу вольт мененtage, preventing self-discharge.

LED көрсөткүчү:

The intuitive LED indicator provides visual feedback on the charging status and diagnostic information:

• Заряддоо көрсөткүчү: Illuminates during the charging process.
• Толук заряддалган көрсөткүч: Illuminates when the battery is fully charged and the charger switches to float mode.
• Күйгүзүү көрсөткүчү: Заряддоочу түзүлүштүн AC кубатына туташкандыгын көрсөтөт.
• Ката индикатору: Illuminates if a fault is detected (e.g., reverse polarity, short circuit).

Figure 7: The LED indicator panel provides clear visual cues for the charging process and status.

6. Техникалык тейлөө

Proper maintenance ensures the longevity and optimal performance of your LST Battery Charger:

• Тазалоо: Disconnect the charger from power and the battery before cleaning. Wipe the exterior with a soft, dry cloth. Do not use harsh chemicals or abrasives.
• Сактагыч: Store the charger in a cool, dry place when not in use. Use the provided storage case to protect it from dust and physical damage.
• Кабелдик текшерүү: Regularly inspect the AC power cord and DC output cables for any signs of damage, fraying, or exposed wires. Do not use if damaged.
• Батарея терминалдары: Электрдик байланыш жакшы болушу үчүн батарея терминалдарын таза кармаңыз.

7. Кыйынчылыктарды

If you encounter issues with your LST Battery Charger, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact LEICESTERCN customer support.

8. Техникалык шарттар

Detailed technical specifications for the LST 12V 5A Automatic Battery Charger Maintainer:

Figure 8: Estimated charging times for different battery capacities (15-120AH).

9. Кепилдик жана колдоо

LEICESTERCN offers a lifetime quality warranty and a 12-month refund policy for this product. For any questions, concerns, or technical assistance, please contact our customer service team. We are committed to providing timely 24/7 after-sale services to ensure your satisfaction.

For support, please refer to the contact information provided with your purchase or visit the official LEICESTERCN store on Amazon.
