RL LIVE YOUR LIGHT Tommy Suspension Light User Manual

Introduction

The RL LIVE YOUR LIGHT Tommy Suspension Light is designed to provide comfortable and stylish illumination for your living spaces. Featuring four textile shades in a modern black and gold combination, this fixture creates a cozy ambiance while maintaining a sleek, contemporary aesthetic. Its adjustable suspension length and swiveling heads offer versatility in lighting your dining area or other central spaces.

Figure 1: The Tommy Suspension Light with four black and gold shades.

Маанилүү коопсуздук нускамалары

Орнотуудан жана колдонуудан мурун бул көрсөтмөлөрдү кунт коюп окуп чыгыңыз. Бул колдонмону келечекте колдонуу үчүн сактап коюңуз.

• Электр коопсуздугу: Always disconnect power at the main circuit breaker before installation, maintenance, or bulb replacement. Installation should be performed by a qualified electrician if you are unsure.
• Туура колдонуу: Бул арматура ички колдонуу үчүн гана иштелип чыккан. Нымдуулукка же экстремалдык температурага дуушар кылбаңыз.
• Лампа шайкештиги: Use only E14 base bulbs, with a maximum wattage of 28W per bulb. LED bulbs are recommended for energy efficiency.
• Колдонуу: Handle the fixture and bulbs with care to avoid damage. Do not overtighten bulbs.
• Тазалоо: Жумшак, кургак чүпүрөк менен гана тазалаңыз. Абразивдүү тазалоочу каражаттарды же эриткичтерди колдонбоңуз.

Пакеттин мазмуну

Орнотууну баштоодон мурун бардык компоненттер бар экенин жана бузулбаганын текшериңиз.

• Tommy Suspension Light Fixture (pre-assembled bar with four shades)
• Ceiling Canopy with Mounting Bracket
• Монтаждоочу жабдыктар (бурамалар, зым гайкалар)
• Instruction Manual

Note: Light bulbs are not included. This fixture requires 4 x E14 base bulbs (max. 28W each).

Figure 2: Reminder that light sources (bulbs) are not included.

Орнотуу жана орнотуу

Кесипкөй орнотуу сунушталат. Улантуудан мурун автоматтык өчүргүчтүн кубаты ӨЧҮК экенин текшериңиз.

1. Орнотууга даярданыңыз: Turn off the power to the light switch and the main circuit breaker. Ensure the area is clear and you have all necessary tools (screwdriver, wire strippers, ladder).
2. Монтаждык кронштейнди тиркөө: Secure the mounting bracket to the junction box in your ceiling using the provided screws. Ensure it is firmly attached.
3. Adjust Suspension Length: The suspension length can be adjusted up to 150cm. Carefully feed the suspension cables through the ceiling canopy to achieve your desired height. Secure the cables within the canopy mechanism.
4. Зым байланыштары: Connect the fixture's wires to your household electrical wires. Typically, connect the black wire (live) from the fixture to the black wire from the ceiling, the white wire (neutral) from the fixture to the white wire from the ceiling, and the ground wire (green or bare copper) from the fixture to the ground wire from the ceiling. Use wire nuts to secure connections.
5. Арматураны орнотуу: Carefully push the ceiling canopy up to the ceiling, aligning the mounting holes with the screws on the mounting bracket. Secure the canopy with the decorative nuts or screws provided.
6. Лампаларды орнотуу: Screw four E14 base bulbs (not included, max 28W each) into the sockets. Do not overtighten.
7. Күчтү калыбына келтирүү: Turn the power back on at the main circuit breaker and then at the light switch.

Figure 3: Product dimensions, showing 750mm width, 120mm shade diameter, and up to 1500mm adjustable height.

Figure 4: The Tommy Suspension Light installed in a dining room setting.

Иштөө нускамалары

Once installed, operating your Tommy Suspension Light is straightforward.

• Күйгүзүү/өчүрүү: Жарыкты күйгүзүү же өчүрүү үчүн приборго туташтырылган дубал которгучун колдонуңуз.
• Жарыктын багытын тууралоо: The individual light heads are designed to swivel. Gently adjust each shade to direct light where needed, highlighting specific areas of your room or dining table.
• Лампаны алмаштыруу: Ensure power is off before replacing bulbs. Allow old bulbs to cool before removal. Screw in new E14 base bulbs (max 28W).

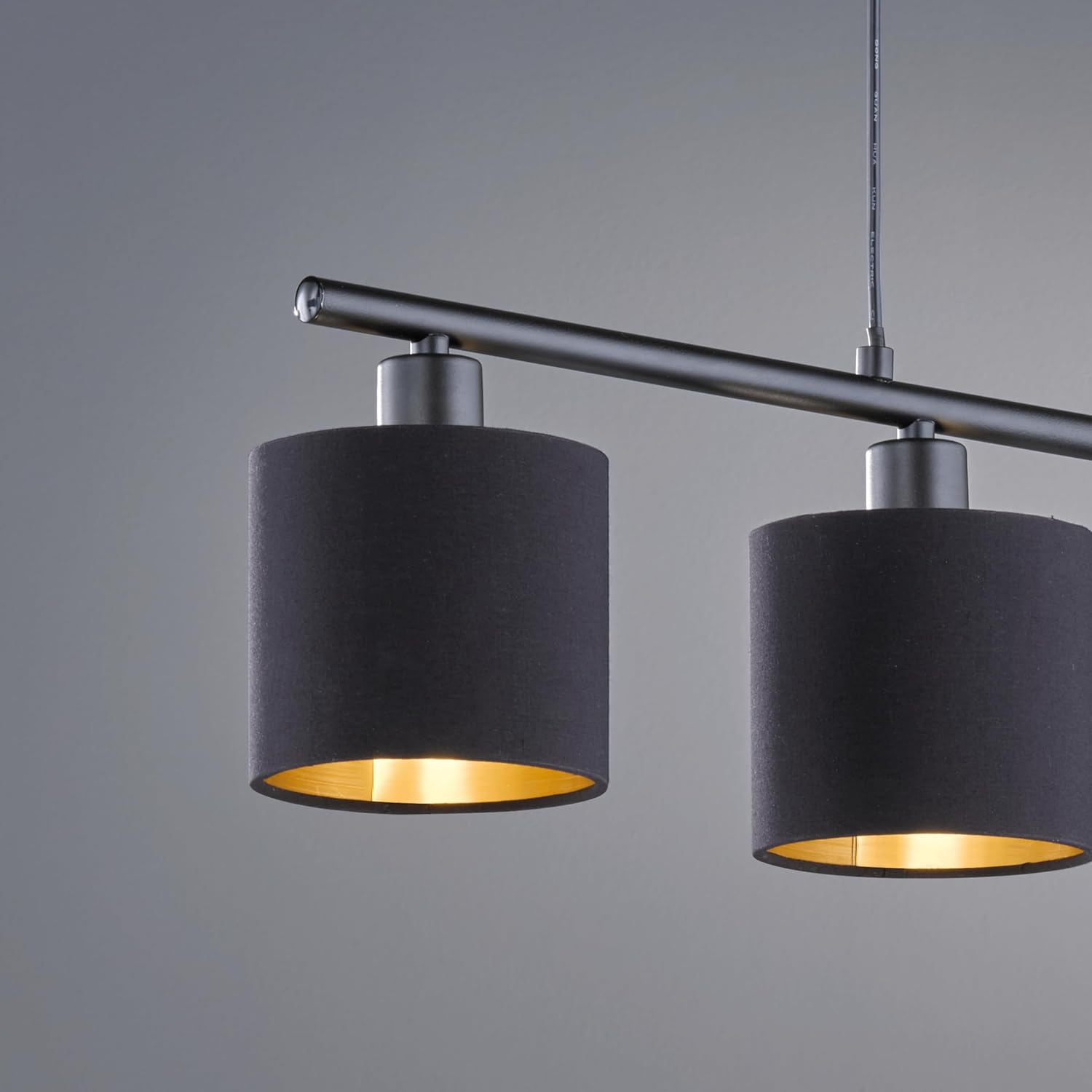

Сүрөт 5: Жакын пландан view of the black and gold textile shades, highlighting the swiveling mechanism.

Кароо жана тейлөө

Үзгүлтүксүз тазалоо лампаңыздын көрүнүшүн жана иштешин сактоого жардам берет.

• Тазалоо: Dust the fixture regularly with a soft, dry, lint-free cloth. For more thorough cleaning, wipe the metal and fabric surfaces with a slightly damp cloth, then immediately dry with a clean, dry cloth.
• Химиялык заттардан алыс болуңуз: Do not use harsh chemicals, abrasive cleaners, or polishes as they may damage the finish.
• Лампаны алмаштыруу: Always turn off power at the circuit breaker before replacing bulbs. Ensure bulbs are cool to the touch before handling.

Проблемаларды чечүү

If you encounter issues with your Tommy Suspension Light, refer to the following common problems and solutions:

Продукт спецификациялары

Кепилдик жана колдоо

For warranty information or technical support, please refer to the retailer's return policy or contact RL LIVE YOUR LIGHT customer service. Keep your purchase receipt as proof of purchase.

While specific warranty details are not provided in this manual, standard consumer rights apply. For any issues not covered in the troubleshooting section, please reach out to the point of purchase or the manufacturer's support channels.
