Introduction
The Philips Avent 4-in-1 Healthy Baby Food Maker is designed to simplify the process of preparing nutritious homemade baby food. This versatile appliance allows you to steam, blend, defrost, and reheat meals in one convenient unit, ensuring your baby receives healthy food tailored to their needs.
Маанилүү коопсуздук маалыматы
Please read all instructions carefully before using the appliance. Failure to follow these safety guidelines may result in electric shock, fire, or serious injury.
- Always ensure the appliance is placed on a stable, level surface, away from hot surfaces or open flames.
- Негизги блокту сууга же башка суюктукка салбаңыз. Жарнама менен гана тазалаңызamp кездеме.
- Keep hands and utensils away from the moving blade during operation to prevent injury.
- Exercise extreme caution when handling hot steam and hot food. Use oven mitts or a cloth if necessary.
- Шайманды колдонбогондо, бөлүктөрүн чогултууда же демонтаждоодон мурун жана тазалоодон мурун электр розеткасынан сууруп алыңыз.
- Бул шайман физикалык, сезүү же акыл-эс мүмкүнчүлүктөрү чектелүү же тажрыйбасы жана билими жок адамдар тарабынан колдонулушу үчүн арналган эмес, эгерде алардын коопсуздугуна жооптуу адам тарабынан шайманды колдонуу боюнча көрсөтмөлөр болбосо.
- VoltagШайманда көрсөтүлгөн e жергиликтүү электр тармагына туура келетtagэ туташтыруудан мурун.
Продукт компоненттери
Familiarize yourself with the main parts of your Philips Avent 4-in-1 Healthy Baby Food Maker:
Image: The Philips Avent 4-in-1 Healthy Baby Food Maker, showcasing its main unit, blending jar, and control dial.
- Негизги блок: Contains the motor, heating element, and water tank.
- Аралаштыруу банкасы: Transparent container for steaming and blending food.
- Бычак бирдиги: Detachable blade for blending.
- Капкак: Covers the blending jar during steaming and blending.
- Шпатель: For stirring and removing food.
- Суу резервуарынын капкагы: Covers the water tank opening.
Image: An included storage container for prepared baby food.
Жайгашуу
Before first use, and after each use, ensure all parts are clean.
- Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз. Келечекте сактоо же ташуу үчүн таңгактарды сактаңыз.
- Алгачкы тазалоо: Wash the blending jar, lid, and blade unit in warm soapy water or in a dishwasher. Wipe the main unit with a damp cloth. Rinse thoroughly and dry all parts.
- Ассамблея: Place the blade unit onto the motor shaft inside the blending jar. Ensure it clicks into place.
- Суу багы: Open the water tank cap and fill the water tank with clean drinking water up to the 'MAX' level. Close the cap securely.
Иштөө нускамалары
1. Бууга бышырылган тамак
- Prepare ingredients by washing, peeling, and chopping them into small pieces (approximately 1 cm cubes).
- Place the chopped ingredients into the blending jar. Do not overfill; ensure the lid can close properly.
- Place the lid on the blending jar and then place the jar onto the main unit, ensuring it is locked into position.
- Шайманды розеткага сайыңыз.
- Turn the control dial to the steam function (steam icon) and set the desired steaming time. Refer to the recipe book or general guidelines for steaming times based on food type.
- The appliance will automatically switch off when steaming is complete.
Image: Chopped vegetables placed in the blending jar, ready for the steaming process.
2. Тамак-ашты аралаштыруу
- After steaming, carefully remove the blending jar from the main unit.
- Flip the blending jar upside down, so the steamed food is now at the bottom, ready for blending. Ensure the blade unit is securely attached.
- Place the flipped jar back onto the main unit.
- Turn the control dial to the blend function (blade icon) and hold it in position for short bursts until the desired consistency is achieved. Do not blend continuously for more than 30 seconds.
- Once blended, remove the jar, detach the blade unit, and serve the baby food using the spatula.

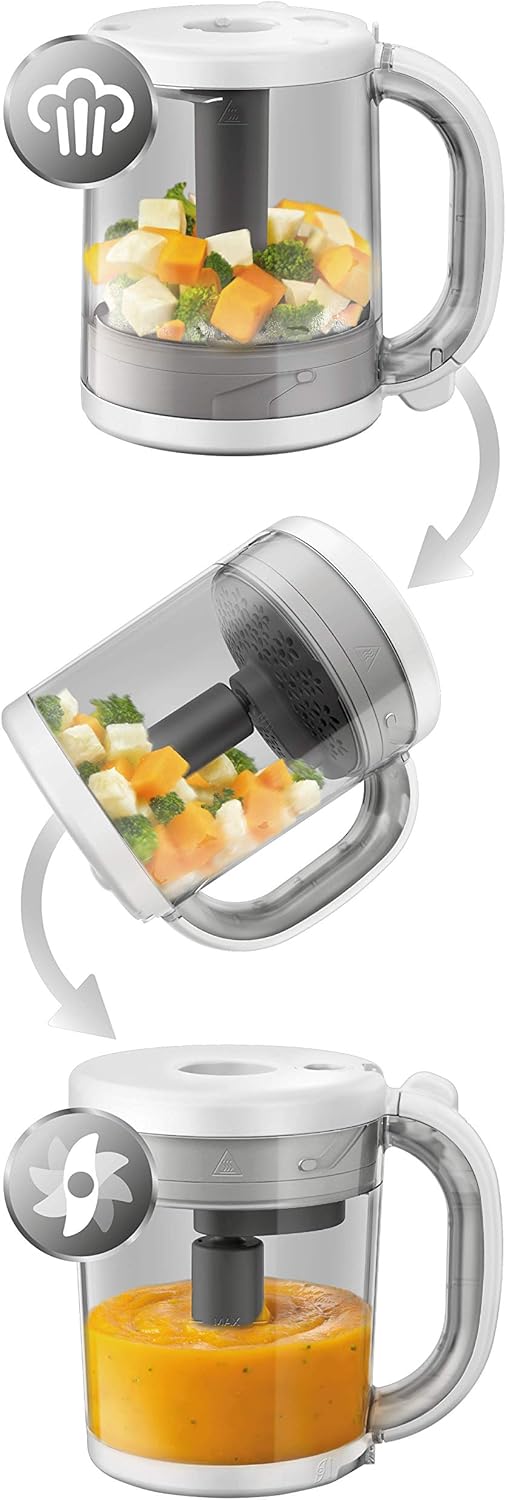

Image: The blending jar flipped and attached to the main unit, showing the blending process to create a smooth puree.
3. Эритүү жана кайра жылытуу
The steaming function can also be used to defrost or reheat pre-cooked baby food.
- Place the frozen or refrigerated baby food into the blending jar.
- Follow the steps for steaming, adjusting the time as needed for defrosting or reheating. Start with shorter times and check the food temperature.
- Always ensure food is thoroughly heated and stirred to distribute heat evenly before serving to your baby.
Тазалоо жана тейлөө
Үзгүлтүксүз тазалоо оптималдуу иштөөнү жана гигиенаны камсыз кылат.
- Ар бир колдонуудан кийин: Unplug the appliance. Disassemble the blending jar, lid, and blade unit. Wash these parts immediately in warm soapy water or place them in the dishwasher (all removable parts are dishwasher safe).
- Негизги блок: Негизги блокту жарнама менен сүртүңүзamp cloth. Do not use abrasive cleaning agents or immerse it in water.
- Суу багы: Empty any remaining water from the tank. For thorough cleaning, periodically descale the water tank.
- Тазалоо: Mix 80ml of white vinegar with 160ml of water. Pour the mixture into the water tank. Let it stand for 6 hours or overnight. Empty the tank and rinse thoroughly. Run two steaming cycles with clean water before using the appliance for food preparation.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шайман күйбөйт. | Электр розеткасына кошулган жок, кубат бериңизtage, jar not correctly assembled. | Check power connection. Ensure blending jar is securely locked onto the main unit. |
| Буу пайда болбойт. | Water tank is empty or insufficient water. | Суу куюлган бактын ичин MAX деңгээлине чейин таза суу менен толтуруңуз. |
| Food is not blending properly. | Too much food in the jar, food pieces are too large, blade is not properly installed. | Reduce food quantity. Chop food into smaller pieces. Ensure blade unit is securely attached. Blend in short pulses. |
| Шаймандан суу агып жатат. | Water tank cap not closed properly, blending jar not sealed. | Ensure water tank cap is tightly closed. Check that the blending jar is correctly assembled and sealed. |
Техникалык шарттар
- Модел: SCF883 / 01
- Күч: 400 Ватт
- Тtage: 220-240 Вольт
- Жыштыгы: 50-60 Гц
- Сыйымдуулугу: 0.12 Liters (blending jar)
- Өлчөмдөрү (D x W x Y): 20 см х 15 см х 29 см
- Салмагы: 6.61 фунт (болжол менен 3 кг)
- Бышактын материалы: Дат баспаган болот
- Идиш жуугучта коопсуз бөлүктөр: Blending jar, lid, blade unit
- Функциялары: Steaming, Blending, Defrosting, Reheating
Кепилдик жана колдоо
This Philips Avent product comes with a standard manufacturer's warranty. For detailed warranty information, terms, and conditions, please refer to the warranty card included with your purchase or visit the official Philips Avent website. For technical support, spare parts, or service, please contact Philips customer support in your region.
Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.
