Daytona PREMIUM ZONE Square Master Cylinder Cap Instruction Manual

Introduction

Сатып алганыңыз үчүн рахматasing the Daytona PREMIUM ZONE Square Master Cylinder Cap. This high-quality accessory is designed to enhance the aesthetics and functionality of your motorcycle's brake master cylinder. Crafted with precision and attention to detail, it offers a superior finish and durable performance. This manual provides essential information for proper installation, maintenance, and safe use of your new master cylinder cap.

Image: The Daytona PREMIUM ZONE Square Master Cylinder Cap, showcasing its sleek design and red accents.

Image: A display of multiple Daytona PREMIUM ZONE Square Master Cylinder Caps in different color variations, highlighting the premium finish.

Коопсуздук маалыматы

Please read and understand all safety warnings and instructions before installing or using this product. Failure to do so may result in property damage, injury, or death.

• Кесиптик орнотуу сунушталат: Installation of motorcycle components, especially those related to braking systems, should ideally be performed by a qualified mechanic.
• Brake Fluid Caution: Brake fluid is corrosive. Avoid contact with painted surfaces, plastic parts, and skin. If contact occurs, wash immediately with water.
• Суюктуктун деңгээлин текшерүү: Always ensure the brake fluid level is correct after installation. An incorrect fluid level can compromise braking performance.
• Моменттин мүнөздөмөлөрү: Always use the manufacturer's recommended torque specifications when tightening fasteners. Overtightening or undertightening can lead to damage or failure.
• Шайкештик: Ensure this cap is compatible with your specific motorcycle model and master cylinder type before installation.

Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• Daytona PREMIUM ZONE Square Master Cylinder Cap x 1
• (Note: Mounting screws and rubber diaphragm are typically reused from the original cap or sold separately.)

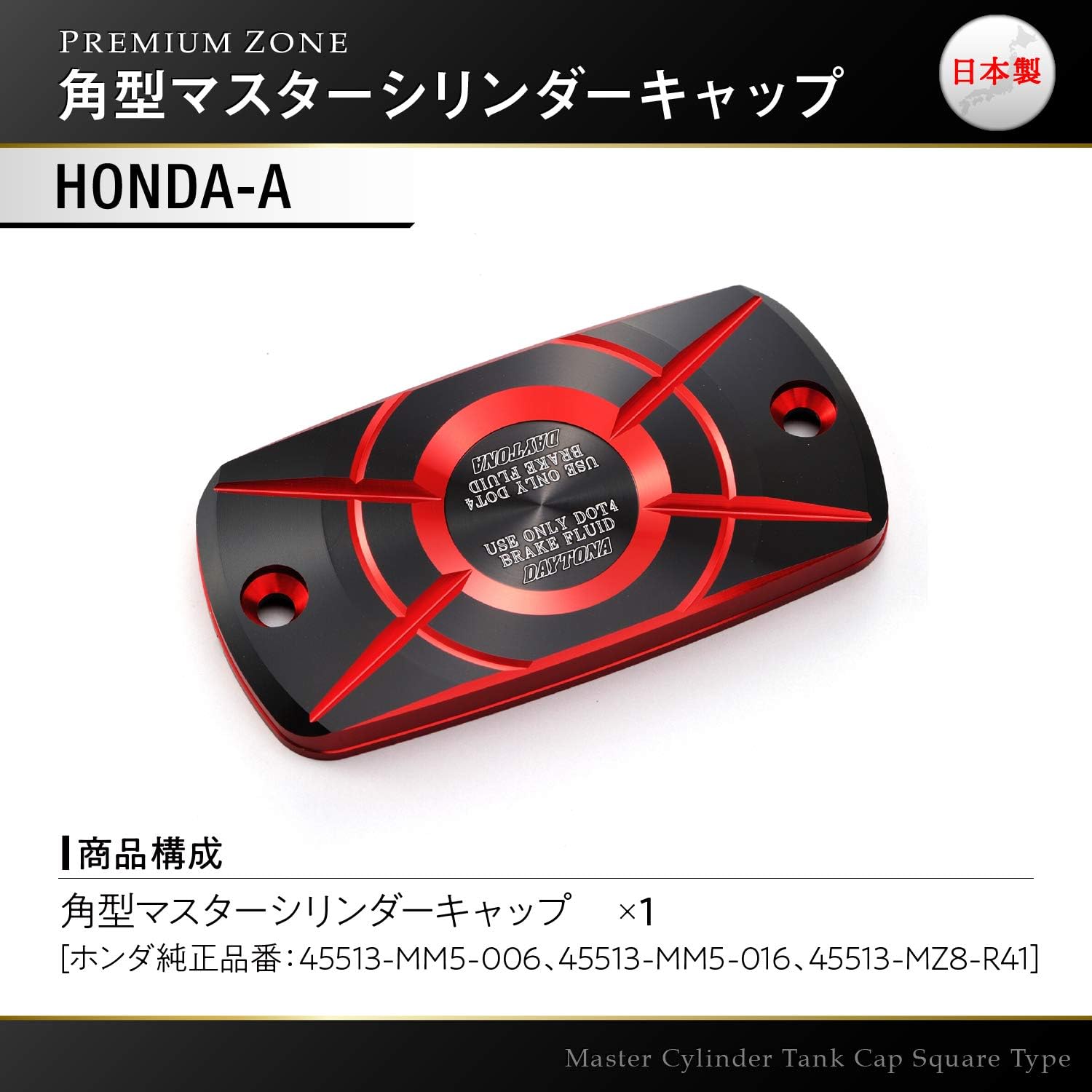

Image: The master cylinder cap with an indication of its product composition, including Honda genuine part numbers for reference.

Орнотуу жана орнотуу

Follow these steps carefully for proper installation. It is recommended to have a clean workspace and the necessary tools (e.g., screwdriver, torque wrench, clean rags).

1. Мотоциклди даярдоо: Park the motorcycle on a level surface. Turn the handlebars so the master cylinder reservoir is as level as possible to prevent brake fluid spills. Place clean rags around the master cylinder to catch any potential drips.
2. Баштапкы капкакты алып салуу: Carefully unscrew the two retaining screws holding the original master cylinder cap in place. Lift the cap off gently.
3. Диафрагманы текшерүү: The rubber diaphragm (or gasket) is crucial for sealing the reservoir. Carefully remove it from the old cap (if it's attached) and inspect it for any tears, cracks, or damage. If damaged, replace it with a new one. If it's in good condition, transfer it to the new Daytona cap.
4. Жаңы капкакты орнотуу: Place the Daytona PREMIUM ZONE Square Master Cylinder Cap onto the reservoir, ensuring the rubber diaphragm is properly seated and aligned.
5. Коопсуз капкак: Reinsert the two retaining screws. Tighten them evenly and gradually, following the motorcycle manufacturer's recommended torque specifications (typically very low torque, be careful not to overtighten).
6. Check Brake Fluid Level: After installation, visually inspect the brake fluid level through the reservoir window. Ensure it is between the MIN and MAX lines. If necessary, add the correct type of brake fluid (DOT 4 as indicated on the cap) to the appropriate level.
7. Тазалоо: Wipe away any spilled brake fluid immediately with a clean, damp кездеме.

Сүрөт: мурункуample of the red Daytona PREMIUM ZONE Square Master Cylinder Cap installed on a motorcycle's master cylinder, showing its fit and appearance.

Сүрөт: мурункуample of the blue Daytona PREMIUM ZONE Square Master Cylinder Cap installed on a motorcycle's master cylinder, demonstrating another color option.

Сүрөт: Мисamples of the gold and ash silver Daytona PREMIUM ZONE Square Master Cylinder Caps installed on different motorcycles, showcasing the range of available finishes.

Иштеп жатат

Once installed, the Daytona PREMIUM ZONE Square Master Cylinder Cap functions as a direct replacement for your original cap. Its primary role is to seal the brake fluid reservoir and protect the brake fluid from contaminants and moisture. The cap is designed for use with DOT 4 brake fluid, as indicated on its surface.

• Brake Fluid Type: Always use DOT 4 brake fluid as specified on the cap and by your motorcycle manufacturer. Mixing different types of brake fluid or using an incorrect type can damage your braking system.
• Үзгүлтүксүз текшерүүлөр: Periodically check the brake fluid level through the reservoir window. A drop in fluid level without a corresponding drop in pad thickness may indicate a leak and should be investigated immediately.

Техникалык тейлөө

To ensure the longevity and optimal appearance of your Daytona PREMIUM ZONE Master Cylinder Cap, follow these simple maintenance guidelines:

• Тазалоо: Clean the cap regularly with a soft, damp cloth and mild soap. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the anodized finish.
• Текшерүү: Periodically inspect the cap for any signs of damage, corrosion, or looseness. Ensure the retaining screws remain securely tightened.
• Diaphragm Check: If you remove the cap for any reason (e.g., brake fluid flush), always inspect the rubber diaphragm for integrity before reinstallation.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

Daytona products are manufactured to high standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Daytona website. If you encounter any issues or have questions regarding your Daytona PREMIUM ZONE Square Master Cylinder Cap, please contact Daytona customer support or the authorized dealer from whom you purchased the product.

Daytona Official Webсайт: www.daytona.co.jp (Эскертүү: Website content may be in Japanese. Look for international support options or contact your local distributor.)
