Air-Con 12000 BTU Mini Split Air Conditioner User Manual

1. Продукт бүтүп калдыview

The Air-Con 12000 BTU Mini Split Air Conditioner is a versatile ductless AC/Heating system designed to provide year-round comfort. This 1-ton pre-charged inverter heat pump boasts a 21 SEER rating, ensuring energy efficiency. It is equipped with a 15-foot lineset and wiring, making it ready for professional installation.

Key features include inverter technology for lower operating costs, Turbo mode for rapid heating and cooling, Sleep mode for enhanced comfort, Auto clean function to prevent mildew, and Auto reset for power interruptions. It also features a 24-hour timer with last-setting memory, a dedicated dehumidifier, and horizontal and vertical louver motion for optimal air distribution. The unit is WIFI ready with an optional remote (sold separately, compatible with Cielo Breez remote).

Figure 1.1: ашыкview of the Air-Con 12000 BTU Mini Split Air Conditioner system, including the indoor unit, outdoor condenser, remote control, pre-charged copper lineset, and electrical cables.

2. Коопсуздук маалыматы

WARNING: Installation and maintenance of this unit must be performed by a licensed HVAC technician. Attempting self-installation without proper qualifications and tools can lead to serious injury, property damage, and void the product warranty.

• Агрегатты тейлөөдөн же тазалоодон мурун ар дайым кубаттан ажыратыңыз.
• Электр шоктун алдын алуу үчүн туура жерге туташтырууну камсыз кылыңыз.
• Do not block air inlets or outlets of the indoor or outdoor units.
• Иштөө жана тейлөө учурунда балдарды жана үй жаныбарларын блоктон алыс кармаңыз.
• Бул продукт сизге химиялык заттардын, анын ичинде коргошундун таасирин тийгизиши мүмкүн, ал Калифорния штатына рак жана тубаса кемтик же башка репродуктивдүү зыян алып келиши белгилүү. Көбүрөөк маалымат алуу үчүн өтүңүз www.P65Warnings.ca.gov.

3. Пакеттин мазмуну

Таңгактан чыгаргандан кийин, төмөнкү компоненттердин бардыгы камтылганын текшериңиз:

• Ички блок (бууландыргыч)
• Тышкы блок (конденсатор)
• Алыстан башкаруу
• 15-foot Copper Lineset (pre-charged)
• 15-foot Signal and Power Electrical Cables
• Колдонуучунун Колдонмосу (бул документ)

If any items are missing or damaged, please contact Air-Con customer support immediately.

4. Орнотуу жана орнотуу

This Air-Con mini split system is designed for professional installation. While the unit is pre-charged and includes necessary linesets and wiring, specialized tools and knowledge are required for proper vacuuming of the lines, leak checking, and electrical connections to ensure safe and efficient operation.

4.1 Сайтты тандоо

Consider the following when selecting installation locations for the indoor and outdoor units:

• Ички блок: Choose a location that allows for optimal air distribution throughout the room, away from direct sunlight or heat sources. Ensure sufficient space around the unit for maintenance.
• Сырткы блок: Select a well-ventilated area, clear of obstructions, and on a stable, level surface. Ensure adequate clearance for airflow and service access. Avoid locations near bedrooms due to potential noise.

4.2 Өлчөмдөрү жана клиринг

Орнотууну пландаштыруу үчүн төмөнкү өлчөмдөрдү караңыз:

Figure 4.1: Dimensional drawing of the indoor unit (32.9" W x 11" H x 8.6" D) and outdoor unit (28.1" W x 19" H x 9.5" D), including their approximate weights.

4.3 Электрдик талаптар

The unit operates on 208/230V. A dedicated electrical circuit with appropriate circuit breaker protection is required. Consult with your licensed HVAC technician and local electrical codes for specific wiring and breaker requirements.

4.4 AHRI Certification

This unit is AHRI Certified, ensuring its performance ratings meet industry standards. The AHRI Reference Number is 203446795.

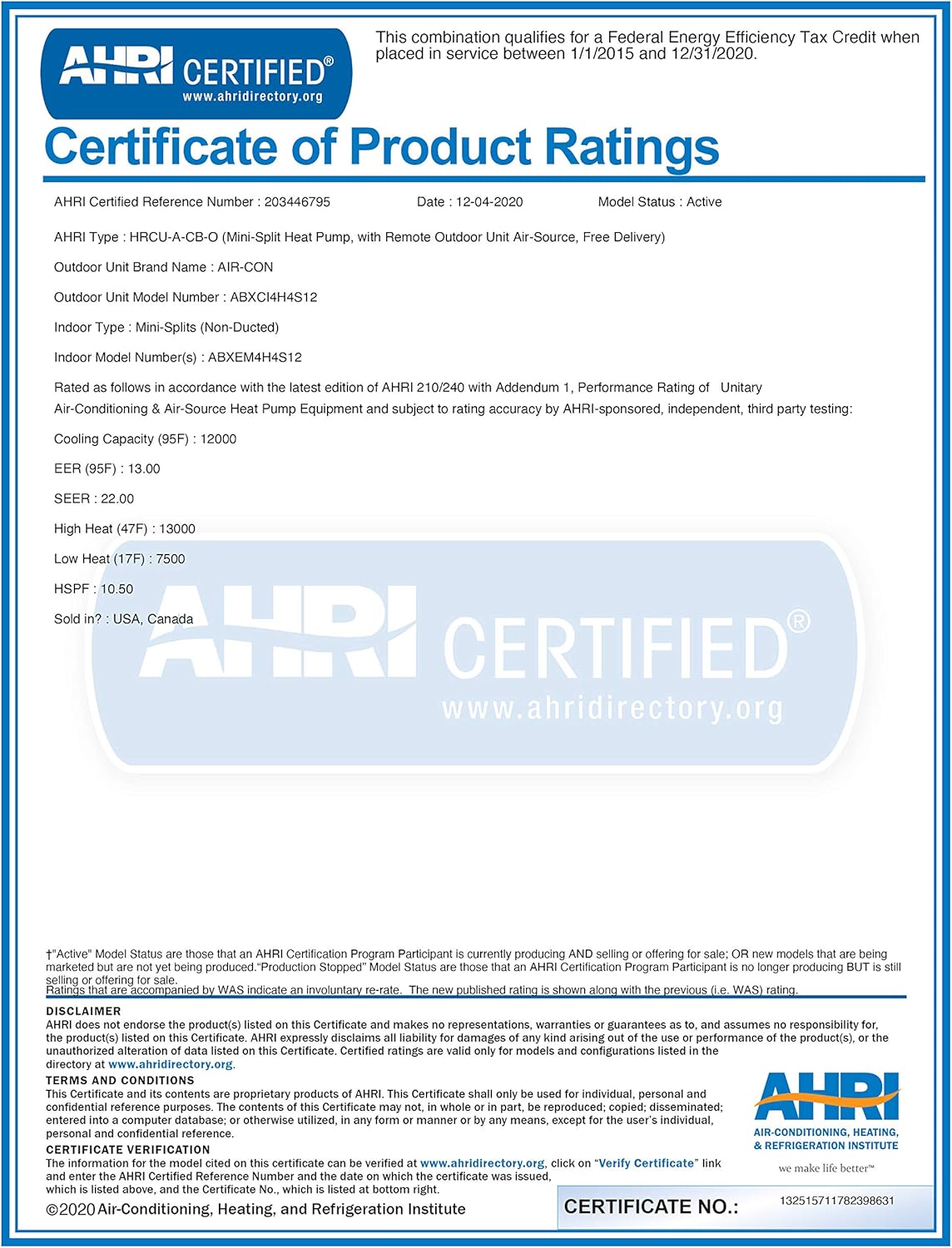

Figure 4.2: AHRI Certified Product Ratings certificate, confirming the unit's performance specifications and compliance with industry standards.

5. Иштөө нускамалары

The Air-Con mini split system is controlled primarily via the included remote control. Familiarize yourself with the remote's functions for optimal use.

5.1 Негизги иштөө режимдери

• Муздак режим: Reduces room temperature. Set desired temperature using the remote.
• Жылытуу режими: Increases room temperature. Effective even in low ambient temperatures down to -4°F.
• Кургак (нымсыздандыруу) режими: Абанын ашыкча нымдуулугун олуттуу муздатпастан кетирет.
• Күйөрман режими: Абаны жылытуусуз жана муздатуусуз айлантат.
• Авто режим: Automatically selects cooling or heating based on the set temperature and current room temperature.

5.2 Өркүндөтүлгөн функциялар

• Турбо режими: Activates maximum fan speed and compressor output for rapid cooling or heating.
• Уйку режими: Adjusts temperature gradually overnight for comfortable sleeping and energy savings.
• 24 сааттык таймер: Program the unit to turn on or off at specific times. The unit retains the last setting in memory.
• Автоматтык абалга келтирүү: In case of a power interruption, the unit will automatically resume operation with the last settings once power is restored.
• Жалюзи башкаруу: Adjust horizontal and vertical louvers for precise airflow direction.
• WIFI Ready: Compatible with optional smart thermostats like Cielo Breez for remote control via smartphone (sold separately).

6. Техникалык тейлөө

Regular maintenance ensures the longevity and efficiency of your Air-Con mini split system. Always disconnect power to the unit before performing any maintenance.

6.1 Аба чыпкасын тазалоо

The indoor unit's air filters should be cleaned regularly (e.g., every 2-4 weeks, depending on usage and air quality). Dirty filters can reduce airflow, decrease efficiency, and impact air quality.

1. Ички блоктун алдыңкы панелин ачыңыз.
2. Аба чыпкаларын алып салыңыз.
3. Clean the filters using a vacuum cleaner or by washing them with lukewarm water and mild detergent.
4. Чыпкаларды кайра салуудан мурун толугу менен кургап туруңуз.
5. Алдыңкы панелди жабыңыз.

6.2 Автоматтык тазалоо функциясы

The unit features an "Auto Clean" function designed to prevent mildew growth inside the indoor unit. Refer to your remote control's specific instructions on how to activate this feature.

6.3 Кесиптик тейлөө

It is highly recommended to schedule annual professional maintenance with a licensed HVAC technician. This includes checking refrigerant levels, cleaning coils, inspecting electrical connections, and ensuring overall system health.

7. Кыйынчылыктарды

Техникалык колдоо менен байланышуудан мурун, кайраview төмөнкү жалпы маселелер жана чечимдер:

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Air-Con technical support. We offer U.S. based replacement parts and technical service.

8. Техникалык шарттар

9. Кепилдик жана колдоо

Air-Con stands behind the quality of its products. This mini split system comes with a 7-year compressor warranty and a 5-year parts warranty, providing total peace of mind.

For warranty claims, technical assistance, or to order replacement parts, please contact Air-Con customer service. We provide U.S. based replacement parts and technical service to ensure prompt support.

Visit the official Air-Con Store for more information and product offerings: Air-Con Store on Amazon
