PROGEAR 1600 Power Cage Instruction Manual

1. Киришүү

Thank you for choosing the PROGEAR 1600 Power Cage. This manual provides essential information for the safe assembly, operation, and maintenance of your new fitness equipment. Please read this manual thoroughly before assembly and use. Keep this manual for future reference.

The PROGEAR 1600 Power Cage is engineered with a heavy-duty 2" x 2" tubular steel frame, offering a robust and stable platform for various strength training exercises. It features a large walk-in space, adjustable safety bars, and J-hooks to accommodate a wide range of workouts and user heights.

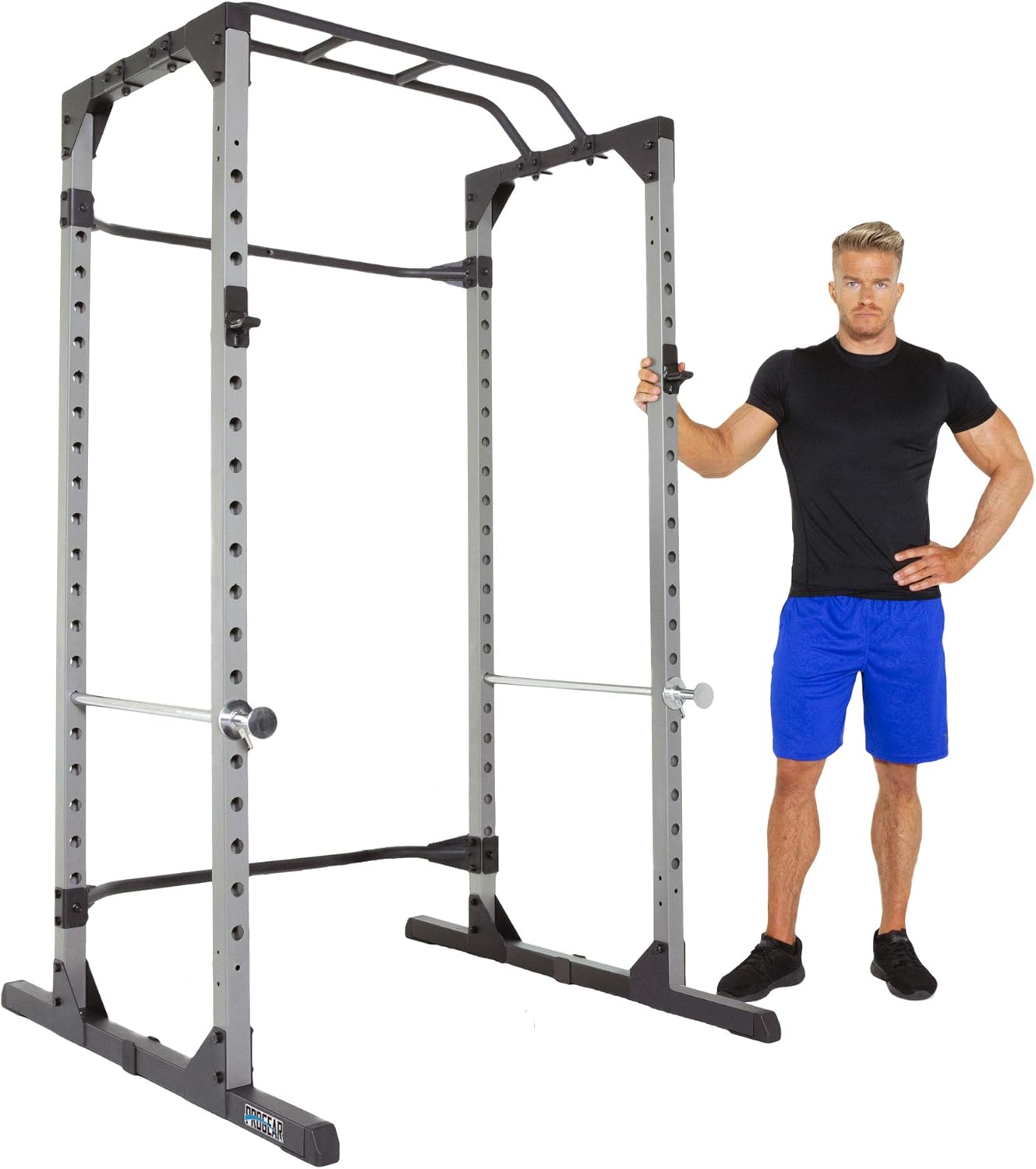

Figure 1.1: The PROGEAR 1600 Power Cage, showcasinанын бекем дизайны жана ample workout space.

2. Коопсуздук маалыматы

ЭСКЕРТҮҮ: Serious injury or death can occur if safety precautions are not followed. Consult with a physician before beginning any exercise program. This equipment is for home use only.

• Always inspect the power cage for loose parts, damage, or wear before each use. Do not use if any components are compromised.
• Колдонуудан мурун жана колдонуу учурунда бардык болттордун жана гайкалардын бекем бекитилгенин текшериңиз.
• Place the power cage on a flat, stable surface. Do not use on uneven ground.
• Maintain a clear area of at least 2 feet (0.6 meters) around the power cage during use.
• Do not exceed the maximum weight capacity of 800 lbs (363 kg) for the J-hooks and safety bars.
• Always use the safety bars when performing exercises that involve heavy weights, especially when training alone.
• Children and pets must be kept away from the equipment during operation.
• Көнүгүү учурунда ылайыктуу спорттук бут кийим жана кийим кийиңиз.
• Эгерде сизде оору, баш айлануу же дем кысылышы болсо, көнүгүүлөрдү токтоосуз токтотуп, дарыгерге кайрылыңыз.

3. Пакеттин мазмуну

Чогултууну баштоодон мурун, төмөндө көрсөтүлгөн бардык компоненттердин бар экенин жана бузулбаганын текшериңиз. Эгерде кандайдыр бир тетиктер жок болсо же бузулган болсо, дароо кардарларды колдоо кызматына кайрылыңыз.

• Main Frame Components (Uprights, Base Supports, Crossbars)
• 2 x J-Hooks
• 2 x Chrome Dual Mounted Safety Bars
• 2 x Chrome Lock-on Safety Bars
• Multi-grip Pull-up Bar
• Монтаждоочу жабдыктар (болттор, шайбалар, гайкалар)
• Куралдар
• Instruction Manual

4. Монтаждоо боюнча нускамалар

Assembly typically requires two adults. Refer to the included assembly diagram for detailed steps. Ensure all connections are secure before proceeding to the next step.

1. Пакеттен чыгаруу жана уюштуруу: Carefully remove all components from the packaging. Lay them out in an organized manner and compare them against the package contents list.
2. Assemble Base Supports: Attach the front and rear base supports to the main uprights using the provided bolts and nuts. Do not fully tighten yet.
3. Install Rear Stability Bars: Secure the two rear stability bars between the rear uprights. These bars provide additional rigidity to the structure.

Figure 4.1: Detail of the rear stability bar, crucial for structural integrity.
4. Attach Pull-up Bar: Mount the multi-grip pull-up bar to the top front section of the power cage. Ensure it is level and securely fastened.

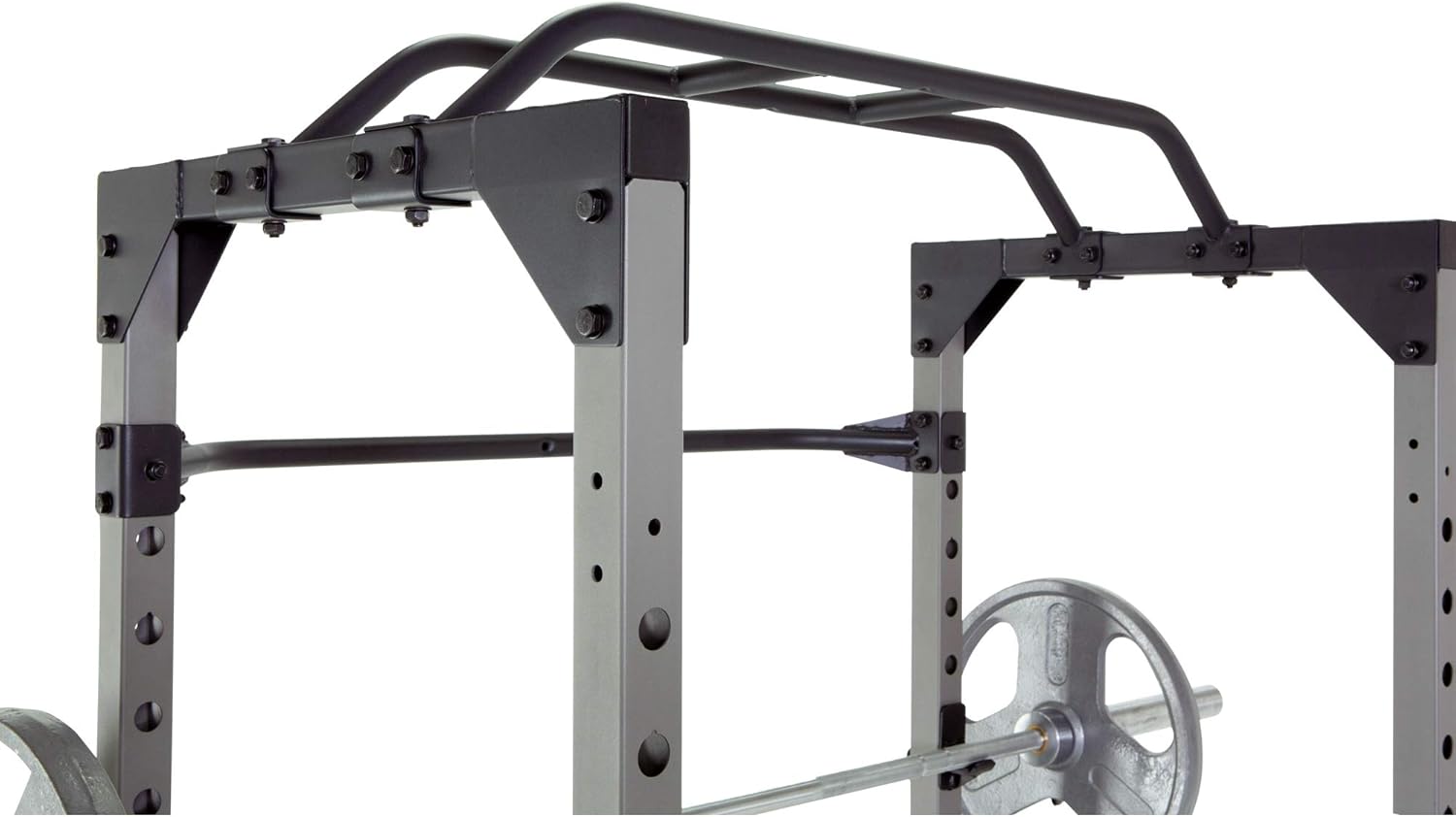

Figure 4.2: The multi-grip pull-up bar, offering various grip options for upper body exercises.

5. Бардык жабдууларды бекемдеңиз: Once all components are loosely assembled, go back and securely tighten all bolts and nuts. This ensures the cage is stable and safe for use.
6. Install J-Hooks and Safety Bars: Insert the J-hooks and safety bars into the desired height levels. Ensure they are fully seated and locked into place.


Figure 4.3: A J-hook securely mounted on the upright, ready to support a barbell.


Figure 4.4: The adjustable safety bar mechanism, allowing for precise height settings.

5. Иштөө нускамалары

The PROGEAR 1600 Power Cage is designed for a variety of strength training exercises. Its large walk-in space allows for easy side-to-side movement and accommodates various workout styles.

5.1 Using J-Hooks and Safety Bars

• J-Hooks: These are used to rack and un-rack your Olympic bar. They feature an easy lock-in design for secure placement. Always ensure both J-hooks are set at the same height and are fully engaged before placing a barbell on them.
• Safety Bars: The power cage includes two chrome dual-mounted safety bars and two chrome lock-on safety bars. These are crucial for user safety, especially when lifting heavy weights or training alone. Adjust them to a height that will catch the barbell if you fail a lift, preventing injury. The cage offers 19 adjustable height levels for precise positioning.

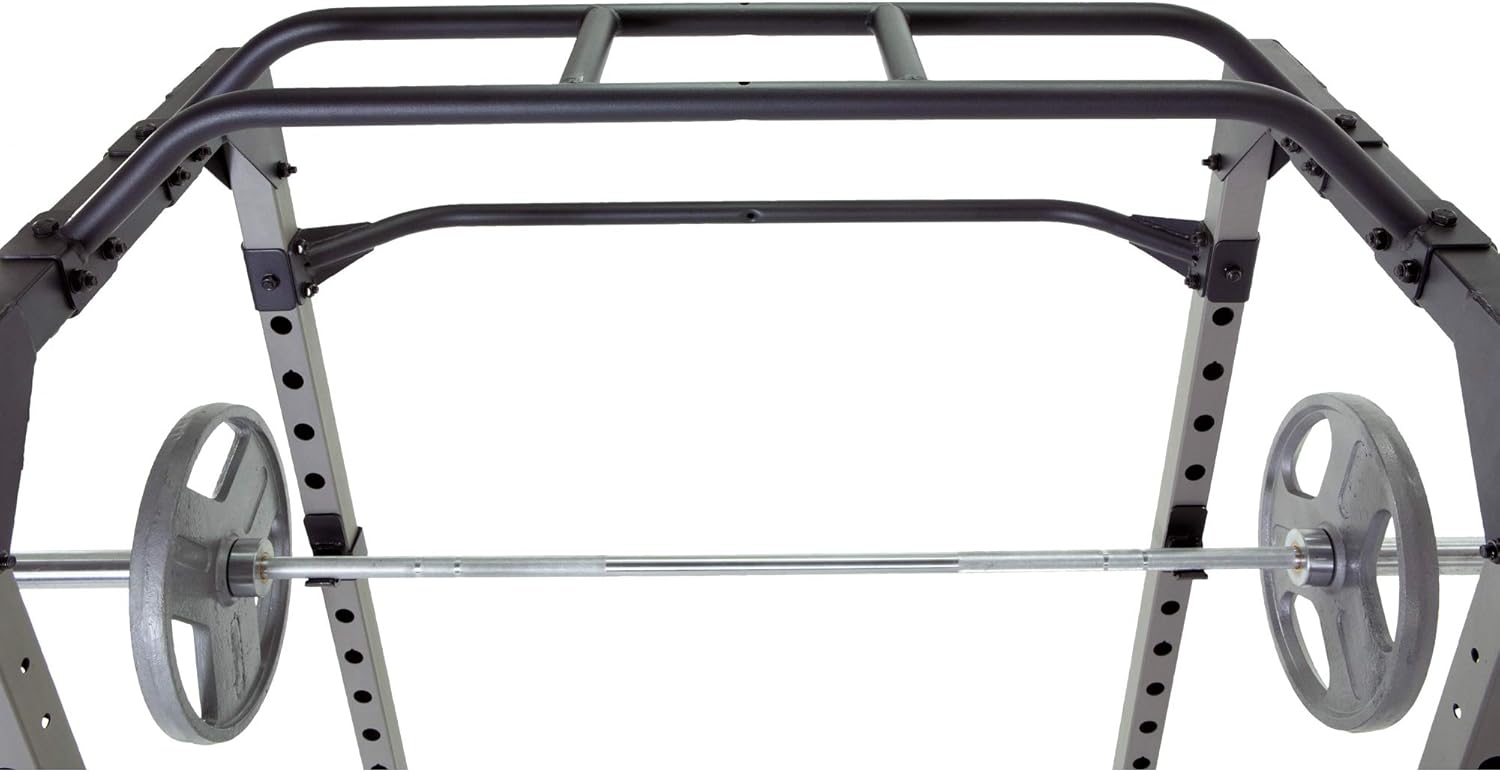

5.1-сүрөт: Интерьер view of the power cage, showing the J-hooks and safety bars in position.

5.2 Көнүгүү Чыг.amples

The PROGEAR 1600 Power Cage supports a wide range of exercises. Always use proper form and spotters if necessary.

• Скваттар: Position the J-hooks at shoulder height. Load the barbell, un-rack, perform squats, and re-rack. Set safety bars just below your lowest squat depth.
• Bench Press: Use with a compatible weight bench (e.g., PROGEAR 1300 Adjustable Weight Bench). Position J-hooks and safety bars appropriately for your bench press range of motion.

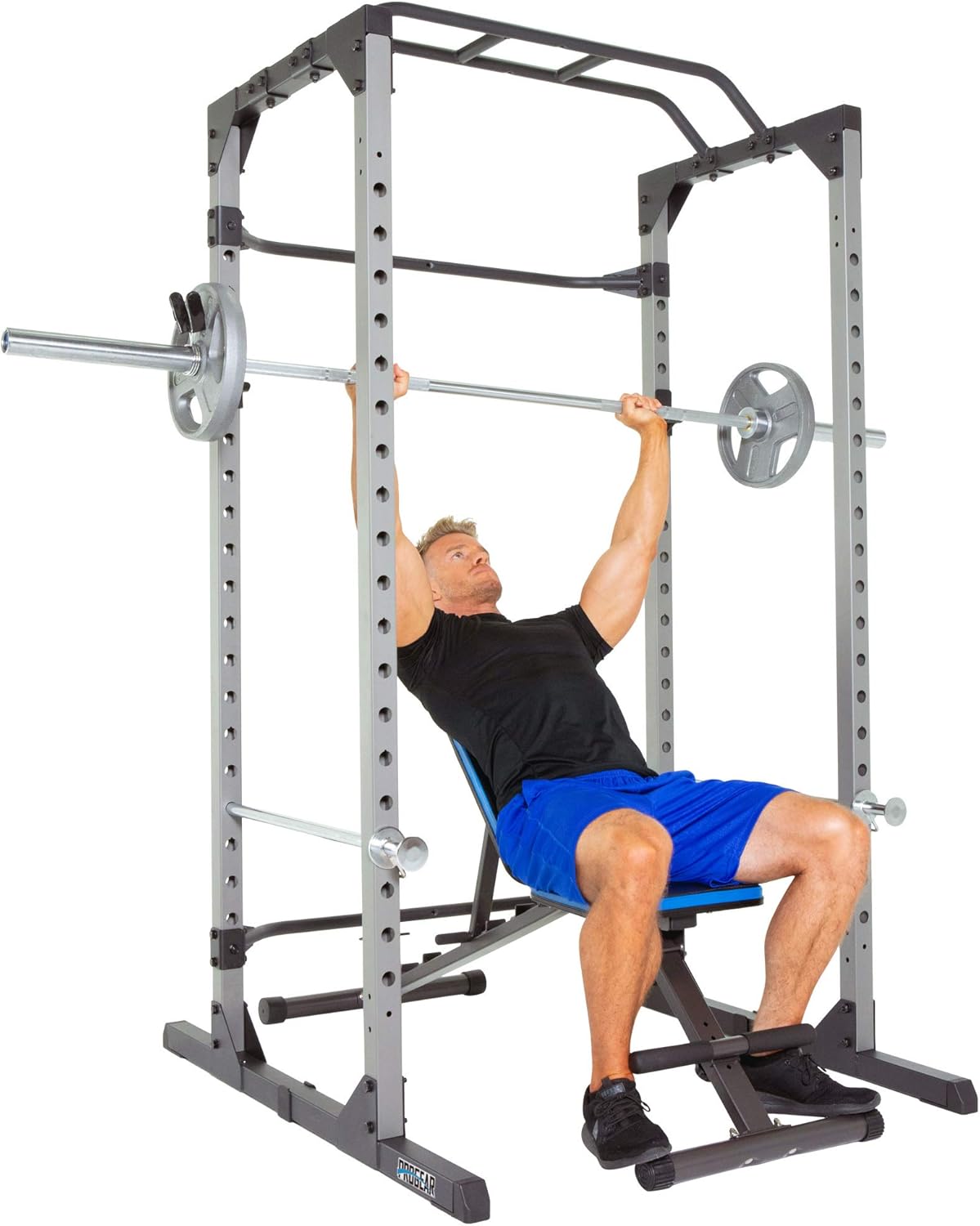

Figure 5.2: An individual performing a bench press exercise within the power cage, demonstrating the use of a weight bench.
• Үстүнкү басма сөз: Similar to squats, adjust J-hooks for comfortable un-racking and re-racking.
• Ээгиңиз менен тартылуу/Ээгиңизди көтөрүү: Utilize the multi-grip pull-up bar at the top of the cage for various grip positions.
• Barbell Rows/Bicep Curls: Can be performed inside or outside the cage, utilizing the J-hooks for racking.


Figure 5.3: An individual performing bicep curls with a barbell, illustrating the ample space within the cage.

6. Техникалык тейлөө

Regular maintenance will ensure the longevity and safe operation of your PROGEAR 1600 Power Cage.

• Тазалоо: Раманы жана анын компоненттерин жарнама менен сүртүңүзamp терди жана чаңды кетирүү үчүн ар бир колдонуудан кийин чүпүрөк менен сүртүңүз. Абразивдүү тазалагычтардан алыс болуңуз.
• Текшерүү: Periodically inspect all bolts, nuts, and connections for tightness. Re-tighten as necessary.
• Кийүү жана эскирүү: Check for any signs of rust, cracks, or excessive wear on the frame, J-hooks, and safety bars. Replace worn or damaged parts immediately.
• Майлоо: No lubrication is generally required for this type of equipment.

7. Кыйынчылыктарды

If you encounter issues with your PROGEAR 1600 Power Cage, refer to the following common problems and solutions:

Бул чечимдерди колдонуу аракетинен кийин көйгөй чечилбесе, кардарларды колдоо кызматына кайрылыңыз.

8. Техникалык шарттар

9. Кепилдик жана колдоо

PROGEAR products are manufactured with quality and durability in mind. For specific warranty information regarding your PROGEAR 1600 Power Cage, please refer to the warranty card included with your purchase or visit the official ProGear webсайт.

For technical support, replacement parts, or any inquiries not covered in this manual, please contact ProGear customer service. Have your model number (3810) and purchase date ready when contacting support.

Өндүрүүчү: Paradigm Health & Wellness Inc. (CA) - DROPSHIP
