Soozier A91-065 Dip Station User Manual

Модел: A91-065

1. Коопсуздук боюнча маанилүү маалымат

Before assembling or using the Soozier A91-065 Dip Station, please read and understand all instructions in this manual. Keep this manual for future reference.

  • Максималдуу Салмак сыйымдуулугу: This dip station is designed to support a maximum user weight of 220 lbs (100 kg). Do not exceed this weight limit.
  • Врач менен кеңешиңиз: Кандайдыр бир көнүгүү программасын баштоодон мурун, анын сиздин физикалык абалыңызга ылайыктуулугун текшерүү үчүн медициналык адис менен кеңешиңиз.
  • Туура Ассамблея: Ensure all parts are correctly assembled and all bolts are securely tightened before each use. Loose components can lead to instability and injury.
  • Туруктуу бети: Use the dip station on a flat, stable, and non-slip surface to prevent tipping or movement during exercise.
  • Колдонуудан мурун текшерүү: Regularly inspect the equipment for any signs of wear, damage, or loose parts. Do not use if any damage is found.
  • Балдар жана үй жаныбарлары: Колдонуу учурунда балдарды жана үй жаныбарларын жабдуулардан алыс кармаңыз.
  • Туура форма: Always maintain proper exercise form to prevent injury. If you experience pain or discomfort, stop exercising immediately.

2. Пакеттин мазмуну

The Soozier A91-065 Dip Station package includes the following components:

  • Dip Station frame components
  • Монтаждоочу жабдыктар (болттор, гайкалар, шайбалар)
  • Колдонмо

Please verify all parts are present and undamaged before proceeding with assembly. If any parts are missing or damaged, contact customer support.

3. Монтаждоо боюнча нускамалар

Assembly of the Soozier A91-065 Dip Station is required. Follow these steps carefully to ensure proper and safe construction.

  1. Компоненттерди таңгактан чыгаруу: Таңгактан кылдаттык менен бардык бөлүктөрүн чыгарып, таза, тегиз бетке жаткызыңыз.
  2. Базаны чогултуу: Connect the horizontal base bars to the vertical support posts using the provided bolts, washers, and nuts. Ensure the stable triangle structure is correctly formed at the joints for maximum stability.
  3. Тик мамыларды бекитүү: Secure the main upright posts to the assembled base. These posts feature multiple adjustment holes for height customization.
  4. Install Dip Handles: Insert the dip handles into the top of the upright posts. Ensure they are fully seated and secured.
  5. Secure Non-slip Foot Pads: Verify that the four non-slip rubber foot pads are firmly attached to the bottom of the base. These pads help keep the equipment stable and protect your floor.
  6. Бардык бекиткичтерди бекемдөө: Once all components are in place, go back and securely tighten all bolts and nuts. Do not overtighten, but ensure there is no wobble.

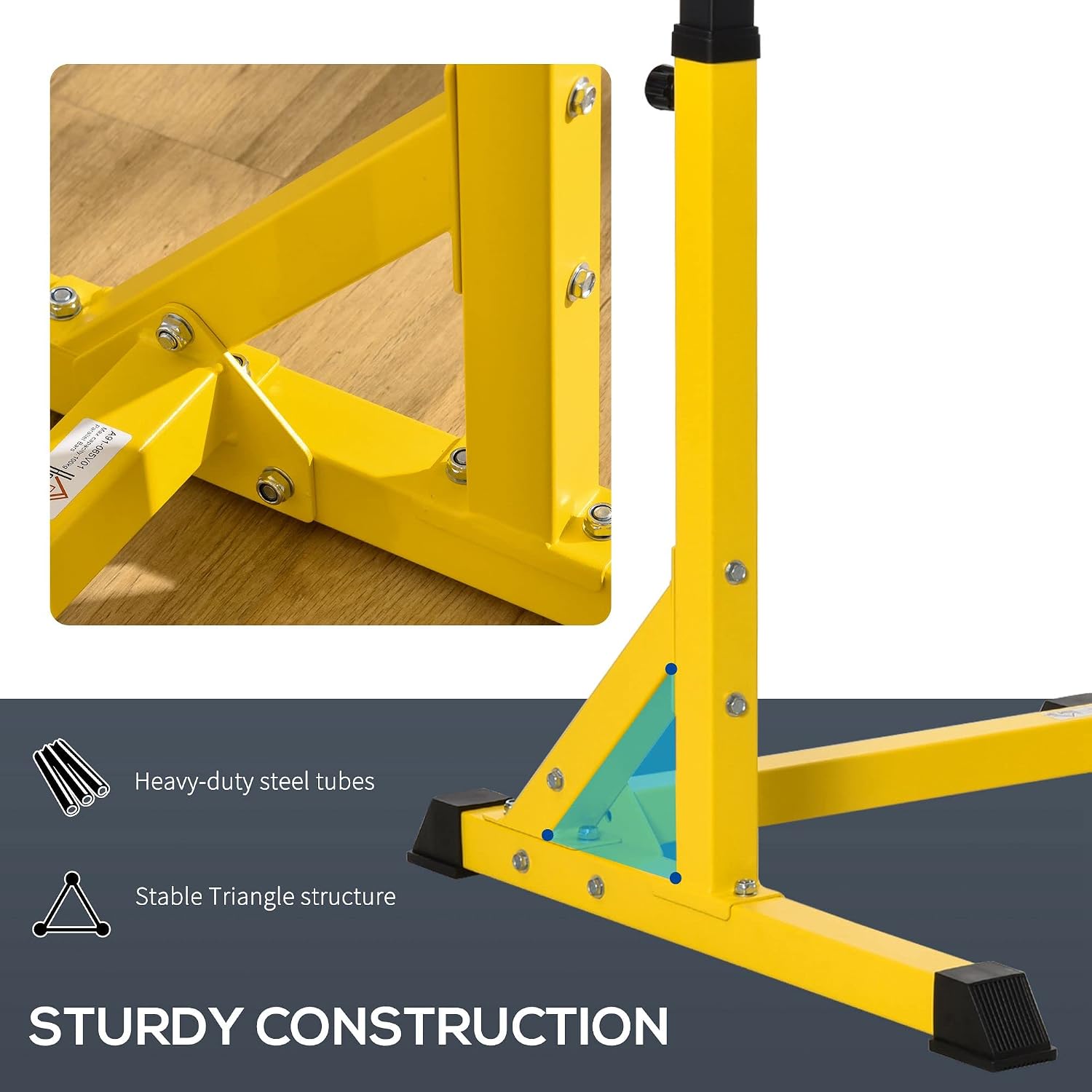

Image showing the sturdy construction of the dip station with heavy-duty steel tubes and a stable triangle structure.
Figure 3.1: Illustration of the sturdy construction, highlighting heavy-duty steel tubes and stable triangle structure.

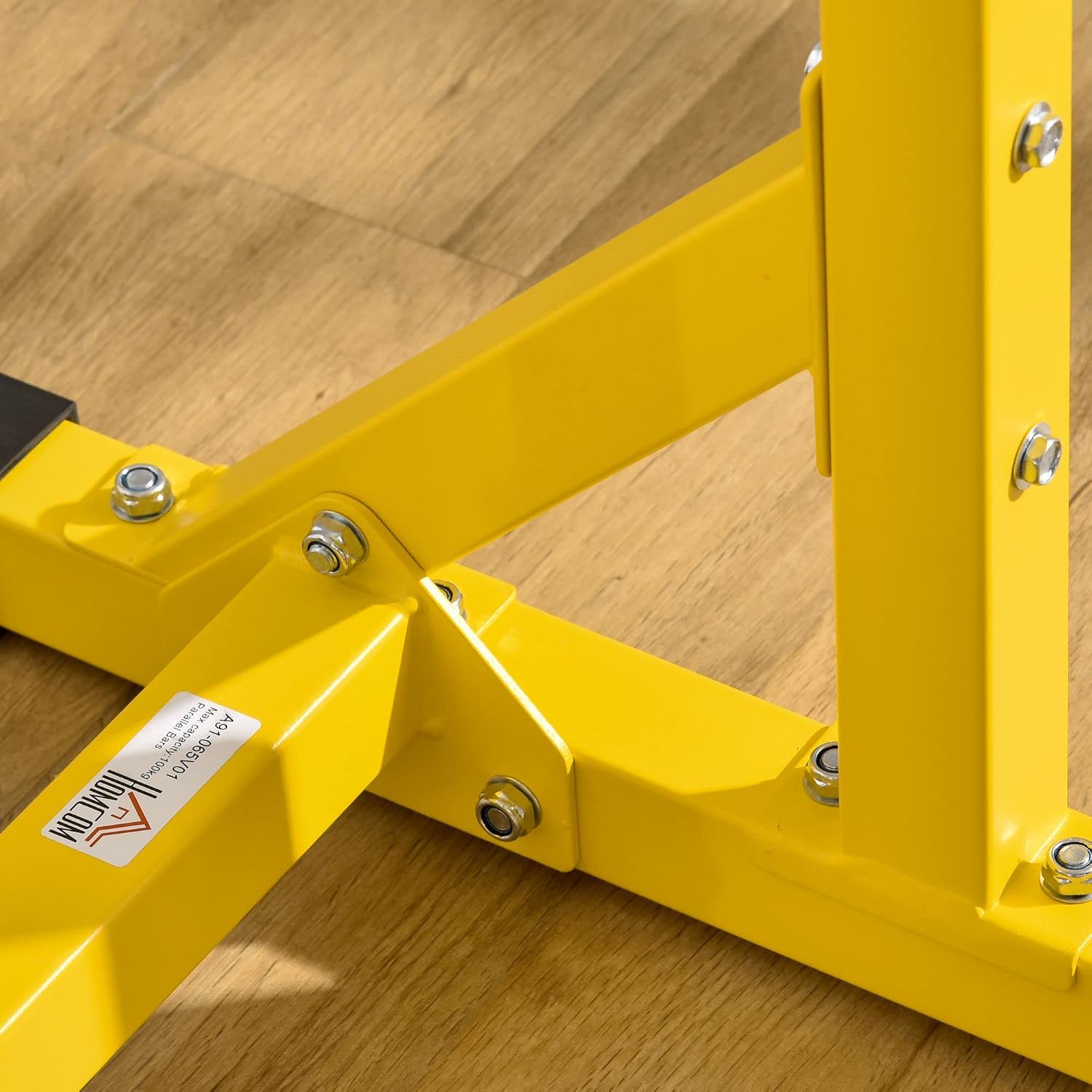

Close-up image of the dip station's base showing bolts and connection points.
Figure 3.2: Detail of the base connection points, showing bolts and structural integrity.

4. Иштөө нускамалары

The Soozier A91-065 Dip Station is designed for various bodyweight exercises. Follow these guidelines for effective and safe use.

4.1 Бийиктигин тууралоо

The dip station features 10 levels of height adjustment, ranging from approximately 37.8 inches (96 cm) to 49.6 inches (126 cm). This allows users of different heights to find a comfortable and effective workout position.

  1. Кулпуну ачуу: Locate the adjustment knob on each upright post. Turn the knob counter-clockwise to loosen and pull it out.
  2. Тууралоо: Slide the inner post up or down to the desired height, aligning the holes.
  3. Кулпу: Release the knob, ensuring it fully engages in the selected height adjustment hole. Turn clockwise to tighten the knob securely.
  4. Текшерүү: Gently test the stability of the handles at the new height before beginning your exercise.

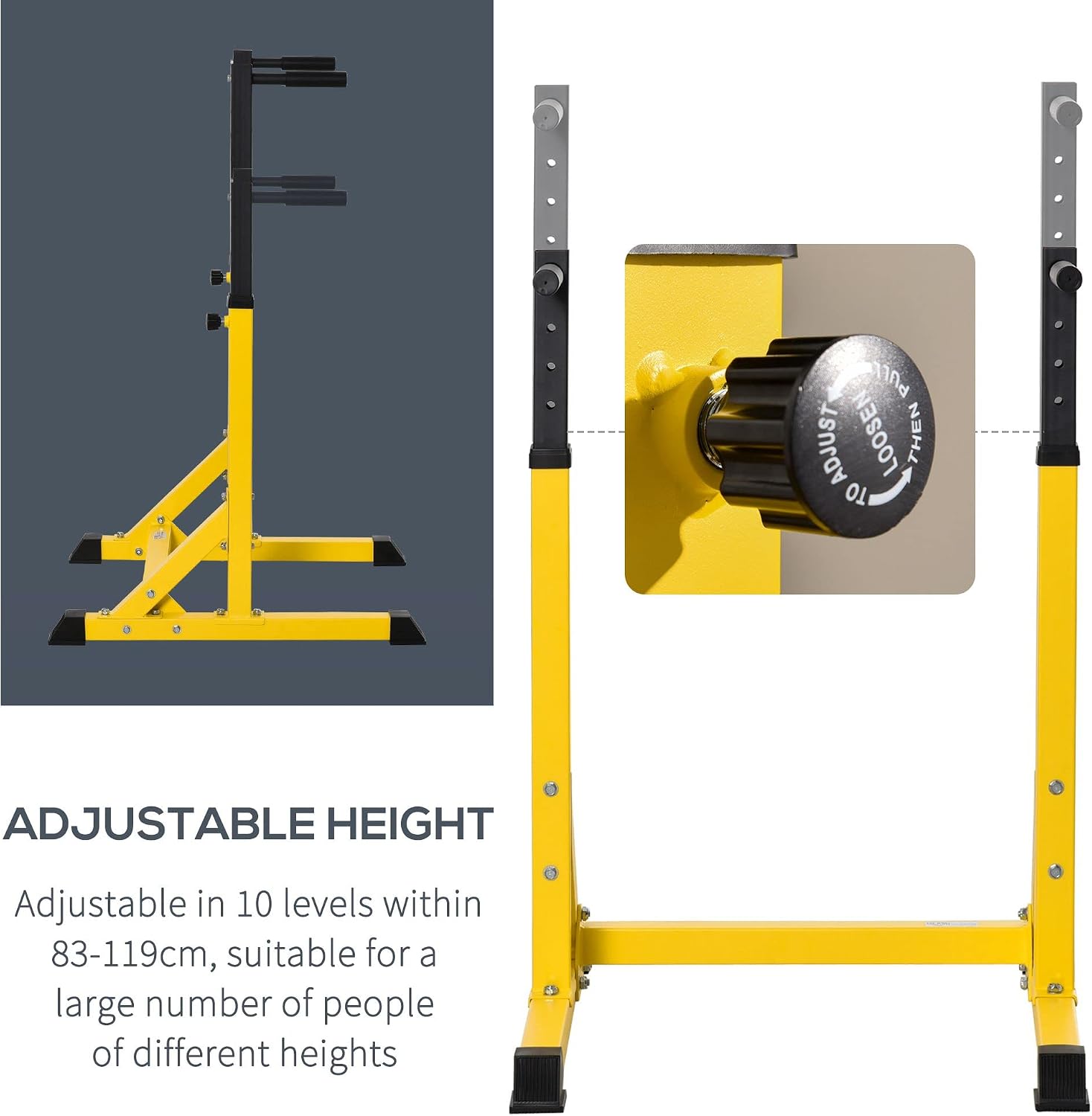

Image illustrating the adjustable height mechanism of the dip station, showing the knob to loosen and pull for adjustment.
Figure 4.1: Adjustable height feature with a close-up of the adjustment knob.

4.2 Көнүгүү Чыг.amples

This versatile equipment can be used for a variety of exercises:

  • Чөгүп: Position yourself between the bars, grip the handles, and lower your body by bending your elbows. Push back up to the starting position.
  • Отжимание: Use the bars for elevated push-ups, which can increase the range of motion and intensity.
  • Abdominal Raises / Knee Raises: Face the dip station, grip the handles, and lift your knees towards your chest or perform straight leg raises.
  • L-sits: Grip the handles, lift your body off the ground, and extend your legs straight out in front of you, forming an 'L' shape.
Image showing a person performing a pull-up style exercise and another performing a chest dip on the dip station.
4.2-сүрөт: Мисamples of exercises: Pull-up (L-sit variation) and Chest Dip.

4.3 Компакттуу дизайн

When not in use, the dip station can be adjusted to its lowest height setting for convenient storage, minimizing its footprint in your home gym area.

Image showing the dip station in its lowest, compact storage position.
Figure 4.3: Dip station in compact design for storage.

5. Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your dip station.

  • Тазалоо: Раманы жана туткаларын жарнама менен сүртүңүзamp Ар бир колдонгондон кийин терди жана кирди кетирүү үчүн чүпүрөктү сүртүңүз. Абразивдүү тазалоочу каражаттардан алыс болуңуз.
  • бекиткичтерди текшерүү: Periodically check all bolts, nuts, and other fasteners to ensure they remain tight. Retighten as necessary.
  • Компоненттерди текшерүү: Regularly inspect the steel frame for any signs of rust, cracks, or deformation. Check the foam grips for wear or tears and the non-slip foot pads for damage.
  • Сактагыч: Store the dip station in a dry environment to prevent rust and damage.

6. Кыйынчылыктарды

If you encounter issues with your Soozier A91-065 Dip Station, refer to the following common solutions:

КөйгөйМүмкүн себепЧечим
Equipment feels wobbly or unstableLoose bolts or uneven surfaceEnsure all assembly bolts are securely tightened. Move the dip station to a flat, level surface.
Height adjustment knob is stuckDirt in mechanism or overtightenedClean the adjustment mechanism. Ensure the knob is fully loosened before attempting to adjust height.
Handles feel slipperySweat or worn foam gripsWipe handles clean. Consider replacing foam grips if severely worn.

If the problem persists, contact Soozier customer support.

7. Техникалык шарттар

Detailed specifications for the Soozier A91-065 Dip Station:

  • Модель номери: A91-065
  • Продукциянын өлчөмдөрү (L x W x Y): 83.5 cm x 71.5 cm x 96-126 cm (32.9" L x 28.1" W x 37.8"-49.6" H)
  • Элемент Салмагы: 13.97 кг (30.8 фунт)
  • Maximum Салмагы сунуш: 99.79 кг (220 фунт)
  • Материал: PVC, Steel pipe
  • Түсү: Кара жана Сары
  • Колдун түрү: Fixed, with foam pads
  • Бийиктигин тууралоо: 10 деңгээл
  • Келип чыккан өлкө: Кытай
Image showing the dimensions of the Soozier Dip Station: 32.9 inches L x 28.1 inches W x 37.8-49.6 inches H.
Figure 7.1: Key dimensions of the Soozier A91-065 Dip Station.
Image showing details of the dip station, including handles with foam pads for comfort and non-slip footpads for safety.
Figure 7.2: Details of the handles with foam pads and non-slip footpads.

8. Кепилдик маалыматы

The Soozier A91-065 Dip Station comes with a Өндүрүүчүнүн кемчиликтерине 90 күндүк кепилдик. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, abuse, accident, alteration, or improper assembly.

For warranty claims, please retain your proof of purchase and contact customer support.

9. Колдоо

For any questions, assistance, or to report missing/damaged parts, please contact Soozier customer support:
