Attoe Wireless Bluetooth Keyboard User Manual

Продукт бүттүview жана өзгөчөлүктөрү

The Attoe Wireless Bluetooth Keyboard (Model: ik6620D) offers a versatile and portable typing solution for multiple devices. Its compact design and dual-mode connectivity make it ideal for use with tablets, smartphones, PCs, and laptops across various operating systems.

• Fashion & Quiet Design: Features compact-sized 79 round silent click key caps with glossy and smooth edge technology. Designed for comfortable and smooth typing with low-profile, шыбырап үн чыгарбаган баскычтар.
• Multi-Device Dual-Mode Design: Supports both Bluetooth 5.0 and 2.4G Wireless connections, allowing for a stable connection distance of up to 20 meters (66 feet).
• Ultra-Slim Cross-Compatible: Compatible with Windows, iOS, Mac, and Android operating systems. The keyboard automatically recognizes the operating system after pairing, requiring no pass code.
• Орун үнөмдөө: Supports simultaneous high-speed connection and easy switching between up to 3 different HID devices (e.g., mobile phone, laptop, PC), helping to save space.

Figure 1: Attoe Wireless Bluetooth Keyboard with a tablet and smartphone in its integrated stand, showcasing its compact design and multi-device capability.

Figure 2: The keyboard is compatible with a wide range of operating systems including Windows, macOS/iOS, and Android, making it a versatile accessory for various devices.

Кутуда эмне бар

Пакетти ачканда, сиз төмөнкү нерселерди табышыңыз керек:

• 1 x Attoe Wireless Bluetooth Keyboard
• 1 х Колдонуучунун колдонмосу (бул документ)
• 2 x AAA batteries (pre-installed or included separately)

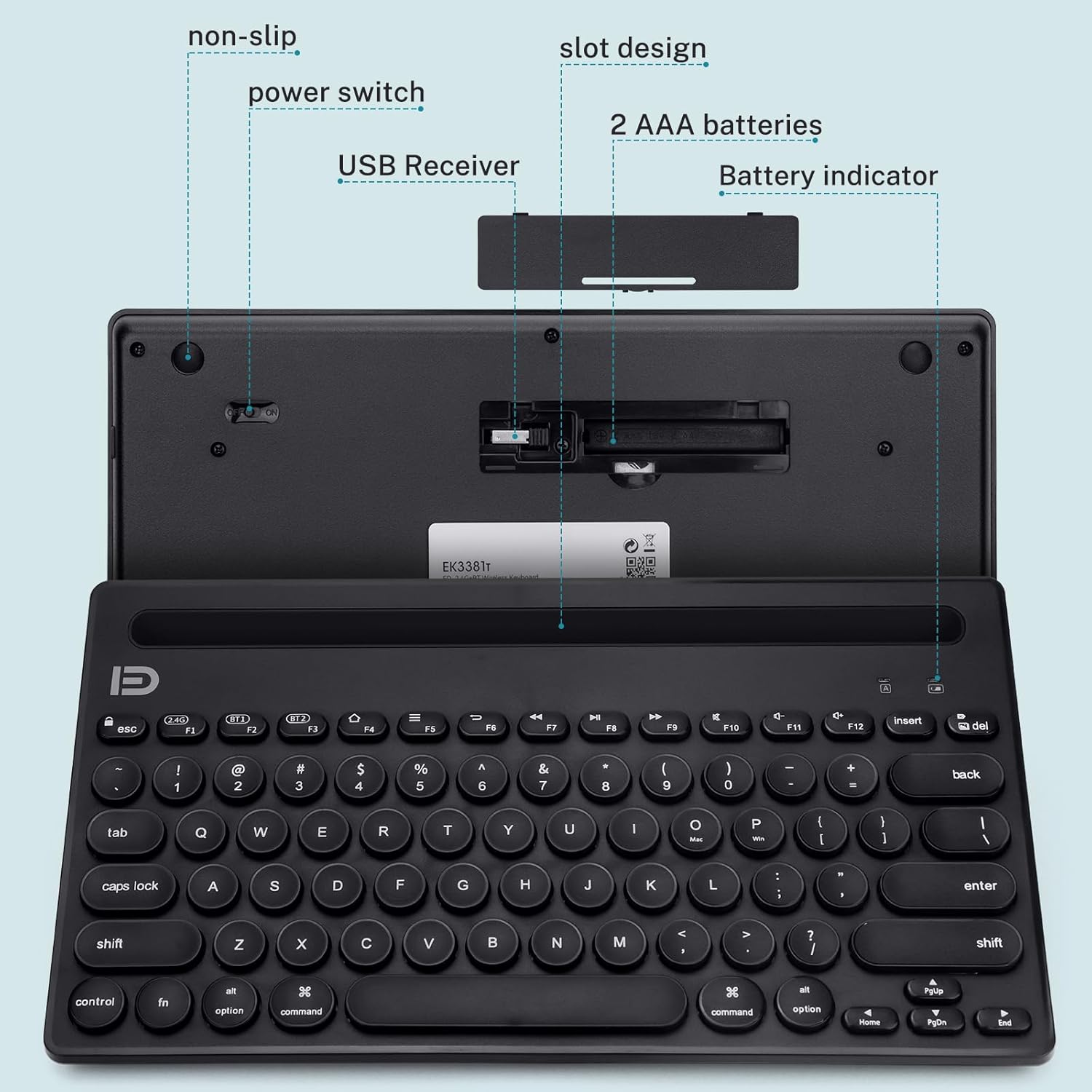

Figure 3: The underside of the keyboard reveals the battery compartment for two AAA batteries, a storage slot for the 2.4G USB receiver, and the power switch.

Орнотуу колдонмосу

1. Батареяны орнотуу

1. Баскычтоптун астыңкы жагындагы батарея бөлүкчөсүн табыңыз.
2. Батареянын капкагын ачыңыз.
3. Туура полярдуулукту (+/-) камсыз кылуу менен эки AAA батарейкасын салыңыз.
4. Батареянын капкагын бекем жабыңыз.

2. Күйгүзүү

Slide the power switch, located on the top right edge of the keyboard, to the "ON" position. The battery indicator light should briefly illuminate.

3. Connecting to Your Device (Dual-Mode)

The keyboard supports two connection modes: Bluetooth and 2.4G Wireless. You can connect up to three devices simultaneously (one via 2.4G, two via Bluetooth).

3.1. Bluetooth Connection (BT1, BT2)

1. басып, кармап туруңуз Fn баскычын басып, андан кийин кайсынысын болбосун басыңыз F2 (BT1) or F3 (BT2) for approximately 3-5 seconds until the corresponding Bluetooth indicator light (BT1 or BT2) starts blinking rapidly. This indicates the keyboard is in pairing mode.
2. On your device (tablet, smartphone, PC), navigate to the Bluetooth settings.
3. Издөө available devices. The keyboard should appear as "Bluetooth Keyboard" or similar.
4. Select the keyboard to pair. Your device may prompt for a pass code; typically, no pass code is needed, or you may be asked to type a code on the keyboard and press Enter.
5. Once paired, the indicator light will stop blinking and remain solid for a few seconds before turning off, indicating a successful connection.

3.2. 2.4G Wireless Connection (F1)

1. Locate the 2.4G USB receiver in the battery compartment on the underside of the keyboard.
2. USB кабыл алгычты компьютериңиздеги же түзмөгүңүздөгү жеткиликтүү USB портуна сайыңыз.
3. басып, кармап туруңуз Fn баскычын басып, анан басыңыз F1 (2.4G). The 2.4G indicator light will illuminate.
4. Клавиатура түзмөгүңүзгө автоматтык түрдө туташышы керек.

Figure 4: The keyboard supports seamless switching between 2.4G wireless and two Bluetooth channels (BT1, BT2), allowing connection to multiple devices simultaneously.

Иштөө нускамалары

1. Туташкан түзмөктөрдүн ортосунда которулуу

To switch between connected devices, simply press the corresponding function key:

• Басыңыз Fn + F1 to switch to the 2.4G wireless connected device.
• Басыңыз Fn + F2 to switch to the first Bluetooth connected device (BT1).
• Басыңыз Fn + F3 to switch to the second Bluetooth connected device (BT2).

2. Using Function Keys and Shortcuts

The keyboard features 79 keys, including 14 shortcut/media keys. These keys provide quick access to various functions depending on your operating system.

Figure 5: The keyboard features a 79-key layout, including dedicated shortcut and media keys for enhanced productivity.

3. Integrated Device Stand

The keyboard includes an integrated stand designed to hold your tablet or smartphone at an optimal viewing angle while typing. Ensure your device's case is removed if it prevents proper seating in the slot.

Figure 6: The integrated stand securely holds your tablet or smartphone, providing a comfortable setup for typing.

Техникалык тейлөө

• Тазалоо: Use a soft, dry cloth to clean the keyboard surface. For stubborn dirt, a slightly damp cloth with mild soap can be used, ensuring no liquid enters the keycaps or internal components.
• Батареяны алмаштыруу: When the battery indicator light signals low power, replace the two AAA batteries promptly to ensure uninterrupted operation.
• Сактагыч: Клавиатураны күн нурунан жана экстремалдык температурадан алыс, салкын, кургак жерде сактаңыз.
• Колдонуу: Avoid dropping the keyboard or exposing it to excessive force, which could damage internal components or keycaps.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

Attoe offers a 30-day money-back guarantee and a 12-month warranty for this product. If you encounter any issues or have questions regarding your Wireless Bluetooth Keyboard, please contact Attoe customer service for assistance.

For further support, please visit the official Attoe store: Attoe Store on Amazon.
