1. Продукт бүтүп калдыview
The ALEKO AR3350 is a gear-driven sliding gate opener designed for gates weighing up to 3300 pounds. It operates on a 110-volt, 60 Hz single-phase motor. This opener features automatic stop upon obstruction, an automatic close function, integrated overheat protection, and supports up to 40 remote controls.

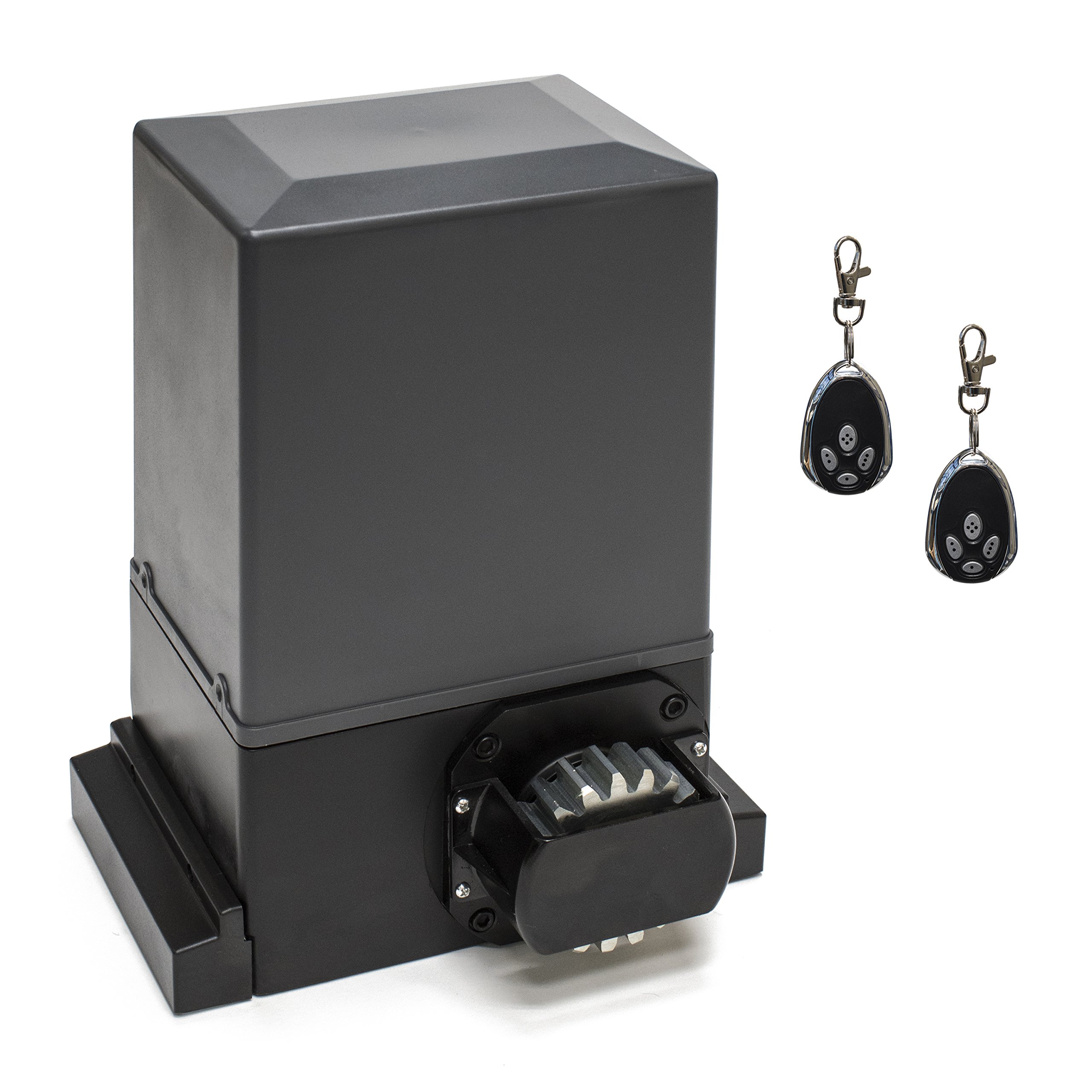

Сүрөт: алдыңкы view of the ALEKO AR3350 Gear Driven Sliding Gate Opener, showing the motor housing and exposed gear mechanism.
2. Коопсуздук маалыматы
Read all instructions carefully before installation and operation. Failure to follow these instructions may result in serious injury or property damage.
- Бардык электр туташуулары квалификациялуу электрик тарабынан жасалганын жана жергиликтүү эрежелерге ылайык келгенин текшериңиз.
- Keep hands and clothing clear of the gate and opener mechanism during operation.
- Do not allow children to play near the gate or operate the remote controls.
- Regularly inspect the gate and opener for signs of wear, damage, or misalignment.
- In case of power failure, use the manual release key to operate the gate.
3. Пакеттин мазмуну
Пакетте бардык компоненттер бар экенин текшериңиз:
- (1) ALEKO AR3350 Sliding Gate Opener
- (2) Operator Mounting Plates
- (4) Anchor Bolts
- (2) Магниттер
- (1) High and Low Bracket
- (1) Блок
- (2) Release Keys
- (2) Remote Controls
Note: Gear racks for the gate are sold separately and are required for operation.
Image: Manual release key.

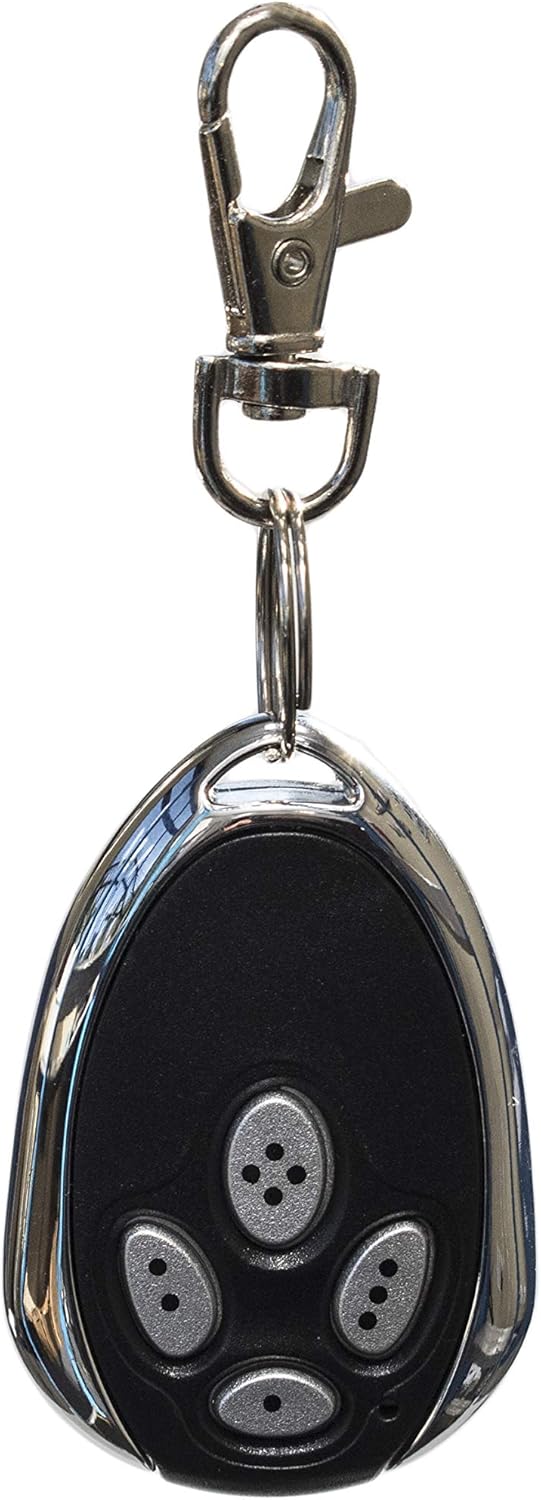

Image: Remote control unit.
4. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | AR3350 |
| Электр камсыздоо | AC110 Volts / 60 Hertz |
| Мотор ылдамдыгы | 1680 RPM |
| Салмак сыйымдуулугу | 3300 фунтка чейин (1496 кг) |
| Автоматтык токтотуу функциясы | Yes, if gate is obstructed |
| Automatic Close Function | Ооба |
| Ашыкча ысып кетүүдөн коргоо | Интеграцияланган |
| Алыстан башкаруу мүмкүнчүлүгү | Supports up to 40 remotes |
| UPC | 655222807984 |
| ASIN | B07PDNMQRN |
5. Орнотуу жана орнотуу
Proper installation is crucial for the safe and reliable operation of your gate opener. It is highly recommended that installation be performed by a qualified professional.
- Ачкычты орнотуу: Securely attach the opener to a stable concrete pad or foundation using the provided mounting plates and anchor bolts. Ensure the opener is level and correctly aligned with the gate's gear rack (sold separately).
- Installing Gear Rack: Attach the gear rack sections to the gate, ensuring proper meshing with the opener's drive gear. Maintain a small gap between the gear rack and the drive gear to allow for gate movement.
- Электр байланыштары: Connect the opener to a dedicated 110-volt, 60 Hz power supply. All wiring must comply with local electrical codes. Refer to the wiring diagram inside the control box for specific connections.
- Чектөө которуштурууну тууралоо: Install and adjust the magnetic limit switches (magnets provided) to define the gate's fully open and fully closed positions.
- Аксессуар байланыштары: Connect any optional accessories such as safety sensors, keypads, or additional remote receivers as per their respective instructions.

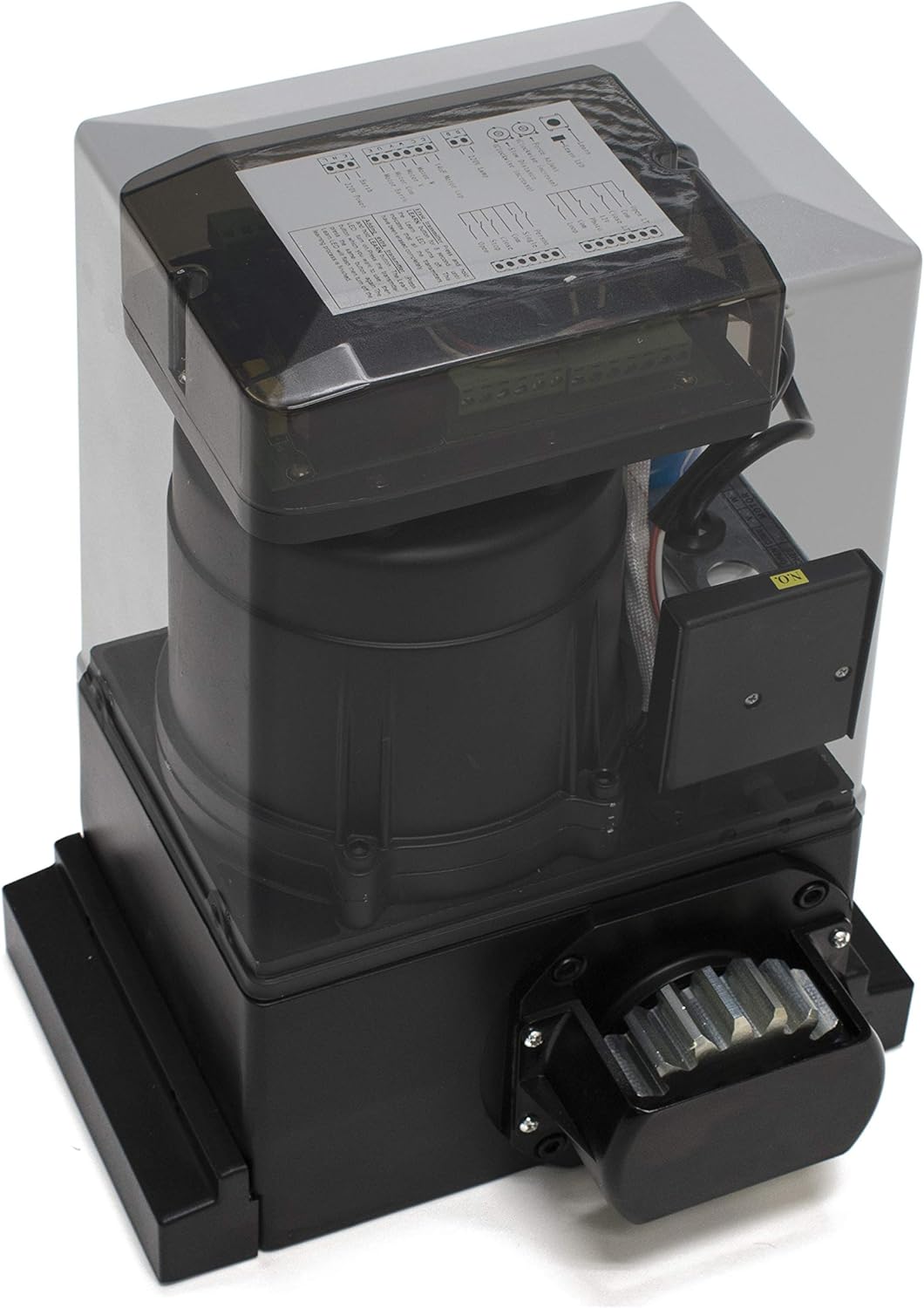

Сүрөт: Ички view of the gate opener, showing the motor and control board for wiring connections.
6. Иштөө нускамалары
The ALEKO AR3350 gate opener can be operated using the provided remote controls or compatible wired accessories.
- Алыстан башкаруу операциясы: Press the designated button on the remote control to open or close the gate. A single press will initiate movement. Pressing again during movement will stop the gate.
- Automatic Close Function: The opener can be configured to automatically close the gate after a set delay. Refer to the control board settings for adjustment.
- Кол менен чыгаруу: In case of power failure or malfunction, insert the manual release key into the lock cylinder and turn it to disengage the motor, allowing the gate to be moved by hand.
7. Техникалык тейлөө
Regular maintenance ensures the longevity and safe operation of your gate opener.
- Ай сайын: Inspect the gate for smooth movement, ensuring no obstructions or excessive friction. Check the gear rack for wear and proper engagement.
- Чейрек сайын: Lubricate moving parts as recommended by the manufacturer. Check all electrical connections for tightness and signs of corrosion.
- Жыл сайын: Have a qualified technician inspect the entire system, including safety features, motor, and control board.
8. Кыйынчылыктарды
Жалпы маселелер жана алардын мүмкүн болуучу чечимдери үчүн бул бөлүмдү караңыз.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Дарбаза кыймылдабайт. | No power; remote battery dead; manual release engaged. | Check power supply; replace remote battery; disengage manual release. |
| Дарбаза күтүүсүздөн токтоп калат. | Obstruction detected; limit switch issue; motor overheat. | Remove obstruction; check limit switch alignment; allow motor to cool. |
| Пульт иштебей жатат. | Battery dead; remote not programmed; interference. | Replace battery; reprogram remote; check for signal interference. |
Эгер көйгөйлөр чечилбесе, кардарларды колдоо кызматына кайрылыңыз.
9. Кепилдик жана колдоо
The ALEKO AR3350 Gear Driven Sliding Gate Opener comes with a 1 жылдык кепилдик сатып алынган күндөн тартып өндүрүш кемчиликтерин жабуу. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
Image: A badge indicating a 1-year warranty.
For technical assistance, parts, or warranty inquiries, please contact ALEKO customer support through their official webсайт же продукт документациясында берилген байланыш маалыматы.
