Electronic Spices 12V 2A SMPS Power Supply PCB Circuit Board User Manual

1. Киришүү

This manual provides comprehensive instructions for the safe installation, operation, and maintenance of the Electronic Spices 12V 2A SMPS Power Supply PCB Circuit Board. This power supply is designed to convert 220V AC input to a stable 12V DC output at 2 Amperes, making it suitable for various electronic applications such as chargers, microcontroller projects, portable amplifiers, audio-video players, Bluetooth/Wi-Fi modules, DC motors, and LED light circuits. Its optocoupler-based design enhances reliability, and its compact size allows for integration into space-constrained projects.

2. Негизги өзгөчөлүктөрү

• Түрү: AC / DC power supply
• Модуляция ыкмасы: Pulse Width Modulation (PWM) for efficient power conversion.
• Transistor Connection: Full bridge configuration.
• Киргизүү көлөмүtage: Wide range of 100-240V AC.
• Чыгуу күчү: 24 Watts, providing 12V DC at 2 Amperes.
• Compact PCB design for easy integration.
• Optocoupler-based for enhanced stability and safety.

3. Пакеттин мазмуну

Ар бир пакетте төмөнкүлөр камтылган:

• SMPS Power Supply PCB Circuit Board (Quantity: 2 for this pack)

4. Коопсуздук маалыматы

ЭСКЕРТҮҮ: This product involves working with high voltage AC electricity. Improper handling can result in electric shock, injury, or death. Always exercise extreme caution.

• Ensure all connections are made by a qualified professional or someone with adequate electrical knowledge.
• Disconnect the power source before making any connections or adjustments to the PCB.
• Do not touch exposed terminals or components when the board is powered.
• Operate the power supply within its specified input voltage and output current limits.
• Keep the PCB away from moisture, dust, and extreme temperatures.
• Mount the PCB in an enclosure to prevent accidental contact and ensure proper ventilation.
• Verify correct polarity for DC output connections to prevent damage to connected devices.

5. Орнотуу жана орнотуу

Коопсуз жана туура орнотуу үчүн бул кадамдарды аткарыңыз:

1. Терминалдарды аныктоо: Locate the AC input terminals (typically marked "AC IN" or similar) and the DC output terminals (typically marked "+12V" and "GND" or "-").
2. AC киргизүү туташуу:

   Connect your 100-240V AC mains power supply to the designated AC input terminals. Ensure a secure connection. It is recommended to use insulated wires of appropriate gauge.



   Сүрөт: Жогорку view of the power supply PCB, highlighting component layout and connection points.
3. Туруктуу токтун чыгыш туташуусу:

   Connect your 12V DC load (e.g., microcontroller, LED strip, motor) to the DC output terminals. Ensure correct polarity: connect the positive (+) terminal of your load to the +12V output of the PCB and the negative (-) terminal of your load to the GND (-) output of the PCB.

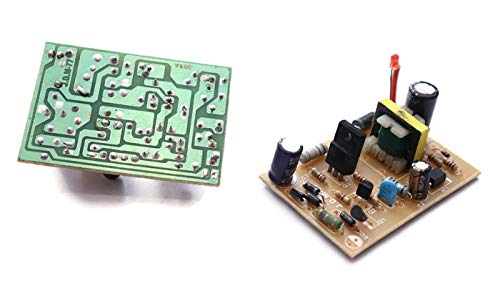

   Сүрөт: алдыңкы жана арткы views of the PCB, illustrating the circuit traces and component placement for proper connection.

4. Монтаждоо: Securely mount the PCB within a suitable, non-conductive enclosure to protect it from environmental factors and accidental contact. Ensure adequate airflow for cooling.
5. Акыркы текшерүү: Электр кубатын колдонуудан мурун, бардык туташуулардын тууралыгын жана коопсуздугун эки жолу текшериңиз.

6. Иштөө нускамалары

Once the power supply PCB is correctly installed and all connections are verified:

1. Күчтү колдонуу: Connect the AC mains power to the input of the power supply. The board should power on, and if an indicator LED is present, it will illuminate.
2. Verify Output: Use a multimeter to confirm that the output voltage is approximately 12V DC before connecting sensitive devices.
3. Туташуу жүктөө: Connect your 12V DC device to the output terminals, ensuring the load does not exceed 2 Amperes.

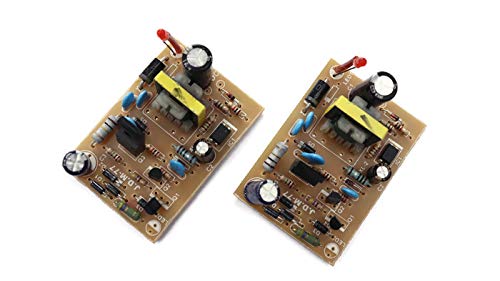

Image: Two power supply PCBs, demonstrating the product as a pack of two units.

7. Техникалык шарттар

8. Кыйынчылыктарды

Эскертүү: For complex issues, it is recommended to seek assistance from a qualified electronics technician.

9. Кароо жана тейлөө

• Keep the power supply PCB clean and free from dust and debris. Use a soft, dry brush or compressed air for cleaning.
• Avoid exposing the board to liquids or excessive humidity.
• Ensure the operating environment has adequate ventilation to prevent overheating.
• Do not attempt to repair the PCB yourself if you are not qualified. Unauthorized modifications can be dangerous and void any potential warranty.

10. Кепилдик жана колдоо

For any technical assistance, warranty inquiries, or support regarding your Electronic Spices 12V 2A SMPS Power Supply PCB, please contact the manufacturer directly:

Өндүрүүчү: ELECTRONIC SPICES

Дарек: Main, Ismailpur Rd, near Gyan Mandir Chowk, F- Block, Jaitpur, New Delhi, Haryana 110044, India

Байланыш номери: 8929992403

Please refer to the product's purchase documentation for specific warranty terms and conditions.
