1. Introduction and Overview
The ABBREE 42.5-inch Long Range SMA-Female Dual Band 144/430Mhz Foldable CS Tactical Antenna is designed to significantly boost the signal of compatible two-way radios. Its flexible and foldable design makes it suitable for various applications, including outdoor and camping usage. This manual provides essential information for the proper setup, operation, and maintenance of your antenna.
Figure 1: ABBREE Foldable CS Tactical Antenna (Folded)
2. Негизги өзгөчөлүктөрү
- Узундугу: Approximately 108cm (42.5 inches) when fully extended, designed for enhanced signal range.
- Эки тилкелүү операция: Supports 144/430 MHz frequencies, providing versatility for various radio communications.
- SMA-Female Connector: Ensures compatibility with a wide range of two-way radios, including Baofeng UV-5R, BF-F8HP, UV-21R, K5PLUS, AR-152, GM-15 Pro, and UV-5G Plus models.
- Бүктөлүүчү Дизайн: Allows for compact storage and increased durability, making it resistant to rough handling during outdoor activities.
- Жогорку пайда: Features a 5.0dBi gain for improved signal reception and transmission.
- Жаңыланган дизайн: The AR-152A version offers improved bending flexibility and enhanced signal performance.
Figure 2: Antenna fully extended, showing its length.
3. Орнотуу жана орнотуу
Follow these steps to properly install your ABBREE tactical antenna onto your compatible two-way radio:
- Unpack the Antenna: Carefully remove the antenna from its packaging. Ensure all components, including any provided gaskets, are present.
- Туташтыргычтардын түрлөрүн аныктаңыз: Locate the SMA-Female connector on the antenna and the corresponding SMA-Male connector on your radio.
- Антеннаны тиркөө: Align the antenna's SMA-Female connector with the radio's SMA-Male connector. Gently screw the antenna onto the radio clockwise until it is finger-tight. Avoid over-tightening to prevent damage to the connectors.
- Unfold the Antenna: If the antenna is in its folded state, gently unfold it to its full 42.5-inch (108cm) length. The flexible design allows for easy extension.
- Коопсуз (кошумча): Use the integrated hook-and-loop strap to secure the antenna in its folded position when not in use, or to manage excess length when partially extended.
Figure 3: Antenna attached to radio (folded and extended viewс).
Video 1: This video demonstrates the physical characteristics of the ABBREE SMA-Female Dual Band Foldable Antenna, including its packaging, SMA-Female connector, and the process of unfolding and attaching it to a two-way radio. It highlights the 108cm (42.5-inch) length when extended and mentions a V.S.W.R. of less than 1.5.
4. Иштөө нускамалары
Once the antenna is securely attached, operate your two-way radio as per its manufacturer's instructions. The ABBREE tactical antenna is designed to enhance both transmission and reception on the 144/430Mhz dual bands. For optimal performance, ensure the antenna is fully extended when transmitting or receiving over long distances.
- Жыштык диапазону: Utilize the antenna within its specified 144/430Mhz frequency range for best results.
- Антенна багыты: For handheld radios, holding the antenna vertically generally provides the best signal propagation.
- Экологиялык факторлор: Performance may vary based on terrain, obstacles, and atmospheric conditions.
5. Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your antenna:
- Тазалоо: Wipe the antenna with a soft, damp cloth to remove dirt and dust. Avoid harsh chemicals or abrasive materials.
- Сактагыч: When not in use, fold the antenna and store it in a cool, dry place away from direct sunlight and extreme temperatures.
- Туташтыргычка кам көрүү: Keep the SMA-Female connector clean and free of debris. Inspect it periodically for any signs of corrosion or damage.
- Физикалык текшерүү: Regularly check the antenna for any signs of wear, tears, or damage to the flexible elements.

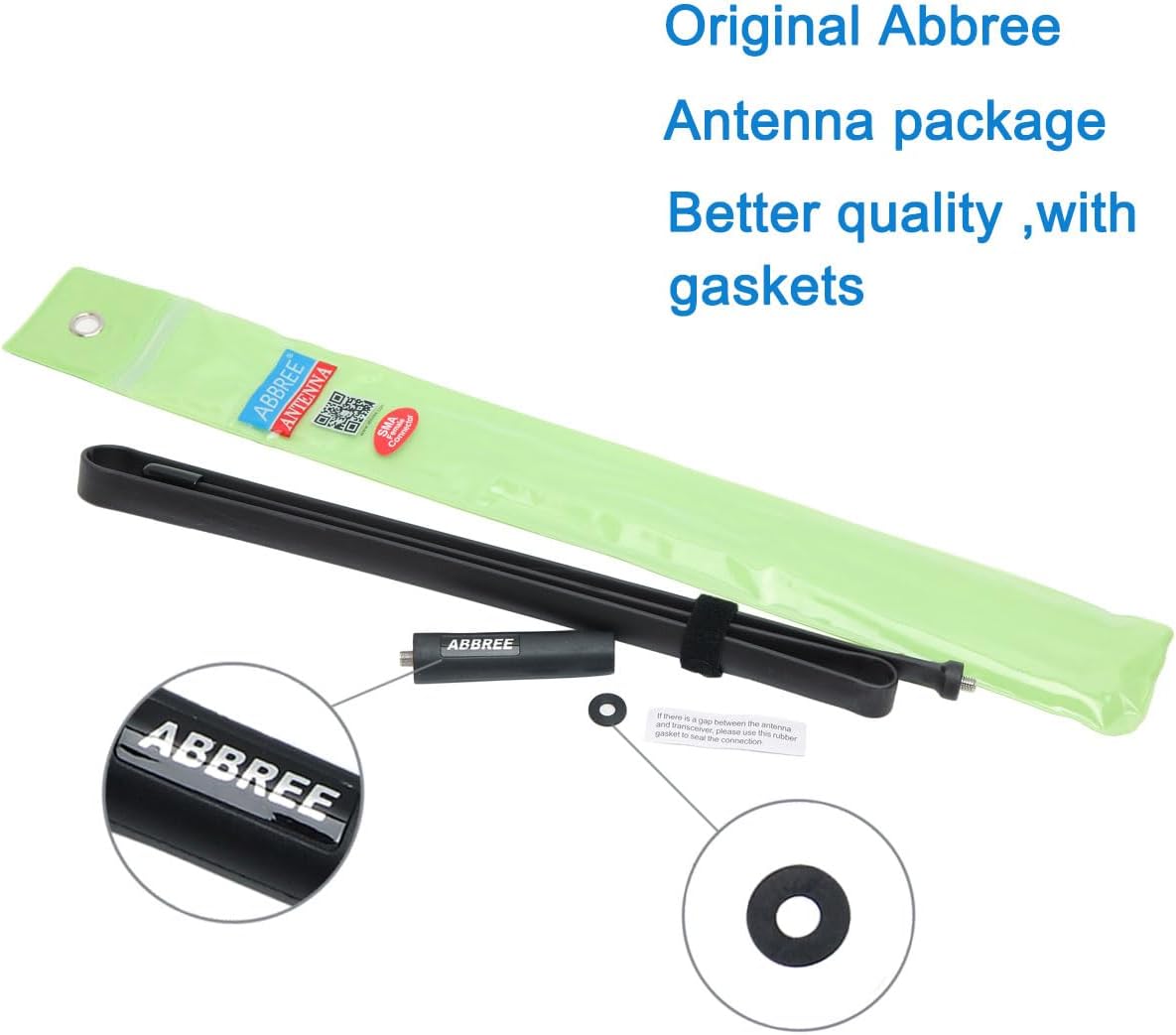

Figure 4: Antenna packaging, including gaskets for proper fit.
6. Кыйынчылыктарды
Эгер антеннаңызда көйгөйлөр пайда болсо, төмөнкү жалпы көйгөйлөрдү жана чечимдерди караңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Poor Signal Reception/Transmission | Antenna not fully extended, loose connection, incompatible radio, environmental interference. | Ensure antenna is fully extended. Check that the antenna is securely screwed onto the radio. Verify radio compatibility. Move to an area with less interference. |
| Antenna feels loose on radio | Improper tightening, missing gasket, worn connector. | Tighten the antenna connection. Ensure any provided rubber gaskets are used for a snug fit. Inspect connectors for wear. |
| Antenna not folding/unfolding smoothly | Dirt or debris in joints, physical damage. | Clean the flexible joints. If physically damaged, the antenna may need replacement. |
7. Техникалык шарттар
| Атрибут | Деталь |
|---|---|
| Бренд | ABBREE |
| Модель номери | 108см |
| Жыштык | 144/430 MHz (Dual Band) |
| Туташтыргыч түрү | SMA-аял |
| Пайда | 5.0dBi |
| Узундугу (узартылган) | Болжол менен 108 см (42.5 дюйм) |
| Импеданс | 50 Ом |
| Элемент Салмагы | 5.3 унция |
| Түс | Кара |
| UPC | 675234309405 |
8. Кепилдик жана колдоо
For warranty information or technical support regarding your ABBREE Ham Radio Antenna, please refer to the documentation included with your purchase or contact ABBREE customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
For additional resources and product updates, visit the official ABBREE website or the product page where you made your purchase.
