UNITOPSCI Android Car Stereo User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your UNITOPSCI Android Car Stereo. This double DIN unit features a 10-inch HD touchscreen, GPS navigation, Bluetooth, Wi-Fi, FM radio, Mirror Link, and supports steering wheel control and a backup camera. Please read this manual thoroughly before use to ensure proper functionality and safety.

Продукт өзгөчөлүктөрү

• 10 дюймдук HD сенсордук экран: Designed for improved handling and display clarity.
• Кош USB киргизүү: Provides multiple connectivity options.
• Камтылган Wi-Fi: Enables online application downloads, video streaming, and music playback.
• GPS навигациясы: Supports both online and offline maps (HERE WE GO application pre-installed).
• Bluetooth функциясы: Hands-free calling, music streaming, and automatic phone book loading.
• FM радиосу: 18 preset stations for real-time broadcasts.
• Арткы View Камераны колдоо: Automatic switching to display when reversing (backup camera included).
• Руль башкаруусу: Compatible with existing steering wheel controls.
• Айдоо жазгыч (DVR) колдоо: Allows connection of a driving recorder for playback.
• Dual System Mirror Link: Supports one-way projection for iOS (5s-7plus) and two-way connection for Android (4.0-7.1).

Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• Car MP5 Player (Main Unit)
• Электр кабели
• GPS антеннасы
• Камеранын киргизүү кабели
• Камера
• RCA Input and Output Cables
• 2 х USB кабелдери
• 2 х металл рамкалар
• 4 х бурамалар
• Instruction Manual

Сүрөт: бүттүview of the UNITOPSCI car stereo package contents, including the main unit, various cables, a backup camera, and mounting accessories.

Орнотуу жана орнотуу

Installation of the car stereo requires technical knowledge. It is recommended to seek professional assistance if you are unfamiliar with car audio system installation. Ensure the vehicle's power is disconnected before beginning installation.

Өлчөмдөр

The unit has a 10.1-inch display. The main body dimensions are approximately 24.99 x 14.5 x 8 cm. Refer to the diagram for detailed measurements to ensure compatibility with your vehicle's dashboard.

Image: Detailed dimensional drawing of the UNITOPSCI car stereo, indicating the 10.1-inch screen size and overall unit measurements for installation planning.

Электр зымдары

• Зым жип: The product includes a generic wire harness. A vehicle-specific harness may be required and should be purchased separately if needed for your car model.
• Audio Output with Ampөмүр берүүчү: If your car is equipped with an amplifier and you experience no audio from Bluetooth or video, ensure the blue/white harness wire is connected to a 12V ACC power source.
• Арткы View Камера: Connect the camera input cable. The car stereo will automatically switch to the camera view when the vehicle is in reverse gear. Ensure the red wire on the video cable is connected to the positive reverse light for proper triggering.
• Руль башкаруусу: Connect the appropriate wires for steering wheel control functionality. Note that the steering wheel control module itself is not included in the package.

Иштөө нускамалары

Жалпы операция

The unit operates via its 10-inch HD touchscreen. Basic controls for power, volume, and menu navigation are available on the left side of the unit. The screen can be calibrated if it becomes unresponsive.

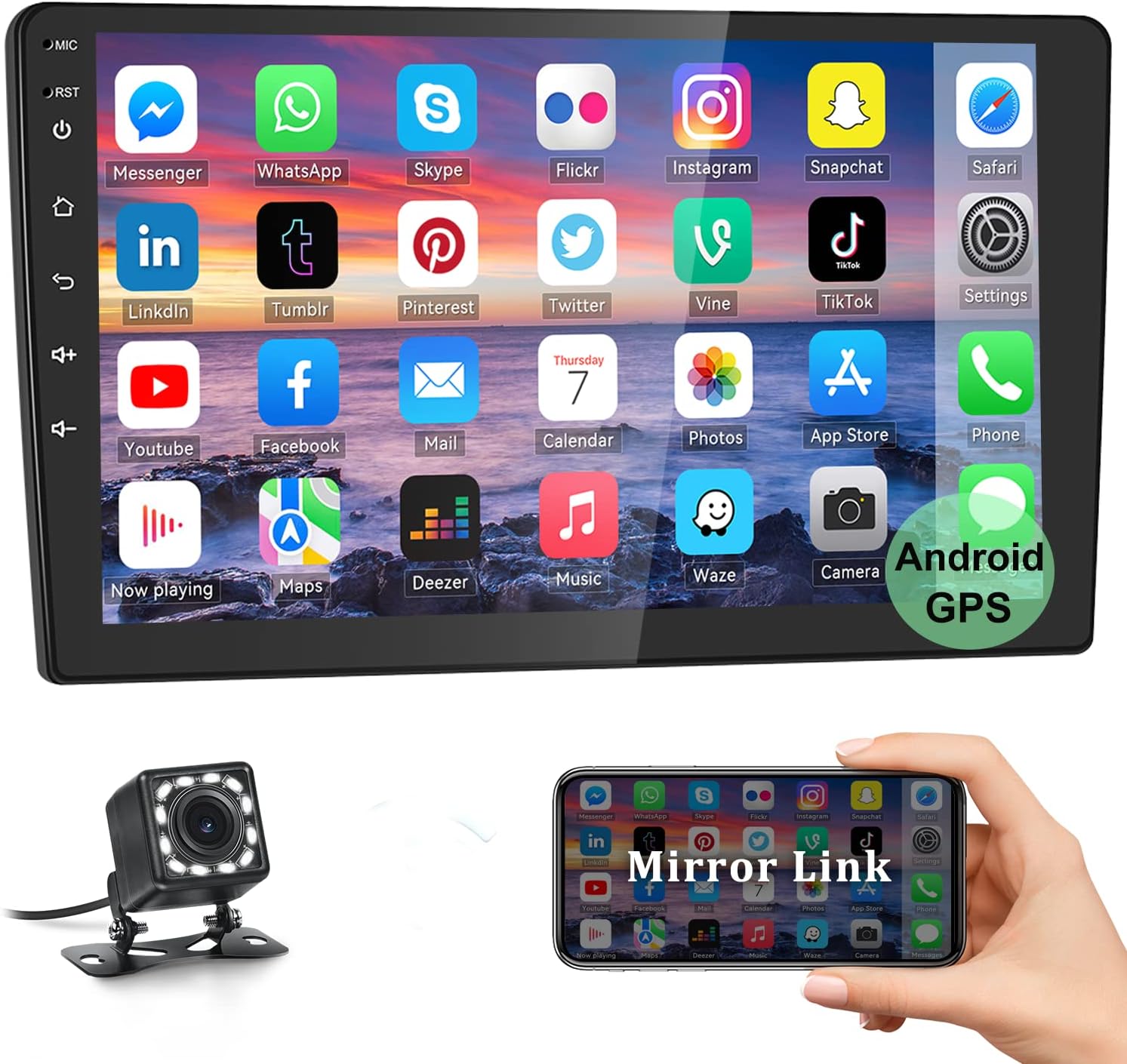

Image: The main interface of the UNITOPSCI Android Car Stereo, showing a grid of application icons for common functions like messaging, social media, and navigation.

Bluetooth функциясы

Activate Bluetooth on your mobile device and search for the car stereo. Pair the devices to enable hands-free calling, Bluetooth music playback, and automatic phone book synchronization. This enhances driving safety and enjoyment.

Image: Visual representation of the Bluetooth interface on the car stereo, illustrating features such as hands-free calling, music control, and call history.

GPS навигациясы

The unit comes with a built-in GPS module. You can use the pre-installed HERE WE GO application for offline maps. For online maps and real-time traffic updates, connect the unit to Wi-Fi. Time settings can be adjusted automatically or manually.

Image: The car stereo screen showing a GPS navigation map, highlighting a route and points of interest, with icons for HERE WE GO, Waze, and Sygic navigation apps.

Wi-Fi туташуусу

Utilize the built-in Wi-Fi module to connect to the internet. This allows you to download applications from the Play Store, stream online videos, listen to music, and browse the web directly from the car stereo.

Image: The car stereo displaying the YouTube application interface, demonstrating its built-in Wi-Fi capability for online content streaming.

Mirror Link функциясы

The Mirror Link feature supports one-way projection for iOS devices (5s-7plus) and two-way connection for Android devices (4.0-7.1). This allows you to display and interact with your phone's screen on the car stereo.

Image: Illustration of the Mirror Link function, showing a smartphone screen being mirrored onto the car stereo display for both Android and iOS devices.

FM радиосу

Access the FM radio function to tune into local stations. The unit supports 18 preset stations, allowing you to quickly switch between your favorite broadcasts for news, music, or weather updates.

Арткы View Камера

When connected, the included backup camera provides an HD view of the area behind your vehicle. The display automatically switches to the camera feed when the car is put into reverse, aiding in safe parking and maneuvering. It features clear night vision and a 170-degree wide-angle view.

Image: A visual breakdown of the HD Rear View Camera's capabilities, including clear night vision, 170-degree wide angle, and waterproof design, with examples of daytime and night vision displays.

Руль башкаруу

The car stereo supports connection to your vehicle's existing steering wheel controls, allowing you to manage audio and other functions without taking your hands off the wheel. Refer to the wiring diagram for proper connection.

Колдонуучу интерфейси бүттүview

The Android operating system provides a customizable user interface. Various applications and settings are accessible via icons on the home screen. The left-side buttons can be illuminated for easier control at night.

Image: A collage of screenshots showcasing various aspects of the car stereo's user interface, including the main menu, radio tuner, Bluetooth settings, and system configurations.

Техникалык тейлөө

• Экранды тазалоо: Use a soft, lint-free cloth to clean the touchscreen. Avoid abrasive cleaners or solvents.
• Программалык камсыздоо жаңыртуулары: Оптималдуу иштешин жана жаңы функцияларга жетүүнү камсыз кылуу үчүн программанын жаңыртууларын мезгил-мезгили менен текшерип туруңуз.
• Экологиялык шарттар: Аппаратты экстремалдык температурага, түз күн нуруна узак убакытка же ашыкча нымдуулукка дуушар кылуудан алыс болуңуз.

Проблемаларды чечүү

• No Audio from Bluetooth/Video: If your car has an amplifier, ensure the blue/white harness wire is connected to a 12V ACC power source.
• Жоопсуз экран: If the screen is unresponsive, perform a screen calibration.
• Radio Issues (e.g., changing stations unexpectedly): Check antenna connection and ensure proper installation.
• GPS Navigation App Slow to Load: The app may take 10-15 seconds to load initially, but should run smoothly afterward.
• Wi-Fi туташуу маселелери: Ensure the unit is within range of a strong Wi-Fi signal.
• Жөндөөлөр сакталбайт: Some settings may require a specific confirmation or exit procedure to save. Re-check the settings menu.
• Үндү көзөмөлдөө: If volume control feels imprecise, adjust settings within the audio menu for finer tuning.

Техникалык шарттар

Кепилдик маалымат

This product comes with a 1-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects but does not cover damage caused by improper installation, misuse, accidents, or unauthorized modifications.

Колдоо

For technical support, troubleshooting assistance, or warranty inquiries, please contact UNITOPSCI customer service. Refer to the product packaging or the official UNITOPSCI webакыркы байланыш маалыматы үчүн сайт.
