Introduction
This manual provides essential instructions for the installation, operation, and maintenance of the SHENGLE JR-1816RXS-12V 2.4G Bluetooth Remote Control and Receiver Kit. This kit is designed as a replacement part for children's electric ride-on cars. Please read this manual thoroughly before use to ensure proper function and safety.
Коопсуздук маалыматы
- Шайкештик: Ensure the model number JR-1816RXS-12V matches your original control box. Incompatible parts can lead to malfunction or damage.
- Орнотуу: Installation should be performed by an adult or under adult supervision. Disconnect the vehicle's power source before installation.
- Тышкы колдонуу гана: This product is intended for use within the specified children's ride-on car system.
- Жылуулук булактары: Продукцияны ачык жалындан же түз жылуулук булактарынан алыс кармаңыз.
- Батареянын коопсуздугу: If replacing batteries in the remote control (not included), ensure correct polarity and use the specified battery type.
Продукт бүттүview
The SHENGLE JR-1816RXS-12V kit includes a 2.4G Bluetooth remote control and a receiver control box, designed to provide wireless control for compatible children's electric ride-on cars.
Алыстан башкаруу

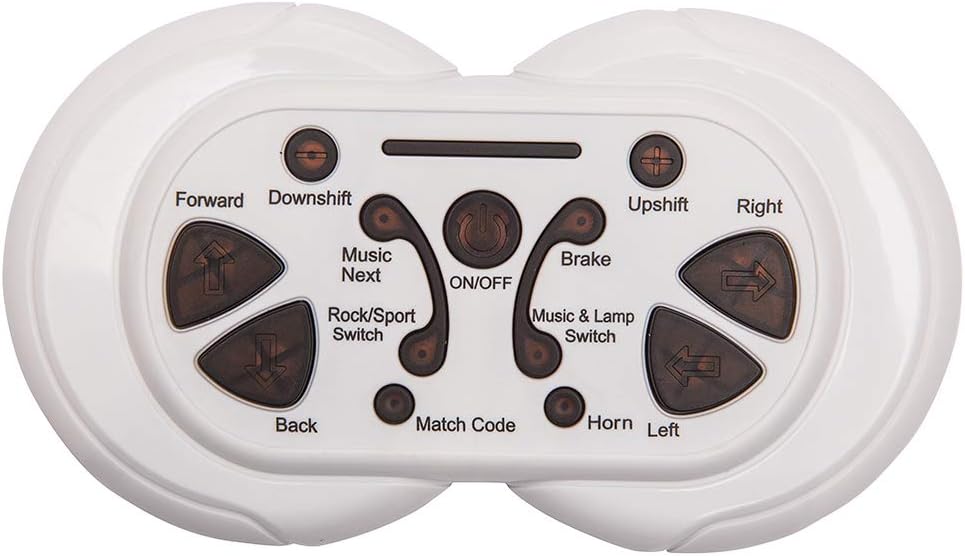

This image displays the SHENGLE JR-1816RXS-12V 2.4G Bluetooth Remote Control. It is a white, oval-shaped controller with various brown buttons. Key buttons include Forward, Downshift, Music Next, Rock/Sport Switch, Back, Match Code, ON/OFF, Brake, Music & Lamp Switch, Horn, Upshift, and Right/Left directional controls. This remote allows for wireless operation of the ride-on car.
Receiver Control Box

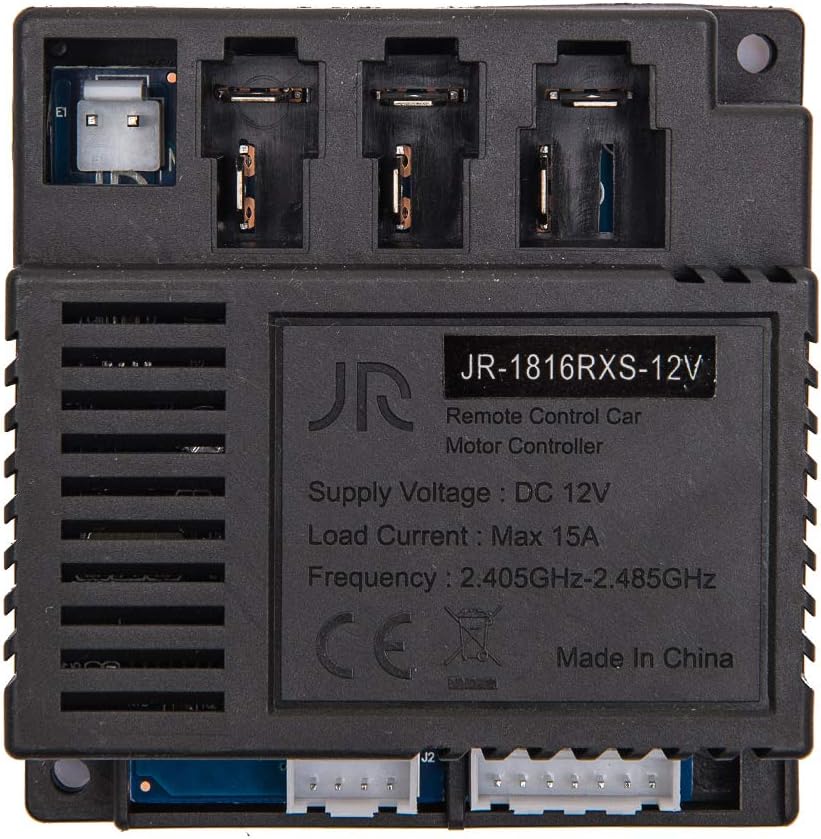

This image shows the SHENGLE JR-1816RXS-12V Receiver Control Box. It is a black rectangular unit with various ports for connections. The label clearly indicates "JR-1816RXS-12V Remote Control Car Motor Controller" along with specifications like Supply Voltage: DC 12V, Load Current: Max 15A, and Frequency: 2.405GHz-2.485GHz. This box receives signals from the remote control to operate the ride-on car.
Орнотуу жана орнотуу
- Моделдин номерин текшерүү: Before installation, confirm that the model number "JR1816RXS-12V" on the new control box matches the digital model number on your original control box. Incompatibility can prevent proper function.
- Электр энергиясын өчүрүү: Ensure the electric ride-on car's battery is disconnected before attempting to remove the old receiver or install the new one.
- Кабылдагычты алмаштыруу: Carefully remove the existing receiver control box from the ride-on car. Note the wiring connections.
- New Receiver Installation: Connect the new JR-1816RXS-12V receiver control box to the ride-on car's wiring harness, ensuring all connections are secure and correctly matched.
- Батареяны кайра туташтыруу: Once the receiver is securely installed, reconnect the ride-on car's battery.
- Matching Frequency (Pairing): The first time you use the remote control with the receiver (or after replacing the remote's batteries), you will need to match the frequency.
- Turn off the ride-on car.
- Press and hold the "Match Code" button on the remote control for approximately 3-5 seconds. The indicator light on the remote may flash.
- While still holding the "Match Code" button, turn on the ride-on car.
- Release the "Match Code" button once the indicator light on the remote or car stops flashing and remains solid, indicating successful pairing.
- Test the remote control functions to confirm pairing.
Иштөө нускамалары
Once the remote control and receiver are paired, you can operate the ride-on car using the remote control buttons:
- КҮЙГҮЗҮҮ/ӨЧҮРҮҮ: Powers the remote control on or off.
- Алга/Артка: Controls the forward and backward movement of the car.
- Сол оң: Controls the steering of the car.
- Upshift/Downshift: Adjusts the speed settings (if applicable to the car model).
- Тормоз: Activates the brake function.
- Мүйүз: Activates the car's horn sound.
- Кийинки музыка: Skips to the next music track (if applicable).
- Rock/Sport Switch: Changes driving mode (if applicable).
- Music & Lamp Которуу: Controls music playback and/or lights (if applicable).
Техникалык тейлөө
- Тазалоо: Пультту жана кабыл алгычты кургак, жумшак чүпүрөк менен сүртүңүз. Катуу химиялык заттарды же абразивдүү тазалоочу каражаттарды колдонбоңуз.
- Сактагыч: Продукцияны күн нурунан жана экстремалдык температурадан алыс салкын, кургак жерде сактаңыз.
- Батареяны алмаштыруу (Алыстан): If the remote control's range decreases or it becomes unresponsive, replace its batteries (typically AAA, not included). Ensure correct polarity.
- Туташуу текшерүү: Periodically check all wiring connections to the receiver for looseness or corrosion.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Алыстан башкаруу жооп бербей жатат. | Not paired; remote batteries low/dead; incorrect model. | Perform frequency matching. Replace remote batteries. Verify receiver model number. |
| Car does not move or respond intermittently. | Loose wiring connection; receiver malfunction; car battery low. | Check all wiring connections to the receiver. Ensure car battery is charged. If issues persist, the receiver may need replacement. |
| Remote control indicator light not working. | Пульттун батареялары аз/түгөн. | Алыскы батареяларды алмаштырыңыз. |
| Horn or lights not working via remote. | Car's internal wiring issue; specific car feature not supported by receiver. | Check car's wiring for horn/lights. Confirm if your ride-on car model fully supports these remote functions. |
Техникалык шарттар
- Модель номери: JR-1816RXS-12V
- Бренд: SHENGLE (Manufacturer: WELLYE)
- Supply Voltage: DC 12V
- Учурдагы жүктөө: Макс 15А
- Жыштыгы: 2.405 ГГц-2.485 ГГц
- Материал: Пластик
- Элементтин өлчөмдөрү: Approximately 4.2 x 3.2 x 3.2 inches (Receiver)
- Элемент Салмагы: Болжол менен 0.38 фунт
- Шайкештик: Specific Children Riding Toys with matching JR1816RXS-12V control box.
Кепилдик жана колдоо
This product is a replacement part. For warranty information or technical support, please refer to the original manufacturer's documentation for your ride-on car or contact the seller directly through your purchase platform. Ensure you have your purchase details and the product model number (JR-1816RXS-12V) available when seeking support.
