ALEKO GG900UGLD Dual Swing Gate Opener Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient installation, operation, and maintenance of your ALEKO GG900UGLD Dual Swing Gate Opener. Please read this manual thoroughly before beginning installation or operation to ensure proper function and to prevent injury or damage. This automatic gate opener is designed for dual swinging gates up to 36 feet in length and weighing up to 1320 pounds, featuring a 24V DC motor and solar compatibility.

Image: Two ALEKO GG900UGLD gate opener actuators, illustrating the main components of the system.

Коопсуздук маалыматы

ЭСКЕРТҮҮ: Бул коопсуздук көрсөтмөлөрүн аткарбоо олуттуу жаракат алууга же өлүмгө алып келиши мүмкүн.

• Read and understand all instructions before installing and using the gate opener.
• Keep the gate area clear of persons and objects while the gate is in motion.
• Do not allow children to operate the gate opener or play near the gate.
• Ensure all warning signs are properly installed and visible.
• In case of power failure, use the emergency release key to manually operate the gate.
• Regularly inspect the gate opener for signs of wear or damage. Do not operate if damaged.
• Only qualified personnel should perform electrical wiring and repairs.

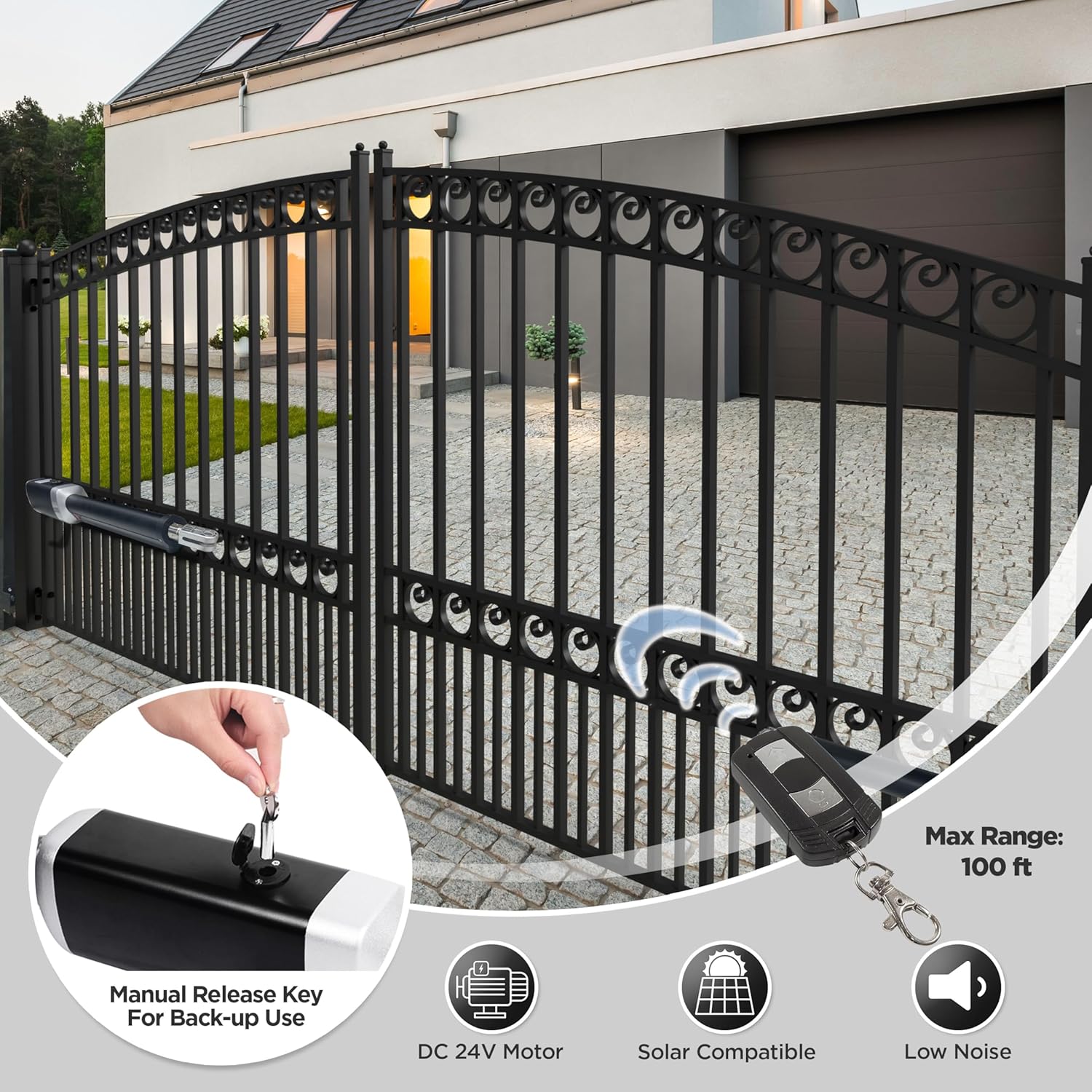

Image: An ALEKO gate opener installed on a dual swing gate, showing the remote control and the manual release key for backup use.

Пакеттин мазмуну

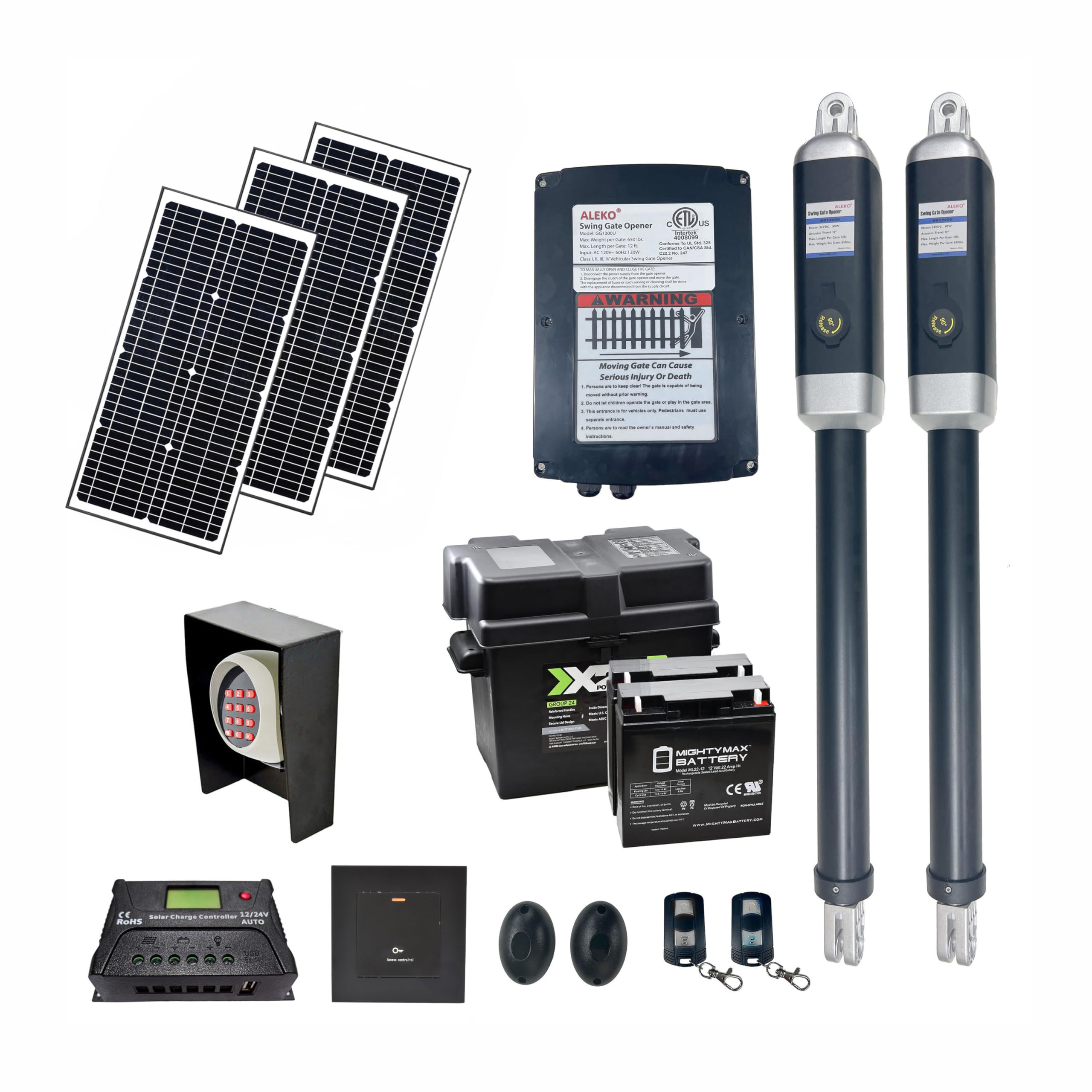

The ALEKO GG900UGLD Dual Swing Gate Opener kit includes the following components:

• 2 x Actuators
• 1 x Control Box
• 3 x 8.5 x 11-inch Warning Signs
• 2 x Өзгөчө кырдаалдарда ачкычтарды ачуу
• 1 x Pair of Photocell Sensors
• 2 x 433 MHz Remote Controls
• 1 x Set of Mounting Hardware for Gate Opener
• 2 x 22AH Batteries
• 1 x Батарея кутусу
• 1 x Wired Push Button
• 1 x Wireless Keypad
• 1 x Keypad Metal Cover
• 3 x 20W/24V Solar Panels
• 1 x 12V/24V Solar Charge Controller
• 1 х Колдонуучунун колдонмосу (бул документ)

Note: Mounting hardware for the solar panel is not included.

Техникалык шарттар

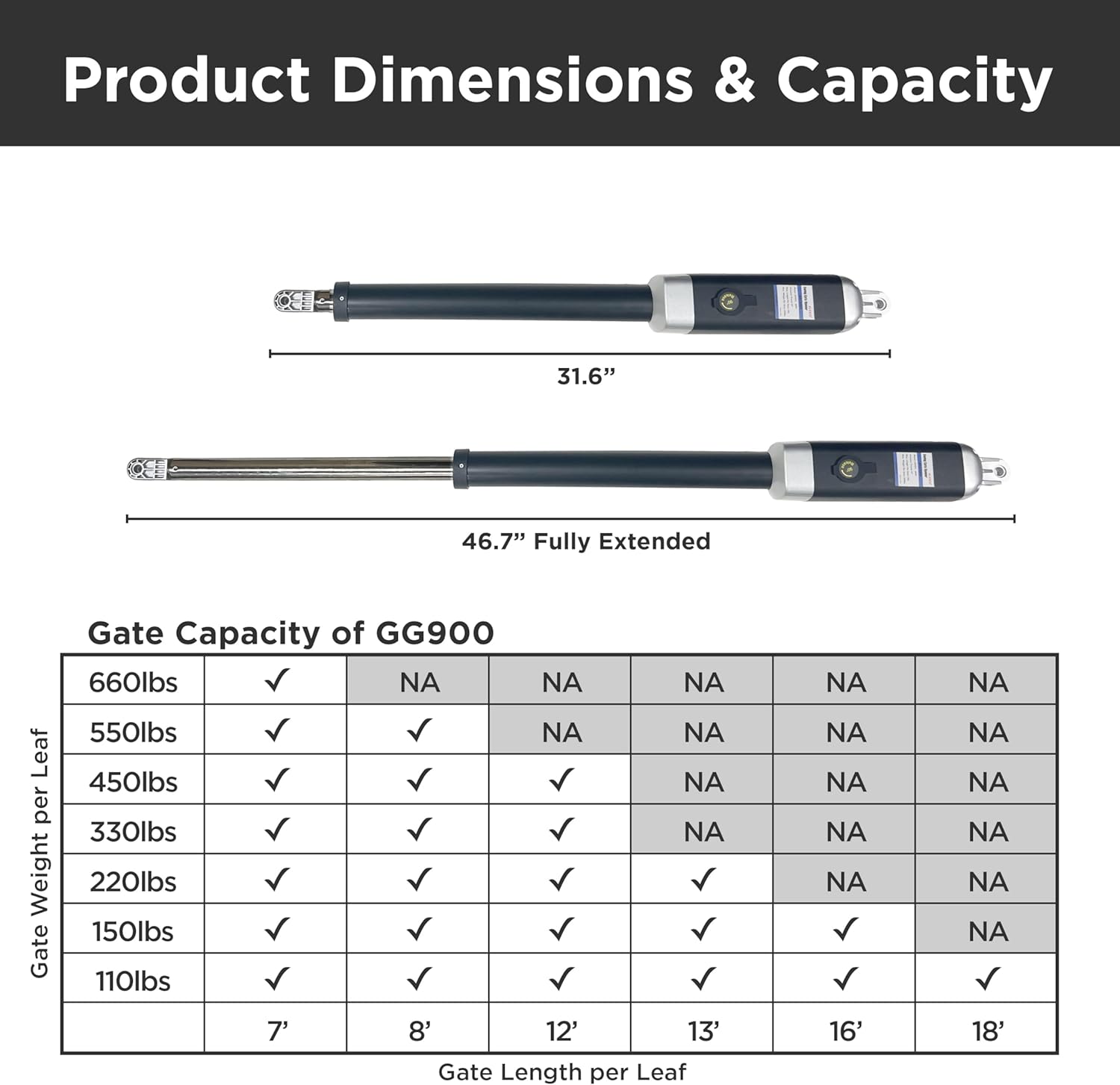

Image: A table detailing the gate capacity of the GG900 model based on gate weight per leaf and gate length per leaf, along with actuator dimensions.

Орнотуу жана орнотуу

Proper installation is crucial for the performance and safety of your gate opener. Refer to the detailed diagrams in the full user manual for specific mounting points and wiring connections.

1. Actuator Installation

• Mount the actuators securely to your gate and gate posts using the provided mounting hardware. Ensure the actuators are level and aligned for smooth operation.
• Verify that the gate can open and close freely without obstruction before connecting the actuators.

2. Control Box and Wiring

• Install the control box in a protected location, away from direct weather exposure.
• Connect the actuator wires, photocell sensors, wired push button, and power supply to the control board inside the control box as per the wiring diagram in the full manual.
• Кыска туташуунун алдын алуу үчүн бардык туташуулардын коопсуз жана изоляцияланганын текшериңиз.

3. Solar Panel Setup

For solar-powered operation, install the solar panels in a location that receives maximum sunlight throughout the day. Connect the solar panels to the solar charge controller, and then connect the charge controller to the batteries in the battery box.

Image: A solar panel and a solar charge controller, indicating compatibility and ease of installation for solar power options.

4. Кубат режимдери

The system supports various power configurations:

• Power Mode 1: AC Electricity Only
• Power Mode 2: Solar Panels and Batteries
• Power Mode 3: AC Electricity and Back-up Batteries
• Power Mode 4: AC Electricity, Solar Panels, and Back-up Batteries

Image: A diagram illustrating the four different power modes available for the gate opener system, including AC electricity, solar panels, and backup batteries.

Иштөө нускамалары

Your ALEKO gate opener offers multiple ways to control your gate.

1. Алыстан башкаруу операциясы

• Press the designated button on your 433 MHz remote control to open or close the gate.
• The remote control has a stop/reverse button to halt gate movement in case of an unexpected obstacle.
• The maximum range for the remote control is approximately 100 feet.

2. Wireless Keypad and Wired Push Button

• Use the wireless keypad to enter a programmed code to operate the gate.
• The wired push button provides a direct control option, typically mounted near the gate.

3. Auto-Close Feature

The gate opener features a built-in programmable auto-close function. This can be adjusted from 0 to 99 seconds, allowing the gate to automatically close after a set delay once it has fully opened.

4. Emergency Release

In the event of a power failure, use the provided emergency release key to disengage the motor and manually open or close the gate.

Image: An illustration of the gate opener's internal motor components, highlighting smart features such as obstacle adjusting, multiple remote control compatibility, and auto-closing settings.

Техникалык тейлөө

Дарбаза ачкычыңыздын үзгүлтүксүз техникалык тейлөөсү анын узак мөөнөттүү жана ишенимдүү иштешин камсыз кылат.

• Ай сайын: Inspect the gate and opener for any loose hardware, signs of wear, or obstructions. Ensure the gate moves freely without the opener engaged.
• Чейрек сайын: Check electrical connections for corrosion or damage. Test the photocell sensors and obstacle detection features.
• Жыл сайын: Lubricate moving parts of the gate and opener as recommended in the full manual. Check battery health if using solar or backup power.

Image: Two ALEKO gate opener actuators, emphasizing features such as waterproof design, easy installation, safety, low noise operation, DC 24V motor, and reliable quality.

Проблемаларды чечүү

If you encounter issues with your gate opener, refer to the following common problems and solutions. For more detailed troubleshooting, consult the full user manual or contact customer support.

• Дарбаза алыстан башкаруу пультуна жооп бербей жатат: Check remote batteries. Ensure the gate opener has power. Verify the remote is programmed correctly.
• Дарбаза күтүүсүздөн токтоп калды: Check for obstructions in the gate's path. Ensure photocell sensors are clean and aligned.
• Gate opens/closes partially: Check for mechanical obstructions. Verify actuator mounting and alignment. Ensure power supply is stable.
• No power to the unit: Check circuit breaker or fuse. Verify all power connections. If using solar, check solar panel and battery connections.

Image: An illustration of the gate opener's internal motor components, highlighting features contributing to powerful and durable performance, including waterproof design, wide working temperature range, and adjustable electromagnetism limit.

Колдоо

For further assistance, technical support, or warranty inquiries, please contact ALEKO Customer Support. Your purchase includes a 30-day easy return policy.

• Кардарларды колдоо: Refer to the contact information provided with your product packaging or visit the official ALEKO webсайт.
• Кайтаруулар: Products are eligible for 30-day easy returns. Please retain your proof of purchase.
