1. Киришүү
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your NEWTRY WXX45 Automatic Electric Tobacco Injector. Please read this manual thoroughly before using the device to ensure proper function and longevity.
The NEWTRY WXX45 is a compact and portable electric device designed to assist in the preparation of tobacco products. It automates the process of filling empty tubes with tobacco, offering a convenient and efficient method for users.
2. Коопсуздук маалыматы
Жарааттарды же аппаратты бузууну болтурбоо үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:
- Keep the device away from water or other liquids. Do not operate with wet hands.
- электр менен жабдууну камсыз кылуу voltage matches the device's requirements (110-230V).
- Do not insert fingers or foreign objects into the tobacco chamber or injection mechanism during operation.
- Тазалоо алдында же колдонулбай турганда аппаратты розеткадан сууруп алыңыз.
- Use only dry tobacco. Moist tobacco can clog the machine and strain the motor.
- Балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
- Аппаратты өз алдынча бөлүүгө же оңдоого аракет кылбаңыз. Жардам алуу үчүн квалификациялуу тейлөө кызматкерлерине кайрылыңыз.
3. Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- 1 x NEWTRY Automatic Electric Tobacco Injector
- 1 x Stirring Rod
- 1 x тазалоочу щетка
- 1 x Power Charger (110-230V)
Image: The package includes the main rolling machine, a stirring rod, a cleaning brush, and a power charger.
4. Продукциянын өзгөчөлүктөрү
- Компакт жана портативдик дизайн: The device features a mini size (approximately 15.2 x 7 x 6.5 cm) and lightweight construction (385g), making it easy to transport and use in various locations.
- Натыйжалуу операция: Designed for rapid production, capable of filling multiple tubes in a short timeframe.
- Adjustable Tobacco Tightness: A control knob allows users to adjust the density of the tobacco fill.
- Тазалоо оңой: Equipped with a removable tray and hopper, and includes a dedicated cleaning brush for straightforward maintenance.
Image: The compact size of the NEWTRY WXX45, measuring approximately 6.02 inches in length, 2.59 inches in height, and 2.32 inches in width, emphasizing its portability.
5. Орнотуу
Before first use, ensure the device is placed on a stable, flat surface.
- Unpack all components and remove any protective packaging.
- Connect the power charger to the device and then plug it into a suitable electrical outlet (110-230V).
- Ensure the tobacco hopper and tray are clean and free of debris.

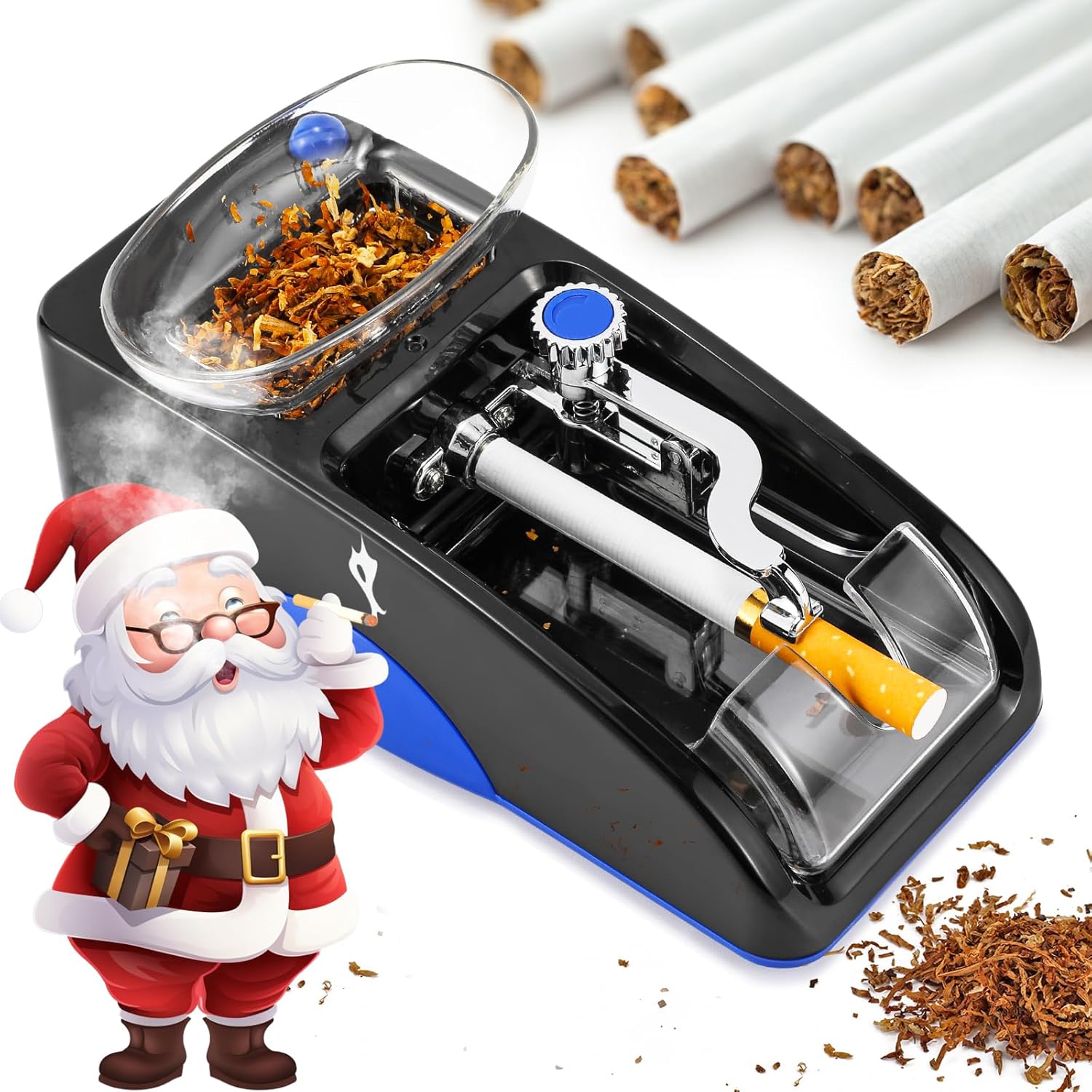

Image: The NEWTRY WXX45 device with tobacco in the transparent hopper and an empty tube positioned for injection.
6. Иштөө нускамалары
Туура иштөө үчүн бул кадамдарды аткарыңыз:
- Тамеки даярдоо: Ensure your tobacco is dry and free of large stems or foreign objects. Use the stirring rod if necessary to loosen the tobacco.
- Load Tobacco: Place the prepared tobacco into the transparent hopper at the top of the machine. Do not overfill.
- Түтүктү киргизүү: Carefully slide an empty tube onto the metal nozzle on the side of the machine. Ensure it is securely seated.
- Adjust Tightness (Optional): If desired, adjust the blue knob located near the injection mechanism to control the tobacco's packing density. Turning it clockwise generally results in a tighter pack, while counter-clockwise results in a looser pack.
- Start Injection: Press and hold the power switch (usually a button or lever) to activate the injection mechanism. The machine will automatically fill the tube. Release the switch once the tube is filled.
- Remove Filled Tube: Once the tube is filled, gently remove it from the nozzle.
- Кайталоо: Continue steps 3-6 for additional tubes.
Сүрөт: жакын план view of a hand adjusting the blue knob on the device, which is used to regulate the tightness of the tobacco fill.
7. Техникалык тейлөө жана тазалоо
Regular cleaning ensures optimal performance and extends the life of your device.
- Ажыратыңыз: Тазалоодон мурун ар дайым аппаратты розеткадан сууруп алыңыз.
- Empty Hopper and Tray: Remove any remaining tobacco from the hopper and the removable collection tray.
- щетка тазалоо: Use the provided cleaning brush to remove tobacco residue from the hopper, injection mechanism, and other accessible parts. Pay special attention to the nozzle and the area around the auger.
- Өчүрүү: Use a soft, dry cloth to wipe the exterior of the machine. Do not use abrasive cleaners or immerse the device in water.
- Сактагыч: Колдонулбай турган учурда түзмөктү таза, кургак жерде сактаңыз.
Image: The NEWTRY WXX45 device with its removable tray detached and the included cleaning brush, illustrating the components designed for easy maintenance.
8. Кыйынчылыктарды
If you encounter issues with your NEWTRY WXX45, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Машина иштебей жатат | Not plugged in; Power outlet issue; Charger cable damage | Check power connection; Try a different outlet; Inspect charger cable for damage. |
| Tobacco not injecting or getting stuck | Tobacco is too moist or too coarse; Hopper overfilled; Clog in injection mechanism | Ensure tobacco is dry and finely shredded; Do not overfill hopper; Use cleaning brush to clear any clogs. Press the power button intermittently to help clear minor blockages. |
| Filled tubes are too loose or too tight | Tobacco tightness adjustment needed | Adjust the blue knob to achieve desired packing density. Experiment with small adjustments. |
| Мотордун чыңалган үндөрү | Tobacco is too moist or dense; Overuse | Use drier tobacco; Reduce the amount of tobacco loaded; Allow the machine to cool down if used continuously for extended periods. |
9. Техникалык шарттар
- Модел: WXX45
- Түрү: Fully Automatic Electric Tobacco Injector
- Өлчөмдөрү: 15.2 x 7 x 6.5 см (болжол менен 6.02 x 2.76 x 2.56 дюйм)
- Материал: ABS пластик
- Түсү: Blue (main body accents)
- Салмагы: 385 г (болжол менен 0.85 фунт)
- Тtage: 110-230V
- Өндүрүүчү: NEWTRY
10. Кепилдик жана колдоо
For warranty information, technical support, or service inquiries, please refer to the documentation provided with your purchase or contact NEWTRY customer service directly. Keep your purchase receipt as proof of purchase.
