NEWTRY WXX45 Electric Automatic Rolling Machine User Manual

1. Киришүү

This manual provides detailed instructions for the safe and efficient operation and maintenance of your NEWTRY WXX45 Electric Automatic Rolling Machine. Please read this manual thoroughly before using the device and retain it for future reference.

Продукт өзгөчөлүктөрү:

• Компакт жана портативдик дизайн: Small size and light weight for easy transport and use anywhere.
• Туруктуу курулуш: Made from ABS plastic with a stainless steel tobacco injector for longevity.
• Adjustable Tobacco Tightness: Features an adjustable switch to control the packing density of tobacco.
• Жөнөкөй операция: Колдонуунун оңойлугу үчүн иштелип чыккан.

2. Коопсуздук нускамалары

• Аппаратты балдар жана үй жаныбарлары жетпеген жерде сактаңыз.
• Машинаны сууга же башка суюктуктарга батырбаңыз.
• Берилген кубат адаптерин гана колдонуңуз.
• Түзмөктү сайып же сууруп алардан мурун колдоруңуздун кургак экенин текшериңиз.
• Do not operate the machine if any parts are damaged.
• Аппаратты колдонбогондо же тазалоодон мурун сууруп алыңыз.
• Use only dry, shredded tobacco. Wet or overly moist tobacco can damage the machine.

3. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• NEWTRY WXX45 Electric Automatic Rolling Machine
• Кубаттуу адаптер
• Аралаштыруу таякчасы
• Тазалоочу щетка

4. Продукт бүтүп калдыview

Familiarize yourself with the components of your rolling machine:

5. Орнотуу

1. Машинаны туруктуу, тегиз бетке коюңуз.
2. Connect the power adapter to the machine's power input port.
3. Кубат адаптерин ылайыктуу электр розеткасына сайыңыз.

6. Иштөө нускамалары

Follow these steps to operate your rolling machine:

1. Fill Tobacco Hopper: Open the tobacco hopper cover and fill it with your preferred tobacco. Do not overfill.
2. Insert Cigarette Tube: Carefully slide an empty cigarette tube onto the metal nozzle.
3. Тыюулукту тууралоо: Use the rotary switch (3) to adjust the desired tobacco packing tightness. Turn clockwise for tighter packing, counter-clockwise for looser packing.
4. Start Rolling: Press the power switch (1) to begin the rolling process. The machine will inject tobacco into the tube.
5. Remove Cigarette: Once the tube is filled, release the power switch and carefully remove the finished cigarette.
6. Collect Excess Tobacco: Any excess tobacco will fall into the tailing collection box (5).

Оптималдуу пайдалануу боюнча кеңештер:

• Tobacco Humidity: Recommended tobacco humidity is between 16% and 28% for best results.
• Even Packing: Use the stirring rod to ensure tobacco is evenly distributed in the hopper before rolling.
• Final Tightness: After filling, gently push the butt of the cigarette to further compact the tobacco if desired.

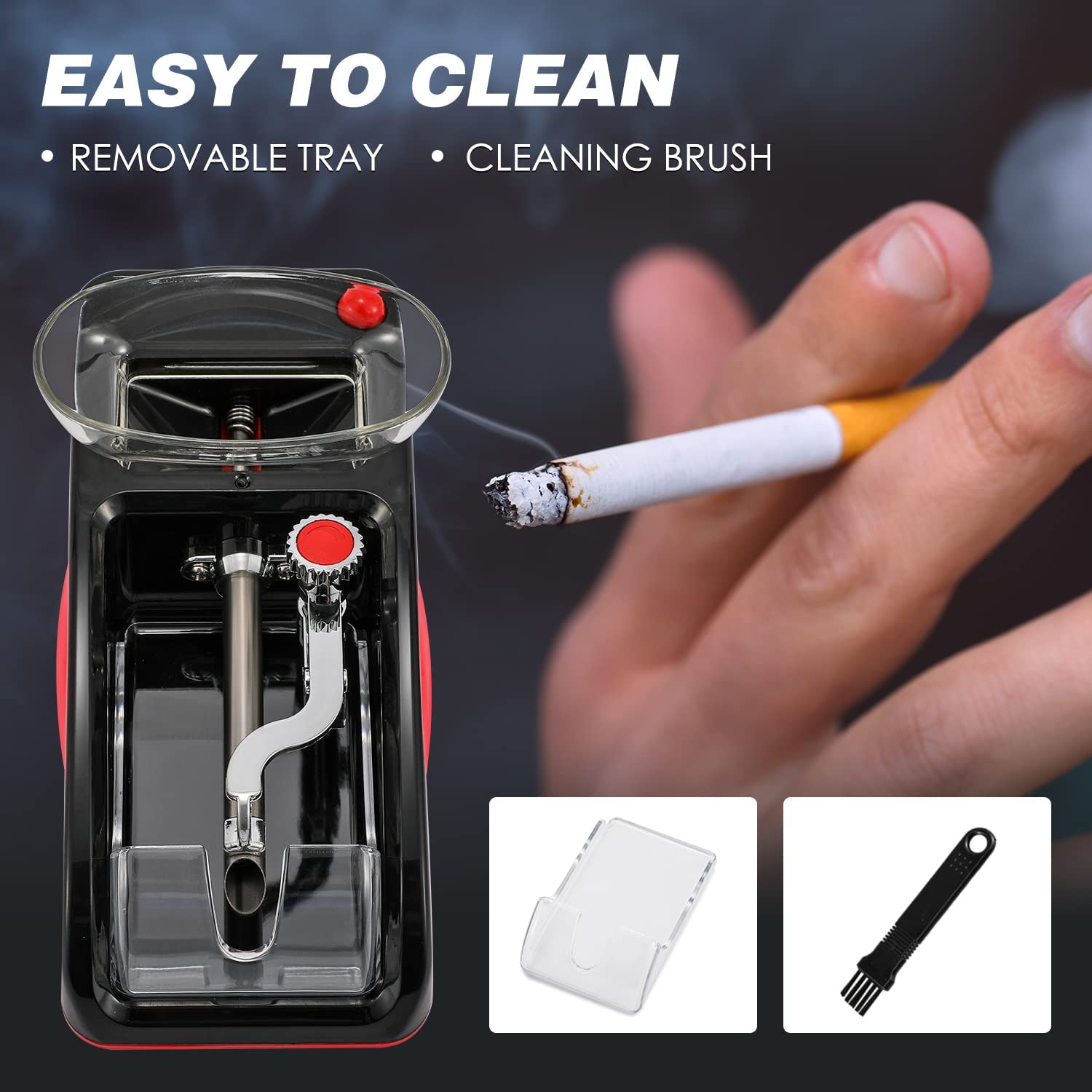

7. Техникалык тейлөө жана тазалоо

Үзгүлтүксүз тазалоо оптималдуу иштөөнү камсыз кылат жана машинаңыздын иштөө мөөнөтүн узартат.

1. Түзмөктү ажыратыңыз: Тазалоодон мурун ар дайым машинаны розеткадан сууруп алыңыз.
2. Empty Hopper and Tray: Remove any remaining tobacco from the hopper and the tailing collection box.
3. Щетка менен тазалоо: Use the provided cleaning brush to remove tobacco residue from the hopper, the injection mechanism, and other accessible areas.
4. Сырты тазалоо: Wipe the exterior of the machine with a dry or slightly damp кездеме. Абразивдүү тазалоочу каражаттарды колдонбоңуз же машинаны сууга салбаңыз.

8. Кыйынчылыктарды

If you encounter issues with your NEWTRY WXX45, refer to the following common problems and solutions:

• Problem: Tobacco falls out of the cigarette (“cherry falling”).
  Чечим: Ensure tobacco humidity is between 16-28%. You can lightly spray alcohol on tobacco and place it in an airtight container overnight to adjust moisture. Also, adjust the tightness switch for a firmer pack and gently push the cigarette butt while rolling to compact the tobacco.
• Problem: Machine is not turning on.
  Чечим: Check if the power adapter is securely plugged into both the machine and the electrical outlet. Ensure the outlet is functional.
• Problem: Tobacco is not feeding or jamming.
  Чечим: Ensure tobacco is dry and properly shredded. Remove any large stems or foreign objects. Do not overfill the hopper. Use the stirring rod to loosen and guide tobacco into the mechanism.
• Problem: Cigarettes are too loose or too tight.
  Чечим: Adjust the tobacco tightness switch (3) as described in the Operating Instructions. Experiment with different settings to find your preferred density.

9. Техникалык шарттар

10. Кепилдик жана колдоо

For warranty information and customer support, please refer to the documentation included with your purchase or contact NEWTRY customer service directly. Keep your purchase receipt as proof of purchase.
