Haier HWM65-826NZP 6.5Kg Top Load Fully-Automatic Washing Machine User Manual

1. Продукт бүтүп калдыview

The Haier HWM65-826NZP is a 6.5 Kg fully-automatic top load washing machine designed for efficient and convenient laundry care. This appliance combines advanced features with user-friendly controls to deliver effective cleaning results for various fabric types.

The washing machine features a compact design, making it suitable for various living spaces. Its Moonlight Grey finish provides a sleek and modern aesthetic.

Figure 1: Haier HWM65-826NZP Washing Machine

2. Негизги өзгөчөлүктөрү

This section highlights the primary features of your Haier HWM65-826NZP washing machine, designed to enhance your laundry experience.

2.1 Softfall Technology

The transparent glass lid is equipped with Softfall Technology, ensuring a slow and gentle closure. This feature prevents accidental drops and reduces noise, enhancing safety and durability.

Figure 2: Softfall Technology in action, showing the lid closing gently.

2.2 Balance Clean Pulsator

The Balance Clean Pulsator is engineered to create a powerful motion within the drum, effectively combining water and detergent to penetrate fabrics. This ensures thorough cleaning for both light and heavy laundry loads.

Figure 3: The Deep Plate Pulsator design for enhanced cleaning.

2.3 8 Wash Programs

The washing machine offers 8 distinct wash programs to cater to various fabric types and cleaning needs. These programs include options such as Deep Clean, Wool, Delicate, Air Dry, Spin, Normal, Heavy, and Quick Wash, providing versatility for your laundry.

Figure 4: ашыкview of the 8 wash programs available on the control panel.

2.4 Bionic Magic Filter

Equipped with a Bionic Magic Filter, this washing machine effectively captures lint and debris from your clothes during the wash cycle. This ensures cleaner laundry and helps maintain the machine's performance.

Figure 5: The Dual Magic Filter system for lint collection.

2.5 Near Zero Pressure (NZP) Technology

The Near Zero Pressure (NZP) Technology allows the washing machine to operate efficiently even with extremely low water pressure (as low as 0.001-0.002 MPa). This ensures consistent performance regardless of your home's water supply conditions.

Figure 6: Visual representation of Near Zero Pressure Technology.

2.6 Oceanus Wave Drum

The Oceanus Wave Drum is designed with a unique pattern that creates a stronger water flow for gentle yet effective washing. This design minimizes abrasion on clothes while ensuring thorough cleaning.

Figure 7: The Oceanus Wave Drum's textured surface.

2.7 Балдардан кулпу

For added safety, the washing machine includes a Child Lock feature. Once activated, this function freezes the control panel settings, preventing accidental changes by children during operation.

2.8 LED санарип дисплей

The intuitive LED digital display provides clear information about the selected wash program, remaining time, and other settings, allowing for easy monitoring and control of the wash cycle.

2.9 Продукт бүттүview Video

Кыскача көрүү үчүн бул видеону көрүңүзview of the Haier HWM65-826NZP washing machine, including its design and key features.

Video 1: Haier HWM65-826NZP Washing Machine Overview

3. Орнотуу нускамалары

Кир жуугуч машинаңыздын оптималдуу иштеши жана узак мөөнөттүү иштеши үчүн туура орнотуу абдан маанилүү. Сураныч, бул кадамдарды кылдаттык менен аткарыңыз.

3.1 Пакеттен чыгаруу

• Негизги таңгакты жана коргоочу пленкаларды кошо алганда, бардык таңгактоочу материалдарды этияттык менен алып салыңыз.
• Ensure all included components are present: 1 Washing Machine, User Manual, Components of Water Inlet Hose, Tapping Screw, Warranty Card.

3.2 Орнотуу

• Place the washing machine on a firm, level surface to prevent excessive vibration and noise during operation.
• Машинанын айланасында жетиштүү желдетүү бар экенине ынаныңыз.
• Avoid direct sunlight or placing the machine in excessively damp аймактар.

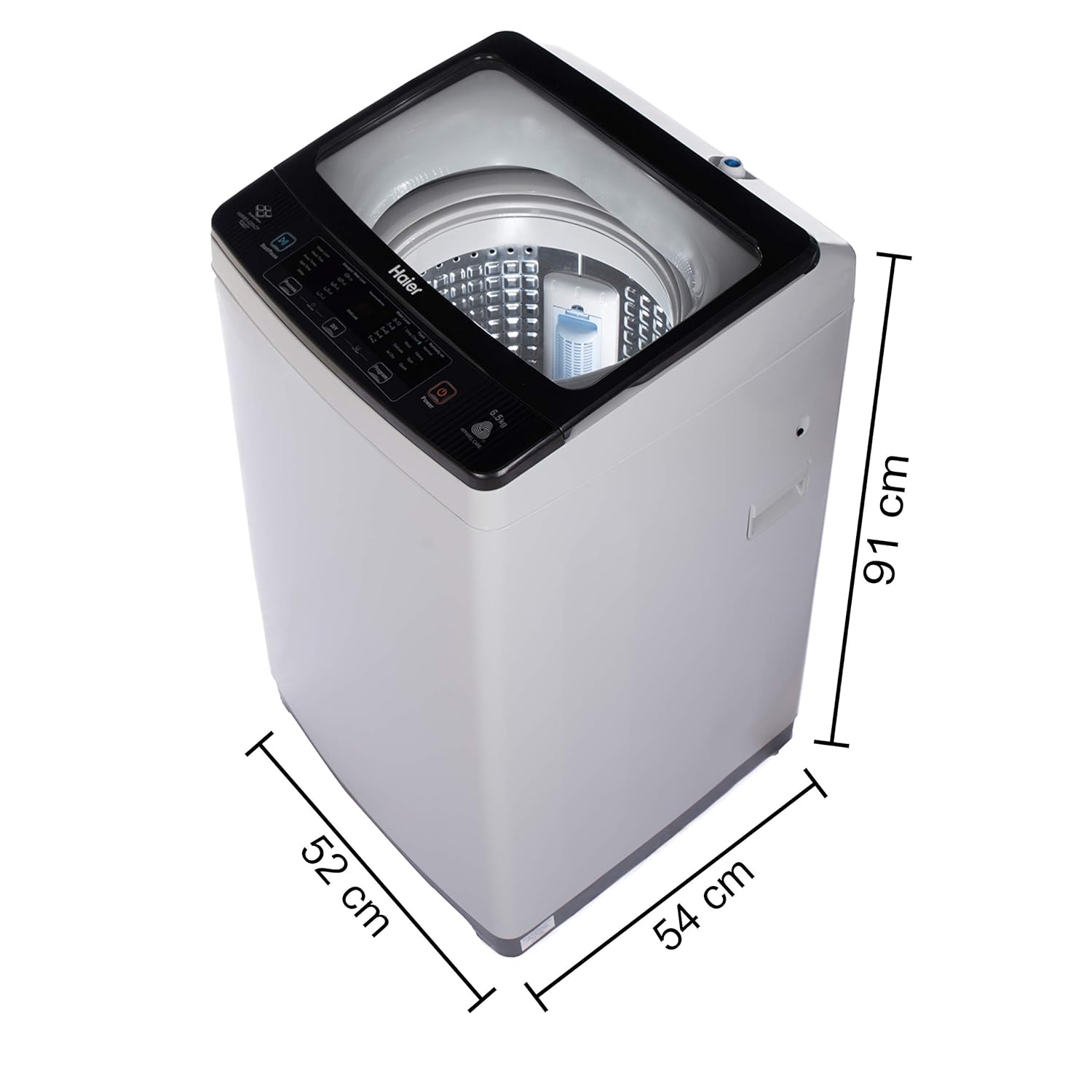

8-сүрөт: Туура жайгаштыруу үчүн продуктунун өлчөмдөрү.

3.3 Суу кирүүчү түтүккө туташуу

• Connect the water inlet hose to the water tap and the inlet valve on the back of the washing machine.
• Суу агып кетпеши үчүн бардык туташуулардын бекем болушун текшериңиз.
• Суу кранын толугу менен ачыңыз.

3.4 Дренаждык шланг туташтыруу

• Position the drain hose to ensure proper water drainage. It can be hooked over a sink or connected to a dedicated drain pipe.
• Дренаж шлангынын ийилип же бөгөлбөгөнүн текшериңиз.

3.5 Кубат туташтыруу

• Электр шнурын жерге туташтырылган электр розеткасына сайыңыз.
• Voltage matches the machine's requirements (220 Volts).

4. Иштөө нускамалары

Follow these steps to operate your Haier HWM65-826NZP washing machine effectively.

4.1 Кирди жүктөө

• Үстүңкү капкагын ачыңыз.
• Load clothes loosely into the drum, ensuring not to overload the machine. The maximum capacity is 6.5 Kg.
• Close the lid gently using the Softfall Technology.

4.2 Жуучу каражатты кошуу

• Add the appropriate amount of detergent to the detergent dispenser according to the load size and soil level.
• Refer to the detergent manufacturer's instructions for recommended quantities.

4.3 Программаны тандоо

• Машинаны күйгүзүү үчүн "Кубат" баскычын басыңыз.
• Use the 'Program' button to cycle through the available wash programs (Deep Clean, Wool, Delicate, Air Dry, Spin, Normal, Heavy, Quick Wash).
• The selected program will be indicated on the LED digital display.

4.4 Орнотууларды тууралоо

Depending on the selected program, you may adjust settings such as:

• Суунун деңгээли: Adjust according to the load size.
• Жуу убактысы: Modify the duration of the wash cycle.
• Rinse Times: Select the number of rinse cycles.
• Айлануу убактысы: Adjust the duration of the spin cycle for drying.
• Кечигүү: Кир жуу цикли үчүн кечиктирилген баштоо убактысын коюңуз.

4.5 Жуу циклин баштоо

• Once the program and settings are selected, press the 'Start/Pause' button to begin the wash cycle.
• To pause the cycle, press 'Start/Pause' again. Press it once more to resume.

4.6 Балдарды кулпулоо функциясы

• To activate Child Lock, press and hold the designated Child Lock button (or combination of buttons as indicated on the control panel) for a few seconds until the Child Lock indicator appears on the display.
• Өчүрүү үчүн, ошол эле аракетти кайталаңыз.

4.7 Ваннаны тазалоо программасы

Regularly use the 'Tub Clean' program to maintain the cleanliness of the washing machine drum and prevent odor buildup. Refer to the control panel for initiating this program.

5. Техникалык тейлөө

Кир жуугуч машинаңыздын үзгүлтүксүз техникалык тейлөөсү анын узак мөөнөттүү жана натыйжалуу иштешин камсыздайт.

5.1 Cleaning the Bionic Magic Filter

• Periodically remove and clean the Bionic Magic Filter to ensure effective lint collection.
• Rinse the filter under running water to remove accumulated lint and debris.
• Reinsert the clean filter securely into its position.

5.2 Барабанды тазалоо

• Utilize the 'Tub Clean' program monthly to clean the inner drum and remove detergent residue or mold.
• You may use a washing machine cleaner specifically designed for this purpose.

5.3 Тышкы тазалоо

• Машинанын сыртын жумшак менен сүртүңүз, гamp кездеме.
• Финишке зыян келтирүүчү абразивдүү тазалагычтарды же эриткичтерди колдонуудан алыс болуңуз.

5.4 Суу кирүүчү жердин чыпкасын тазалоо

• If water supply is slow, check and clean the filter screen at the water inlet hose connection.
• Turn off the water supply before disconnecting the hose.

6. Кыйынчылыктарды

If you encounter issues with your washing machine, refer to the following common troubleshooting tips before contacting customer service.

6.1 Машина иштебей жатат

• Электр шнурунун бекем сайылганын текшериңиз.
• Кубат булагы иштеп турганын текшериңиз.
• Verify that the lid is properly closed.
• Confirm that the 'Start/Pause' button has been pressed.

6.2 Water Not Filling or Draining

• Суу краны толугу менен ачык экенин текшериңиз.
• Check if the water inlet hose is kinked or blocked.
• Inspect the drain hose for kinks or blockages.
• Clean the water inlet filter if water flow is restricted.

6.3 Ашыкча титирөө же ызы-чуу

• Ensure the machine is placed on a level and stable surface. Adjust the leveling feet if necessary.
• Verify that the transit bolts (if any) have been removed during installation.
• Distribute the laundry evenly inside the drum to prevent imbalance.

6.4 Poor Wash Results

• Ensure you are using the correct amount and type of detergent for your load.
• Select the appropriate wash program for the fabric type and soil level.
• Avoid overloading the machine, as this can hinder proper cleaning.
• Clean the Bionic Magic Filter regularly.

7. Техникалык шарттар

8. Кепилдик жана колдоо

8.1 Кепилдик маалыматы

Your Haier HWM65-826NZP washing machine comes with a comprehensive warranty:

• 2 жылдык комплекстүү кепилдик продукт боюнча.
• 10 жылдык кепилдик мотордо.

Figure 9: Warranty details for the Haier HWM65-826NZP.

Please retain your purchase receipt and warranty card for any future claims.

8.2 Кардарларды колдоо

For any assistance, service requests, or further information, please contact Haier customer support:

• Өндүрүүчүнүн Байланыш маалыматы: 18001029999
