NEWTRY 3-in-1 Electric Hoist User Manual

1. Киришүү

This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your NEWTRY 3-in-1 Electric Hoist. Please read this manual thoroughly before operating the hoist to ensure proper usage and to prevent injury or damage.

The NEWTRY Electric Hoist is a versatile lifting device designed for various applications, offering three distinct control methods: manual, wired remote, and wireless remote. It features a robust 1500W motor, a 7.6-meter steel wire rope, and a 500KG (1100lb) lifting capacity, making it suitable for handling regular or irregularly shaped objects in garages, workshops, and construction sites.

Figure 1.1: ашыкview of the NEWTRY 3-in-1 Electric Hoist with its control options.

2. Коопсуздук нускамалары

Электр көтөргүчтү иштетүүдө ар дайым коопсуздукту биринчи орунга коюңуз. Бул көрсөтмөлөрдү аткарбоо олуттуу жаракат алууга же мүлккө зыян келтирүүгө алып келиши мүмкүн.

• Колдонмону окуу: Before any operation, thoroughly read and understand all instructions and warnings in this manual.
• Жүктөө жөндөмдүүлүгү: Never exceed the maximum rated load capacity of 500KG (1100lb). Overloading can cause equipment failure and severe injury.
• Туруктуу орнотуу: Ensure the hoist is securely mounted to a stable structure capable of supporting the hoist's weight plus the maximum load.
• Колдонуудан мурун текшерүү: Before each use, inspect the hoist, steel wire rope, hooks, and control cables for any signs of wear, damage, or deformation. Do not use if any damage is found.
• Аймакты тазалоо: Keep the lifting area clear of personnel and obstructions. Ensure no one is directly under the hoisted load.
• Ашыкча жүктөн коргоо: The hoist is equipped with overload protection. If the motor stops, it indicates an overload. Immediately reduce the load.
• Чектөө которуштуруу: The hoist has an automatic limit switch that stops operation when the rope reaches its end position. Do not attempt to override this safety feature.
• Rope Management: Ensure the steel wire rope is wound cleanly and tightly on the drum. Avoid kinks or tangles. Regularly check the rope for fraying or damage.
• Кубат булагы: Connect the hoist to a grounded power outlet with the correct voltage (230V).
• Экологиялык шарттар: Do not operate the hoist in hazardous environments, such as those with explosive atmospheres or excessive moisture.
• Уруксатсыз өзгөртүүлөр: Do not modify the hoist or its components. Use only original replacement parts.

3. Продукциянын өзгөчөлүктөрү

The NEWTRY Electric Hoist is designed with several key features to enhance its functionality and safety:

• 3-бирде башкаруу ыкмалары:
  • Кол менен башкаруу: Buttons located on the machine handle for direct operation.
  • Зымдуу алыстан башкаруу: A 6.8-meter (22.3 ft) cable remote for operation from a short distance.
  • Зымсыз алыстан башкаруу: A flexible wireless remote with a range of up to 60 meters (197 ft) for convenient operation from a distance.


  Figure 3.1: The three available control methods for the hoist.

• End Switch: Automatically cuts power when the rope reaches its limit position, protecting the hoist mechanism.
• Ашыкча жүктөн коргоо: Integrated circuitry automatically stops the motor if the load exceeds the safe limit, preventing damage to the motor and hoist.
• 1500W Universal Motor: Provides high starting torque, stable operation, and minimal vibration. Designed for reliable performance.


  Figure 3.2: Illustration of the powerful 1500W motor.
• Durable Hooks: Upper and lower hooks can rotate 360 degrees to release torsional force, ensuring stability. Equipped with safety buckles to prevent accidental detachment. Made from special forged steel for durability.

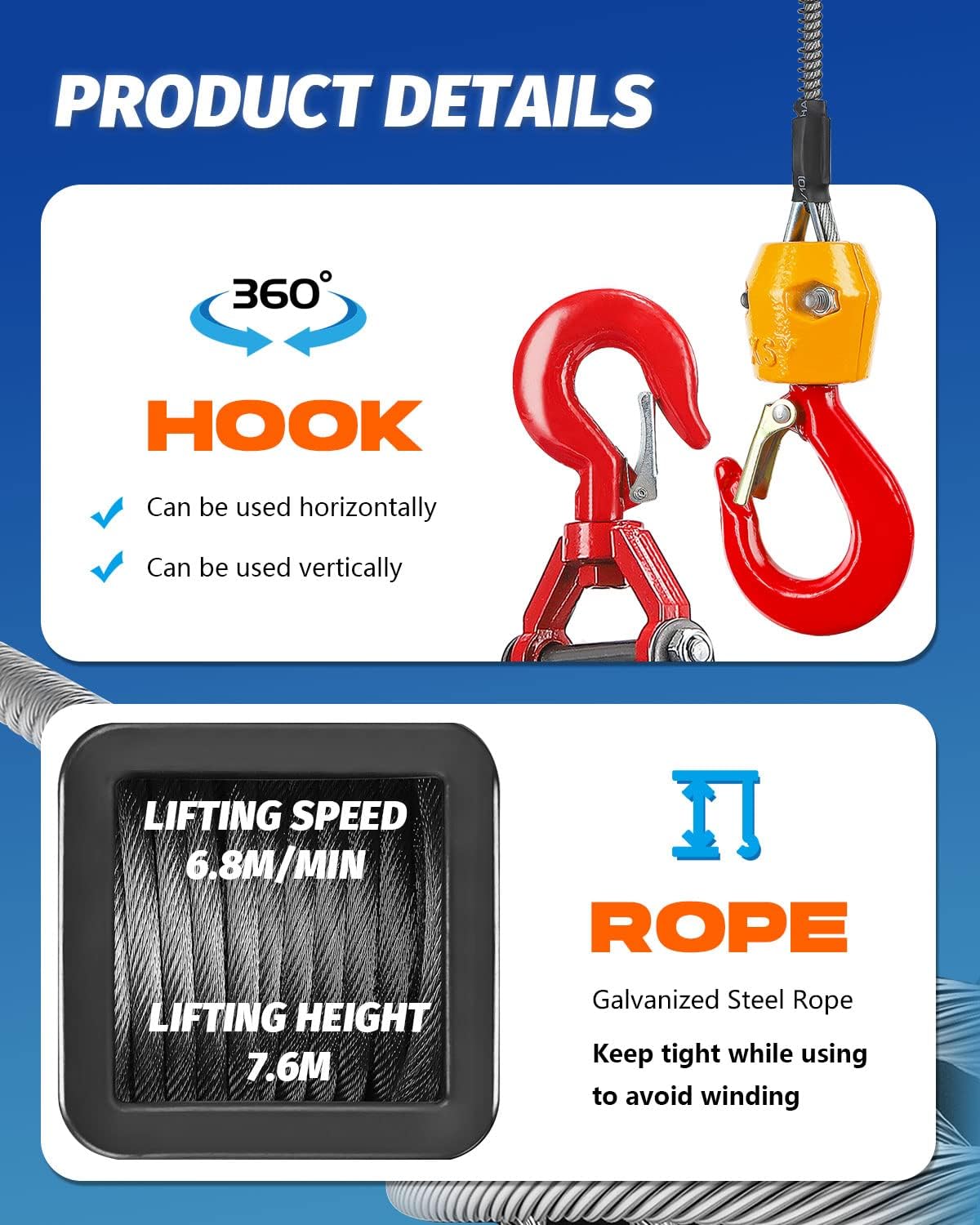

  Figure 3.3: Detail of the 360-degree rotating hook and steel rope.

• High-Quality Steel Wire Rope: Features a steel core, 6mm diameter, and 7.6m (25ft) length. Designed for strength and longevity. Regular inspection is crucial for safety.
• Компакт дизайн: Portable and relatively lightweight (approx. 12 kg), making it easy to transport and install.


  Figure 3.4: The compact size of the hoist.

4. Орнотуу жана орнотуу

Proper installation is critical for the safe and effective operation of your electric hoist.

1. Монтаждоо ордун тандаңыз: Select a sturdy and stable overhead structure (e.g., a robust beam, ceiling joist, or gantry) that can safely support the hoist's weight plus the maximum intended load. Ensure the mounting point is level and free from obstructions.
2. Коопсуз орнотуу: Attach the hoist securely to the chosen mounting point using appropriate hardware (not included, typically). Ensure all bolts, clamps, or straps are tightened according to manufacturer specifications for the mounting hardware.


   4.1-сүрөт: Мисample of hoist installation on a wooden beam.

3. Кубат туташуу: Connect the hoist's power cord to a grounded 230V electrical outlet. Ensure the power supply is stable and meets the hoist's requirements.
4. Control Connection:
   • For wired remote control, plug the cable into the designated port on the side of the hoist.
   • For wireless remote control, ensure the remote has working batteries and is paired with the hoist (refer to remote-specific instructions if pairing is required).
5. Баштапкы сыноо: Before lifting any load, perform a test run with no load. Operate the hoist up and down using all control methods to ensure smooth operation and proper function of the limit switch.

5. Иштөө нускамалары

Follow these steps for safe and effective operation of your NEWTRY Electric Hoist.

5.1. Операцияга даярдануу

• Ensure the hoist is securely mounted and the power is connected.
• Verify the load does not exceed the 500KG capacity.
• Attach the load securely to the hook. Ensure the safety buckle on the hook is closed.
• Clear the area around and beneath the load.

5.2. Башкаруу ыкмалары

The hoist can be operated using one of three methods:

1. Кол менен башкаруу:

   Press the "Up" or "Down" buttons located directly on the hoist's handle. This method is ideal when you are in close proximity to the hoist and the load.

2. Зымдуу алыстан башкаруу:

   Use the wired remote control for operation from a short distance (up to 6.8 meters). Press the corresponding "Up" or "Down" button on the remote to control the hoist. This provides a safer distance from the load.
3. Зымсыз алыстан башкаруу:

   For maximum flexibility, use the wireless remote control. It allows operation from up to 60 meters away. Press the "Up" or "Down" buttons on the wireless remote. Ensure the remote has fresh batteries and a clear line of sight to the hoist for optimal signal.

5.3. Lifting and Lowering

• Slowly initiate lifting or lowering to avoid sudden movements.
• Monitor the load and the hoist during operation. If any unusual sounds or movements occur, stop immediately.
• Do not swing the load. Keep the load as stable as possible during movement.
• The hoist operates at a lifting speed of approximately 4.8 meters per minute.
• The maximum lifting height is 7.6 meters. The limit switch will prevent the hook from going too high.
• When lowering, ensure the landing area is clear and stable.

Figure 5.1: The hoist in action, demonstrating its lifting capability.

6. Техникалык тейлөө

Regular maintenance ensures the longevity and safe operation of your NEWTRY Electric Hoist.

• Күнүмдүк текшерүү: Before each use, visually inspect the entire hoist, including the housing, power cord, control cables, hooks, and especially the steel wire rope. Look for cuts, fraying, kinks, corrosion, or any signs of damage.
• Аркандын абалы: The steel wire rope is a critical component. If any significant wear, deformation, or broken strands are observed, the rope must be replaced immediately by a qualified technician. Ensure the rope is always wound neatly on the drum.
• Илмек текшерүү: Check the hooks for deformation, cracks, or excessive wear. Ensure the safety latches operate freely and close properly.
• Тазалоо: Keep the hoist clean and free from dust, dirt, and debris. Use a dry cloth to wipe down the exterior. Do not use harsh chemicals or immerse the unit in water.
• Майлоо: Consult a qualified technician for any internal lubrication requirements. Do not attempt to lubricate internal components yourself unless specifically instructed.
• Сактагыч: When not in use, store the hoist in a dry, clean, and secure location, away from direct sunlight and extreme temperatures.

7. Кыйынчылыктарды

This section addresses common issues you might encounter with your electric hoist. For problems not listed here, or if solutions do not resolve the issue, contact customer support.

8. Техникалык шарттар

Key technical specifications for the NEWTRY 3-in-1 Electric Hoist (500KG model):

9. Кепилдик жана колдоо

For warranty information, technical support, or service inquiries, please contact NEWTRY customer service. Keep your purchase receipt and product model number handy when contacting support.

You can typically find contact information on the product packaging or the official NEWTRY website. For general inquiries, you may also refer to the seller's information on the platform where the product was purchased.

Өндүрүүчү: NEWTRY

Модель номери: NEWTRY (as per manufacturer reference)

ASIN: B082PRZJJ2
