DinoFire Wireless Presenter Remote with Air Mouse User Manual

Продукт бүттүview

The DinoFire Wireless Presenter Remote with Air Mouse is a versatile tool designed to enhance your presentations. It combines the functionality of a traditional presentation clicker with a wireless air mouse, offering seamless control over your computer from a distance. This device is ideal for professionals, educators, and anyone who needs to deliver dynamic and engaging presentations.

Image: The DinoFire Wireless Presenter Remote, showcasing its sleek black design and ergonomic shape. An icon of a computer mouse is also visible, indicating its air mouse functionality.

Негизги өзгөчөлүктөрү:

Integrated Presenter and Air Mouse: Combines slide control with full mouse functionality, allowing for easy navigation of your computer without being tethered to it.
Кайра заряддалуучу батарея: Built-in 300mAh rechargeable battery provides weeks of use on a single 3-hour charge, with an automatic sleep mode to conserve power.
Multi-Function Control: Supports black/full screen, page flip, volume control, video start/pause, hyperlink/website opening, and window switching.
Bright Red Light Pointer: A highly visible red light pointer effectively highlights key points on your slides.
Узак аралык башкаруу: Offers extended wireless range for freedom of movement during presentations.
Кеңири шайкештик: Compatible with Windows 2003/XP/Vista/7/8/10+, Mac OS, Linux, Android, and software like PowerPoint, Excel, Prezi, Keynote, Numbers, Pages, and web браузерлер.
Портативдик дизайн: Features magnetic storage for the USB dongle and a pen clip style for easy carrying.

Орнотуу колдонмосу

Follow these steps to set up your DinoFire Wireless Presenter Remote:

Charge the Presenter: Before first use, fully charge the presenter using the included micro USB cable. Connect the cable to the presenter's USB charging port and a power source (e.g., computer USB port, USB wall adapter). A full charge takes approximately 1.5 hours and provides up to 10 hours of use.

Image: The DinoFire Wireless Presenter connected to a laptop via a USB cable for charging, illustrating its rechargeable feature. Text indicates "Use for 10 Hours" and "1.5H Charging".

USB кабылдагычты салыңыз: Locate the USB receiver stored magnetically within the presenter. Gently pull it out.
Компьютерге туташуу: Plug the USB receiver into an available USB port on your computer. The system will automatically detect and install the necessary drivers (Plug & Play).

Image: A diagram showing the DinoFire Wireless Presenter and its USB receiver, highlighting the plug-and-play setup process. Icons represent Left/Right Mouse Keys, Page Up/Down, Full/Black Screen, Play Videos, and Volume Control.

Күйгүзүү: Slide the power switch on the side of the presenter to the 'On' position. The indicator light will illuminate, signifying it's ready for use.

Иштөө нускамалары

The DinoFire Wireless Presenter offers various functions for effective presentation control:

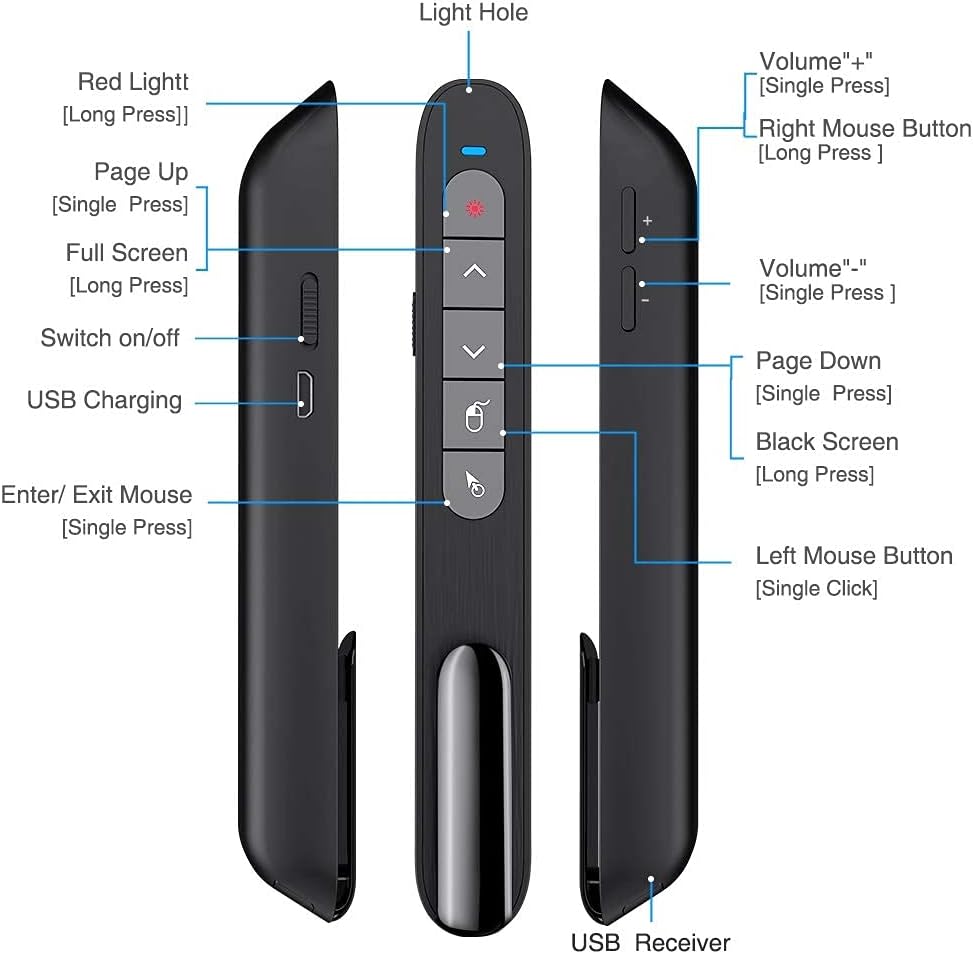

Image: A detailed diagram of the DinoFire Wireless Presenter, labeling each button and port, including Red Light, Page Up, Full Screen, Switch on/off, USB Charging, Enter/Exit Mouse, Volume buttons, Right Mouse Button, Page Down, Black Screen, Left Mouse Button, and USB Receiver.

Red Light Pointer: Press the button with the red light icon (usually at the top) to activate the laser pointer. Release to turn off. The red light is bright and visible against various backgrounds.

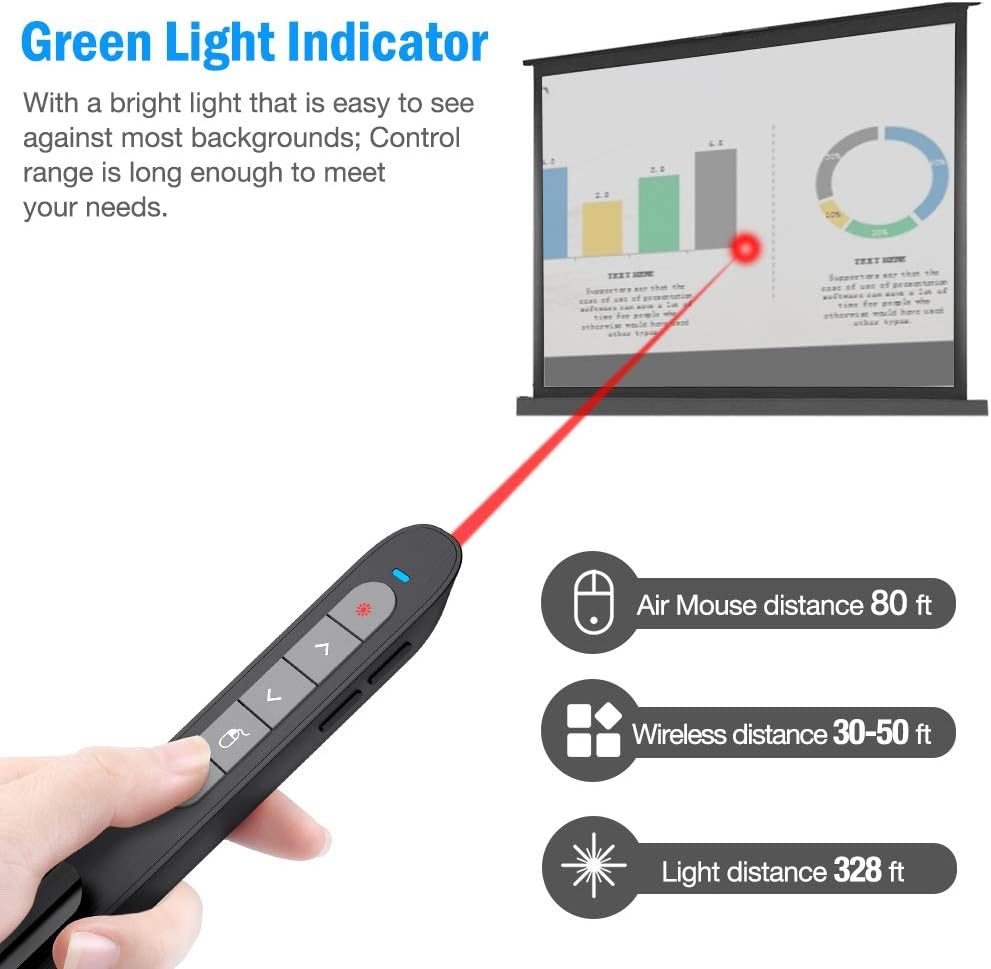

Image: The DinoFire Wireless Presenter emitting a red laser beam onto a projection screen, demonstrating its pointer function. Text indicates Air Mouse distance (80 ft), Wireless distance (30-50 ft), and Light distance (328 ft).

Барак өйдө/төмөн: Use the dedicated Page Up (▲) and Page Down (▼) buttons to navigate through your presentation slides.
Full Screen/Black Screen: Long press the 'Full Screen' button to toggle between full screen mode and normal view. Long press the 'Black Screen' button to black out the screen, useful for focusing audience attention on the speaker.
Аба чычкан функциясы:
- Жандыруу/өчүрүү: Press the 'Enter/Exit Mouse' button (often depicted with a mouse icon) to enable or disable the air mouse function. When active, you can control the cursor by moving the presenter in the air.
- Сол/оң чыкылдатуу: Use the 'Left Mouse Button' (single click) and 'Right Mouse Button' (long press) to perform corresponding mouse clicks.
- 6-Axis G-Sensor Control: The built-in 3-axis G-sensor and 3-axis gyroscope provide sensitive and reliable control for the wireless cursor function.
Үндү көзөмөлдөө: Use the '+' and '-' buttons on the side of the presenter to adjust the system volume.
Hyperlink/Website Control: The air mouse function allows you to click on hyperlinks and open websites directly from your presentation.
Switch Windows: The presenter can also be used to switch between open application windows on your computer.

Шайкештик:

The DinoFire Wireless Presenter is widely compatible with various operating systems and presentation software:

Операциялык системалар: Windows 2003/XP/Vista/7/8/10 or above, Mac OS, Linux, Android.
Программалык камсыздоо: PowerPoint, Excel, Prezi, iWork (Keynote & Numbers & Pages), PDF viewers, жана web браузерлер.

Image: A graphic illustrating the broad compatibility of the DinoFire Wireless Presenter with various operating systems (Windows, Mac, Android) and software applications (PowerPoint, Word, Excel, Keynote, Prezi, etc.).

Техникалык тейлөө

To ensure the longevity and optimal performance of your DinoFire Wireless Presenter, follow these maintenance guidelines:

Тазалоо: Use a soft, dry cloth to wipe the surface of the presenter. Avoid using harsh chemicals, solvents, or abrasive cleaners.
Батареяга кам көрүү: Recharge the device regularly, even if not in frequent use, to maintain battery health. Avoid fully discharging the battery for extended periods.
Сактагыч: When not in use, store the USB receiver securely in its magnetic slot within the presenter to prevent loss. Store the presenter in a cool, dry place away from direct sunlight and extreme temperatures.
Тамчылардан качуу: Handle the presenter with care to prevent damage from accidental drops or impacts.

Проблемаларды чечүү

If you encounter issues with your DinoFire Wireless Presenter, refer to the following common problems and solutions:

Көйгөй	Мүмкүн болгон себеп / Чечим
Presenter is unresponsive or not detected.	Баяндамачынын күйгүзүлгөнүн текшериңиз. USB кабыл алгыч иштеп жаткан USB портуна бекем сайылып турганын текшериңиз. Башка USB портун колдонуп көрүңүз. Ensure the presenter is charged. Компьютериңизди өчүрүп күйгүзүңүз. Re-insert the USB receiver into the computer.
Laser pointer is not working.	Ensure the presenter is powered on and charged. Press the laser button firmly. Check if there are any obstructions to the laser emitter.
Air mouse cursor is erratic or not moving smoothly.	Ensure the air mouse function is activated. Move the presenter smoothly and avoid sudden jerks. Ensure you are within the effective wireless range (up to 80 ft for air mouse). Interference from other wireless devices might be a factor.
Presenter stops responding after an extended idle time.	This can occur if the device enters a deep sleep mode. Try pressing any button to wake it up. If it remains unresponsive, remove the USB receiver from the computer and re-insert it. This often re-establishes the connection.
Buttons are not performing expected functions.	Ensure your operating system and presentation software are compatible. Some functions (e.g., Full Screen, Black Screen) require a long press. Check if any other software is interfering with the presenter's input.

Техникалык шарттар

Өзгөчөлүк	Деталь
Модель номери	TK701
Байланыш	RF 2.4GZ Wireless
Батарея түрү	1 Литий Полимердик батарейка (кошулган)
Заряддоо убактысы	Болжол менен 1.5 саат
Элемент Салмагы	2.08 унция (59 грамм)
Пакеттин өлчөмдөрү	6.38 x 1.57 x 1.06 дюйм (16.2 x 4.0 x 2.7 см)
Лазердик түс	Кызыл
Өндүрүүчү	DinoFire LLC
Биринчи жеткиликтүү күн	24-январь, 2020-жыл

Кепилдик жана колдоо

DinoFire products are designed for reliability and performance. For any issues or inquiries, please refer to the following information:

Кепилдик: This product is typically covered by a 30-day refund/replacement policy from the date of purchase. Please retain your proof of purchase for warranty claims. Specific warranty terms may vary by region or retailer.
Кардарларды колдоо: For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please visit the official DinoFire website or contact the seller from whom you purchased the product.
Онлайн ресурстар: Check the DinoFire brand store on Amazon (DinoFire Store) for additional product information and updates.

Эскертүү: "Сатуучу" түрүндөгү өнүмдөрдүн расмий видеолору бул колдонмого кыстаруу үчүн берилген маалыматтарда табылган жок.

DinoFire TK701
