Lucande Caius LED Outdoor Path Light Instruction Manual

1. Киришүү

Thank you for choosing the Lucande Caius LED Outdoor Path Light. This manual provides essential information for the safe installation, operation, and maintenance of your new outdoor lighting fixture. Please read these instructions carefully before installation and retain them for future reference.

2. Продукт бүтүп калдыview

The Lucande Caius is a modern LED outdoor path light designed to provide efficient and aesthetically pleasing illumination for your garden, pathways, or entrance areas. Constructed from durable aluminum and featuring a clear glass cylinder, it is built to withstand outdoor conditions with an IP54 protection rating.

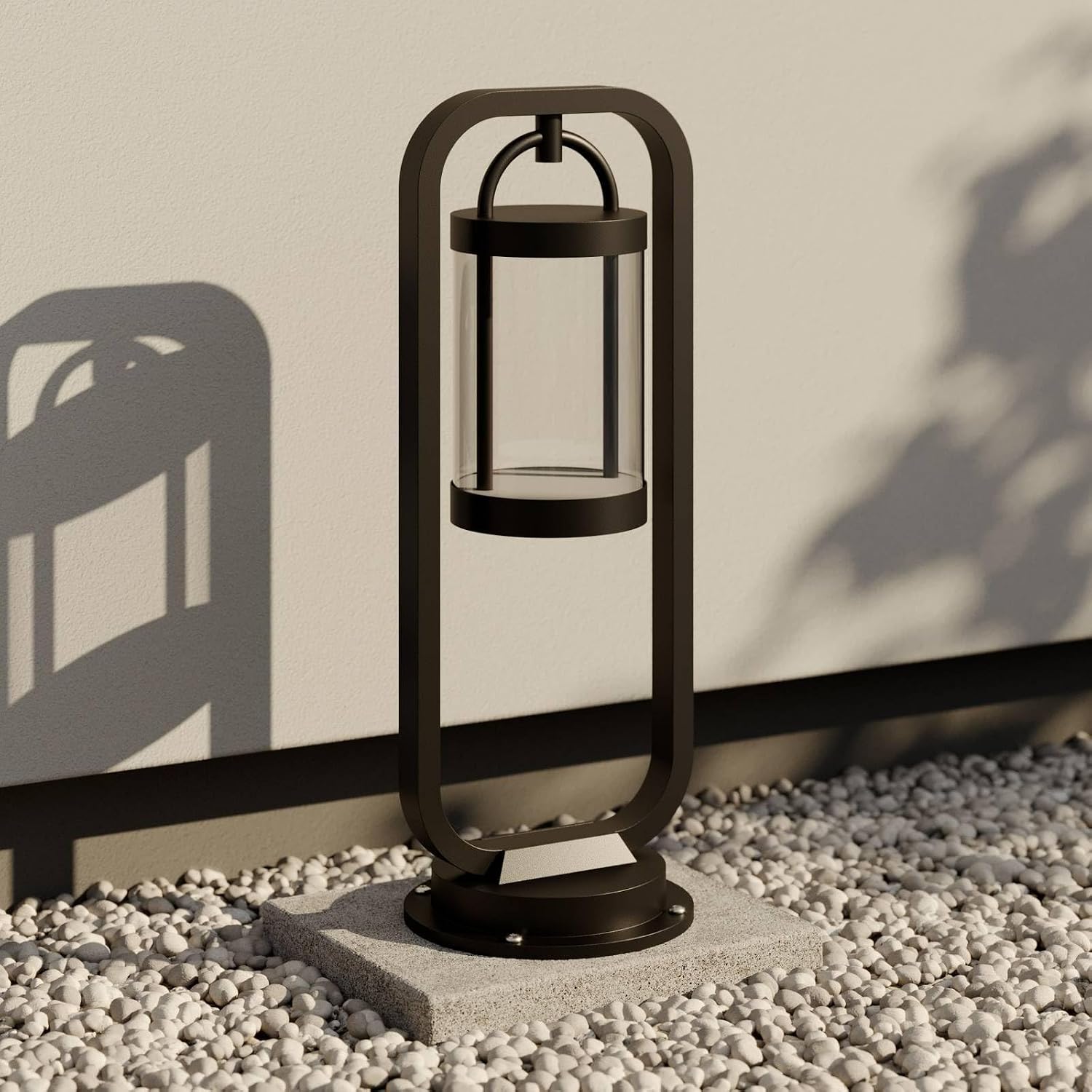

This image shows the Lucande Caius LED Outdoor Path Light, model 9619168, installed in an outdoor setting, illuminating a path.

Негизги өзгөчөлүктөрү:

• Энергияны үнөмдөөчү LED: Utilizes modern LED technology for low power consumption and environmental friendliness.
• Туруктуу курулуш: Made from high-quality aluminum and glass, ensuring longevity.
• Outdoor Rated (IP54): Protected against dust ingress and splashing water from any direction, suitable for various outdoor environments.
• Интегралдык жарык булагы: Comes with a high-quality E27 LED bulb, ready for immediate use.

This image displays two Lucande Caius LED Outdoor Path Lights providing illumination along a garden path, showcasing their aesthetic and functional placement.

3. Коопсуздук нускамалары

WARNING: Electrical installation should only be performed by a qualified electrician in accordance with local wiring regulations and safety standards.

• Ensure the main power supply is switched off before installation, maintenance, or bulb replacement.
• Do not connect the fixture to the power supply if any part is damaged.
• This product is designed for outdoor use (IP54). Ensure all connections are properly sealed to maintain the IP rating.
• Продукцияны эч кандай өзгөртүүгө болбойт. Уруксатсыз өзгөртүүлөр кепилдикти жокко чыгарып, коопсуздукка коркунуч келтириши мүмкүн.
• Таңгактоочу материалдарды балдар жетпеген жерде сактаңыз.

4. Орнотуу жана орнотуу

Follow these steps for proper installation of your Lucande Caius LED Outdoor Path Light.

4.1 Орнотууга чейинки текшерүүлөр

1. Unpack the fixture and check for any damage. Do not install if damaged.
2. Ensure you have all necessary tools and mounting hardware (not always included).
3. Confirm the installation location is suitable and allows for secure mounting and proper wiring.

4.2 Арматураны орнотуу

1. Mark the desired mounting points on the surface where the lamp орнотулат.
2. Зарыл болсо, бекитүүчү бурамаларга ылайыктуу, жетектөөчү тешиктерди бургулаңыз.
3. Secure the base of the lamp to the surface using appropriate screws and anchors. Ensure it is firmly attached.

A view лamp's base, illustrating the secure mounting points and the sturdy construction designed for outdoor installation.

4.3 Электрдик туташуу

1. Ensure the power supply is OFF at the circuit breaker.
2. Connect the electrical wires from your main supply to the fixture's terminal block. Follow the standard wiring color codes (Live, Neutral, Earth).
3. Utilize the provided waterproof connectors to ensure a secure and sealed connection, maintaining the IP54 rating.
4. Carefully tuck all wires into the base of the fixture, ensuring no wires are pinched.

This image shows the waterproof wiring connection point at the base of the lamp, essential for safe outdoor electrical installation.

А деталдуу view of the waterproof connector components used for electrical wiring, ensuring IP54 protection for the Lucande Caius lamp.

5. Иштөө нускамалары

Once properly installed and connected to the main power supply, the Lucande Caius LED Outdoor Path Light operates via your external wall switch or integrated outdoor lighting system. Simply switch on the power to illuminate the lamp.

А деталдуу view of the Lucande Caius LED Outdoor Path Light, highlighting the clear glass cylinder and the integrated LED light source.

6. Техникалык тейлөө

6.1 Тазалоо

• Тазалоодон мурун электр кубаты өчүрүлгөнүн текшериңиз.
• Аппаратты жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды, эриткичтерди же катуу химиялык заттарды колдонбоңуз, анткени алар финишке же айнекке зыян келтириши мүмкүн.
• Regularly clean the glass cylinder to ensure optimal light output.

6.2 Лампаны алмаштыруу

The Lucande Caius uses an E27 LED bulb. While LED bulbs have a long lifespan, if replacement is needed:

1. Ensure the power is OFF and the lamp муздап калды.
2. Carefully remove the glass cylinder or access panel to reach the bulb socket.
3. Unscrew the old E27 bulb and replace it with a new E27 LED bulb of suitable wattage (спецификацияларды караңыз).
4. Reassemble the fixture, ensuring all seals are correctly seated to maintain the IP54 rating.

7. Кыйынчылыктарды

• Жарык күйбөйт:
  • Check the power supply at the circuit breaker.
  • Бардык электр байланыштары коопсуз экенин текшериңиз.
  • Verify the bulb is correctly installed and not faulty.
• Жарык жымыңдайт:
  • Бошогон зым байланыштарын текшериңиз.
  • Ensure the bulb is fully screwed in.
  • Test with a different E27 LED bulb.
• Суу кириши:
  • Ошол замат электр кубатын өчүрүңүз.
  • Inspect all seals and connections for proper seating and damage. Ensure waterproof connectors are correctly used.
  • Эгерде көйгөй чечилбесе, квалификациялуу электрикке кайрылыңыз.

8. Техникалык шарттар

This diagram provides key dimensions of the Lucande Caius LED Outdoor Path Light, including height (600mm), width (230mm), and base diameter (210mm).

The energy efficiency label for the Lucande Caius LED Outdoor Path Light, indicating its energy class.

9. Кепилдик жана колдоо

Lucande products are manufactured to high-quality standards. For warranty information or technical support, please refer to the documentation provided with your purchase or contact Lucande customer service through their official website or your retailer. Please have your model number (9619168) and proof of purchase ready when contacting support.
