FTVOGUE 5A MPPT Solar Charge Controller User Manual

Introduction

This manual provides essential information for the safe and efficient operation of your FTVOGUE 5A MPPT Solar Charge Controller. Please read these instructions carefully before installation and use. This device is designed to optimize solar energy utilization for battery charging.

• MPPT технологиясы: Features Maximum Power Point Tracking for optimal solar energy conversion.
• Киргизүү көлөмүtage: Compatible with DC 8-28V, with low voltage protection starting from 1V.
• Output Voltage: Continuously variable DC 5-26V, suitable for various lithium battery types.
• Чыгаруу кубаттуулугу: Maximum output current of 5A, with LED indicators for operational status.
• Батарея шайкештиги: Supports 6V-16.8V lithium batteries and 7.2V-14.4V lithium-iron batteries (2-4 series).

Продукт бүттүview

The FTVOGUE 5A MPPT Solar Charge Controller is a compact and efficient module designed for solar power systems. It features a robust circuit board with clearly marked terminals for easy connection.

Сүрөт: Жогорку view of the FTVOGUE 5A MPPT Solar Charge Controller, showing the large black heatsink covering most of the components. Input and output terminals are visible on the left side.

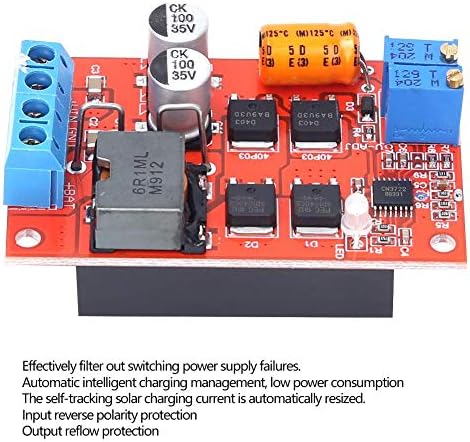

Сүрөт: бурчтуу view of the FTVOGUE 5A MPPT Solar Charge Controller circuit board, revealing various electronic components such as capacitors, inductors, and integrated circuits. Text overlay highlights key features: "Effectively filter out switching power supply failures. Automatic intelligent charging management, low power consumption. The self-tracking solar charging current is automatically resized. Input reverse polarity protection. Output reflow protection."

Сүрөт: жогорудан төмөнгө view of the FTVOGUE 5A MPPT Solar Charge Controller, with a bright sun and solar panel array in the background, illustrating its intended use.

Техникалык шарттар

Орнотуу нускамалары

Follow these steps for proper installation and connection of the solar charge controller:

1. Биринчи коопсуздук: Ensure all power sources are disconnected before making any connections. Wear appropriate safety gear.
2. Терминалдарды аныктоо: Locate the input terminals for the solar panel (+VIN, -VIN) and output terminals for the battery (+BAT, -BAT, GND). Refer to the product images for visual guidance.


   Image: Detailed top-down view of the controller board, clearly showing the screw terminals labeled '+BAT', '-BAT', 'GND', and '+VIN', '-VIN' for battery and input connections respectively.

3. Батареяны туташтыруу: Connect the battery to the +BAT and -BAT terminals. Ensure correct polarity. The controller should be connected to the battery first.
4. Күн панелин туташтыруу: Connect the solar panel to the +VIN and -VIN terminals. Ensure correct polarity. The solar panel should be connected after the battery.
5. Optional Load Connection: If your system includes a direct load from the controller, connect it to the appropriate load terminals (if available and specified in your system design). For this specific model, the output is primarily for battery charging.
6. Байланыштарды текшерүү: Double-check all connections for tightness and correct polarity before applying power.

Иштөө нускамалары

Once properly installed, the FTVOGUE 5A MPPT Solar Charge Controller operates automatically:

• Automatic MPPT: The controller will automatically track the maximum power point of your solar panel to ensure efficient charging of the connected battery.
• LED көрсөткүчтөрү: Observe the LED indicators on the board for operational status. (Specific LED functions are not detailed in the provided data, refer to product packaging if available). Generally, an LED might indicate charging status or power presence.
• Заряддоо цикли: The controller manages the charging process, including overcharge protection and maintaining optimal battery health.
• Output Voltage Тууралоо: Output voltage is continuously variable (DC 5-26V). This adjustment is typically done via a potentiometer on the board. Exercise caution when adjusting to match your battery's voltagд талаптар.

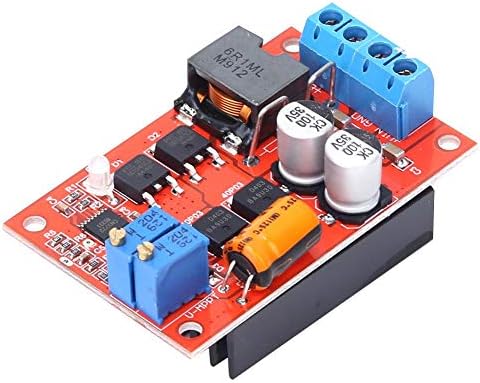

  Сүрөт: бурчтуу view of the controller board, showing two blue potentiometers (variable resistors) labeled "W 204" and "U-MPPT" which are likely used for adjusting output voltage and MPPT settings.

Техникалык тейлөө

The FTVOGUE 5A MPPT Solar Charge Controller requires minimal maintenance. Adhere to the following guidelines:

• Тазалыкты сактоо: Periodically inspect the controller for dust or debris accumulation. Clean with a soft, dry cloth.
• Байланыштарды текшерүү: Ensure all wire connections remain secure and free from corrosion.
• Вентиляция: Ensure adequate airflow around the heatsink to prevent overheating, especially during high current operation.
• Экологиялык шарттар: Operate the controller within its specified temperature and humidity ranges. Avoid exposure to direct moisture or extreme temperatures.

Проблемаларды чечүү

If you encounter issues with your solar charge controller, consider the following common troubleshooting steps:

Note: Some users have reported concerns regarding the MPPT functionality of similar modules. While this controller is designed with MPPT technology, if you suspect it is not performing as expected, ensure all connections are correct and environmental conditions are optimal. If problems persist, contact customer support.

Кепилдик жана колдоо

For warranty information or technical support, please contact FTVOGUE customer service through your purchase platform or the official FTVOGUE website. Please have your model number (FTVOGUEugkrt8v2ea) and purchase details ready when contacting support.
