DinoFire Wireless Controller for Switch/Switch Lite User Manual

Introduction

This manual provides comprehensive instructions for the DinoFire Wireless Controller, designed for use with Nintendo Switch and Switch Lite consoles. Please read this manual carefully before using the product to ensure proper operation and longevity.

Сүрөт 1: Алдыңкы view of the DinoFire Wireless Controller. This image displays the controller's layout, including joysticks, D-pad, action buttons (A, B, X, Y), shoulder buttons, and central function buttons.

Жайгашуу

Шайкештик

The DinoFire Wireless Controller is compatible with Nintendo Switch and Nintendo Switch Lite consoles. It is not compatible with Android/iOS devices, Gear VR Oculus, Super Mario Party, or Just Dance games.

Баштапкы жупташтыруу

To pair the controller with your Nintendo Switch/Switch Lite console:

1. Ensure your Switch console is powered on and updated to the latest system version.
2. HOME Менюсунан тандаңыз Контроллер, анда Катуу/Тартипти өзгөртүү.
3. Press and hold the SYNC button on the top of the controller for a few seconds until the player LEDs begin to flash.
4. Once paired, the player LED(s) on the controller will light up solid.

Note: This controller cannot wake up your Switch Console from sleep mode.

Figure 2: Illustration of the wireless connection capability of the controller, showing ease of connection to Nintendo Switch/Switch Lite via Bluetooth.

Иштөө нускамалары

Vibration Adjustment

The controller features three levels of vibration feedback: strong, medium, and weak. To adjust the vibration intensity:

• басыңыз L, ZL, R, жана ZR buttons simultaneously until the controller vibrates. Each simultaneous press will cycle through the vibration levels.

To turn off vibration on the Switch console:

• багыттоо Системалык орнотуулар > Контроллер жана сенсорлор > Controller Vibration Off.

Figure 3: Visual representation of the three vibration feedback levels (strong, medium, weak) provided by the built-in dual motors, enhancing gaming immersion.

Турбо функциясы

The Turbo function allows for rapid, continuous input of a button press. There are three Turbo speeds: 4 shoots/s, 8 shoots/s, and 16 shoots/s.

Турбону иштетүү:

• басыңыз Турбо баскыч жана кайсынысы болбосун A/B/X/Y buttons simultaneously to enable the Turbo function for that specific button. Repeat the action to disable.

Турбо ылдамдыгын тууралоо:

• To increase speed: Press the Турбо баскычы жана Up direction button simultaneously.
• To decelerate speed: Press the Турбо баскычы жана Төмөн direction button simultaneously.

Figure 4: Diagram illustrating the three available Turbo speeds (4, 8, 16 shoots/s) and how to activate the Turbo function by pressing the Turbo button with an action button.

Motion Control

The controller incorporates a built-in 6-Axis Gyro, enabling sensitive motion control for an immersive gaming experience. This allows for precise and quick responses to movement, direction control, and vision adjustment within compatible games.

5-сүрөт: Мисamples of sensitive motion control in action, demonstrating support for movement, direction control, and vision adjustment within a game environment.

Joystick and Trigger Functionality

The controller features 360-degree rotatable dual joysticks for precise and smooth movement, and responsive triggers designed for faster input, which can be crucial in fast-paced games.

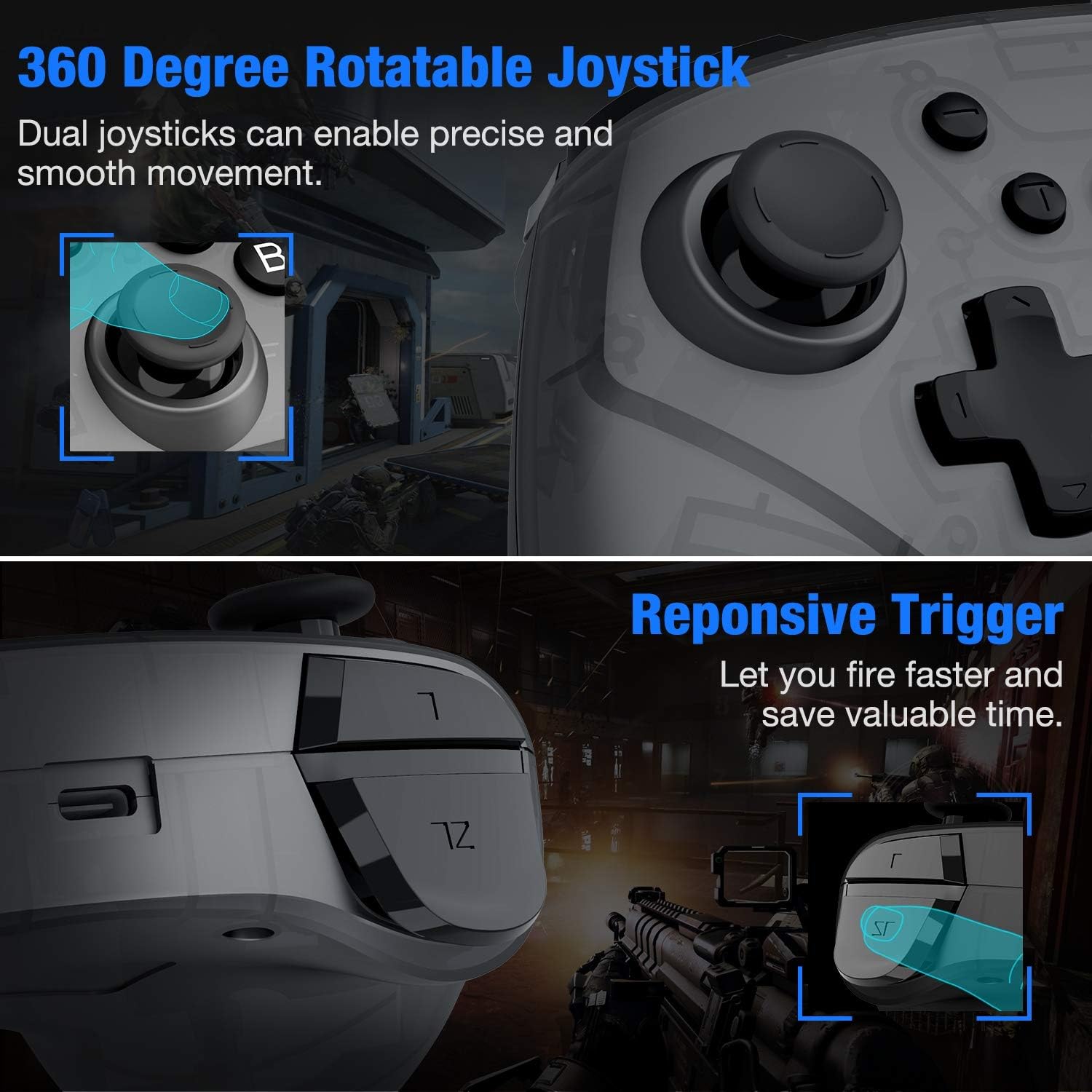

Сүрөт 6: Жакын пландан view highlighting the 360-degree rotatable joysticks for precise control and the responsive triggers for quick action in games.

Батарея жана заряддоо

The controller is equipped with a built-in 600mAh rechargeable battery, providing approximately 15-18 hours of continuous gameplay on a full charge. Charging time is typically 2-3 hours.

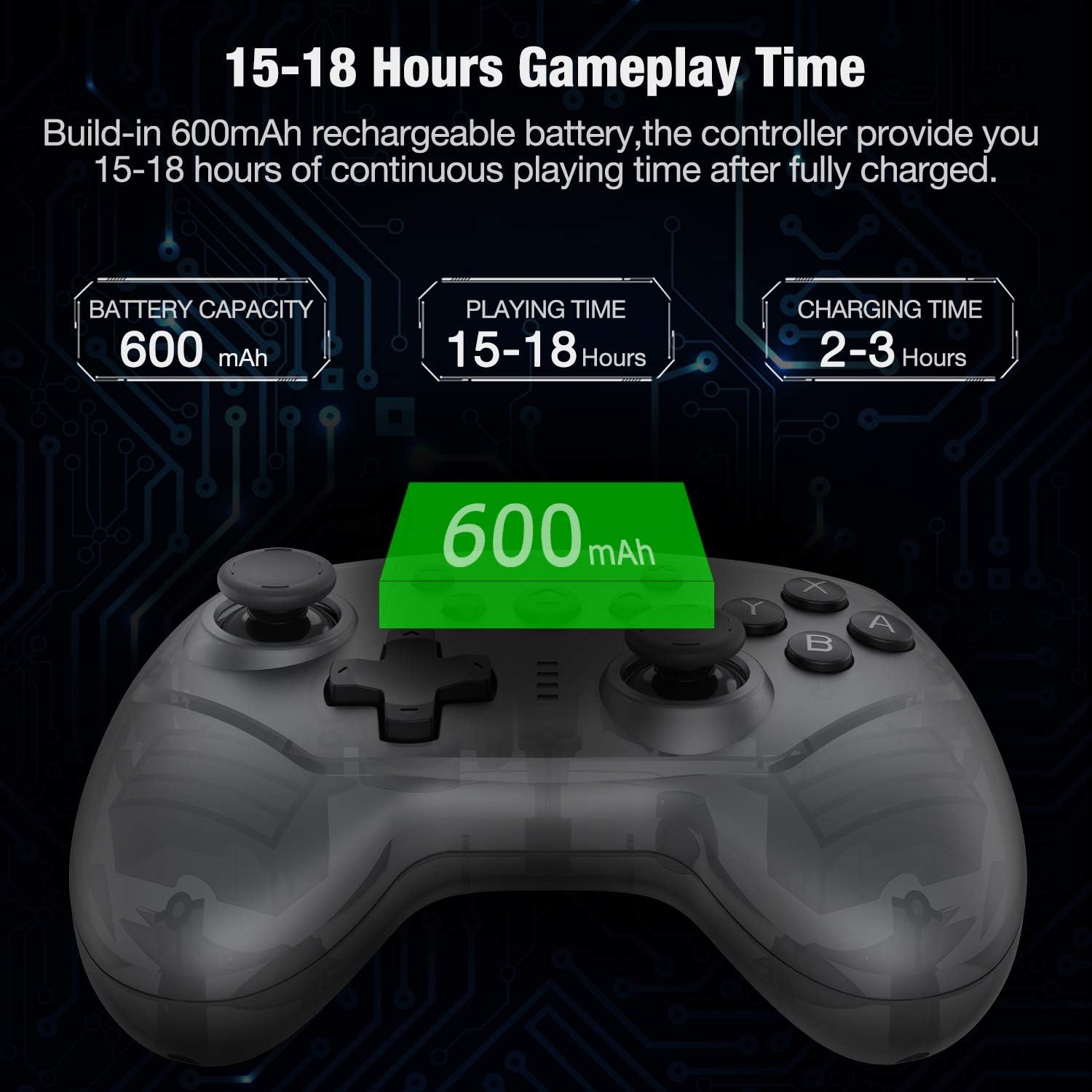

Figure 7: Information graphic detailing the 600mAh battery capacity, 15-18 hours of playing time, and 2-3 hours of charging time for the controller.

Техникалык тейлөө

• Do not drop the controller from a height.
• Please keep the controller in a dry place to prevent damage from moisture.
• Контроллерди өтө жогорку температурага дуушар кылбаңыз.
• Башкаргычты жумшак, кургак чүпүрөк менен тазалаңыз. Катуу химиялык заттарды же абразивдүү материалдарды колдонбоңуз.

Проблемаларды чечүү

Problem: Controller not pairing with the newest Switch console version.

Чечим: If the controller cannot pair with the newest version of the Switch console, please visit the official website to obtain the latest upgrade firmware. The official webсайт болуп саналат www.beboncool.com/upgrade.

Problem: Controller not working with certain games or devices.

Чечим: This controller is specifically designed for Nintendo Switch and Switch Lite. It is not compatible with Android/iOS devices, Gear VR Oculus, Super Mario Party, or Just Dance games. Please ensure you are using it with a compatible system and game.

Problem: Controller cannot wake up the Switch console.

Чечим: This controller does not support the "wake up console" function. You will need to manually wake up your Switch console before connecting the controller.

Техникалык шарттар

Колдоо

For any problems encountered while using the product, please seek assistance through Amazon mail or refer to the email address provided on the support card included with your purchase.

For the latest firmware upgrades, please visit the official webсайт: www.beboncool.com/upgrade.
